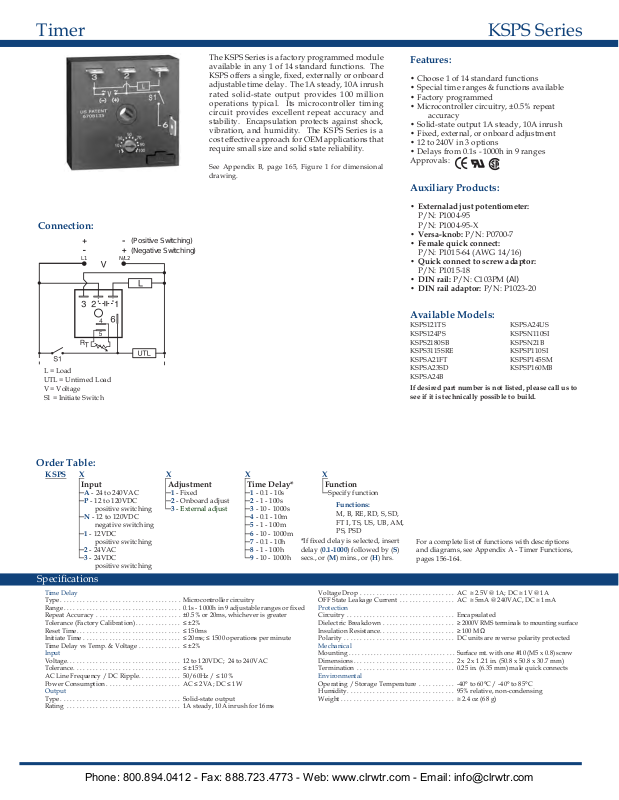

SSAC KSPS Series Data Sheet

KSPS SeriesTimer

Connection:

L1 N/L2

L = Load
UTL = Untimed Load
V = Voltage
S1 = Initiate Switch

(Positive Switching)
(Negative Switching)

The KSPS Series is a factory programmed module
available in any 1 of 14 standard functions. The
KSPS offers a single, xed, externally or onboard
adjustable time delay. The 1A steady, 10A inrush
rated solid-state output provides 100 million

operations typical. Its microcontroller timing

circuit provides excellent repeat accuracy and
stability. Encapsulation protects against shock,
vibration, and humidity. The KSPS Series is a
cost effective approach for OEM applications that
require small size and solid state reliability.

See Appendix B, page 165, Figure 1 for dimensional

drawing.

Features:

• Choose 1 of 14 standard functions

• Special time ranges & functions available

• Factory programmed

• Microcontroller circuitry, ±0.5% repeat

accuracy

• Solid-state output 1A steady, 10A inrush

• Fixed, external, or onboard adjustment

• 12 to 240V in 3 options

• Delays from 0.1s - 1000h in 9 ranges
Approvals:

Auxiliary Products:

• External ad just potentiometer:

P/N: P1004-95
P/N: P1004-95-X

• Versa-knob: P/N: P0700-7

• Female q uick connect:

P/N: P1015-64 (AWG 14/16)

• Quick connect to screw adaptor:

P/N: P1015-18

• DIN rail: P/N: C103PM (Al)

• DIN rail adaptor: P/N: P1023-20

Available Models:

KSPS121TS

KSPS124PS
KSPS2180SB
KSPS3115SRE

KSPSA21FT

KSPSA23SD
KSPSA24B

If desired part number is not listed, please call us to
see if it is technically possible to build.

KSPSA24US
KSPSN110SI

KSPSN21B

KSPSP110SI
KSPSP145SM
KSPSP160MB

Order Table:

KSPS

X
Input

─A - 24 to 240VAC
─P - 12 to 120VDC

positive switching

─N - 12 to 120VDC

negative switching

─1 - 12VDC

positive switching

─2 - 24VAC
─3 - 24VDC

positive switching

X

Adjustment

─1 - Fixed
─2 - Onboard adjust
─3 - External adjust

X

Time Delay*

─1 - 0.1 - 10s
─2 - 1 - 100s
─3 - 10 - 1000s
─4 - 0.1 - 10m
─5 - 1 - 100m
─6 - 10 - 1000m
─7 - 0.1 - 10h
─8 - 1 - 100h
─9 - 10 - 1000h

Specications

Time Delay

Type .....................................Microcontroller circuitry

Range .................................... 0.1s - 1000h in 9 adjustable ranges or xed

Repeat Accuracy ..........................±0.5% or 20ms, whichever is greater

Tolerance (Factory Calibration) .............. ≤ ±2%

Reset Time ................................ ≤ 150ms

Initiate Time .............................. ≤ 20ms; ≤ 1500 operations per minute

Time Delay vs Temp. & Voltage ............. ≤ ±2%

Input

Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 to 120VDC; 24 to 240VAC

Tolerance ................................. ≤ ±15%

AC Line Frequency / DC Ripple ............. 50/60Hz / ≤ 10%

Power Consumption .......................AC ≤ 2VA; DC ≤ 1W

Output

Type .....................................Solid-state output

Rating ................................... 1A steady, 10A inrush for 16ms

X

Function

─Specify function

Functions:

M, B, RE, RD, S, SD,
FT I, TS, US, UB, AM,

*If xed delay is selected, insert
delay (0.1-1000) followed by (S)
secs., or (M) mins., or (H) hrs.

PS, PSD

For a complete list of functions with descriptions
and diagrams, see Appendix A - Timer Functions,
pages 156-164.

Voltage Drop .............................AC ≅ 2.5V @ 1A; DC ≅ 1V @ 1A

OFF State Leakage Current .................AC ≅ 5mA @ 240VAC, DC ≅ 1mA

Protection

Circuitry .................................Encapsulated

Dielectric Breakdown ......................

Insulation Resistance ....................... ≥ 100 MΩ

Polarity ..................................DC units are reverse polarity protected

Mechanical

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions ............................... 2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7 mm)

Termination ..............................0.25 in. (6.35 mm) male quick connects

Environmental

Operating / Storage Temperature ...........-40° to 60°C / -40° to 85°C

Humidity ................................. 95% relative, non-condensing

Weight ...................................≅ 2.4 oz (68 g)

≥ 2000V RMS terminals to mounting surface

Surface mt. with one #10 (M5 x 0.8) screw
