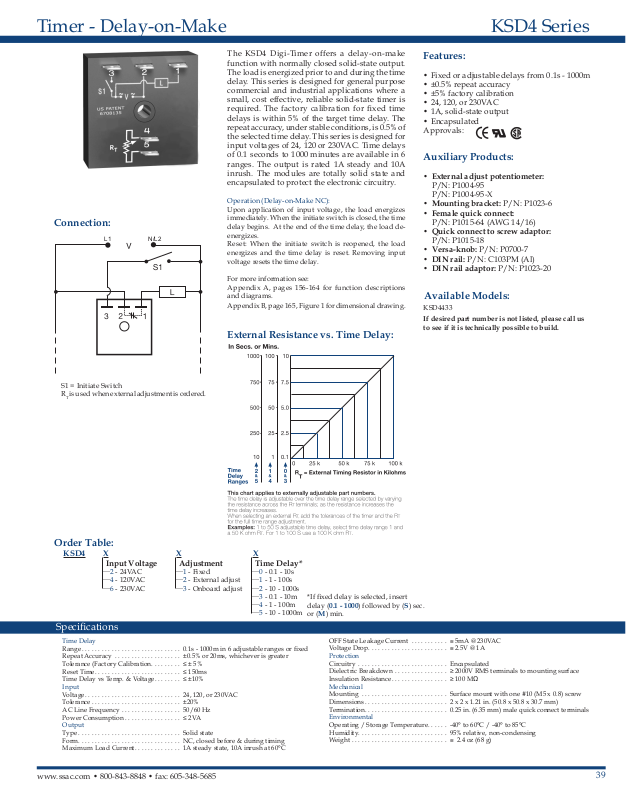

SSAC KSD4 Series Data Sheet
KSD4 SeriesTimer - Delay-on-Make
Connection:
L1 N/L2
The KSD4 Digi-Timer offers a delay-on-make
function with normally closed solid-state output.
The load is energized prior to and during the time
delay. This series is designed for general purpose
commercial and industrial applications where a
small, cost effective, reliable solid-state timer is
required. The factory calibration for xed time
delays is within 5% of the target time delay. The
repeat accuracy, under stable conditions, is 0.5% of
the selected time delay. This series is designed for
input voltages of 24, 120 or 230VAC. Time delays
of 0.1 seconds to 1000 minutes are available in 6
ranges. The output is rated 1A steady and 10A
inrush. The modules are totally solid state and
encapsulated to protect the electronic circuitry.
Operation (Delay-on-Make NC):
Upon application of input voltage, the load energizes
immediately. When the initiate switch is closed, the time
delay begins. At the end of the time delay, the load de-
energizes.
Reset: When the initiate switch is reopened, the load
energizes and the time delay is reset. Removing input
voltage resets the time delay.
For more information see:
Appendix A, pages 156-164 for function descriptions
and diagrams.
Appendix B, page 165, Figure 1 for dimensional drawing.
External Resistance vs. Time Delay:
Features:
• Fixed or adjustable delays from 0.1s - 1000m
• ±0.5% repeat accuracy
• ±5% factory calibration
• 24, 120, or 230VAC
• 1A, solid-state output
• Encapsulated
Approvals:
Auxiliary Products:
• External adjust potentiometer:
P / N: P 10 0 4- 9 5
P/N: P1004-95-X
• Mounting bracket: P/N: P1023-6
• Female quick connect:
P / N : P1 0 1 5 - 6 4 (A W G 1 4 / 16 )
• Quick connect to screw adaptor:
P/N: P1015-18
• Versa-knob: P/N: P0700-7
• DIN rail: P/N: C103PM (Al)
• DIN rail adaptor: P/N: P1023-20
Available Models:
KSD4433
If desired part number is not listed, please call us
to see if it is technically possible to build.
S1 = Initiate Switch
RT is used when external adjustment is ordered.
Order Table:
KSD4
X
Input Voltage
─2 - 24VAC
─4 - 120VAC
─6 - 230VAC
X
Adjustment
─1 - Fixed
─2 - External adjust
─3 - Onboard adjust
X
Time Delay*
─0 - 0.1 - 10s
─1 - 1 - 100s
─2 - 10 - 1000s
─3 - 0.1 - 10m
─4 - 1 - 100m
─5 - 10 - 1000m
Specications
Time Delay
Range .............................. 0.1s - 1000m in 6 adjustable ranges or xed
Repeat Accuracy .................... ±0.5% or 20ms, whichever is greater
Tolerance (Factory Calibration ......... ≤ ± 5%
Reset Time .......................... ≤ 150ms
Time Delay vs Temp. & Voltage ........ ≤ ±10%
Input
Voltage ............................. 24, 120, or 230VAC
Tolerance ........................... ±20%
AC Line Frequency .................. 50/60 Hz
Power Consumption ................. ≤ 2VA
Output
Type ............................... Solid state
Form ............................... NC, closed before & during timing
Maximum Load Current .............. 1A steady state, 10A inrush at 60°C
*If xed delay is selected, insert
delay (0.1 - 1000) followed by (S) sec.
or (M) min.
OFF State Leakage Current ........... ≅ 5mA @ 230VAC
Voltage Drop ........................ ≅ 2.5V @ 1A
Protection
Circuitry ........................... Encapsulated
Dielectric Breakdown ................ ≥ 2000V RMS terminals to mounting surface
Insulation Resistance ................. ≥ 100 MΩ
Mechanical
Mounting .......................... Surface mount with one #10 (M5 x 0.8) screw
Dimensions ......................... 2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7 mm)
Termination ......................... 0.25 in. (6.35 mm) male quick connect terminals
Environmental
Operating / Storage Temperature ...... -40° to 60°C / -40° to 85°C
Humidity ........................... 95% relative, non-condensing
Weight ............................. ≅ 2.4 oz (68 g)
