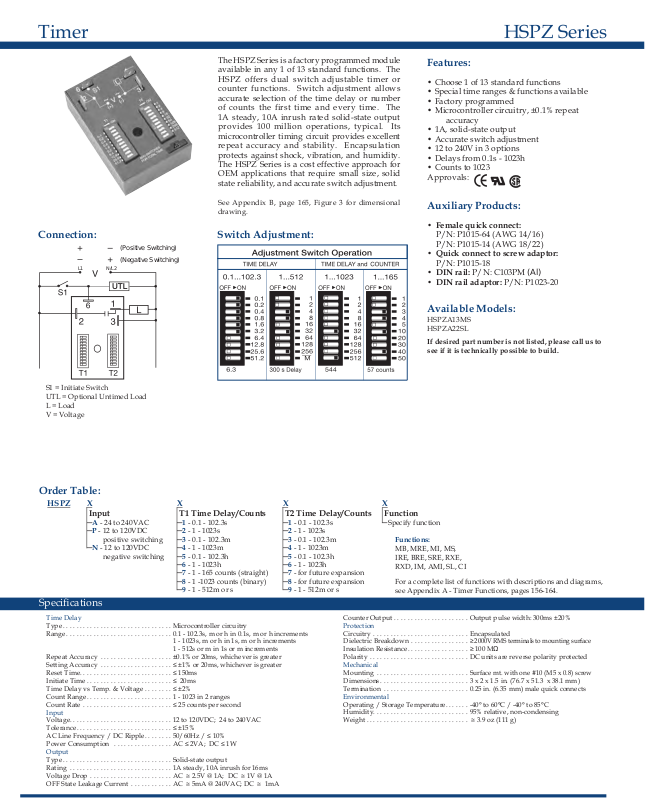

SSAC HSPZ Series Data Sheet
HSPZ SeriesTimer
Connection:
L1 N/L2
(Positive Switching)
(Negative Switching)
The HSPZ Series is a factory programmed module
available in any 1 of 13 standard functions. The
HSPZ offers dual switch adjustable timer or
counter functions. Switch adjustment allows
accurate selection of the time delay or number
of counts the first time and every time. The
1A steady, 10A inrush rated solid-state output
provides 100 million operations, typical. Its
microcontroller timing circuit provides excellent
repeat accuracy and stability. Encapsulation
protects against shock, vibration, and humidity.
The HSPZ Series is a cost effective approach for
OEM applications that require small size, solid
state reliability, and accurate switch adjustment.
See Appendix B, page 165, Figure 3 for dimensional
drawing.
Switch Adjustment:
Features:
• Choose 1 of 13 standard functions
• Special time ranges & functions available
• Factory programmed
• Microcontroller circuitry, ±0.1% repeat
accuracy
• 1A, solid-state output
• Accurate switch adjustment
• 12 to 240V in 3 options
• Delays from 0.1s - 1023h
• Counts to 1023
Approvals:
Auxiliary Products:
• Female q uick connect:
P/N: P1015-64 (AWG 14/16)
P/N: P1015-14 (AWG 18/22)
• Quick connect to screw adaptor:
P/N: P1015-18
• DIN rail: P/N: C103PM (Al)
• DIN rail adaptor: P/N: P1023-20
Available Models:
HSPZA13MS
HSPZA22SL
If desired part number is not listed, please call us to
see if it is technically possible to build.
S1 = Initiate Switch
UTL = Optional Untimed Load
L = Load
V = Voltage
Order Table:
HSPZ
X
Input
─A - 24 to 240VAC
─P - 12 to 120VDC
positive switching
─N - 12 to 120VDC
negative switching
X
T1 Time Delay/Counts
─1 - 0.1 - 102.3s
─2 - 1 - 1023s
─3 - 0.1 - 102.3m
─4 - 1 - 1023m
─5 - 0.1 - 102.3h
─6 - 1 - 1023h
─7 - 1 - 165 counts (straight)
─8 - 1 -1023 counts (binary)
─9 - 1 - 512m or s
X
T2 Time Delay/Counts
─1 - 0.1 - 102.3s
─2 - 1 - 1023s
─3 - 0.1 - 102.3m
─4 - 1 - 1023m
─5 - 0.1 - 102.3h
─6 - 1 - 1023h
─7 - for future expansion
─8 - for future expansion
─9 - 1 - 512m or s
Specications
Time Delay
Type ................................Microcontroller circuitry
Range ...............................0.1 - 102.3s, m or h in 0.1s, m or h increments
1 - 1023s, m or h in 1s, m or h increments
1 - 512s or m in 1s or m increments
Repeat Accuracy .....................±0.1% or 20ms, whichever is greater
Setting Accuracy .....................≤ ±1% or 20ms, whichever is greater
Reset Time ...........................≤ 150ms
Initiate Time .........................≤ 20ms
Time Delay vs Temp. & Voltage ........≤ ±2%
Count Range ......................... 1 - 1023 in 2 ranges
Count Rate ..........................≤ 25 counts per second
Input
Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 to 120VDC; 24 to 240VAC
Tolerance ............................≤ ±15%
AC Line Frequency / DC Ripple ........50/60Hz / ≤ 10%
Power Consumption .................AC ≤ 2VA; DC ≤ 1W
Output
Type ................................Solid-state output
Rating ..............................1A steady, 10A inrush for 16ms
Voltage Drop ........................AC ≅ 2.5V @ 1A; DC ≅ 1V @ 1A
OFF State Leakage Current ............AC ≅ 5mA @ 240VAC; DC ≅ 1mA
X
Function
─Specify function
Functions:
MB, MRE, MI, MS,
IRE, BRE, SRE, RXE,
RXD, IM, AMI, SL, CI
For a complete list of functions with descriptions and diagrams,
see Appendix A - Timer Functions, pages 156-164.
Counter Output ......................Output pulse width: 300ms ±20%
Protection
Circuitry ............................Encapsulated
Dielectric Breakdown .................
Insulation Resistance ..................≥ 100 MΩ
Polarity .............................DC units are reverse polarity protected
Mechanical
Mounting ...........................
Dimensions ..........................3 x 2 x 1.5 in. (76.7 x 51.3 x 38.1 mm)
Termination .........................0.25 in. (6.35 mm) male quick connects
Environmental
Operating / Storage Temperature. ......-40° to 60°C / -40° to 85°C
Humidity ............................95% relative, non-condensing
Weight .............................. ≅ 3.9 oz (111 g)
≥ 2000V RMS terminals to mounting surface
Surface mt. with one #10 (M5 x 0.8) screw
