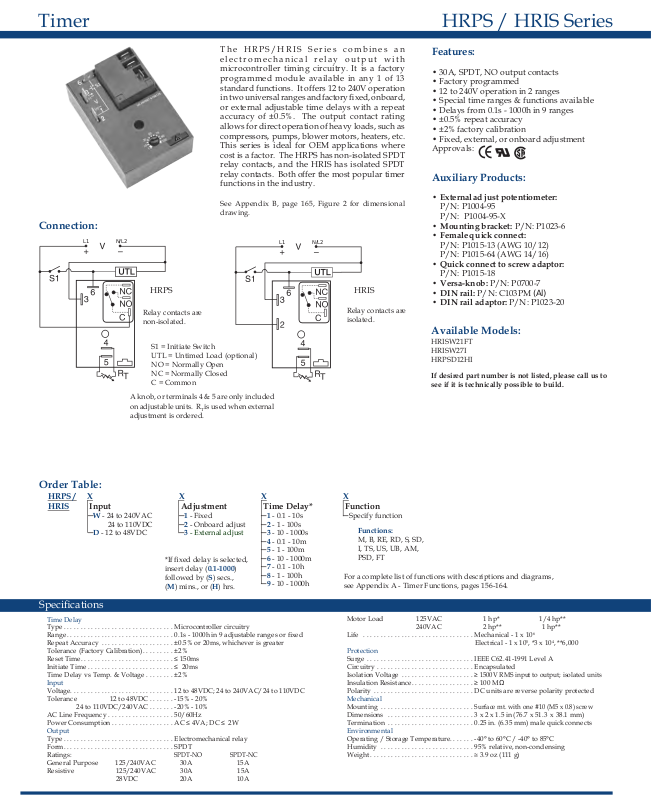

SSAC HRPS Series, HRIS Series Data Sheet
HRPS / HRIS SeriesTimer
Connection:
L1 N/L2
The HRPS/HRIS Series combines an
electromechanical relay output with
microcontroller timing circuitry. It is a factory
programmed module available in any 1 of 13
standard functions. It offers 12 to 240V operation
in two universal ranges and factory xed, onboard,
or external adjustable time delays with a repeat
accuracy of ±0.5%. The output contact rating
allows for direct operation of heavy loads, such as
compressors, pumps, blower motors, heaters, etc.
This series is ideal for OEM applications where
cost is a factor. The HRPS has non-isolated SPDT
relay contacts, and the HRIS has isolated SPDT
relay contacts. Both offer the most popular timer
functions in the industry.
See Appendix B, page 165, Figure 2 for dimensional
drawing.
HRPS
Relay contacts are
non-isolated.
S1 = Initiate Switch
UTL = Untimed Load (optional)
NO = Normally Open
NC = Normally Closed
C = Common
A knob, or terminals 4 & 5 are only included
on adjustable units. R
adjustment is ordered.
is used when external
T
L1 N/L2
HRIS
Relay contacts are
isolated.
Features:
• 30A, SPDT, NO output contacts
• Factory programmed
• 12 to 240V operation in 2 ranges
• Special time ranges & functions available
• Delays from 0.1s - 1000h in 9 ranges
• ±0.5% repeat accuracy
• ±2% factory calibration
• Fixed, external, or onboard adjustment
Approvals:
Auxiliary Products:
• External ad just potentiometer:
P/N: P1004-95
P/N: P1004-95-X
• Mounting bracket: P/N: P1023-6
• Female q uick connect:
P/N: P1015-13 (AWG 10/12)
P/N: P1015-64 (AWG 14/16)
• Quick connect to screw adaptor:
P/N: P1015-18
• Versa-knob: P/N: P0700-7
• DIN rail: P/N: C103PM (Al)
• DIN rail adaptor: P/N: P1023-20
Available Models:
HRISW21FT
HRISW27I
HRPSD12HI
If desired part number is not listed, please call us to
see if it is technically possible to build.
Order Table:
HRPS /
HRIS
X
Input
─W - 24 to 240VAC
24 to 110VDC
─D - 12 to 48VDC
X
Adjustment
─1 - Fixed
─2 - Onboard adjust
─3 - External adjust
*If xed delay is selected,
insert delay (0.1-1000)
followed by (S) secs.,
(M) mins., or (H) hrs.
X
Time Delay*
─1 - 0.1 - 10s
─2 - 1 - 100s
─3 - 10 - 1000s
─4 - 0.1 - 10m
─5 - 1 - 100m
─6 - 10 - 1000m
─7 - 0.1 - 10h
─8 - 1 - 100h
─9 - 10 - 1000h
Specications
Time Delay
Type ................................Microcontroller circuitry
Range ...............................0.1s - 1000h in 9 adjustable ranges or xed
Repeat Accuracy .....................±0.5% or 20ms, whichever is greater
Tolerance (Factory Calibration) .........±2%
Reset Time ...........................≤ 150ms
Initiate Time .........................≤ 20ms
Time Delay vs Temp. & Voltage ........±2%
Input
Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 to 48VDC; 24 to 240VAC/24 to 110VDC
Tolerance 12 to 48VDC .......-15% - 20%
24 to 110VDC/240VAC .......-20% - 10%
AC Line Frequency ...................50/60Hz
Power Consumption ..................AC ≤ 4VA; DC ≤ 2W
Output
Type ................................Electromechanical relay
Form ................................SPDT
Ratings:
General Purpose 125/240VAC 30A 15A
Resistive 125/240VAC 30A 15A
28VDC 20A 10A
SPDT-NO SPDT-NC
X
Function
─Specify function
Functions:
M, B, RE, RD, S, SD,
I, TS, US, UB, AM,
PSD, FT
For a complete list of functions with descriptions and diagrams,
see Appendix A - Timer Functions, pages 156-164.
Motor Load 125VAC 1 hp* 1/4 hp**
240VAC 2 hp** 1 hp**
Life ................................Mechanical - 1 x 10
Electrical - 1 x 10
Protection
Surge ............................... IEEE C62.41-1991 Level A
Circuitry ............................Encapsulated
Isolation Voltage .....................
Insulation Resistance ..................≥ 100 MΩ
Polarity .............................DC units are reverse polarity protected
Mechanical
Mounting ...........................
Dimensions .........................3 x 2 x 1.5 in (76.7 x 51.3 x 38.1 mm)
Termination .........................0.25 in. (6.35 mm) male quick connects
Environmental
Operating / Storage Temperature. ......-40° to 60°C / -40° to 85°C
Humidity ...........................95% relative, non-condensing
Weight ..............................≅ 3.9 oz (111 g)
6
5
, *3 x 104, **6,000
≥ 1500V RMS input to output; isolated units
Surface mt. with one #10 (M5 x 0.8) screw
