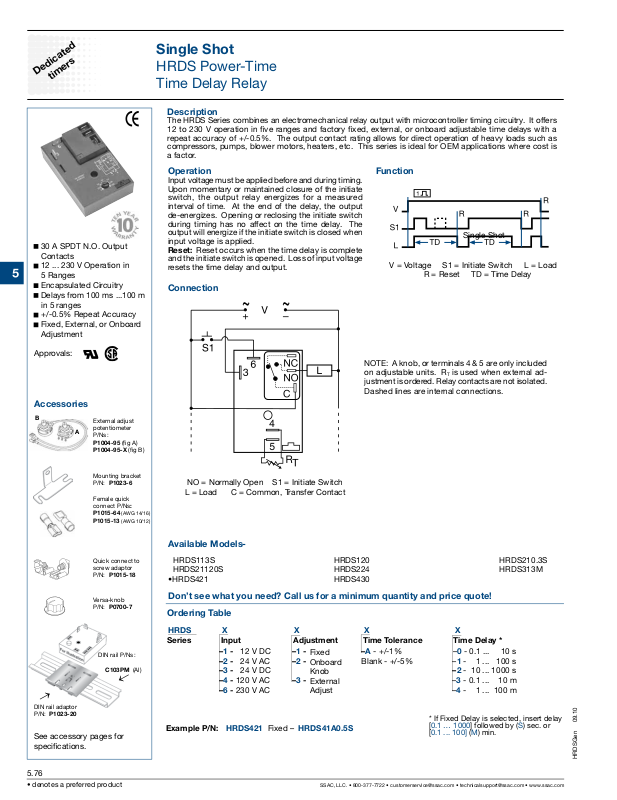

Page 1
Dedicated
timers
30 A SPDT N.O. Output
Contacts
12 ... 230 V Operation in
5 Ranges
Encapsulated Circuitry
Delays from 100 ms ...100 m
in 5 ranges
+/-0.5% Repeat Accuracy
Fixed, External, or Onboard
Adjustment
Approvals:
Accessories
B
External adjust
potentiometer
A
P/Ns:
P1004-95 (g A)
P1004-95-X (g B)
Single Shot
HRDS Power-Time
Time Delay Relay
Description
The HRDS Series combines an electromechanical relay output with microcontroller timing circuitry. It offers
12 to 230 V operation in ve ranges and factory xed, external, or onboard adjustable time delays with a
repeat accuracy of +/-0.5%. The output contact rating allows for direct operation of heavy loads such as
compressors, pumps, blower motors, heaters, etc. This series is ideal for OEM applications where cost is
a factor.
Operation
Input voltage must be applied before and during timing.
Upon momentary or maintained closure of the initiate
switch, the output relay energizes for a measured
interval of time. At the end of the delay, the output
de-energizes. Opening or reclosing the initiate switch
during timing has no affect on the time delay. The
output will energize if the initiate switch is closed when
input voltage is applied.
Reset: Reset occurs when the time delay is complete
and the initiate switch is opened. Loss of input voltage
resets the time delay and output.
Connection
Function
Single Shot
V = Voltage S1 = Initiate Switch L = Load
R = Reset TD = Time Delay
NOTE: A knob, or terminals 4 & 5 are only included
on adjustable units. R
justment is ordered. Relay contacts are not isolated.
Dashed lines are internal connections.
is used when external ad-
T
Mounting bracket
P/N: P1023-6
Female quick
connect P/Ns:
P1015-64
(AWG 14/16)
P1015-13 (AWG 10/12)
Quick connect to
screw adaptor
P/N: P1015-18
Versa-knob
P/N: P0700-7
NO = Normally Open S1 = Initiate Switch
L = Load C = Common, Transfer Contact
Available Models-
HRDS113S HRDS120 HRDS210.3S
HRDS21120S HRDS224 HRDS313M
•HRDS421 HRDS430
Don’t see what you need? Call us for a minimum quantity and price quote!
Ordering Table
HRDS X X X X
Series Input Adjustment Time Tolerance Time Delay *
DIN rail P/Ns:
C103PM (Al)
→
DIN rail adaptor
P/N: P1023-20
See accessory pages for
←
–1 - 12 V DC –1 - –A - +/-1% –0 - 0.1 ... 10 s
–2 - 24 V AC –2 - Blank - +/-5% –1 - 1 ... 100 s
–3 - 24 V DC –2 - 10 ... 1000 s
–4 - 120 V AC –3 - –3 - 0.1 ... 10 m
–6 - 230 V AC –4 - 1 ... 100 m
Example P/N:
HRDS421 Fixed – HRDS41A0.5S
Fixed
Onboard
Knob
External
Adjust
* If Fixed Delay is selected, insert delay
[0.1 … 1000] followed by (S) sec. or
[0.1 ... 100] (M) min.
specications.
5.76
SSAC, LLC. • 800-377-7722 • customerservice@ssac.com • technicalsupport@ssac.com • www.ssac.com
• denotes a preferred product
HRDSGen 09.10
Page 2
Single Shot
HRDS Power-Time
Time Delay Relay
Technical Data
Time Delay
Type Microcontroller circuitry
Range 100 ms ... 100 m in 5 adjustable ranges or xed
Repeat Accuracy +/-0.5% or 20 ms, whichever is greater
Tolerance (Factory Calibration) +/-1%, +/-5%
Reset Time ≤ 150 ms
Initiate Time ≤ 20 ms
Time Delay vs. Temperature & Voltage +/-2%
Input
Voltage 12 or 24 V DC; 24, 120, or 230 V AC
Tolerance 12 V DC & 24 V DC -15% ... +20%
24 ... 230 V AC -20% ... +10%
Line Frequency 50 ... 60 Hz
Power Consumption AC ≤ 4 VA; DC ≤ 2 W
Output
Type Electromechanical relay
Form SPDT, non-isolated
Ratings: SPDT-N.O. SPDT-N.C.
General Purpose 125/240 V AC 30 A 15 A
Resistive 125/240 V AC 30 A 15 A
28 V DC 20 A 10 A
Motor Load 125 V AC 1 hp* 1/4 hp**
240 V AC 2 hp** 1 hp**
Life Mechanical -- 1 x 106; Electrical -- 1 x 105, *3 x 104, **6,000
Protection
Surge IEEE C62.41-1991 Level A
Circuitry Encapsulated
Dielectric Breakdown ≥ 2000 V RMS terminals to mounting surface
Insulation Resistance ≥ 100 MΩ
Polarity DC units are reverse polarity protected
Mechanical
Mounting Surface mount with one #10 (M5 x 0.8) screw
Package 3 x 2 x 1.5 in (76.7 x 51.3 x 38.1mm)
Termination 0.25 in. (6.35 mm) male quick connect terminals
Environmental
Operating/Storage Temperature -40°C ... +60°C/-40°C ... +85°C
Humidity 95% relative, non-condensing
Weight ≅ 3.9 oz (111 g)
Dedicated
timers
Mechanical ViewExternal Resistance vs Time Delay
Onboard Adjust Detail Replaces
Terminals if Ordered
HRDSGen 09.10
5.77
SSAC, LLC. • 800-377-7722 • customerservice@ssac.com • technicalsupport@ssac.com • www.ssac.com
Inches (Millimeters)
• denotes a preferred product
