SSAC HRD3 Power-Time Data Sheet

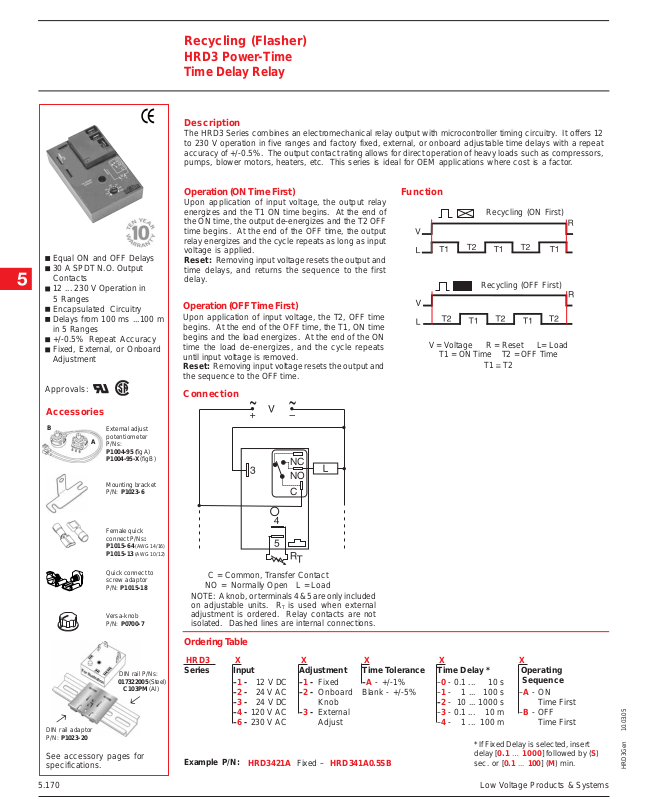

Recycling (Flasher)

HRD3 Power-Time
Time Delay Relay

Description

The HRD3 Series combines an electromechanical relay output with microcontroller timing circuitry. It offers 12
to 230 V operation in five ranges and factory fixed, external, or onboard adjustable time delays with a repeat
accuracy of +/-0.5%. The output contact rating allows for direct operation of heavy loads such as compressors,
pumps, blower motors, heaters, etc. This series is ideal for OEM applications where cost is a factor.

Equal ON and OFF Delays

30 A SPDT N.O. Output
Contacts
12 ... 230 V Operation in

5 Ranges

Encapsulated Circuitry
Delays from 100 ms ...100 m

in 5 Ranges

+/-0.5% Repeat Accuracy
Fixed, External, or Onboard

Adjustment

Approvals:

Accessories

B

External adjust
potentiometer

A

P/Ns:

P1004-95 (fig A)
P1004-95-X (fig B)

Mounting bracket
P/N: P1023-6

Operation (ON Time First)

Upon application of input voltage, the output relay
energizes and the T1 ON time begins. At the end of
the ON time, the output de-energizes and the T2 OFF
time begins. At the end of the OFF time, the output
relay energizes and the cycle repeats as long as input
voltage is applied.
Reset: Removing input voltage resets the output and
time delays, and returns the sequence to the first
delay.

Operation (OFF Time First)

Upon application of input voltage, the T2, OFF time
begins. At the end of the OFF time, the T1, ON time
begins and the load energizes. At the end of the ON
time the load de-energizes, and the cycle repeats
until input voltage is removed.
Reset: Removing input voltage resets the output and
the sequence to the OFF time.

Connection

NC
NO

C

Function

Recycling (ON First)

Recycling (OFF First)

V = Voltage R = Reset L= Load

T1 = ON Time T2 = OFF Time

T1 ≅ T2

Female quick
connect P/Ns:

P1015-64

(AWG 14/16)

P1015-13

(AWG 10/12)

Quick connect to
screw adaptor
P/N: P1015-18

Versa-knob
P/N: P0700-7

DIN rail P/Ns:

017322005 (Steel)
C103PM (Al)

←

→

DIN rail adaptor
P/N: P1023-20

See accessory pages for
specifications.

C = Common, Transfer Contact
NO = Normally Open L = Load

NOTE: A knob, or terminals 4 & 5 are only included
on adjustable units. RT is used when external
adjustment is ordered. Relay contacts are not
isolated. Dashed lines are internal connections.

Ordering T able

HRD3 X X X X X

Series Input Adjustment Time T olerance Time Delay * Operating

Fixed
Onboard
Knob
External
Adjust

Example P/N:

–1 - 12 V DC –1 -–A - +/-1% –0 - 0.1 ... 10 s
–2 - 24 V AC –2 - Blank - +/-5% –1 - 1 ... 100 s –A - ON
–3 - 24 V DC –2 - 10 ... 1000 s Time First
–4 - 120 V AC –3 - –3 - 0.1 ... 10 m –B - OFF
–6 - 230 V AC –4 - 1 ... 100 m Time First

HRD3421A Fixed – HRD341A0.5SB

Sequence

* If Fixed Delay is selected, insert
delay [0.1 … 1000] followed by (S)
sec. or [0.1 ... 100] (M) min.

Low Voltage Products & Systems5.170

HRD3Gen 10.03.05

Recycling (Flasher)

HRD3 Power -Time
Time Delay Relay

Technical Data

Time Delay

Type Microcontroller circuitry
Range 100 ms ... 100 m in 5 adjustable ranges or fixed
Repeat Accuracy +/-0.5 % or 20 ms, whichever is greater
Tolerance (Factory Calibration) +/-1%, +/- 5%
Reset Time ≤ 150 ms
Time Delay vs. Temperature & Voltage +/- 2%

Input

Voltage 12 or 24 V DC; 24, 120, or 230 V AC
Tolerance 12 V DC & 24 V DC -15% ... +20%
24 ... 230 V AC -20% ... +10%
Line Frequency 50 ... 60 Hz
Power Consumption AC ≤ 4 VA; DC ≤ 2 W

Output

Type Electromechanical relay
Form SPDT, non-isolated
Ratings: SPDT-N.O. SPDT-N.C.
General Purpose 125/240 V AC 30 A 15 A
Resistive 125/240 V AC 30 A 15 A
28 V DC 20 A 10 A
Motor Load 125 V AC 1 hp* 1/4 hp**
240 V AC 2 hp** 1 hp**
Life Mechanical -- 1 x 10

Protection

Surge IEEE C62.41-1991 Level A
Circuitry Encapsulated
Dielectric Breakdown ≥ 2000 V RMS terminals to mounting surface
Insulation Resistance ≥ 100 MΩ
Polarity DC units are reverse polarity protected

Mechanical

Mounting Surface mount with one #10 (M5 x 0.8) screw
Package 3 x 2 x 1.5 in. (76.7 x 51.3 x 38.1 mm)
Termination 0.25 in. (6.35 mm) male quick connect terminals

Environmental

Operating / Storage Temperature -40°C ... +60°C / -40°C ... +85°C
Humidity 95% relative, non-condensing
Weight ≅ 3.9 oz (111 g)

External Resistance vs Time Delay

6

; Electrical -- 1 x 105, *3 x 104, **6,000

Mechanical View

Onboard Adjust Detail Replaces
T erminals if Or der ed

HRD3Gen 10.03.05

Low Voltage Products & Systems 5.171

Inches (Millimeters)
