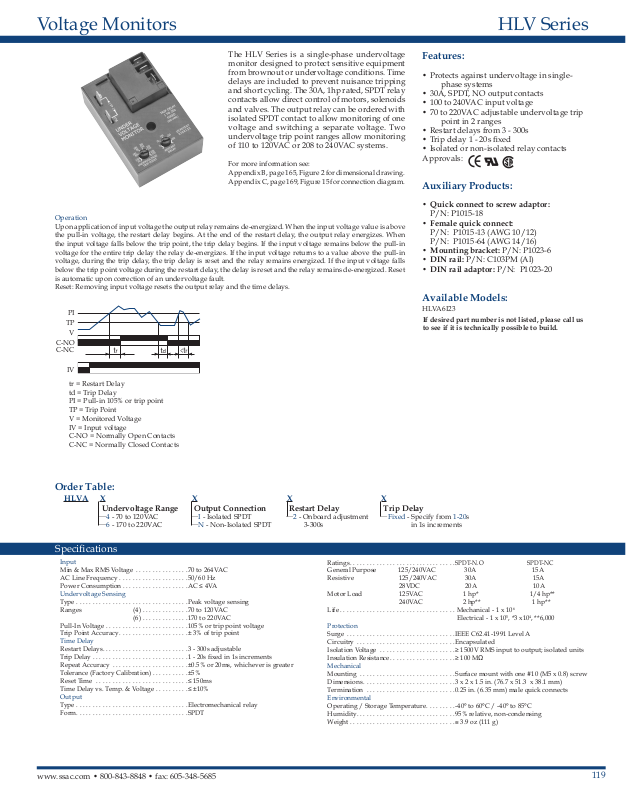

HLV SeriesVoltage Monitors
The HLV Series is a single-phase undervoltage
monitor designed to protect sensitive equipment
from brownout or undervoltage conditions. Time
delays are included to prevent nuisance tripping
and short cycling. The 30A, 1hp rated, SPDT relay
contacts allow direct control of motors, solenoids
and valves. The output relay can be ordered with
isolated SPDT contact to allow monitoring of one
voltage and switching a separate voltage. Two
undervoltage trip point ranges allow monitoring
of 110 to 120VAC or 208 to 240VAC systems.
For more information see:
Appendix B, page 165, Figure 2 for dimensional drawing.
Appendix C, page 169, Figure 15 for connection diagram.
Operation
Upon application of input voltage the output relay remains de-energized. When the input voltage value is above
the pull-in voltage, the restart delay begins. At the end of the restart delay, the output relay energizes. When
the input voltage falls below the trip point, the trip delay begins. If the input voltage remains below the pull-in
voltage for the entire trip delay the relay de-energizes. If the input voltage returns to a value above the pull-in
voltage, during the trip delay, the trip delay is reset and the relay remains energized. If the input voltage falls
below the trip point voltage during the restart delay, the delay is reset and the relay remains de-energized. Reset
is automatic upon correction of an undervoltage fault.
Reset: Removing input voltage resets the output relay and the time delays.
PI
TP
V
C-NO
C-NC
Features:
• Protects against undervoltage in singlephase systems
• 30A, SPDT, NO output contacts
• 100 to 240VAC input voltage
• 70 to 220VAC adjustable undervoltage trip
point in 2 ranges
• Restart delays from 3 - 300s
• Trip delay 1 - 20s xed
• Isolated or non-isolated relay contacts
Approvals:
Auxiliary Products:
• Quick connect to screw adaptor:
P/N: P1015-18
• Female quick connect:
P/N: P1015-13 (AWG 10/12)
P/N: P1015-64 (AWG 14/16)
• Mounting bracket: P/N: P1023-6
• DIN rail: P/N: C103PM (Al)
• DIN rail adaptor: P/N: P1023-20
Available Models:
HLVA6I23
If desired part number is not listed, please call us
to see if it is technically possible to build.
IV
tr = Restart Delay
td = Trip Delay
PI = Pull-in 105% or trip point
TP = Trip Point
V = Monitored Voltage
IV = Input voltage
C-NO = Normally Open Contacts
C-NC = Normally Closed Contacts
Order Table:
HLVA
X
Undervoltage Range
─4 - 70 to 120VAC
─6 - 170 to 220VAC
X
Output Connection
─I - Isolated SPDT
─N - Non-Isolated SPDT
Specications
Input
Min & Max RMS Voltage ................70 to 264VAC
AC Line Frequency .....................50/60 Hz
Power Consumption ....................AC ≤ 4VA
Undervoltage Sensing
Type ..................................Peak voltage sensing
Ranges (4) ..............70 to 120VAC
(6) ..............170 to 220VAC
Pull-In Voltage .........................105% or trip point voltage
Trip Point Accuracy .....................± 3% of trip point
Time Delay
Restart Delays ..........................3 - 300s adjustable
Trip Delay .............................1 - 20s xed in 1s increments
Repeat Accuracy .......................±0.5% or 20ms, whichever is greater
Tolerance (Factory Calibration) ...........±5%
Reset Time ............................≤ 150ms
Time Delay vs. Temp. & Voltage ..........≤ ±10%
Output
Type ..................................Electromechanical relay
Form ..................................SPDT
X
Restart Delay
─2 - Onboard adjustment
3-300s
Ratings ................................
General Purpose 125/240VAC 30A 15A
Resistive 125/240VAC 30A 15A
28VDC 20A 10A
Motor Load 125VAC 1 hp* 1/4 hp**
240VAC 2 hp** 1 hp**
Life ................................... Mechanical - 1 x 10
Electrical - 1 x 105, *3 x104, **6,000
Protection
Surge .................................IEEE C62.41-1991 Level A
Circuitry ..............................Encapsulated
Isolation Voltage .......................≥ 1500V RMS input to output; isolated units
Insulation Resistance ....................≥ 100 MΩ
Mechanical
Mounting .............................Surface mount with one #10 (M5 x 0.8) screw
Dimensions ............................3 x 2 x 1.5 in. (76.7 x 51.3 x 38.1 mm)
Termination ...........................0.25 in. (6.35 mm) male quick connects
Environmental
Operating / Storage Temperature. ........-40° to 60°C / -40° to 85°C
Humidity ..............................95% relative, non-condensing
Weight ................................≅ 3.9 oz (111 g)
X
Trip Delay
─Fixed - Specify from 1-20s
in 1s increments
SPDT-N.O SPDT-NC
6
