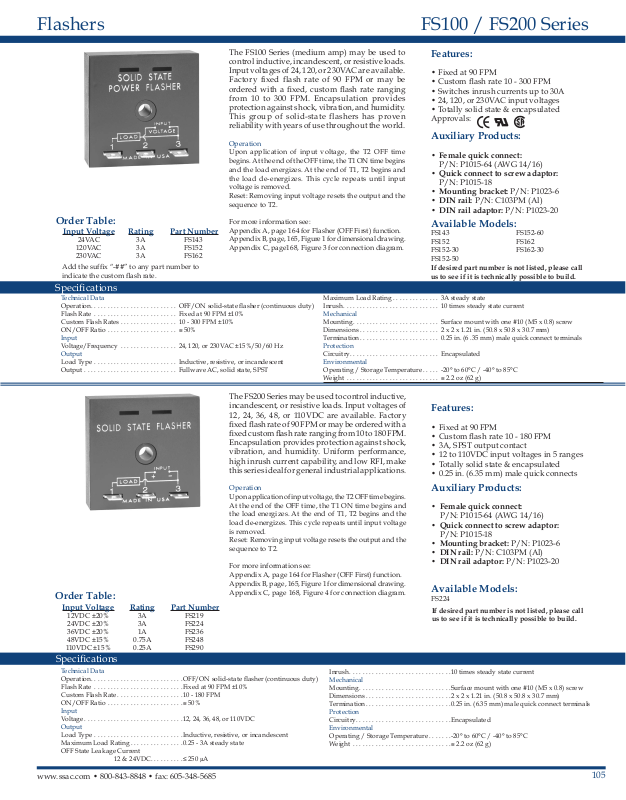

FS100 / FS200 SeriesFlashers
The FS100 Series (medium amp) may be used to
control inductive, incandescent, or resistive loads.
Input voltages of 24, 120, or 230VAC are available.
Factory fixed flash rate of 90 FPM or may be
ordered with a xed, custom ash rate ranging
from 10 to 300 FPM. Encapsulation provides
protection against shock, vibration, and humidity.
This group of solid-state flashers has proven
reliability with years of use throughout the world.
Operation
Upon application of input voltage, the T2 OFF time
begins. At the end of the OFF time, the T1 ON time begins
and the load energizes. At the end of T1, T2 begins and
the load de-energizes. This cycle repeats until input
voltage is removed.
Reset: Removing input voltage resets the output and the
sequence to T2.
Order Table:
Input Voltage
24VAC
120VAC
230VAC
Add the sufx “-##” to any part number to
indicate the custom ash rate.
Rating
3A
3A
3A
Part Number
FS143
FS152
FS162
For more information see:
Appendix A, page 164 for Flasher (OFF First) function.
Appendix B, page, 165, Figure 1 for dimensional drawing.
Appendix C, page168, Figure 3 for connection diagram.
Specications
Technical Data
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . OFF/ON solid-state asher (continuous duty)
Flash Rate .........................Fixed at 90 FPM ±10%
Custom Flash Rates ................. 10 - 300 FPM ±10%
ON/OFF Ratio ..................... ≅ 50%
Input
Voltage/Frequency .................24, 120, or 230VAC ±15%/50/60 Hz
Output
Load Type ......................... Inductive, resistive, or incandescent
Output ............................ Fullwave AC, solid state, SPST
Features:
• Fixed at 90 FPM
• Custom ash rate 10 - 300 FPM
• Switches inrush currents up to 30A
• 24, 120, or 230VAC input voltages
• Totally solid state & encapsulated
Approvals:
Auxiliary Products:
• Female quick connect:
P/N: P1015-64 (AWG 14/16)
• Quick connect to screw adaptor:
P/N: P1015-18
• Mounting bracket: P/N: P1023-6
• DIN rail: P/N: C103PM (Al)
• DIN rail adaptor: P/N: P1023-20
Available Models:
FS143
FS152
FS152-30
FS152-50
If desired part number is not listed, please call
us to see if it is technically possible to build.
Maximum Load Rating .............. 3A steady state
Inrush ............................. 10 times steady state current
Mechanical
Mounting .......................... Surface mount with one #10 (M5 x 0.8) screw
Dimensions ........................ 2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7 mm)
Termination ........................0.25 in. (6 .35 mm) male quick connect terminals
Protection
Circuitry ........................... Encapsulated
Environmental
Operating / Storage Temperature ..... -20° to 60°C / -40° to 85°C
Weight ............................ ≅ 2.2 oz (62 g)
FS152-60
FS162
FS162-30
The FS200 Series may be used to control inductive,
incandescent, or resistive loads. Input voltages of
12, 24, 36, 48, or 110VDC are available. Factory
xed ash rate of 90 FPM or may be ordered with a
xed custom ash rate ranging from 10 to 180 FPM.
Encapsulation provides protection against shock,
vibration, and humidity. Uniform performance,
high inrush current capability, and low RFI, make
this series ideal for general industrial applications.
Operation
Upon application of input voltage, the T2 OFF time begins.
At the end of the OFF time, the T1 ON time begins and
the load energizes. At the end of T1, T2 begins and the
load de-energizes. This cycle repeats until input voltage
is removed.
Reset: Removing input voltage resets the output and the
sequence to T2.
For more information see:
Appendix A, page 164 for Flasher (OFF First) function.
Appendix B, page, 165, Figure 1 for dimensional drawing.
Order Table:
Input Voltage
12VDC ±20%
24VDC ±20%
36VDC ±20%
48VDC ±15%
110VDC ±15%
Rating
3A
3A
1A
0.75A
0.25A
Part Number
FS219
FS224
FS236
FS248
FS290
Appendix C, page 168, Figure 4 for connection diagram.
Specications
Technical Data
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . .OFF/ON solid-state asher (continuous duty)
Flash Rate ...........................Fixed at 90 FPM ±10%
Custom Flash Rate ....................10 - 180 FPM
ON/OFF Ratio .......................≅ 50%
Input
Voltage ..............................12, 24, 36, 48, or 110VDC
Output
Load Type ...........................Inductive, resistive, or incandescent
Maximum Load Rating ................0.25 - 3A steady state
OFF State Leakage Current
12 & 24VDC ..........≤ 250 µA
Features:
• Fixed at 90 FPM
• Custom ash rate 10 - 180 FPM
• 3A, SPST output contact
• 12 to 110VDC input voltages in 5 ranges
• Totally solid state & encapsulated
• 0.25 in. (6.35 mm) male quick connects
Auxiliary Products:
• Female quick connect:
P/N: P1015-64 (AWG 14/16)
• Quick connect to screw adaptor:
P/N: P1015-18
• Mounting bracket: P/N: P1023-6
• DIN rail: P/N: C103PM (Al)
• DIN rail adaptor: P/N: P1023-20
Available Models:
FS224
If desired part number is not listed, please call
us to see if it is technically possible to build.
Inrush ...............................10 times steady state current
Mechanical
Mounting ............................Surface mount with one #10 (M5 x 0.8) screw
Dimensions ..........................2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7 mm)
Termination ..........................0.25 in. (6.35 mm) male quick connect terminals
Protection
Circuitry .............................Encapsulated
Environmental
Operating / Storage Temperature .......-20° to 60°C / -40° to 85°C
Weight ..............................≅ 2.2 oz (62 g)
