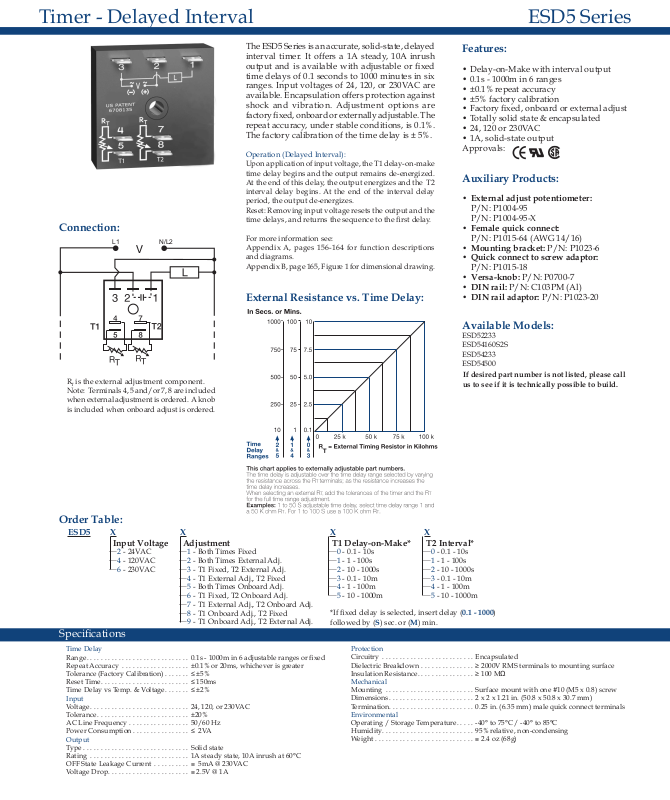

SSAC ESD5 Series Data Sheet
ESD5 SeriesTimer - Delayed Interval
Connection:
RT is the external adjustment component.
Note: Terminals 4, 5 and/or 7, 8 are included
when external adjustment is ordered. A knob
is included when onboard adjust is ordered.
L1 N/L2
The ESD5 Series is an accurate, solid-state, delayed
interval timer. It offers a 1A steady, 10A inrush
output and is available with adjustable or xed
time delays of 0.1 seconds to 1000 minutes in six
ranges. Input voltages of 24, 120, or 230VAC are
available. Encapsulation offers protection against
shock and vibration. Adjustment options are
factory xed, onboard or externally adjustable. The
repeat accuracy, under stable conditions, is 0.1%.
The factory calibration of the time delay is ± 5%.
Operation (Delayed Interval):
Upon application of input voltage, the T1 delay-on-make
time delay begins and the output remains de-energized.
At the end of this delay, the output energizes and the T2
interval delay begins. At the end of the interval delay
period, the output de-energizes.
Reset: Removing input voltage resets the output and the
time delays, and returns the sequence to the rst delay.
For more information see:
Appendix A, pages 156-164 for function descriptions
and diagrams.
Appendix B, page 165, Figure 1 for dimensional drawing.
External Resistance vs. Time Delay:
Features:
• Delay-on-Make with interval output
• 0.1s - 1000m in 6 ranges
• ±0.1% repeat accuracy
• ±5% factory calibration
• Factory xed, onboard or external adjust
• Totally solid state & encapsulated
• 24, 120 or 230VAC
• 1A, solid-state output
Approvals:
Auxiliary Products:
• External adjust potentiometer:
P / N: P 10 04 - 95
P/N: P1004-95-X
• Female quick connect:
P / N : P 1 01 5 - 6 4 ( AW G 14 / 1 6 )
• Mounting bracket: P/N: P1023-6
• Quick connect to screw adaptor:
P/N: P1015-18
• Versa-knob: P/N: P0700-7
• DIN rail: P/N: C103PM (Al)
• DIN rail adaptor: P/N: P1023-20
Available Models:
ESD52233
ESD54160S2S
ESD54233
ESD54500
If desired part number is not listed, please call
us to see if it is technically possible to build.
Order Table:
ESD5
X
Input Voltage
─2 - 24VAC
─4 - 120VAC
─6 - 230VAC
X
Adjustment
─1 - Both Times Fixed
─2 - Both Times External Adj.
─3 - T1 Fixed, T2 External Adj.
─4 - T1 External Adj., T2 Fixed
─5 - Both Times Onboard Adj.
─6 - T1 Fixed, T2 Onboard Adj.
─7 - T1 External Adj., T2 Onboard Adj.
─8 - T1 Onboard Adj., T2 Fixed
─9 - T1 Onboard Adj., T2 External Adj.
Specications
Time Delay
Range ............................. 0.1s - 1000m in 6 adjustable ranges or xed
Repeat Accuracy ................... ±0.1% or 20ms, whichever is greater
Tolerance (Factory Calibration) .......≤ ±5%
Reset Time .........................≤ 150ms
Time Delay vs Temp. & Voltage .......≤ ±2%
Input
Voltage ............................ 24, 120, or 230VAC
Tolerance ..........................±20%
AC Line Frequency ................. 50/60 Hz
Power Consumption ................ ≤ 2VA
Output
Type ..............................Solid state
Rating ............................1A steady state, 10A inrush at 60°C
OFF State Leakage Current ..........≅ 5mA @ 230VAC
Voltage Drop .......................≅ 2.5V @ 1A
X
T1 Delay-on-Make*
─0 - 0.1 - 10s
─1 - 1 - 100s
─2 - 10 - 1000s
─3 - 0.1 - 10m
─4 - 1 - 100m
─5 - 10 - 1000m
*If xed delay is selected, insert delay (0.1 - 1000)
followed by (S) sec. or (M) min.
Protection
Circuitry ..........................Encapsulated
Dielectric Breakdown ............... ≥ 2000V RMS terminals to mounting surface
Insulation Resistance ................ ≥ 100 MΩ
Mechanical
Mounting .........................Surface mount with one #10 (M5 x 0.8) screw
Dimensions ........................ 2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7 mm)
Termination ........................0.25 in. (6.35 mm) male quick connect terminals
Environmental
Operating / Storage Temperature ..... -40° to 75°C / -40° to 85°C
Humidity .......................... 95% relative, non-condensing
Weight ............................≅ 2.4 oz (68g)
X
T2 Interval*
─0 - 0.1 - 10s
─1 - 1 - 100s
─2 - 10 - 1000s
─3 - 0.1 - 10m
─4 - 1 - 100m
─5 - 10 - 1000m
