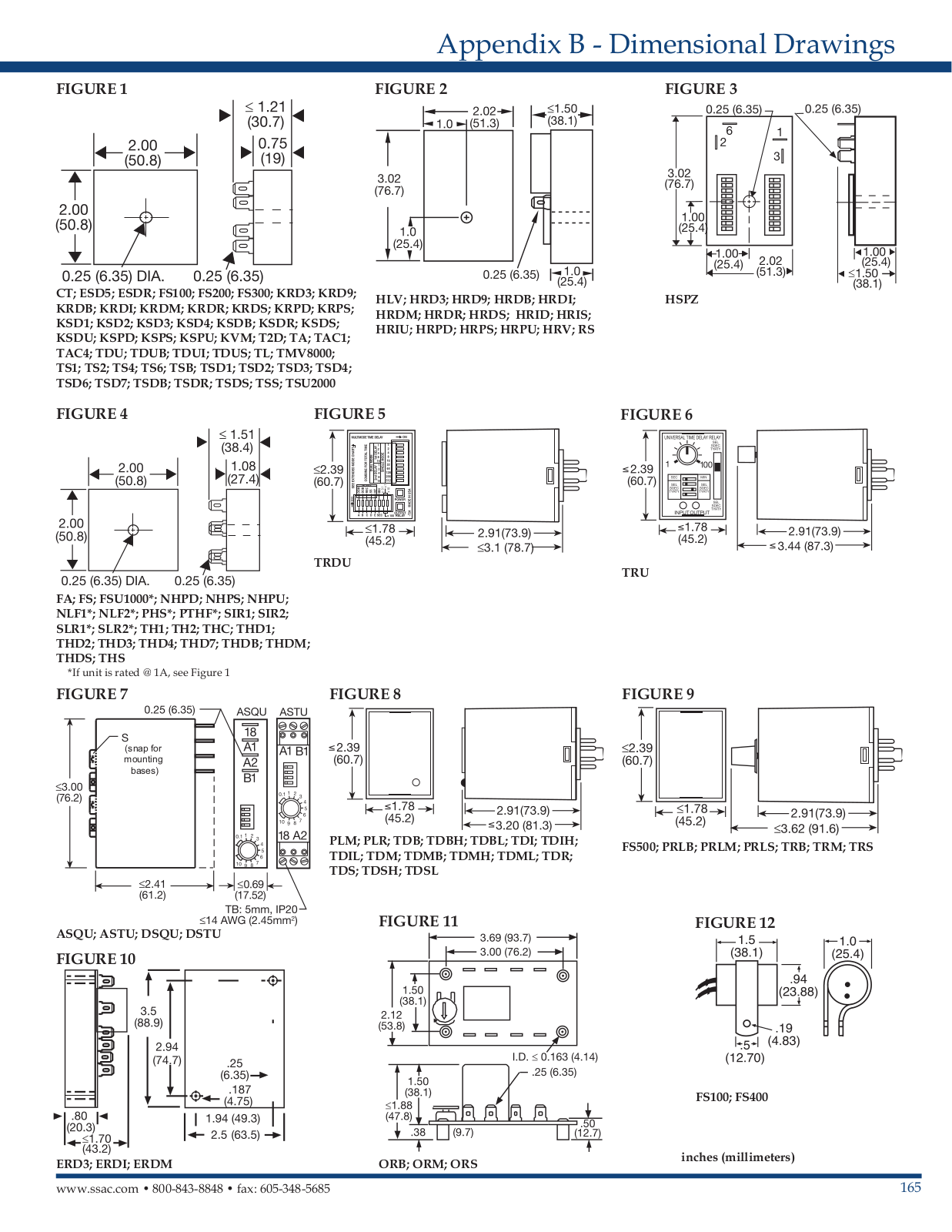

Appendix B - Dimensional Drawings

FIGURE 1 FIGURE 2 FIGURE 3

CT; ESD5; ESDR; FS100; FS200; FS300; KRD3; KRD9;
KRDB; KRDI; KRDM; KRDR; KRDS; KRPD; KRPS;
KSD1; KSD2; KSD3; KSD4; KSDB; KSDR; KSDS;
KSDU; KSPD; KSPS; KSPU; KVM; T2D; TA; TAC1;
TAC4; TDU; TDUB; TDUI; TDUS; TL; TMV8000;
TS1; TS2; TS4; TS6; TSB; TSD1; TSD2; TSD3; TSD4;
TSD6; TSD7; TSDB; TSDR; TSDS; TSS; TSU2000

FIGURE 4 FIGURE 5

TRDU

FA; FS; FSU1000*; NHPD; NHPS; NHPU;
NLF1*; NLF2*; PHS*; PTHF*; SIR1; SIR2;
SLR1*; SLR2*; TH1; TH2; THC; THD1;
THD2; THD3; THD4; THD7; THDB; THDM;
THDS; THS

*If unit is rated @ 1A, see Figure 1

FIGURE 7

FIGURE 8 FIGURE 9

HLV; HRD3; HRD9; HRDB; HRDI;
HRDM; HRDR; HRDS; HRID; HRIS;
HRIU; HRPD; HRPS; HRPU; HRV; RS

HSPZ

FIGURE 6

TRU

(snap for
mounting

bases)

PLM; PLR; TDB; TDBH; TDBL; TDI; TDIH;
TDIL; TDM; TDMB; TDMH; TDML; TDR;
TDS; TDSH; TDSL

ASQU; ASTU; DSQU; DSTU

FIGURE 11

FIGURE 10

ERD3; ERDI; ERDM ORB; ORM; ORS

www.ssac.com • 800-843-8848 • fax: [phone]

FS500; PRLB; PRLM; PRLS; TRB; TRM; TRS

FIGURE 12

FS100; FS400

inches (millimeters)
