SRT Marine Systems plc 425 0002 User Manual

Download

AIS Class A / Inland Transceiver

Installation and Operation Manual

Thank you for purchasing this AIS Class A transceiver / Inland AIS.

This product has been engineered to offer you the highest level of perfor-

mance and durability and we hope that it will provide many years of reliable

service. We constantly strive to achieve the highest possible quality standards,

should you encounter any problems with this product, please contact your

dealer who will be pleased to offer any assistance you require.

List of abbreviations

AIS Automatic Identification System

AIS SART AIS Search and Rescue Transmitter

AP Access Point (Relating to WiFi behaviour)

AtoN AIS Aid to Navigation

CD Compact Disc

CE European Declaration of Conformity

COG Coarse Over Ground

COM Common (electrical)

CPA Closest Point of Approach

CS Carrier Sense

DC Direct Current

Dec Decimal

DGPS Differential GPS

List of abbreviations

DGNSS Differential GNSS

DHCP Dynamic Host Configuration Protocol

DSC Digital Selective Calling

DTM Datum

ECDIS Electronic Chart Display and Information System

ENI Unique European Vessel Identification Number

EPFS Electronic Position Fixing System

ERI Electronic Reporting International

ETA Estimated Time of Arrival

EXT External

FCC Federal Communications Committee

GLONASS Globalnaya Navigazionnaya Sputnikovaya Sistema

GND Electrical Ground

GNSS Global Navigation Satellite System

Page 1

List of abbreviations

GPS Global Positioning System

Hex Hexadecimal

IEC International Electrotechnical Commission

IMO International Maritime Organisation

INT Internal

IPx6 Ingress Protection (to powerful water jets)

ISO International Standards Organisation

Kt Knots

LAT Latitude

LCD Liquid Crystal Display

LON Longitude

LR Long Range

MKD Minimum Keyboard and Display

MMSI Maritime Mobile Service Identity

NC Normally Closed (electrical)

NAV Navigation

NM Nautical Miles

NMEA National Marine Electronics Association

PGN Parameter Group Number

PI Presentation Interface

R&TTE Radio equipment and Telecommunications Terminal

Equipment

RADAR Radio Detection and Ranging

RAIM Receiver Autonomous Integrity Monitoring

ROT Rate of Turn

RX Receive

SD Secure Digital

SOG Speed Over Ground

Page 2

List of abbreviations

SOLAS Safety of Life at Sea

SRM Safety Related Message

TCP Transmission Control Protocol

TCPA Time to Closest Point of Approach

TNC Threaded Neill–Concelman (a type of connector)

TPI Threads per Inch

TX Transmit

UDP User Datagram Protocol

UHF Ultra High Frequency

UTC Universal Time Co-ordinated

VDO AIS own-ship broadcast data

VDM All VDL AIS messages received

VHF Very High Frequency

VSWR Voltage Standing Wave Ratio

WEEE Waste Electrical & Electronic Equipment

WiFi Wireless networking technology

Page 3

List of abbreviations

Page 4

Table of contents

1 Notices ............................................................ 11

1.1 Safety Warnings............................................................................. 11

1.2 General Notices ............................................................................. 12

1.3 Regulatory Statements .................................................................. 13

2 Introduction .................................................... 15

2.1 About AIS....................................................................................... 15

3 Installation and Configuration ...................... 17

3.1 What’s in the Box? ......................................................................... 17

3.2 Preparing for Installation ................................................................ 17

3.3 Installation Procedures .................................................................. 18

3.4 Connecting the Equipment............................................................. 27

3.5 Grounding the Transceiver ............................................................ 34

3.6 Connection to an NMEA2000 network (optional)........................... 34

3.7 Turning the Transceiver On ........................................................... 35

4 Operation ........................................................ 37

4.1 Display and Controls...................................................................... 37

4.2 Button Functions ............................................................................ 37

4.3 Adjusting Display Brightness ......................................................... 38

4.4 Changing Navigation Status .......................................................... 38

4.5 Menu Navigation ............................................................................ 39

4.6 Information Displayed .................................................................... 41

4.7 Configuring Vessel Information...................................................... 46

4.8 Configuring Voyage Information .................................................... 48

4.9 Passwords and Security ................................................................ 49

4.10 Confirming Correct Operation ........................................................ 49

4.11 Communication Test ...................................................................... 50

4.12 Displaying AIS Targets .................................................................. 51

4.13 Micro SD card data input ............................................................... 53

4.14 WiFi Feature .................................................................................. 55

5 Inland mode.................................................... 57

Page 5

Table of contents

5.1 Mode SOLAS / Inland AIS.............................................................. 57

6 Technical Information.................................... 61

6.1 Interface Circuits ............................................................................ 61

6.2 Output Drive Capability of Bi-directional Ports ............................... 62

6.3 DGNSS Port................................................................................... 62

6.4 Input Data Sentence Formats ........................................................ 63

6.5 AIS Transceiver Overall Dimensions ............................................. 63

6.6 GNSS Antenna Drawing ................................................................ 64

6.7 Transmission Intervals ................................................................... 64

6.8 Interface Sentences ....................................................................... 66

6.9 Unused Fields ................................................................................ 67

6.10 Proprietary Sentences.................................................................... 68

6.11 Priority of Sensor Ports .................................................................. 68

6.12 Compatibility Mode......................................................................... 70

6.13 Message 24 Content ...................................................................... 70

6.14 NMEA 2000 PGN List .................................................................... 71

6.15 Troubleshooting ............................................................................. 73

7 Junction Box Accessory ............................... 75

7.1 What’s in the Box ........................................................................... 75

7.2 Installation ...................................................................................... 75

7.3 Connecting External Equipment..................................................... 76

7.4 Technical Information..................................................................... 77

8 Technical Specification ................................. 79

8.1 Applicable Equipment Standards ................................................... 79

8.2 Product Category ........................................................................... 80

8.3 Physical.......................................................................................... 80

8.4 Environmental ................................................................................ 80

8.5 Electrical......................................................................................... 80

8.6 Display and User Interface............................................................. 81

8.7 Internal GNSS ................................................................................ 81

8.8 TDMA Transmitter.......................................................................... 82

8.9 TDMA receiver ............................................................................... 82

Page 6

Table of contents

8.10 DSC Receiver ................................................................................ 82

8.11 RF Connections ............................................................................. 83

8.12 Data interface................................................................................. 83

8.13 Power and Data Connector Information......................................... 84

8.14 Open Source Licences................................................................... 84

8.15 Product Versions............................................................................ 84

9 Installation Record......................................... 85

9.1 Vessel Details ................................................................................ 85

Page 7

Table of contents

Page 8

List of figures and tables

Figure 1 The AIS Network.................................................................. 15

Figure 2 What’s in the Box?............................................................... 17

Figure 3 Typical AIS Transceiver Connection.................................... 19

Figure 4 Mounting the Transceiver .................................................... 21

Figure 5 Desk Mounting the AIS Transceiver .................................... 22

Figure 6 Panel Mounting the AIS Transceiver ................................... 23

Figure 7 GNSS Antenna Location...................................................... 24

Figure 8 GNSS Antenna Connection ................................................. 25

Figure 9 VHF Antenna Location......................................................... 26

Figure 10 VHF Antenna Connection .................................................... 27

Figure 11 Serial Input Port Connection................................................ 28

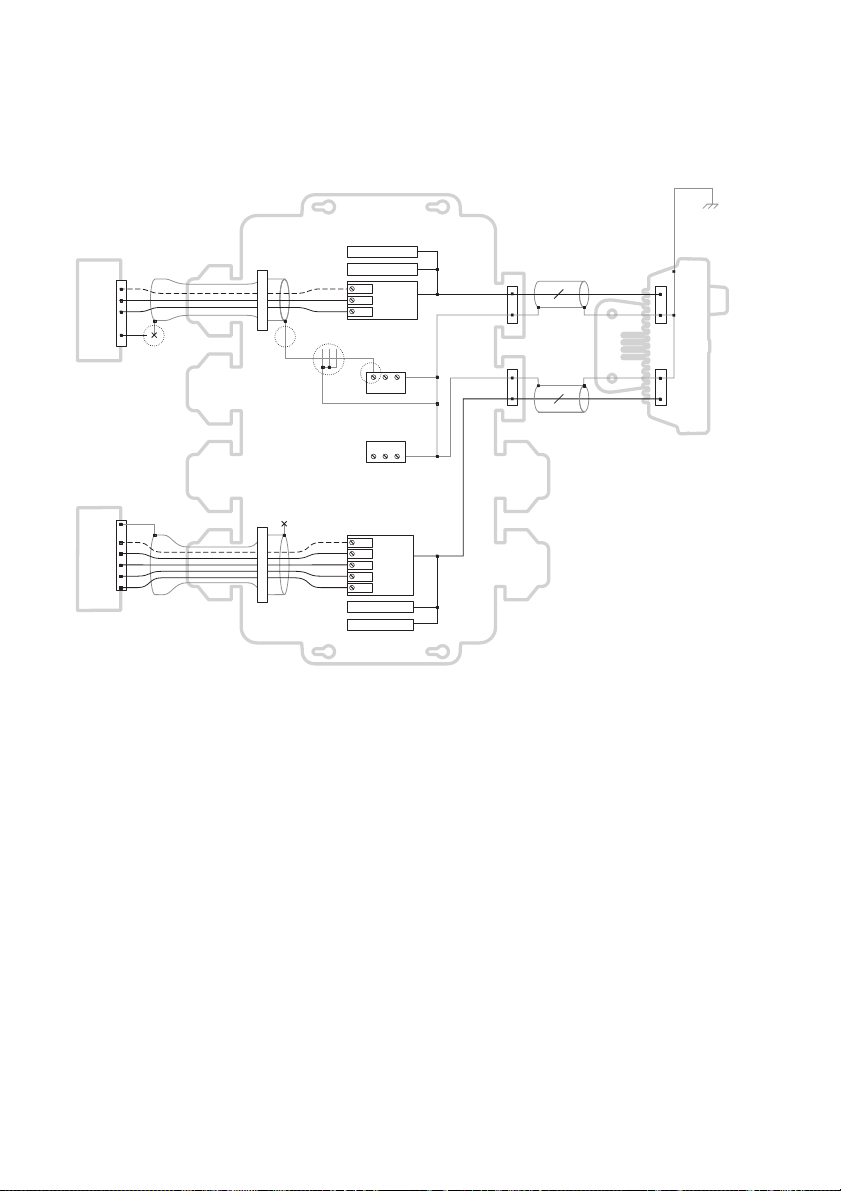

Figure 12 14 way Connector Cable Wiring Connections ..................... 28

Table 1 14 way Connector Serial Data Ports.................................... 29

Figure 13 Serial Bi-directional Port Connection ................................... 30

Figure 14 18 way Connector Cable Wiring Connections ..................... 31

Table 2 18 way Connector Serial Data Ports.................................... 31

Table 3 Alarm Relay Connections .................................................... 32

Figure 15 Power Connection ............................................................... 33

Table 4 Power Supply Connections.................................................. 33

Figure 16 Grounding the Transceiver .................................................. 34

Figure 17 Transceiver Front Panel ...................................................... 37

Figure 18 Home Page Menu Screen ................................................... 39

Figure 19 Main Menu Structure ........................................................... 40

Figure 20 Display Layout ..................................................................... 41

Table 5 Alarms List ........................................................................... 44

Figure 21 Vessel Dimension Measurement ......................................... 47

Figure 22 Enter Password Screen ....................................................... 49

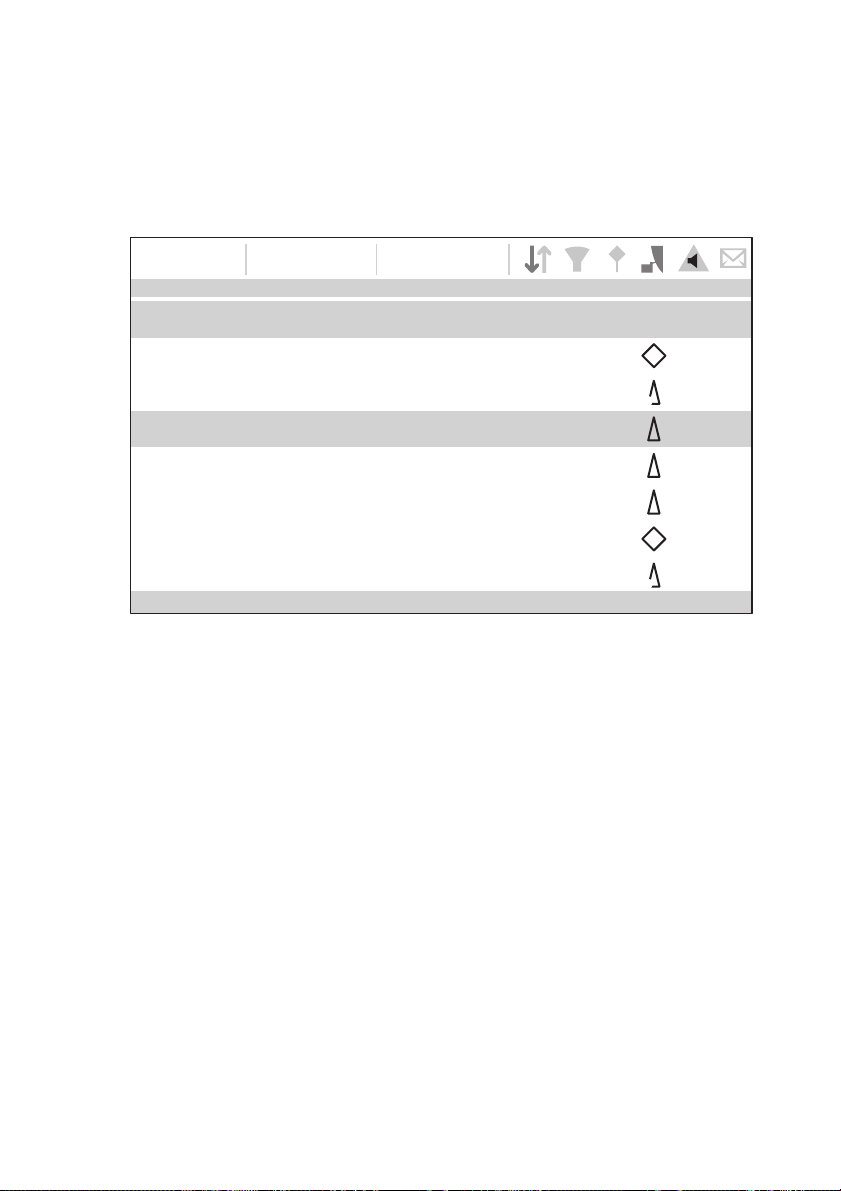

Figure 23 Target List Screen ............................................................... 51

Figure 24 AIS target symbols displayed .............................................. 52

Figure 25 Micro SD card Socket .......................................................... 54

Figure 26 Blue Sign Interface Connection Options.............................. 59

Figure 27 Input Port Schematic ........................................................... 61

Figure 28 Data Output Port Schematic ................................................ 62

Figure 29 Transceiver Dimensions ...................................................... 63

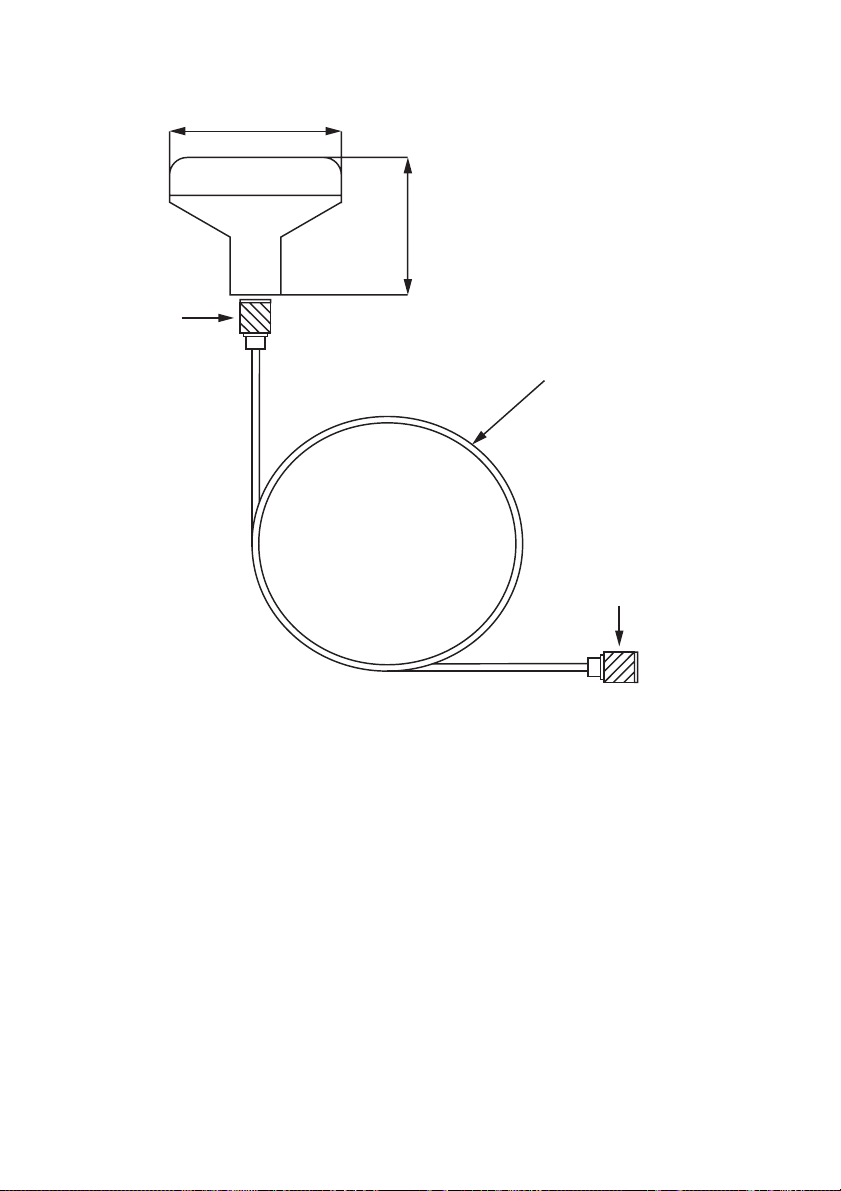

Figure 30 GNSS Antenna .................................................................... 64

Table 6 IEC61162 Transmission Interval for Periodic Sentences .... 65

Table 7 IEC61162 Sentences Input and Output ............................... 66

Table 8 Unused Fields...................................................................... 68

Table 9 Port Priority Order................................................................ 69

Page 9

List of figures and tables

Table 10 PGN Lists ............................................................................. 72

Table 11 Troubleshooting ................................................................... 74

Figure 31 Junction Box - What’s in the Box ......................................... 75

Figure 32 Connecting the External Equipment .................................... 76

Figure 33 GNSS Antenna Position....................................................... 86

Page 10

1Notices

When reading this manual please pay particular attention to warnings marked with the warning triangle symbol shown on the left. These are important messages for safety, installation and usage of the transceiver.

1.1 Safety Warnings

This equipment must be installed in accordance with the instructions provided in this manual. Failure to do so will seriously affect its performance and reliability. It is strongly recommended that a trained technician installs and configures this product.

Notices

This product must connection point. It is essential that the earth connection point is used in all installations connected. The earth connection point must be bonded to protective earth using as short a connection as possible.

This equipment is intended as an aid to navigation and is not a replacement for proper navigational judgement. Information provided by the equipment must not be relied upon as accurate. User decisions based upon information provided by the equipment are done so entirely at the users own risk.

Do not install this equipment in a flammable atmosphere such as in an engine room or near to fuel tanks.

It is recommended that this product is not installed in direct sunlight or under a windshield where it can be subjected to excessive solar heating.

Do not attempt to service this equipment as doing so may cause fire, electric shock or malfunction and will invalidate the warranty. If any malfunctions are detected contact your supplier or service agent.

be connected to protective earth via the earth

, regardless of what other equipment is

Page 11

Notices

NOT ALL SHIPS CARRY AIS. The Officer of the Watch should always be aware that other ships and, in particular, leisure craft, fishing vessels and warships may not be fitted with AIS. Any AIS equipment fitted on other ships as a mandatory carriage requirement may also be off based on the Master’s professional judgement.

1.2 General Notices

1.2.1 Position Source

All marine AIS transceivers utilise a satellite based location system such as the GLONASS or GPS satellite networks.

The accuracy of a GNSS position fix is variable and affected by factors such as the antenna positioning, how many satellites are used to determine a position and for how long satellite information has been received.

1.2.2 Compass Safe Distance

The compass safe distance of this transceiver is 0.5m or greater for a 0.3° deviation.

1.2.3 Product Category

This product is categorized as ‘protected’ in accordance with the definitions provided in IEC 60945.

1.2.4 Disposal of Transceiver and Packaging

Please dispose of this AIS transceiver in accordance with the European WEEE Directive or with the applicable local regulations for disposal of electrical equipment. Please dispose of the packaging in an environmentally friendly manner.

1.2.5 Accuracy of this Manual

This manual is intended as a guide to the installation, setup and use of this product. If you are in any doubt about any aspect of this product, please contact your dealer.

Page 12

Notices

1.3 Regulatory Statements

1.3.1 Declaration of Conformity - R&TTE

The manufacturer of this product declares that this product is in compliance with the essential requirements and other provisions of the R&TTE directive. The declaration of conformity is provided as a PDF file on the product CD supplied with the product. The product carries the CE mark, notified body number and alert symbol as required by the R&TTE directive. The product is intended for sale in the following member states: Great Britain, France, Spain, Sweden, Austria, Netherlands, Portugal, Denmark, Norway, Belgium, Italy, Finland, Ireland, Luxembourg, Germany and Czech Republic.

1.3.2 FCC Notice

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including inter-

ference that may cause undesired operation. Changes or modifications not expressly approved by the party re-

sponsible for compliance could void the user's authority to operate the equipment.

Page 13

Notices

1.3.3 Industry Canada Notice

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1.This device may not cause interference, and

2.This device must accept any interference, including interference that may cause undesired operation of the device.

This Class A digital apparatus complies with Canadian ICES-003.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

1. L'appareil ne doit pas produire de brouillage, et

2. L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le Fonctionnement.

Cet appareil numérique de la classe A est conforme à la norme NMB003 du Canada.

Page 14

Introduction

2 Introduction

2.1 About AIS

The marine Automatic Identification System (AIS) is a location and vessel information reporting system. It allows vessels equipped with AIS to automatically and dynamically share and regularly update their position, speed, course and other information such as vessel identity with similarly equipped vessels. Position is derived from GLONASS or GPS and communication between vessels is by VHF digital transmissions.

Figure 1 The AIS Network

Page 15

Introduction

Page 16

Installation and Configuration

Mounting bracket

Power cable 14 way data cable 18 way data cable GNSS antenna and cable

Product CD

Product manual

AIS transceiver

Fixings

Warranty card

Product Mounting

Template

Quick Start

Guide

Quick Operation

Guide

3 Installation and Configuration

3.1 What’s in the Box?

Please ensure all items are present and if any of the items are missing please contact your dealer.

Figure 2 What’s in the Box?

3.2 Preparing for Installation

In addition to the items provided with the transceiver the following items will be required to complete the installation:

3.2.1 VHF Antenna

Connection of a suitable VHF antenna will be required for the AIS transceiver to operate. The antenna cable should be terminated with a PL-259 (or UHF) connector. A surge arrestor should be fitted in line with VHF antenna connector. See section 3.3.3 for more information.

Page 17

Installation and Configuration

Please take note of the warnings listed at the start of this manual regarding the installation and use of antennas.

3.2.2 Antenna Cables

The supplied GNSS antenna is provided with 10 metres (32.8ft) of cable. If this is not sufficient to reach between the desired GNSS antenna location and the AIS transceiver you will require an extension cable. Please contact your dealer for details.

3.2.3 GNSS Antenna Mount

A mounting bracket is required for the supplied GNSS antenna.

3.2.4 Data Interface Cables

Suitable screened, multi core cable will be required to connect the ships sensor (DGPS, Gyro etc.) data ports to the AIS transceiver.

3.3 Installation Procedures

Before beginning installation of your AIS transceiver, please ensure that you read all of the instructions in this manual.

Page 18

The following sections explain the installation process step by step for each of

NMEA2000

Above decks

Below decks

Optional connections

Chassis/GND

GNSS antenna

VHF antenna

12/24V DC Supply

Displays

(ECDIS, RADAR)

Surge arrestor

Ship’s sensor data (DGPS, GYRO, Heading)

the main system elements. A typical system and connection diagram is provided in Figure 3

Installation and Configuration

Figure 3 Typical AIS Transceiver Connection

Page 19

Installation and Configuration

3.3.1 Step 1 - Installing the AIS Transceiver

Please note the following guidelines when selecting a location for your AIS transceiver:

● The AIS transceiver must be fitted in a location where it is at least

0.5m (1ft 8ins) from a compass or any magnetic device.

● There should be adequate space around the AIS transceiver for routing of cables. See Figure 29 for details of the AIS transceiver dimensions.

● The ambient temperature around the AIS transceiver should be maintained between -15°C and +55°C (5°F to 131°F). Ensure adequate ventilation is present when panel mounting the transceiver.

● It is recommended that the AIS transceiver be installed in a 'below decks' environment protected from the weather.

● The transceiver is supplied with four self tapping screws for attachment of the AIS transceiver to a suitable surface using the supplied bracket. Please refer to Figure 5 for guidance.

● The transceiver can be panel mounted using the four self tapping screws provided. Please refer to Figure 6 for guidance. Access behind the panel is required when using this mounting option.

● The AIS transceiver should be mounted in a location where the display is visible to the user at the position from which the vessel is normally operated.

A pilot plug connection option is included in the 18 way connector located on the rear panel of the AIS transceiver. To provide the pilot plug an optional accessory can be purchased.

Page 20

Desk mounted

Panel mounted

Overhead mounted

(reverse mounting bracket)

Installation and Configuration

Figure 4 Mounting the Transceiver

Refer to Figure 29 for dimensions. A drilling and cutting template is provided with the transceiver.

To panel mount the unit it is necessary to remove the 4 off socket cap screws recessed in front of the unit. See Figure 6.

Page 21

Installation and Configuration

Figure 5 Desk Mounting the AIS Transceiver

Page 22

Installation and Configuration

Figure 6 Panel Mounting the AIS Transceiver

3.3.2 Installing the GNSS Antenna

For mounting the GNSS antenna supplied with your AIS transceiver you will require a one inch 14 TPI pole mount. Contact your dealer to source a mount suitable for the installation location.

Please note the following guidelines when selecting a location for the GNSS antenna:

● The GNSS antenna mount should be secured to a rigid surface.

● The GNSS antenna should be located where it has a clear,

unobstructed view of the sky overhead.

Page 23

Installation and Configuration

GNSS antenna should be at least 5m (16ft) from RADAR or satellite communication antennas. It should also be away from the RADAR beam path and mounted on a rigid surface.

RADAR beam path

GNSS antenna

5m (16ft)

● The GNSS antenna should be mounted as high as possible, however it is not recommended to mount the antenna on the top of a high mast where the motion of the vessel will cause the antenna to move and potentially reduce the accuracy of the GNSS position.

● Route the GNSS antenna cable to the AIS transceiver. If extension cables are required all junctions should be made using appropriate co-axial connectors and made watertight.

Connect the GNSS antenna cable to the GNSS connector on the AIS transceiver.

Figure 7 GNSS Antenna Location

Page 24

Installation and Configuration

GNSS antenna

connection

Figure 8 GNSS Antenna Connection

3.3.3 Installing the VHF Antenna

Please note the following guidelines when selecting and locating the AIS VHF antenna:

● The VHF antenna should be located as high as possible and positioned as far from other antennas as possible.

● The VHF antenna should have omnidirectional vertical polarization.

● Where possible the VHF antenna should be installed at least 3m

(10ft) away from other transmitting radio, satellite and RADAR antennas.

● Ideally the AIS VHF antenna should be mounted directly above or below the ship’s primary VHF radiotelephone antenna, with no horizontal separation and with a minimum of 2m vertical separation. Refer to Figure 9 for further guidance.

● The VHF antenna cable should be kept as short as possible to minimize signal loss. High quality, low loss coaxial cable appropriate to the installation location should be used.

● The VHF antenna cable should be terminated in a PL-259 co-axial connector for connection to the AIS transceiver.

● Any outdoor installed connectors in the antenna cables should be waterproof by design.

Page 25

Installation and Configuration

VHF antenna should be at least 3m (10ft) from other transmitting radio, satellite and RADAR antennas.

3m (10ft)

VHF antenna

● Antenna cables should be installed in separate signal cable channels at least 10cm (4ins) away from power supply cables. Crossing of cables should be done at right angles and sharp bends in the antenna cables should be avoided.

● It is recommended that a suitable surge arrestor is fitted in-line with the VHF antenna connector.

Connect the VHF antenna cable to the VHF connector on the AIS transceiver as shown in Figure 10.

Figure 9 VHF Antenna Location

Page 26

Figure 10 VHF Antenna Connection

VHF antenna

connection

3.4 Connecting the Equipment

Installation and Configuration

3.4.1 Data Connections

The transceiver is supplied with a 2m (6.5 ft) 18 way data cable and a 2m (6.5 ft) 14 way data cable for connection of the transceiver to external sensors and equipment.

3.4.2 Sensor Configuration

The transceiver has six NMEA0183 (IEC61162-1/2) data ports for connection of ship’s sensors and display equipment as described in Table 1 and Table 2.

There are three input only ports for ship’s sensor data and three bidirectional high speed ports for connection of display equipment such as Radar or electronic chart displays.

Page 27

Installation and Configuration

14 way interface

connection

WIRE COLOUR

BLACK

BROWN

BLUE

RED

ORANGE

PURPLE

GREEN

WHITE

WHITE/BLACK

GREY

YELLOW

RED/BLACK

PINK

DRAIN WIRE

SIGNAL

BLUE SIGN N

BLUE SIGN P

SILENT N

SILENT P

SENSOR 1 RX A

SENSOR 1 RX B

SENSOR 1 COM

SENSOR 2 RX A

SENSOR 2 RX B

SENSOR 2 COM

SENSOR 3 RX A

SENSOR 3 RX B

SENSOR 3 COM

CHASSIS

9876

12 11 10

54 3

14 13

3.4.3 Data Input Ports (14 way connector)

Figure 11 Serial Input Port Connection

Figure 12 14 way Connector Cable Wiring Connections

Page 28

Installation and Configuration

Data port Function Typ e

Default

Baud

rate

1 Sensor 1 input

(DGNSS - COG/SOG/ LAT/LON)

2 Sensor 2 input

(Rate of Turn)

3 Sensor 3 input

(Gyro heading)

Table 1 14 way Connector Serial Data Ports

Note: Any unused ports should be terminated by a 120 Ohm resistor across RX A and RX B signals.

3.4.4 Silent mode switch

To activate the Silent mode switch, apply a voltage of between 2V and 30V to the SILENT P (Pin 7) and SILENT N (Pin 6) terminals of the 14 way connector.

Receive only 4800

Page 29

Installation and Configuration

18 way interface

connection

3.4.5 Data Bi-directional Ports (18 way connector)

Figure 13 Serial Bi-directional Port Connection

Page 30

Installation and Configuration

PINWIRE COLOURSIGNAL

LR DGPS TX A

LR DGPS TX B

LR DGPS RX A

LR DGPS RX B

LR DGPS COM

PILOT TX A

PILOT TX B

PILOT RX A

PILOT RX B

PILOT COM

ALARM NC

ALARM COM

EXT DISPLAY TX A

EXT DISPLAY TX B

EXT DISPLAY RX A

EXT DISPLAY RX B

EXT DISPLAY COM

CHASSIS

ORANGE

BROWN

PURPLE

BLUE

BLACK

RED

RED/WHITE

PINK

YELLOW

GREEN

GREY

WHITE

ORANGE/WHITE

BLACK/WHITE

BROWN/WHITE

YELLOW/WHITE

GREEN/WHITE

DRAIN WIRE

11 10 9 78

15 14 1213

65 34

18 16

Figure 14 18 way Connector Cable Wiring Connections

Bidirectional 38400

Data port Function Typ e

4 External display / ECDIS Bi-directional 38400

5 Pilot port Bi-directional 38400

6 Long range/DGPS/Ext

Note: Any unused ports should be terminated by a 120 Ohm resistor across RX A and RX B signals.

Display

Table 2 18 way Connector Serial Data Ports

Default

Baud

rate

Page 31

Installation and Configuration

If an external GNSS device which does not provide a DTM

sentence is connected to the transceiver and the transceiver is configured to require DTM sentences, the external GNSS data will not be accepted by the transceiver. If no DTM sentence is required the WGS84 datum will be used as a coordinate origin and the external GNSS device must be configured to output position using this datum.

All sensor ports can be configured via the Interface settings menu which can be found under the ‘System settings’-> ‘Interfaces’ menu option.

The Interface settings menu also includes the ability to disable the requirement for external GNSS sensors to provide a DTM (Datum) sentence.

3.4.6 Alarm Connections

The transceiver also provides connections to the alarm relay contacts. The alarm relay connections are described in Table 3.

Alarm connection Function Contact rating

COM Alarm relay common

connection 2A at 220VDC or 60W

NC Alarm relay normally

closed connection

Table 3 Alarm Relay Connections

Page 32

maximum

Installation and Configuration

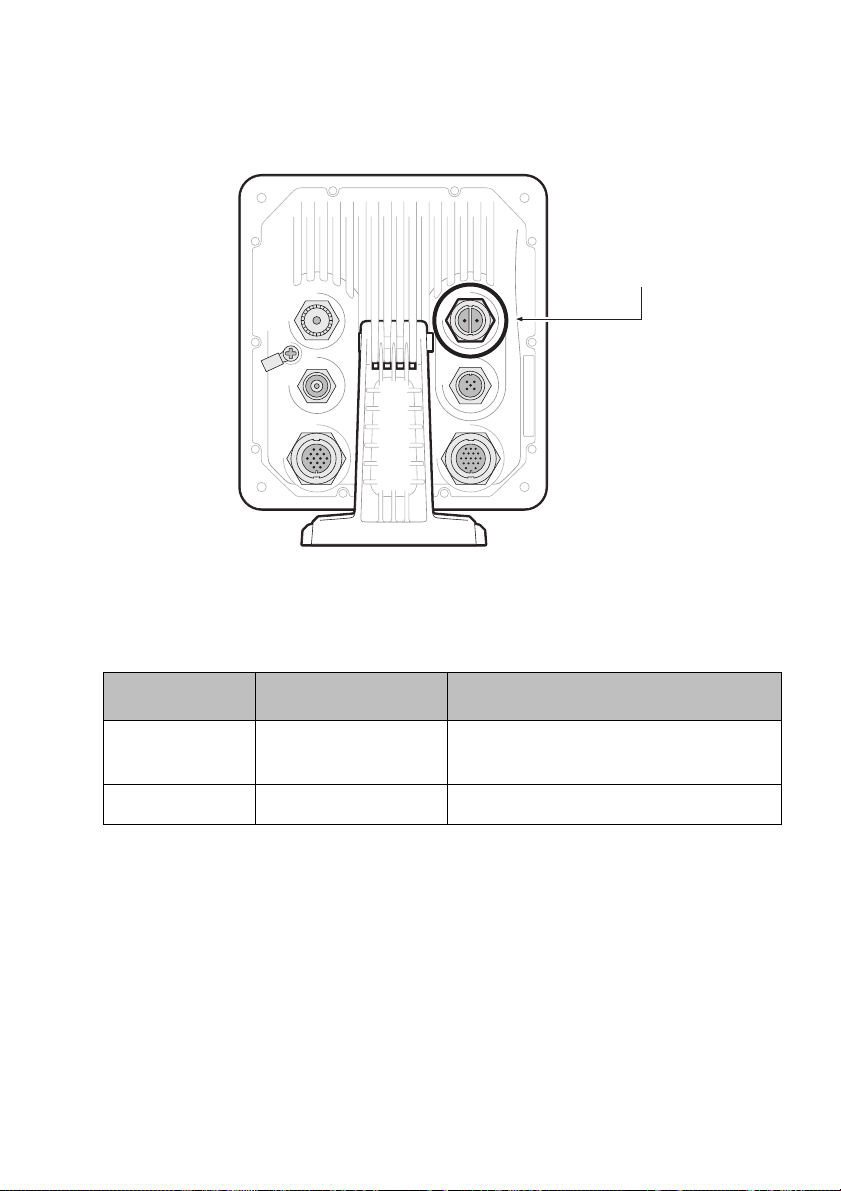

Power connection

3.4.7 Power Connection

Power is connected to the transceiver via the supplied 2 way power cable as shown in Figure 15.

Figure 15 Power Connection

Wire colour Function Connect to

Red Power supply + 12V or 24V DC power supply from

ships emergency power source*

Black Power supply - Power supply ground

Table 4 Power Supply Connections

*Connection to an emergency power source is an IMO requirement for SOLAS vessels.

The power supply current ratings and recommended fusing or circuit breaker currents are as follows:

● A 12VDC supply should be able to provide a peak current of 6.0A and be fused at 10.0A.

Page 33

Installation and Configuration

Ground screw

and ring tag

● A 24VDC supply should be able to provide a peak current of 4.0A and should be fused at 6.3A.

3.5 Grounding the Transceiver

An M4 grounding screw and ring crimp are provided in the fixing kit to allow connection to the grounding point on the rear of the transceiver chassis as indicated in Figure 16.

Figure 16 Grounding the Transceiver

3.6 Connection to an NMEA2000 network (optional)

The AIS transceiver can be connected to an NMEA2000 network by a suitable NMEA2000 network cable available from your local dealer. If your vessel has an NMEA2000 network please refer to the relevant documentation for you NMEA2000 equipment. Once connected, and with your chart plotter also connected you will be able to receive AIS targets on your chart plotter.

Page 34

be connected to protective earth via the earth

, regardless of what other equipment is

Installation and Configuration

3.7 Turning the Transceiver On

The transceiver does not have an on/off switch and will operate immediately that power is applied to the unit.

Page 35

Installation and Configuration

Page 36

Operation

Scroll wheel

(push to select)

Function keys

(up, down, left right)

Back / Home

Micro SD card

slot behind door

Navigation status /

Screen brightness

Select

Options menu

Display

4 Operation

Please read the warning notices at the front of this manual before operating the AIS transceiver.

4.1 Display and Controls

Figure 17 Transceiver Front Panel

The front panel of the transceiver is shown in Figure 17with each control marked.

4.2 Button Functions

Scroll wheel. This is used to highlight information presented on the display.

The scroll wheel can also be pressed to confirm data entry or select information.

Navigation status / Screen brightness key. When pressed with a short press will go to the Navigation status screen. When pressed and held it will go to the display brightness screen.

Page 37

Operation

Options menu key. Provides access to additional features and relevant shortcuts on certain screens.

Back / Home key. When pressed with a short press cancels the current operation and moves to the previous menu or if pressed and held will return to the home screen.

Select key. When pressed selects the current option highlighted on the screen.

Up, down, left and right function keys. Provide an alternative means of navigating around the screen.

Speaker. The speaker is located behind the ‘Scroll’ wheel and can provide an audible sound when a key is pressed, a message is received, or an alarm is activated. Sounds can be enabled or disabled via the Sounds Settings menu.

Micro SD card. The micro SD card socket (behind the door) is provided to allow uploading of new software to the transceiver.

Display. The display shows essential AIS operating information and allows for configuration of the transceiver via the menus.

4.3 Adjusting Display Brightness

Press and hold the ‘Navigation/Screen brightness’ key. The screen will change to the Display and unit settings menu screen.

4.4 Changing Navigation Status

Press the ‘Navigation/Screen brightness’ key. The screen will change to the Navigation menu screen. Move to the desired navigation status icon to select it.

Page 38

Operation

HOME

16:58:29

SOG 21.1kt

UTC + 1h

COG 88.0°

50° 32.0286’ N 0° 55.2715’ W

Target list

Voyage

data settings

Target plot

Messages Alarms Own dynamic data System settings

INT. GNSS

4.5 Menu Navigation

Figure 18 Home Page Menu Screen

4.5.1 Main / Sub Menus

Menus are displayed as a set of icons which can be navigated between using the controls. Selection of an icon will then display the information beneath in accordance with Figure 19. Pressing the Back/home’ key will exit the menu.

Page 39

Operation

MESSAGE INBOX

SENT MESSAGES

COMPOSE MESSAGE

INLAND PERSONS ON BOARD

USER SETTINGS

INTERFACES

SYSTEM INFORMATION

ADVANCED

OPERATING MODE

HELP AND SUPPORT

VESSEL DATA SET TINGS

GNSS SOURCE

ALARM SETTINGS

REGIONAL AREAS

INSTALLATION AND AIS SART TEST

RANGE AND LONG RANGE SETTINGS

LOGGING

SOFTWARE UPDATES

SAVE/RESTORE & RESET SETTINGS

DISPLAY AND UNIT SETTINGS

SOUND SETTINGS

LANGUAGE

TIME AND DATE

PASSWORD

FILTER AND CPA/TCPA SETTINGS

WiFi SETTINGS

GNSS SOURCE

EXTERNAL DISPLAY PORT SETTINGS

PILOT PORT SETTINGS

LONG RANGE PORT SETTINGS

NMEA2000 SETTINGS

TARGET LIST

VOYAGE DATA

TARGET PLOT

MESSAGES

ALARMS

OWN DYNAMIC DATA

SYSTEM SETTINGS

PORT DATA VIEW

SENSOR PORT 1

SENSOR PORT 2

SENSOR PORT 3

HOME

Figure 19 Main Menu Structure

Page 40

Operation

1WHOME Int. GNSS

16:58:29

SOG 21.1kt

UTC + 1h

COG 88.0°

50° 32.0286’ N 0° 55.2715’ W

Speed / Course

Time

Time oset

Menu title

Main display

area

Status indicators

Messages

Filtering

Blue sign (Inland only)

Navigation status

Alarms

Position

4.5.2 Data Entry Screens

Some screens allow you to enter data, such as vessel parameters. On these screens you navigate to the desired field and select the appropriate menu item. Some data entry items require a password, this is shown by means of a ‘Padlock’ icon. Pressing the ‘Back/home’ key will exit these menus.

4.5.3 Keyboard/Keypad Screens

Some screens require text or numeric entry. When these are selected, a virtual keyboard is displayed which can be used to enter text or numbers.

4.5.4 Options Menu

On certain screens, the Options Menu will bring up a further list of functions specific to that screen. This is indicated by this icon.

4.6 Information Displayed

Figure 20 Display Layout

4.6.1 Menu Title

Refers to the current menu displayed from Figure 19.

4.6.2 Time

Time derived from GNSS satellites or AIS Base Stations.

Page 41

Operation

4.6.3 Time Offset

Offset from UTC, set on the ‘Time and date’ menu.

4.6.4 Speed/Course

Vessel speed and course as taken from GNSS satellite data.

4.6.5 Position

Vessel position taken from GNSS source.

4.6.6 Icons

RX - Illuminates to show receiving an AIS message.

TX - Illuminates to show transmission of an AIS message. Filtering - Illuminated to show that target filter settings apply.

Blue sign - Inland only. Display of Blue Sign status.

Navigation status - Vessel navigation status.

Alarms - Displays an icon to show the presence of acknowledged or

unacknowledged AIS alarms.

Messages - Displays an envelope icon with a number to show the presence of AIS messages received See menu ‘Messages’.

Status indicators - Displays “INLAND” if in inland mode. Displays type of GNSS being used and displays “1W” if the vessel power has changed to 1W.

4.6.7 Alarms

The transceiver performs self checking functions continuously. If a self check fails a display will appear on the screen notifying the operator of this. This will be accompanied by a sound. The alarm can be acknowledged via an onscreen message. The list of currently active AIS Alarms can be displayed by accessing the ‘Alarms’ menu. If any alarm condition persists, contact your dealer or installer.

Page 42

Operation

Possible alarm conditions are listed Table 5:

Alarm Description

TX Malfunction This alarm will occur if the MMSI has not

been configured.

This alarm can also occur if the radio hardware has failed to select the correct frequency, that the output power is too low or a transmitter shutdown has occurred. In this situation, ALR 001 is output over the PI. The alarm will be cleared if the transmitter recovers normal operation.

RX Channel x Malfunction This alarm occurs should the receiver hard-

ware malfunction. The receiver is identified by the value of x (as shown below). The following alarms will be generated over the PI in this condition: ALR 003 - Rx Channel 1 ALR 004 - Rx Channel 2 ALR 005 - DSC (Channel 70) If the receiver returns to normal operation this alarm will be cleared.

Antenna VSWR exceeds limit

External EPFS lost This alarm occurs if the position from the

No valid COG information This alarm occurs if the transceiver has no

No valid SOG information This alarm occurs if the transceiver has no

Heading lost or invalid This alarm occurs if the transceiver has no

This alarm occurs if there is a problem with your antenna or antenna connection.

external Electronic Position Fixing System (i.e. GNSS) is invalid or lost.

valid Course Over Ground information from any connected sensor.

valid Speed Over Ground information from any connected sensor.

valid heading information from any connected sensor, or if the heading is undefined.

Page 43

Operation

Alarm Description

No valid ROT information This alarm occurs if the transceiver has no

Rate Of Turn information from connected sensors or via internal calculation.

No sensor position in use This alarm occurs if the transceiver has no

valid position information from any connected sensor.

UTC Sync Invalid This alarm indicates that the transmitter is no

longer directly synchronized with the GNSS receiver. This may be because the GNSS receiver cannot receive sufficient satellites.

Nav Status Incorrect NavStatus incorrect

This alarm will occur if the navigation status is in conflict with the current speed of the vessel. For example the alarm will activate if the Navigation status is set to moored, but the vessel speed is greater than 3 knots. Correct the navigation status to clear this alarm.

Active AIS SART An active AIS SART (AIS Search and Res-

cue Transmitter) message has been received. The SART will be displayed as the top item in the target list. Select this item to see the location of the SART.

Internal / External GNSS mismatch

Heading sensor offset This alarm occurs if the difference between

Page 44

This alarm occurs if the difference in position reported by the internal and external GNSS receivers is too large. Check the vessel dimensions and GNSS antenna locations have been entered correctly.

the course over ground and heading data is greater than 45° for more than 5 minutes. This alarm only occurs if the vessel speed over ground is greater than 5 knots.

Table 5: Alarms List

Operation

4.6.8 Messages

AIS text messages and Safety Related Messages (SRMs) can be received from other AIS equipped vessels and also sent to specific vessels (addressed messages) or sent to all vessels in range (broadcast messages).

Reception of an AIS text message is indicated by the presence of the message icon at the top of the screen. This icon is shown whenever there are unread AIS text messages. Messages can be reviewed and replied to via the In-box.

The transceiver can store up to a maximum of 20 messages in the In-box and 20 messages in the Sent folder. If the number of messages exceeds 20 then the oldest message will be overwritten.

When a Safety Related Message is received the user will be notified immediately with a pop-up showing the message. Standard text messages are not displayed on receipt, however the message icon will be displayed at the top of the screen.

AIS messages can be viewed, created and transmitted from the ‘Messages’ menu.

The available options are: Compose - takes you to the message composition screen In-box - takes you to the received message list view Sent - shows a list of recently sent messages.

To compose a new message, select the type of message from the drop down menu and the destination. This can be by directly entering the MMSI, or by selecting from a list of visible targets.

The message text is entered using the on screen keyboard. Messages are limited to 80 characters in length.

Class B transceivers are permitted to receive broadcast SRMs and broadcast text messages, however this function is not mandatory. Class B transceivers are not able to receive addressed SRM or text messages. There is therefore no guarantee that text messages or SRMs sent to a Class B transceiver will be received.

4.6.9 Long Range Messages

If the transceiver is connected to a long range communication system via the long range communications port then long range interrogations may be received. These are requests for information from a distant base station beyond normal AIS operation range.

The transceiver can be configured to automatically respond to Long Range (LR) interrogations, or you can opt to respond to any interrogation manually.

Page 45

Operation

Automatic response is the default setting, but this can be changed on the ‘Ra- dio and Long Range Settings’ menu.

When a Long range interrogation is received you will be alerted by an onscreen pop-up message.

In automatic response mode simply review and acknowledge the notification screen using ‘Acknowledge’. In manual response mode you should review the request and select either the ‘Respond’ or ‘Decline’ option as appropriate.

4.6.10 Help and Support Screen

This screen is available from the ‘System Settings’ menu and provides contact information for the product manufacturer.

It also provides relevant information from the User Manual.

4.6.11 User Settings Screen

From this screen, it is possible to set the display brightness, set the display to a day or night colour scheme, set the operating units to metric or nautical, and configure the sounds emitted by the device. It is also possible from this screen to set the UTC time offset, change the password, change the filter settings and display the menus in a number of non-English languages.

4.7 Configuring Vessel Information

4.7.1 Pre-configuration Checks

To proceed with configuration the steps in Section 3 should already have been completed.

4.7.2 Configuring Vessel Identification Information

The transceiver must be configured with information about the vessel on which it is installed prior to operation. The following information is required to be entered in the ‘Vessel data settings’ menu:

● MMSI - Vessel MMSI number, this can usually be found on the ships VHF radio license and should be the same MMSI as used for the VHF / DSC radio.

● Ship Name (limited to 20 characters)

● Call sign - Vessel radio call sign (limited to 7 characters)

● IMO - Vessel’s IMO identification number (if applicable)

● Ship type - Selected from the menu provided.

● Dimensions of the location of the GNSS antenna connected directly

to the AIS transceiver (Internal GNSS)

Page 46

Operation

Ref A

Antenna

Ref A + Ref B = Length in metres Ref C + Ref D = Beam in metres

Ref B

Stern Bow

Ref C

Ref D

● Dimensions of the location of an optional GNSS antenna connected to the AIS transceiver via an NMEA interface.

4.7.3 Configuring the Internal GNSS Receiver

The internal GNSS receiver can be configured to operate in one of three modes:

● GLONASS and GPS – in this mode the position fix is derived from both the GLONASS and GPS network in parallel. This mode is the default setting and gives the best performance.

● GPS – in this mode only GPS satellites are used for the position fix.

● GLONASS – in this mode only GLONASS satellites are used for the

position fix.

The operating mode can be selected from the ‘GNSS source’ option in the ‘Ad- vanced’ settings menu.

The antenna dimensions should be entered in metres according to the diagram provided in Figure 21.

Figure 21 Vessel Dimension Measurement

Page 47

Operation

4.8 Configuring Voyage Information

4.8.1 Configure Voyage Related Data

The transceiver must be configured with information about its voyage prior to operation. To enter the vessel identification information select the ‘Voyage Data settings’ option.

The following information is required:

● Navigation Status - Navigational status selected from the icons on the screen.

● Destination - Ships next destination port (limited to 20 characters).

● ETA - Estimated time / date of arrival at destination (using UTC time).

● Draught - Maximum present static draught to the nearest 1/10th of a

metre.

● Persons on Board - Number of crew on board (optional).

Page 48

Operation

16:58:29

SOG 21.1kt

UTC + 1h

COG 88.0°

50° 32.0286’ N 0° 55.2715’ W

PASSWORD SETTINGS

Enter the current password:

1234567890 .

QWE R T Y U I O

ZXCVBNM

!? OK

SDFGHJ KL

4.9 Passwords and Security

Certain important information stored within the transceiver cannot be changed without knowledge of the password. When trying to edit any of this protected information you will be prompted to enter the password.

The password entry screen is shown in Figure 22. Highlight the required character, then press ‘Select’ to enter that character. When all characters of the password have been entered, select ‘OK’.

Figure 22 Enter Password Screen

Following configuration of the transceiver the password should be changed from its default value of ‘0000’ (four zeros) to another alpha numeric code. Password change is carried out by selecting ‘User Settings’ -> ‘Password’.

The password should be recorded on the installation record found in Section 9.

4.10 Confirming Correct Operation

Following entry of the vessel and voyage information the transceiver will commence normal operation. Correct operation should be verified as follows:

1. Select the ‘Own dynamic data’ option from the main menu.

Page 49

Operation

2. Check that the displayed position, course, speed and heading are correct by comparing to the display associated to the connected position source and other data sources.

3. Check that the ‘TX’ icon flashes periodically.

4. If the vessel is in an area where other AIS equipped vessels are present press the ‘Back / Home’ key and select ‘Target list’ to check that data from other AIS equipped vessels is displayed.

5. Go to the ‘System settings / System Information’ screen and select ‘Hardware status’, check that the supply voltage and antenna VSWR are correct.

The transceiver is now operational and should remain powered unless authorised by the local maritime authority. The installation record at the rear of this manual should be completed and left on board the vessel.

4.11 Communication Test

It is possible to conduct an AIS communication test with another AIS equipped vessel. This test sends an AIS message to another vessel and checks for a response. The transceiver will display a list of vessels from which one can be selected for a communication test.

This feature can be selected from the ‘Advanced Settings’-> ’Installation and AIS SART Test’ menu.

From this screen you can also switch on or off the display of test messages from AIS Search and Rescue Transceivers. If ‘Display AIS SART Test Mes- sages’ is set to On, messages from AIS SARTs in Test mode will be displayed.

Page 50

Operation

NAME/MMSI Range Bearing CPA TCPA Type Age

TARGET LIST

16:58:29

SOG 21.1kt

UTC + 1h

COG 88.0°

50° 32.0286’ N 0° 55.2715’ W

DUBLIN FISHER 1m 50s

PROXIMITY CRAFT 1m 47s

ATLANTIC PRIDE 0m 1s

212222222 0m 36s

EMSLAKE 0m 45s

PIER 4 0m 6s

444110175

3.15NM

15.5NM

6.9NM

6.7NM

5.2NM

35.8NM

3.15NM

15.5NM

6.9NM

6.7NM

5.2NM

35.8NM

5h 38m

120.8

22.6

37.20

313.4

86.6

167.3

0m 5s

Visible: 12 Filtered out: 0

INT. GNSS

4.12 Displaying AIS Targets

4.12.1 Target List

The Target List Screen is the primary screen for displaying AIS targets received. This is the first screen displayed when the unit is switched on, but can also be accessed from the Target List option on the main menu.

Figure 23 Target List Screen

By default the target list is sorted by range but can be sorted on any column by using the left and right ‘Function’ keys to select a column and pressing the 'Select' key to sort either in ascending or descending order. Navigation up and down the list is via the up and down arrow keys or scroll wheel. Selecting a highlighted target using the Select key will bring up more details of that target. The Options menu on this screen provides additional actions which can be performed on the target list.

Different symbols are shown for an AIS target depending on the type of target and its status, these are shown in Figure 24. These symbols are common to the Target list and Target plot displays.

Page 51

Operation

AIS Class A

O Position AtoN

Base station

AIS SART

AIS SAR Aircraft

O Position AtoN

AIS Class B

AIS AtoN

Figure 24 AIS target symbols displayed

4.12.2 Target Filtering

From the Target List options menu, if 'Show Filter Settings' is selected, a screen is displayed indicating which filter parameters can be set to reduce the amount of data displayed on screen. This screen can also be accessed through ‘System Settings’-> ‘User Settings’.

Filters can be toggled on and off on the target list by pressing the ‘Options menu’ key and selecting ‘Toggle filters off’. The bottom line of the target list shows how many targets are visible or filtered out. If a filter is set, the filter icon is displayed at the top of the screen.

The Filters icon does not represent CPA/TCPA alarm settings.

4.12.3 CPA/TCPA Settings

The transceiver can be configured to filter out approaching vessels which fall within certain limits. The Closest Point of Approach (CPA) defines a boundary around the own vessel upon which, if breached, will trigger the filter. Time to Closest Point of Approach (TCPA) can only be set if CPA is set, and will trigger the filter if the time to the CPA limit is breached.

These parameters are set on the ‘Filtering and CPA/TCPA Settings’ menu. The target list shows targets which trigger the TCPA/CPA filter red. These CPA/TCPA figures are calculated solely on AIS data and should not be

used for anti-collision purposes.

Note: Setting the CPA/TCPA filter will not activate the Filters Icon.

4.12.4 Target Plot

The Target Plot screen shows the location of other AIS equipped vessels and shore stations relative to your own vessel. The target plot screen provides a basic overview of AIS targets and should not be regarded as a substitute for

Page 52

Operation

display of AIS information on a dedicated electronic chart display system (ECDIS).

The plot range can be adjusted by rotating the scroll wheel which cycles through the ranges 0.2NM up to 100NM. The range relates to the radius of the outer range ring shown on the screen.

Individual targets can be selected by using the arrow keys. When selected a square outline will appear around the target and the vessel details will be shown on the left hand side of the screen.

By pressing the options menu key, additional display features can be selected. If the Own Vessel Details option is selected the left hand side of the screen will

change to show own vessel dynamic data. If the MOB Details Display option is selected, the target plot will change to

show only AIS-MOB, AIS-SART, and AIS-EPIRB devices. The left hand side of the screen will show the range and relative bearing to whichever target is currently highlighted using the arrow keys.

4.13 Micro SD card data input

On the front of the transceiver under the door on the lower left hand side is a socket for a Micro SD memory card. See Figure 25. This can be used to upgrade the unit firmware or to log port data. Note the orientation of the Micro SD card, which is critical to ensure the product is not damaged.

Page 53

Operation

Figure 25 Micro SD card Socket

4.13.1 Upgrading the Unit Firmware

If a Micro SD card that contains valid upgrade firmware is inserted into the card socket, the unit will recognize the new firmware and will display a message asking you if you want to install it. The system will guide you to the appropriate menu screen, where the firmware update can be applied.

4.13.2 Logging Ports to the Micro SD card

If a Micro SD card is inserted into the card socket, the AIS transceiver can be configured to output specific data to the card. This is accessed from the individual port menu (from the ‘System settings’ -> ‘Interfaces’ menu.) If the ‘Log port to SD Card’ option is set to ‘On’, data will be output from that port to the Micro SD card, if one is inserted into the card socket. Only one port can be logged to the Micro SD card at a time.

4.13.3 Saving/Loading Settings

From the ‘Save/Restore & reset settings’ menu, all system settings and transceiver configuration data can be saved to the Micro SD card, if one is inserted

Page 54

Operation

into the card socket. Settings previously saved can be restored, thus restoring the transceiver to a previous configuration. ‘Reset settings’ will restore the unit to its factory defaults and is protected by the unit password.

4.14 WiFi Feature

The AIS transceiver provides features to operate with vessel WiFi networks, or to create its own network. Access the WiFi menu through ‘Interfaces’ -> ‘Wi-

Fi settings’.

4.14.1 Client Mode

If client mode is selected, the transceiver will search for available WiFi networks to connect to. If one is selected a password may be required, and upon connection the details of the connection will be shown in the bottom right corner of the screen. Once a WiFi connection is made, the transceiver will output a range of NMEA sentences over the selected WiFi port.

4.14.2 Access Point Mode

If the transceiver is configured as a WiFi access point (AP) it will create its own WiFi network, allowing other WiFi enabled devices to connect to it. Once connections are made, a range of NMEA sentences will be transmitted from the transceiver to any connected devices.

4.14.3 Advanced WiFi Features

Within the ‘WiFi’ screen, certain parameters can be changed such as Channel Number, Protocol, Port, Encryption, etc. These are recommended for advanced users only.

WiFi is switched off by selecting ‘Disable’ in the ‘Select Operating mode’ box.

Page 55

Operation

Page 56

5 Inland mode

The information entered and transmitted in Inland mode is not the same as that transmitted in SOLAS mode. After switching modes, please check your voyage and vessel data settings to ensure the configuration is correct.

5.1 Mode SOLAS / Inland AIS

The transceiver supports both standard ‘high seas’ operation and ‘Inland AIS’ operation. Inland AIS is an extension of AIS intended for use on board vessels navigating Inland waterways.

5.1.1 Switching between ‘Class A’ and ‘Inland AIS’ Modes

To switch between operating modes select the ‘System settings' -> ‘Operating mode’ option. Set the ‘Operating mode’ setting to ‘Inland AIS’ or ‘Class A /SO-

LAS’ before saving the setting. When the transceiver is configured to operate in Inland AIS mode the word ‘INLAND’ is shown permanently in the Menu title bar.

5.1.2 Entering Inland vessel identification settings

Additional vessel identification information is required for Inland operation along with some changes to the standard AIS configuration. The following additional information must be entered into the AIS transceiver:

● A quality setting for the speed, course and heading data sources connected to the AIS is required. The quality setting can be ‘high’ or ‘low’ for each data source. The low setting should be used unless a type approved sensor (e.g. a gyro providing heading information) is connected to the AIS transceiver.

The additional identification information can be entered via the ‘Vessel data settings’ menu.

The following standard AIS vessel identification information must be updated for Inland AIS:

● The vessels ENI - this is an 8 digit number allocated to the vessel.

● The ship type as an ERI selected from the menu provided.

● The length and beam of the ship to the nearest 10cm (greater

accuracy than standard AIS configuration).

These updates are all made using the process described in section 4.7.2

Inland mode

Page 57

Inland mode

Neither Blue Sign terminal should be connected to any other point on the AIS transceiver side of any isolation barrier present in the vessel wiring.

5.1.3 Entering Inland Vessel Voyage Settings

Additional voyage related information is required for Inland operation along with some changes to the standard AIS configuration. The following additional information must be entered into the AIS transceiver:

● The vessel’s load status (Loaded, Unloaded, or Unknown).

● The number of blue cones or blue flag status for the cargo.

● The static draught of the vessel to the nearest centimetre.

● The number of crew, passengers and other shipboard personnel.

The additional identification information can be entered via the ‘Voyage data settings’ menu.

The voyage destination should be entered using UN terminal location codes and ERI terminal codes where possible when in Inland Mode

5.1.4 Inland Alarm Masking

Inland AIS installations do not typically include connection of external GNSS, Heading or Rate of Turn sensors to the transceiver. The system alarms associated with these sensors can be disabled in Inland mode through the ‘Alarm Settings’ screen.

5.1.5 Blue Sign Switch

When operating in Inland mode it is possible to connect a ‘blue sign’ switch to the AIS transceiver.

The transceiver provides an isolated input for Blue Sign switch connection. It comprises two connections BLUE_SIGN_P and BLUE_SIGN_N. When enabled for Inland Waterways operation and the BLUE_SIGN_P terminal has a positive voltage with respect to BLUE_SIGN_N the Blue Sign status will be present on the display and transmitted accordingly in AIS position reports. See Figure 26.

Suitable options for connection to the Blue Sign interface are shown in Figure

26. Settings for the blue sign switch are available by selecting the ‘System set-

tings’ option followed by the 'Operating mode’ sub menu. Select the ‘Blue sign switch’ option to set up the blue sign switch.

Page 58

Remote

Vdc max.

Equipment

KƉƟŽŶƐ

CONTACT 1

OUTPUT +

OUTPUT -

FIELD GND

FIELD POWER

BLUE_SIGN_P

BLUE_SIGN_N

Inland mode

BLUE_SIGN_P

BLUE_SIGN_N

AIS

dƌĂŶƐĐĞŝǀĞƌ

GND

12V

GND

CONTACT 2

0 / 5V

GND

0 / 12V

GND

FIELD GND

BLUE_SIGN_P

BLUE_SIGN_N

BLUE_SIGN_P

BLUE_SIGN_N

BLUE_SIGN_P

BLUE_SIGN_N

3k9

GND

Figure 26 Blue Sign Interface Connection Options

BLUE_SIGN

GND

Page 59

Inland mode

Page 60

Technical Information

Oscillator R ectier

Regulator

Decode

Digital isolation Transceiver

ISOIN

Encode

DecodeEncode

Decode

ADM2587E

RX_A

TxD

Vcc

RxD

To UA RT

Data input port

Isolation Barrier

RX_B

RX_COM

Encode

ISOOUT

DC to DC Converter

GND

6 Technical Information

6.1 Interface Circuits

6.1.1 Sensor Data Input Port

The sensor data input port schematic is shown in Figure 27.

Figure 27 Input Port Schematic

A logical low input is defined as: A-B < -0.2V.

A logical high input is defined as: A-B > +0.2V.

6.1.2 Bi-directional Data Ports

The input circuitry of the bi-directional data ports is identical to the input circuitry for the sensor data input ports described in the preceding section. The output circuitry consists of a differential line driver IC (Analog Devices ADM2587E) and is shown in Figure 28.

Page 61

Technical Information

Oscillator R ectier

Regulator

Decode

Digital isolation Transceiver

ISOIN

Encode

DecodeEncode

Decode

ADM2587E

RX_A

TxD

Vcc

RxD

From UART

Data output port

Isolation Barrier

RX_B

TX_A

TX_B

RX_COM

Encode

ISOOUT

DC to DC Converter

GND

Each bi-directional data port is isolated from the other bidirectional data ports and from the transceiver’s internal power supply.

Figure 28 Data Output Port Schematic

6.2 Output Drive Capability of Bi-directional Ports

Bi-directional ports can supply an output current of up to 30mA. The output voltages are 0 (low) and 3.3V (high). Effective load resistance should be in excess of 100 Ohms.

6.3 DGNSS Port

The DGNSS correction port is intended for connection to a Beacon Receiver. The port has the same physical characteristics as the bi-directional data ports as described in the preceding sections. If connection of a beacon receiver is not required this port can be re-configured as an additional bi-directional port to IEC61162-2.

Page 62

Technical Information

165 mm111 mm

196 mm

143 mm

152 mm

130 mm

79 mm

49 mm

6.4 Input Data Sentence Formats

All data input is via IEC61162 / NMEA 0183 sentences. For details of the sentences and their checksums please refer to IEC61162-1.

6.5 AIS Transceiver Overall Dimensions

Figure 29 Transceiver Dimensions

Page 63

Technical Information

68mm

75mm

TNC (male)

10m RG58 cable

6.6 GNSS Antenna Drawing

Figure 30 GNSS Antenna

* The dimensions of the supplied antenna may vary from those shown here.

6.7 Transmission Intervals

The IEC61162 sentences are in general output in response to a specific event, such as initiation of a binary message via the user interface. Certain messages are output over the ports at regular transmission intervals. Table 6 lists each sentence type and the transmission interval.

Page 64

Technical Information

Output Sentence Type

VDO Once a second Own vessel VDL reports. When a

Transmission Interval Comments

report is not generated by the transceiver a ‘dummy’ VDO is generated in its place.

ALR (inactive)

ALR (active)

ABK, ACA, LR1, LR2, LR3, LRF, LRI, TXT, VDM

Table 6 IEC61162 Transmission Interval for Periodic Sentences

Once a minute If no alarms are active, a single

empty ALR sentence is output

Once every thirty seconds

Only transmitted when specifically initiated by an external event

If any alarms are active, an ALR sentence is output for each active alarm.

Page 65

Technical Information

6.8 Interface Sentences

The IEC61162 sentences accepted by and output by the transceiver serial data ports are listed in Table 7.

Data Port Input Sentences Output Sentences

Sensor 1 Sensor 2 Sensor 3

External display Pilot Long range

DGPS RTCM SC-104 binary

DTM, GBS, GGA, GLL, GNS, HDT, RMC, ROT, VBW, VTG, THS

ABM, ACA, ACK, AIR, BBM, DTM, GBS, GGA, GLL, GNS, HDT, LRF, LRI, RMC, ROT, SSD, VBW, VSD, VTG, EPV, SPW, THS

format

Table 7 IEC61162 Sentences Input and Output

N/A

ABK, ACA, ALR, LR1, LR2, LR3, LRF, LRI, TXT, VDM, VDO, TRL, VER

Page 66

Technical Information

6.9 Unused Fields

Unused fields in the above sentences are listed in Table 8 below. All fields of other input and output sentences that are not in this table are used.

Sentence Unused Fields Description

AIR 9

DTM 2

GBS 4

GGA 5

10 11 12

3 5 7

5 6

6 7

8 9 10 11 12

Channel of Interrogation Message ID 1.1 Station 1 reply slot Message ID 1.2 Station 1 reply slot Message ID 2.1 Station 2 reply slot

Local datum subdivision code Lat offset, min, N/S Longitude offset, min, E/W Altitude offset, (meter)

Expected error in altitude ID of most likely failed satellite Probability of missed detection for most likely failed satellite Estimate of bias on most likely failed satellite Standard deviation of bias estimate

No. of satellites in use, 00-12 Horizontal dilution of precision Antenna altitude above/below mean sea level (geoid) Units of antenna altitude, m Geoidal separation Units of geoidal separation, m Age of diff. GPS data Differential reference station ID 0000-1023

GNS 5

6 7

8 9 10

Number of satellites in use, 00-99 Horizontal dilution of precision Antenna altitude, m, above meansea-level Geoidal separation, m Age of differential data Differential reference station ID

Page 67

Technical Information

Sentence Unused Fields Description

RMC 7

VBW 1

2 3 7 8 9 10

VTG 2 Course over ground, degrees mag-

Table 8 Unused Fields

Date: dd/mm/yy Magnetic variation, degrees, E/W

Longitudinal water speed, knots Transverse water speed, knots Status: water speed Stern transverse water speed, knots Status: stern water speed Stern transverse ground speed Status: stern ground speed

netic

6.10 Proprietary Sentences

The transceiver outputs no proprietary sentences in normal operation.

6.11 Priority of Sensor Ports

The transceiver automatically assigns a priority scheme to connected sensors. Data from the highest priority sensor will always be used. Sensor input priority is for:

●Position

●COG+SOG

●Heading

●Rate-of-Turn

The sensor input ports have a priority order as shown in Table 9

Page 68

Port Priority (1 = highest)

Sensor 1 1

Sensor 2 2

Sensor 3 3

Technical Information

Port Priority (1 = highest)

External Display 4

Pilot 5

Long Range 6

Table 9 Port Priority Order

6.11.1 Position Priority Scheme

Position information is taken from the highest priority source reporting DTM with WGS84 or datum override and RMC. If no RMC sentences are available, position shall be taken from the highest priority source reporting DTM with WGS84 or datum override and any one of:

• GGA

•GNS

•GLL

The following sentences are only processed only if they are from the currently selected position source:

•RMC

• GGA

•GNS

•GLL

•GBS

•GRS

•GSA

•GSV

•GFA When no position has been received on the selected port for 30 seconds, the port is deselected as a position source, and a new source selected as described above.

6.11.2 Course and Speed Priority Scheme

COG and SOG are taken from the highest priority source reporting any one of:

• RMC (with DTM=WGS84 or datum override)

•VTG

•VBW VTG and VBW are only processed if they are from the currently selected COG & SOG source. When no COG+SOG has been received on the selected port

Page 69

Technical Information

for 30 seconds, the port shall be deselected as a COG+SOG source, and a new source selected as described above.

6.11.3 Heading Priority Scheme

Heading shall be taken from the highest priority sensor reporting any one of:

•HDT

•THS HDT and THS are only processed if they are from the currently selected Heading source. When no heading has been received on the selected port for 30 seconds, the port shall be deselected as a heading source, and a new source selected as described above

6.11.4 Rate of Turn Priority Scheme

Rate-of-Turn shall be taken from the highest priority sensor reporting ROT. ROT shall only be processed if they are from the currently selected Rate-ofTurn source. When no Rate-of-Turn has been received on the selected port for 30 seconds, the port shall be deselected as a Rate-of-Turn source, and a new source selected as described above.

6.12 Compatibility Mode

Some devices require the use of Compatibility Mode for correct operation. When operating in the standard mode the fix quality flag indicates the type of GNSS position that is being reported. In compatibility mode, the fix quality reported will either be No GNSS or GNSS. On the ‘Interfaces’ screen, under the configuration menu for each sensor port there is an On/Off toggle which can be set if Compatibility Mode is required for that port.

6.13 Message 24 Content

The Unit Serial Number transmitted in AIS Message 24B, in response to a Message 15 request, is encoded as follows (note that these characters represent individual bits in the data): wwww wwyy yxxx xxxx xxxx w = week (0 - 63) y = years since 2014 (0 - 7) x = incrementing number (0 - 2047)

Page 70

Technical Information

6.14 NMEA 2000 PGN List

The PGN’s listed in Table 10 are supported by the transceiver. There are no unused fields.

PGN (Dec.)

059392 0E800 ISO Acknowledgment out

059904 0EA00 ISO Request in, out

060928 0EE00 ISO Address Claim in, out

065240 0FED8 ISO Commanded

126208 1ED00 Group Function in, out

126992 1F010 System Time out

126993 1F011 Heartbeat out

126996 1F014 Product Information in, out

127520 1F112 Vessel Heading in

127251 1F113 Rate of Turn in

129025 1F801 GNSS Position (Rapid

129026 1F802 GNSS Direction Data in, out RMC

PGN (Hex)

Title in NMEA Database

Address

Update)

Usage NMEA 0183

in, out

out RMC

129029 1F805 GNSS Position Data in, out

129038 1F80E AIS Class A Position

Report

129039 1F80F AIS Class B Position

Report

129040 1F810 AIS Class B Extended

Position Report

129041 1F811 AIS AtoN Report out VDO, VDM

129545 1FA09 GNSS RAIM in

out VDO, VDM

out

Page 71

Technical Information

PGN (Dec.)

129793 1FB01 AIS UTC and Date

129794 1FB02 AIS Class A Static and

129795 1FB03 AIS Addressed Binary

129796 1FB04 AIS Acknowledge out

129797 1FB05 AIS Binary Broadcast

129798 1FB06 AIS SAR Aircraft Posi-

129801 1FB09 AIS Addressed SRM out

129802 1FB0A AIS Safety Broadcast

129809 1FB11 AIS Class B CS Static

PGN (Hex)

Title in NMEA Database

Report

Voyage Related Data

Message

tion Report

Binary Message

Data Report Part A

Usage NMEA 0183

out VDO, VDM

out

out VDO, VDM

129810 1FB12 AIS Class B CS Static

Data Report Part B

Table 10 PGN Lists

Page 72

out VDO, VDM

6.15 Troubleshooting

Issues Possible cause and remedy

Technical Information

No data is being received by a connected chart plotter

The screen is not illuminated

The RED ‘Alarm’ icon is illuminated

• Check that the power supply is connected correctly.

• Check that the power supply is a 12V or 24V supply.

• Check that the connections to the chart plotter are correct.

• Check that the power supply is connected correctly.

• Check that the power supply is a 12V or 24V supply.

• The unit may not have a valid MMSI. Check that the AIS transceiver is correctly configured with a valid MSSI.

• The VHF antenna may be faulty. Please check the connection to the VHF antenna and that the VHF antenna is not damaged. The alarm icon may illuminate briefly if the power supply is interrupted or the VHF antenna characteristics are briefly affected.

• No GPS position fix can be obtained. Please check the transceiver is located where the internal GPS antenna has a clear sky view or that an external GPS antenna is properly connected and installed. Review the GPS signal strength graph in ‘System settings / GNSS Source’.

• The power supply is outside the allowable range. Check that the power supply is within the range 9.6V to 31.2V

• If none of the above correct the error condition please contact your dealer for advice.

• Check for error and alarm messages in the ‘Alarms’ menu.

Page 73

Technical Information

My MMSI is being received by other vessels but my vessel name is not shown on their chart plotter or PC.

If the guidance given in the table above does not rectify the problem you are experiencing, please contact your dealer for further assistance.

• Some older AIS devices and chart plotters do not process the specific class B message which provides the vessel name (message 24). This is not a fault of your AIS transceiver. software upgrades are available for may older chart plotters which will correct this issue. The other vessel should update its AIS unit and/or chart plotting software to receive AIS message 24.

Table 11 Troubleshooting

Page 74

Junction Box Accessory

Quick Start

Guide

18 way

extension cable

14 way

extension cable

Junction

Box

Self-Tapping Screws

7 Junction Box Accessory

7.1 What’s in the Box

The items below are included in the junction box purchase. If any of these items are missing, please contact your dealer.

Figure 31 Junction Box - What’s in the Box

7.2 Installation

The junction box should be mounted within 2m of the AIS transceiver, to ensure that the cable can be run without compromising its performance.

1. Connect the two extension cables between the transceiver and the junction box.

2. Remove the lid of the junction box using a 3mm Allen Key. Route your accessory cables through the waterproof cable glands and find the appropriate terminal blocks to fix them to.

3. Use the connector diagrams shown in Figure 12 and Figure 14 as your guide.

4. Secure the earth/screen/shield of the accessory cables to the metallic strips of the junction box or to the appropriate connection on the terminal block.

5. By default, the 120 Ohm jumper connectors should all be fitted to terminate any unused ports. If a port requires no termination, then that port’s jumper can be removed.

6. Secure the accessory cables within the junction box with cable ties.

7. Refit the lid securely to ensure waterproofing.

Page 75

Junction Box Accessory

COM

Rx A

Rx B

COM

Rx A

Rx B

Tx A

Tx B

COM

Shield

Tx A

Tx B

Rx A

Rx B

COM

Shield

Tx A

Tx B

Chassis

Sensor (eg. external GNSS)

Junction box

AIS transceiver

Chart plotter

Sensor port 3

Sensor port 2

Sensor port 1

(Orange, Purple,

Green wires)

External

display port

Pilot port

LR/DGPS port

Earth stud connection

7.3 Connecting External Equipment

Figure 32 shows an example of how external equipment could be connected through the junction box accessory.

Figure 32 Connecting the External Equipment

When connecting external equipment the following procedures should be observed.

• The common line should be connected to the sensor port if one is available.

• The shield in the cable used to connect the external equipment should be connected at one end only, Refer to the manufacturers documentation regarding cable construction.

• The chassis connection can be made with EITHER a drain wire OR directly to the cable shield using exposed wire links on the junction box printed circuit board, depending on the cable construction.

Page 76

7.4 Technical Information

7.4.1 Physical

Junction Box Accessory

Junction Box Dimensions

Junction Box Weight

7.4.2 Environmental

Operating Temperature Range

Maximum Operating Humidity

Water Ingress Rating IPx6

7.4.3 Data Connector Information

18 way data connector

14 way data connector

235mm x 69mm x 233mm (WxHxD)

0.65kg

-15

°C to +55°C

90% at +40

Chogori 23018525-04-RC

Chogori 23014525-05-RC

°C, non-condensing

Mating Half Chogori

23018221-01

Mating Half Chogori

23014221-01

Page 77

Junction Box Accessory

Page 78

8 Technical Specification

8.1 Applicable Equipment Standards

Technical Specification

IEC61993-2 Ed. 2.0 2012-10

IEC60945 4th Ed. 2002-08

IEC61162-1 Ed. 4.0 2010-11

IEC61162-2 Ed. 1.0 1998-09

IEC61162-3 2008+A2:2014

ITU-R M.1371-5 02/2014

IEC61108-1 2nd Ed. 2003-07

Class A shipborne equipment of the universal automatic identification system (AIS) – Operational and performance requirements, methods of test and required test results

Maritime navigation and radio communication equipment and systems – General requirements – Methods of testing and required test results

Maritime navigation and radio communication equipment and systems – Digital interfaces - Single talker and multiple listeners

Maritime navigation and radio communication equipment and systems – Digital interfaces - Single talker and multiple listeners, high speed transmission

Maritime navigation and radio communication equipment and systems Digital interfaces - Part 3: Serial data instrument network.

Technical characteristics for an automatic identification system using time division multiple access in the VHF maritime mobile band

Global Navigation Satellite Systems (GNSS) – Part 1: Global positioning system (GPS) - Receiver equipment - Performance standards, methods of testing and required test results

IEC6118-02 1st Ed. 1998-06

CCNR VTT Ed. 1.2

23.4.2013

Global navigation satellite systems (GNSS) - Part 2: Global navigation satellite system (GLONASS) Receiver equipment - Performance standards, methods of testing and required test results

Central commission for Navigation on the Rhine, Inland AIS Equipment

- Vessel Tracking and Tracing Standard for Inland Navigation

Page 79

Technical Specification

8.2 Product Category

Product Category This product is categorized as ‘protected’ in accor-

dance with the definitions provided in IEC 60945

8.3 Physical

Transceiver Dimensions

Transceiver Weight

Compass Safe Distance

152mm x 165mm x 111mm (WxHxD), see Figure 29 for drawing)

1.5kg

0.5m (Transceiver)

8.4 Environmental

Operating Temperature Range

Maximum Operating Humidity

Water Ingress Rating IPx6, IPx7

-15

°C to +55°C

90% at +40

°C, non-condensing

8.5 Electrical

Supply Voltage 12 to 24V DC (absolute min 10.8V, absolute

max 31.2 V)

Power Consumption < 12W

Current Consumption @12 VDC Supply

Current consumption @24 VDC supply

Page 80

0.9A typical, 6.0A peak

0.5A typical, 4.0A peak

Technical Specification

8.6 Display and User Interface

Display 800 x 480 pixel colour LCD with adjustable backlight

Luminance

Recommended Viewing Distance

Keypad Five function keys and three menu keys with adjust-

Rotary Control Encoder with push function

Speaker 600mW@750Hz 11mm x 15mm

500cd/m

45cm

able backlight

max, 75cd/m2 default

8.7 Internal GNSS

Receiver Channels

Time to First Fix Typically 26 seconds

Frequency L1 GPS band, 1575.42MHz and L1 GLONASS band

Accuracy 2.5m CEP / 5.0m SEP without differential correction

Antenna Requirement

32 channels GPS and GLONASS operating modes

1597.1 - 1609.5MHz

2.0m CEP / 3.0m SEP with SBAS or RTCM DGPS correction

Active antenna (5V bias) with gain >15dB

Page 81

Technical Specification

8.8 TDMA Transmitter

Frequency Range 156.025MHz to 162.025MHz

Channel Bandwidth 25kHz

Output Power 1W or 12.5W (automatic selection)

Data Transmission Rate 9600 bits/s

Modulation Mode 25kHz GMSK

8.9 TDMA receiver

Number of Receivers 3

Frequency Range 156.025MHz to 162.025MHz

Channel Bandwidth 25kHz

Sensitivity <-107dBm for 20% PER

Modulation Mode 25kHz GMSK

Adjacent Channel Selectivity 70dB

Spurious Response Rejection 70dB

8.10 DSC Receiver

Number of Receivers 1

Frequency 156.525MHz (Channel 70)

Channel Bandwidth 25kHz

Sensitivity

Modulation mode 25kHz AFSK

Adjacent channel selectivity 70dB

Spurious response rejection 70dB

Page 82

-107dBm @ BER <10

-2

8.11 RF Connections

VHF Antenna Connection SO-239 / UHF

VHF Port Impedance 50 Ohms

GNSS Antenna Connections TNC female

GNSS Port Impedance 50 Ohms

8.12 Data interface

Sensor Data Input Ports

Number of Ports 3

Standard IEC61162-1 / -2

Baud Rate 4800 baud or 38400 baud

Port Impedance 54K Ohms

Bidirectional Data Ports (including pilot port)

Technical Specification

Number of Ports 3

Standard IEC61162-1 / -2

Baud Rate 4800 or 38400 baud

Port Impedance 54K Ohm

Differential Correction Port

Standard ITU 823-2 / RTCM SC-104

Baud Rate 4800 baud or 38400 baud

Port Impedance 54K Ohms

Blue Sign Port

Port Impedance 10K Ohms

Page 83

Technical Specification

Silent Mode Port

Port Impedance 10K Ohms

NMEA 2000 Port:

Load Equivalency Number (LEN)

8.13 Power and Data Connector Information

Power Connector

18 way Data Connector

14 way Data Connector

Chogori 22002525-04-RC

Chogori 23018525-04-RC

Chogori 23014525-05-RC

Mating Half Chogori

22002221-01

Mating Half Chogori

23018221-01

Mating Half Chogori

23014221-01

8.14 Open Source Licences

This product contains open source software. For details please see the ‘System information’ screen.

8.15 Product Versions

At delivery, the product contains the following software and hardware versions: MKD Software: 110400.01.09 MKD Firmware: 110400.01.09 Modem Software: 110200.01.02 MKD Hardware: 1 Modem Hardware:1

The ‘System Information’ screen will display the currently installed software and hardware versions on the transceiver. If this differs from that stated here, please check Online for an updated manual.

Page 84

Installation Record

9 Installation Record

The following installation record should be completed and retained on board the vessel once the AIS transceiver has been installed and commissioned.

9.1 Vessel Details

Vessel Name

Flag State

IMO Number MMSI Number

Owner Radio Call

Type of Vessel Gross Regis-

Length (m) Beam (m)

AIS Transceiver Serial Number

Installation Password

Radio Software Version Number

MKD Software Version Number

External GNSS Antenna Location (all dimensions in meters, refer to diagram below

A= B= C= D=

Sign

tered Tonnage

Page 85

Installation Record

Ref A

Antenna

Ref A + Ref B = Length in metres Ref C + Ref D = Beam in metres

Ref B

Stern Bow

Ref C

Ref D

Figure 33 GNSS Antenna Position

Connected equipment type (where applicable note equipment and AIS data port in each case.

(D)GPS Receiver

Gyro Compass

ROT Indication

Speed Log

ECDIS

Radar

Other Equipment

Power Supply

The following drawings should be provided and attached to this installation record.

• Antenna layout for VHF and GNSS antennas

• AIS arrangement drawing

• Block diagram showing interconnection of equipment

Page 86

Maintenance Record

Installation Record

Modification record number

Installer Detail
