CONTENTS
SAFETY WARNINGS AND GUIDELINES ....................................................................................................................................... 3
INTRODUCTION ................................................................................................................................................................................................ 4
FEATURES .............................................................................................................................................................................................................. 4
CUSTOMER SERVICE .................................................................................................................................................................................... 5
PACKAGE CONTENTS ................................................................................................................................................................................. 5
CONTROLS AND MENU DISPLAY ..................................................................................................................................................... 6
MENU FUNCTIONS ........................................................................................................................................................................................ 7
MASTER/SLAVE MODE ............................................................................................................................................................................. 7
4-CHANNEL DMX MODE ......................................................................................................................................................................... 8
12-CHANNEL DMX MODE ....................................................................................................................................................................... 9
TECHNICAL SUPPORT ................................................................................................................................................................................ 11
SPECIFICATIONS ............................................................................................................................................................................................ 12
REGULATORY COMPLIANCE .............................................................................................................................................................. 12
Notice for FCC .......................................................................................................................................................................................... 12
Notice for Industry Canada ........................................................................................................................................................... 13
2
Page 3
SAFETY WARNINGS AND GUIDELINES
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. If moisture does get in
or on the device, immediately unplug it from the power outlet and allow it to fully
dry before reapplying power.
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become entangled with other cords. Ensure that
the power cord does not present a tripping hazard.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
When disconnecting the power cord do not pull on the cord itself. Instead, grasp
the plug connector head to disconnect it from the power socket.
Do not look directly into the light source.
If the device will not be used for any lengthy period of time, it should be unplugged
from the power source.
When installing this device, ensure that the mount is sufficiently robust to support
the weight of the unit and to prevent unwanted movement.
This device ventilates excessive heat through the slots and openings in the case. Do
not block or cover these openings. Ensure that the device is in an open area where
it can get sufficient airflow to keep from overheating.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
Ensure there are no flammable materials or any obstructions within 1.5 feet (0.5m)
around the fixture to ensure fire safety and sufficient cooling.
3
Page 4
INTRODUCTION
Thank you for purchasing this stage light!
This moving head beam light uses a high-power, 30-watt white LED. It features an internal
color wheel with 7 color filters (Orange, Cyan, Lavender, Yellow, Green, Blue, Red, and
Open/White), as well as a gobo wheel with 7 gobo patterns. It has 8 built-in programs, plus
4-channel and 12-channel DMX modes. It can be controlled using a DMX-512 controller or
can be used as a Master or Slave with the built-in programs.
FEATURES
Uses a single, 30-watt white LED
8-position gobo wheel with 7 gobo patterns and a non-template open beam option
8-position color wheel with 7 color filters (Orange, Cyan, Lavender, Yellow, Green,
Blue, and Red) and a non-filtered Open/White option
8 built-in programs
4-channel and 12-channel DMX control modes
540° of pan movement, 190° of tilt movement
Reversible Pan and Tilt control for inverted or mirrored operation
Reversible menu for inverted operation
Includes sound-responsive program
Accepts 100 ~ 240 VAC, 50/60 Hz input power
4
Page 5
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Moving head 30-watt beam light with internal gobos and color filters
1x Mounting bracket
2x Hex head bolts
2x Flat washers
1x AC power cord (NEMA 5-15 to IEC 60320 C13)
1x User's manual
5
Page 6

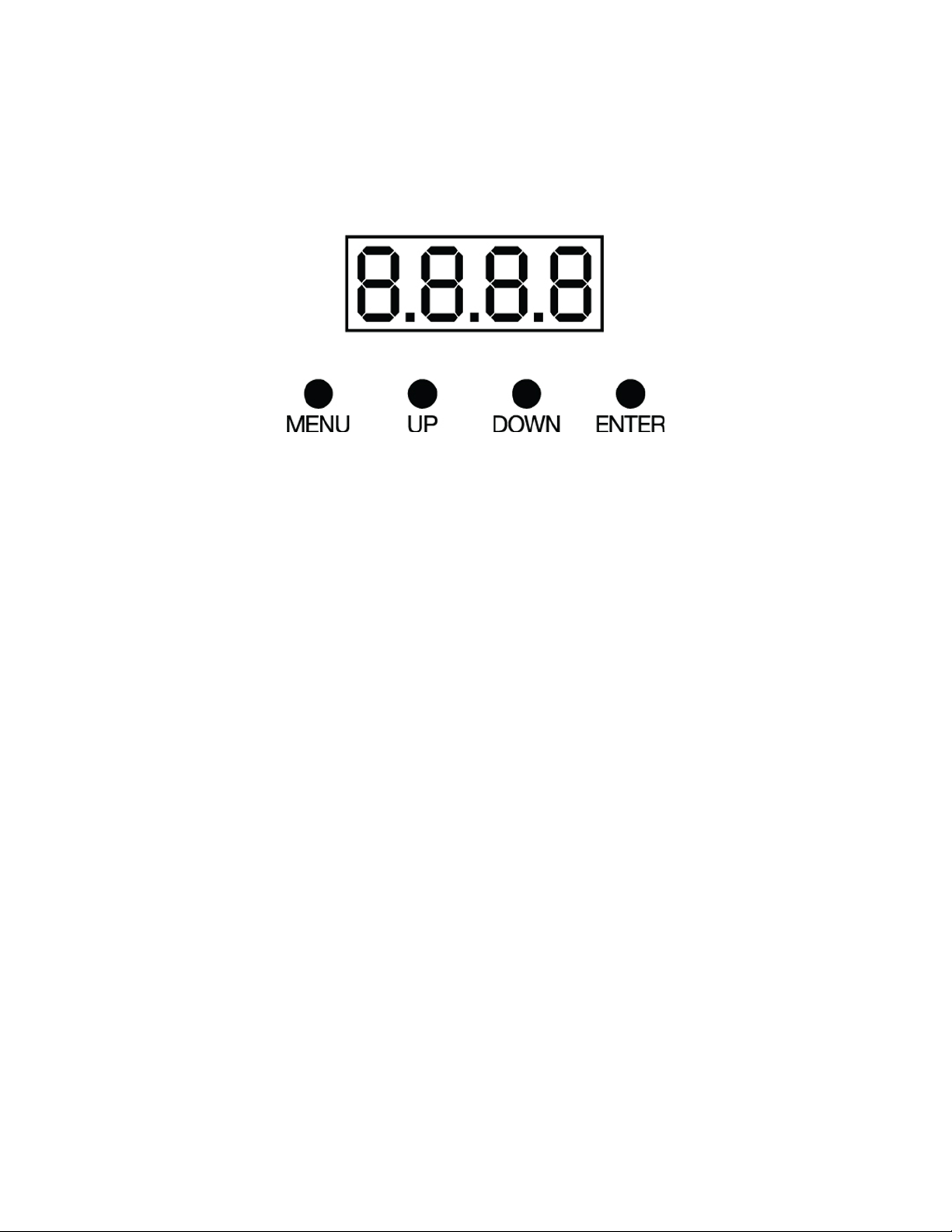

CONTROLS AND MENU DISPLAY
The 4-digit LED display indicates the mode and the value for the selected function or
mode.
Press the MENU button as a "back" button when editing an entry. If already at the
top level, press the MENU button to return to the top of the menu list (A###).
Press the UP button to increase the value of the selected function or mode. Press
and hold the button to rapidly increase the displayed value. The list will cycle back
to the beginning after the maximum value is reached.
Press the DOWN button to decrease the value of the selected function or mode.
Press and hold the button to rapidly decrease the displayed value. The list will cycle
back to the end after the minimum value is reached.
Once the desired value is displayed, press the ENTER button to set that value for the
displayed function or mode and allow for selection of another function or mode.
If you want to discard any changes made to the value of the selected function or
mode, simply press the MENU button to back out of the previous menu level.
6
Page 7
MENU FUNCTIONS
Menu
Option
Value Range
Function
A###
001-512
DMX mode, ### = starting address
rSt_
N/A
Resets the motor
Ad_t
N/A
No function
rFAC
N/A
Resets the light fixture to factory default settings
dISP
on/oFF
Inverts the LED menu display
tIL_
on/oFF
Inverts tilt movement
PAn_
on/oFF
Inverts pan movement
Soun
on/oFF
Sound activated mode
SHnd
SH_1 - SH_8
Built-in programs (1-8)
SLnd
nASt/SL_1
Master (nASt)/Slave (SL_1) mode
CHnd
4CH/12CH
DMX channel selection
MASTER/SLAVE MODE
When using one of the built-in programs, the fixture is considered to be in Master mode.
You can then daisy-chain additional fixtures to the master by using a 3-pin DMX cable to
connect the DMX OUT on the Master fixture or on the previous Slave fixture to the DMX IN
on the next Slave fixture. Slave fixtures will perform the same actions as the Master fixture.
To configure a fixture as a Master, set the light to any mode except one of the DMX
modes.
To configure a fixture as a Slave, set the fixture to A001.
Note that you cannot use a DMX controller when connecting multiple lights in
Master/Slave mode.
7
Page 8
4-CHANNEL DMX MODE
Channel
DMX Value
Range
Function
1
000-255
Pan control
2
000-255
Tilt control
3
000-007
No function
008-047
Automatic color change
048-087
Automatic gobo change
088-127
Automatic color and gobo fast change
128-167
Automatic color and gobo slow change
168-207
Automatic color and gobo change with fast strobing
208-247
Automatic color and gobo change with slow strobing
248-255
Sound controlled color and gobo change
4
000-007
No function
008-032
Automatic movement pan 540°
033-058
Automatic movement tilt 180°
059-084
Automatic movement pan 180°
085-110
Automatic movement tilt 90°
111-136
Automatic movement pan 360° and tilt 180°
137-162
Automatic movement pan 180° and tilt 90°
163-188
Automatic movement pan 540° and tilt 180° slow
189-214
Automatic movement pan 180° and tilt 90° slow
215-240
Automatic movement pan 180° and tilt 90° fast
241-255
Sound controlled automatic pan and tilt movement
The following table lists the functionality of each channel in 4-channel DMX mode.
8
Page 9
12-CHANNEL DMX MODE
Channel
DMX Value
Range
Function
1
000-255
Pan control
2
000-255
Pan fine control
3
000-255
Tilt control
4
000-255
Tilt fine control
5
000-255
Motor speed
6
000-255
Master dimming from dark to bright
7
000-004
Shutter closed
005-250
Strobe effect from slow to fast
251-255
Shutter open
8
000-023
Color wheel 1 open (white)
024-047
Color wheel 2 orange
048-071
Color wheel 3 cyan
072-095
Color wheel 4 lavender
096-119
Color wheel 5 yellow
120-143
Color wheel 6 green
144-167
Color wheel 7 blue
168-191
Color wheel 8 red
192-255
Color wheel cycling 1-8 then 8-1 from slow to fast
9
000-011
Gobo wheel 1 open (no pattern)
012-023
Gobo wheel 2
024-035
Gobo wheel 3
The following table lists the functionality of each channel in 12-channel DMX mode.
9
Page 10
9
036-047
Gobo wheel 4
048-059
Gobo wheel 5
060-071
Gobo wheel 6
072-083
Gobo wheel 7
084-095
Gobo wheel 8
096-111
Gobo wheel 2 shaking from slow to fast
112-127
Gobo wheel 3 shaking from slow to fast
128-143
Gobo wheel 4 shaking from slow to fast
144-159
Gobo wheel 5 shaking from slow to fast
160-175
Gobo wheel 6 shaking from slow to fast
176-191
Gobo wheel 7 shaking from slow to fast
192-255
Gobo wheel cycling 1-8 then 8-1 from slow to fast
10
000-007
No function
008-047
Automatic color change
048-087
Automatic gobo change
088-127
Automatic color and gobo fast change
128-167
Automatic color and gobo slow change
168-207
Automatic color and gobo change with fast strobing
208-247
Automatic color and gobo change with slow strobing
248-255
Sound controlled color and gobo change
11
000-007
No function
008-032
Automatic movement pan 540°
033-058
Automatic movement tilt 180°
059-084
Automatic movement pan 180°
085-110
Automatic movement tilt 90°
10
Page 11
11
111-136
Automatic movement pan 360° and tilt 180°
137-162
Automatic movement pan 180° and tilt 90°
163-188
Automatic movement pan 540° and tilt 180° slow
189-214
Automatic movement pan 180° and tilt 90° slow
215-240
Automatic movement pan 180° and tilt 90° fast
241-255
Sound controlled automatic pan and tilt movement
12
000-250
No function
251-255
Reset (10 seconds)
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to [email protected]
11
Page 12
SPECIFICATIONS
Model
612830
Light Source
1x 30-watt white LED
Beam Angle
13°
DMX Control
4-channels or 12-channels
DMX Input/Output
3-pin XLR input and pass-through output
Pan Movement Range
540°
Tilt Movement Range
190°
Color Wheel
7 colors plus open/white
Gobo Wheel
7 gobo patterns plus open/white
Maximum Power Consumption
42 watts
Input Voltage
100 ~ 240 VAC, 50/60 Hz
Dimensions
12.7" x 9.8" x 10.6" (323 x 250 x 270 mm)
Weight
5.5 lbs. (2.5kg)
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
12
Page 13
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
13
Loading...
