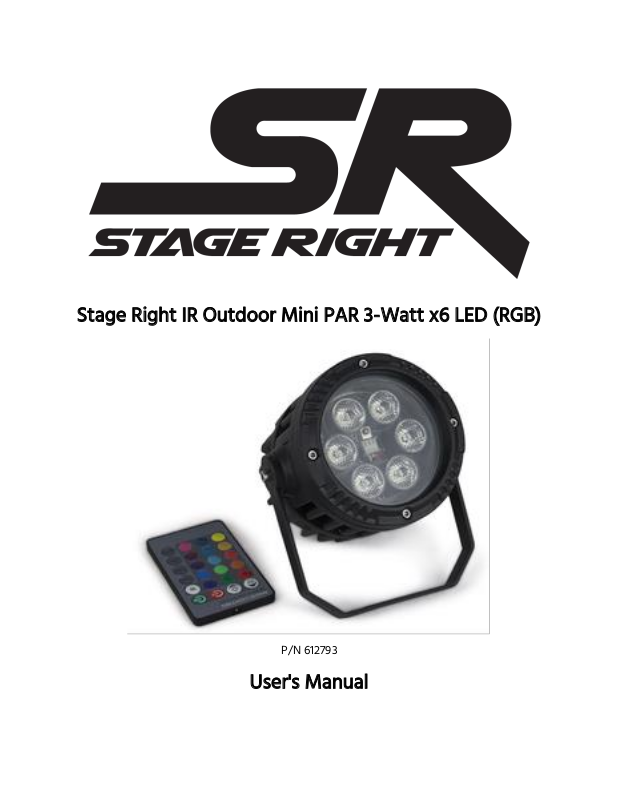

Page 1

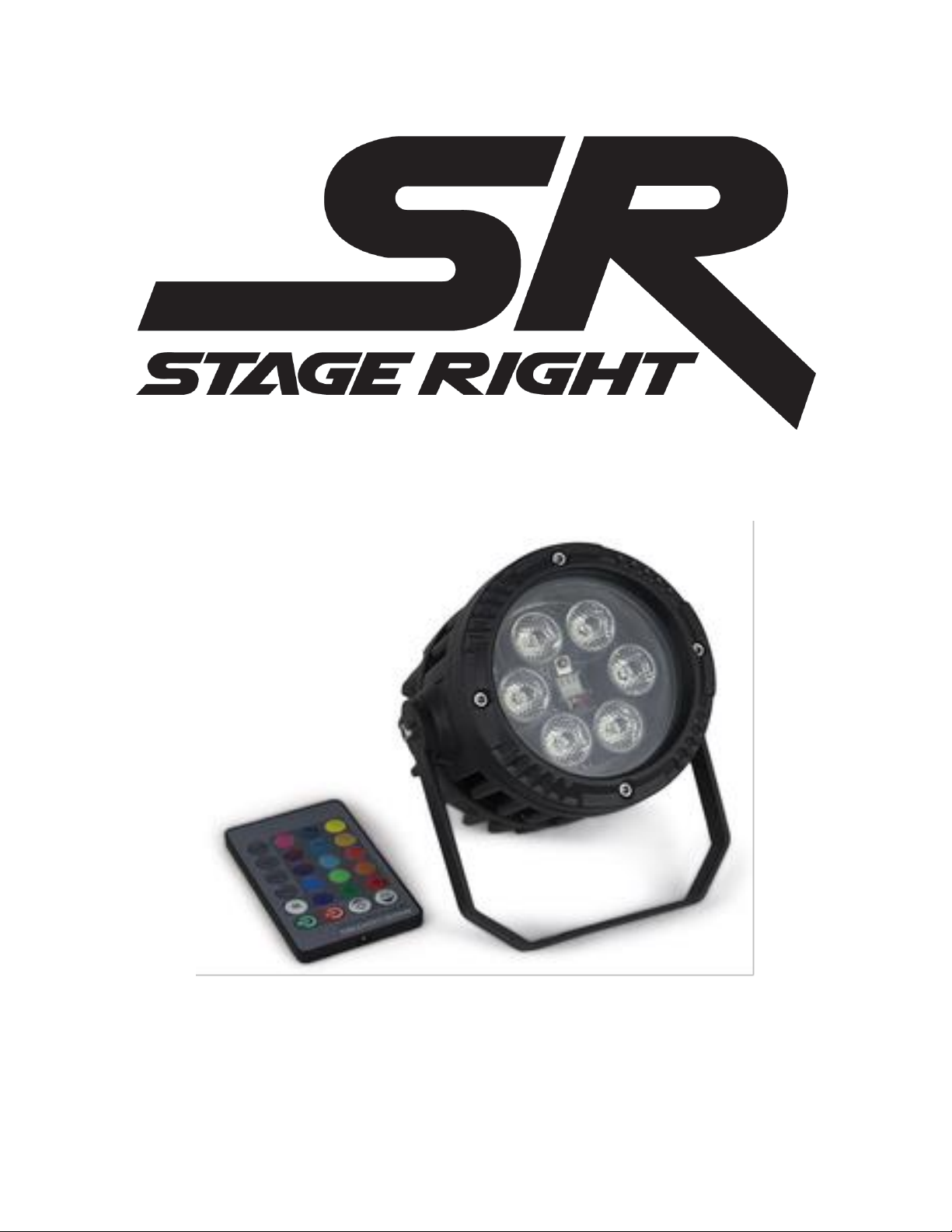

Stage Right IR Outdoor Mini PAR 3-Watt x6 LED (RGB)
P/N 612793
User's Manual
Page 2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
When installing this device, ensure that the mount is sufficiently robust to support
the weight of the unit and to prevent unwanted movement.
Do not subject the product to extreme force, shock, or fluctuations in temperature.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct
sunlight.
Ensure that there are no flammable materials within about 3 feet of this device.
Ensure that there is at least 20 inches of ventilation space around this unit.
This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
Unplug this device from the power source when not in use.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
Ensure that power is turned off and disconnected before making any electrical
connections.
Remove the battery from the controller if it will go unused for a lengthy period of
time.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
2
Page 3
Avoid direct eye exposure to the light from this device.
Do not connect this light to a dimmer pack.
INTRODUCTION
Thank you for purchasing this Stage Right IR Outdoor Mini PAR light! This PAR light features
an IP65 weather rating, making it safe for use outdoors, even in wet weather. It uses six 3-
watt RGB 3-in-1 LEDs and consumes only about 20 watts of power. It includes an IR remote
control, which allows for selection of 16 color presets and 6 functions.
FEATURES
IP65 weatherproof rating
Six 3-watt RGB 3-in-1 LEDs
Includes IR remote control
16 color presets and 6 functions
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]
3
Page 4
PACKAGE CONTENTS
Dimming+
Dimming-
Power Off
Power On
Red
Green
Blue
White
100%R+24%G
90%G+23%B
22%R+87%B
Flash
100%R+47%G
82%G+46%B
48%R+75%B
Strobe
100%R+71%G
72%G+69%B
67%R+62%B
Fade
100%R+100%G
100%G+100%B
100%R+100%B
Smooth
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Stage Right IR outdoor mini PAR light
1x IR remote control
1x User's manual
IR REMOTE CONTROL
The included IR remote control is the only way to control the light.
The following are the functions for each button on the remote.
4
Page 5
SPECIFICATIONS
Model
612793
Light Source
6x 3-watt RGB 3-in-1 LEDs
Case Material
Cast aluminum
Rated Lifespan
50,000 hours
Input Power
90 ~ 220 VAC, 50/60 Hz
Power Consumption
20 watts
5
