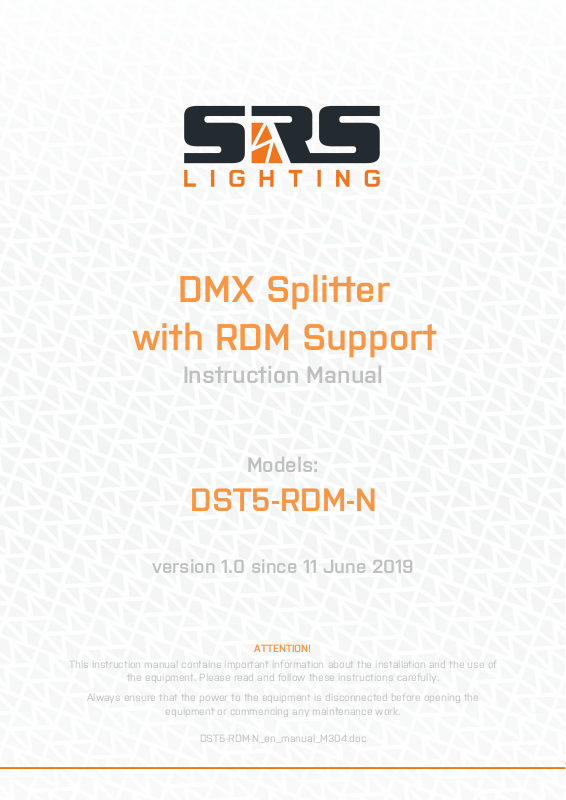

Page 1
with RDM Support
DMX Splitter
Instruction Manual
Models:
DST5-RDM-N
version 1.0 since 11 June 2019
ATTENTION!
This instruction manual contains important information about the installation and the use of
the equipment. Please read and follow these instructions carefully.
Always ensure that the power to the equipment is disconnected before opening the
equipment or commencing any maintenance work.
DST5-RDM-N_en_manual_M304.doc
( 1 / 4)
Page 2
IMPORTANT SAFETY INFORMATION
The following general safety precautions have to be observed during all phases
of operation, service, and the repair of this equipment. Failure to comply with
these precautions or with specific warnings in this manual violates safety
standards of design, manufacture, and the intended use of this equipment.
Do not operate in an explosive atmosphere!
Do not operate this equipment in the presence of flammable gases or fumes.
Operation of any electrical instrument in such an environment constitutes
a definite safety hazard. Device should be never placed near or over a heat
register or other source of heated air and it should not be installed or operated
without proper ventilation.
Mains AC100-255V connection
AC power is connected to the splitter via Neutrik PowerCon blue connector.
Standard supply is UNISCHUKO lead with Neutrik PowerCon. Always respect the
markup of L and N on connectors for correct wiring of Line and Neutral.
DMX connections
DMX RJ45 connectors are located on the front panel of the device. Splitter
consists of DMX in, thru and outputs marked as A-J. These outputs are
optically/electrically isolated and equipped with RDM filter on each output. Both
input lines should be terminated by the termination switch marked as “120R”.
When the line is terminated by the 120R resistor, RED LED indication is on.
There is also a bus line driver indication of signal on both signal lines with two
LEDs indicating the polarity of the DMX signal.
Pin 1, 3 Data +
Pin 2, 6 Data Pin 4, 5 NC
Pin 7, 8 Ground / Common
( 2 / 4)
Page 3
Device Design
Device in use / service:
By default, Power LED indicates the device is on main power. When the Power
LED is off, check the main power input. When this does not solve the problem,
please call service first and then open DST5-RDM-n and check fuses on the
main board.
When the DMX cable is connected to the device, LEDs marked as D+ and D- go
on for the side marked as DMX input, thru and this indicates that DST5-RDM-N is
receiving the DMX signal. Speed of light on these LEDs also indicates the
refresh rate of DMX signal. Fast blinking – high refresh rate, slow blinking – slow
refresh rate.
On the front panel of DST5-RDM-N, there are outputs A-E, which are
retransmitting the input to the optically isolated outputs. If any of data LEDs is
off, unplug the signal cable corresponding to this output and check the cable for
short circuit between D+ and CMN or D- and CMD lines.
RDM filter switch will filter all RDM commands from the DMX stream.
In case of any problems, do not hesitate to contact us via email at
[email protected] or call us at +421244681417. Don’t worry; we will fix your
problems for sure.
( 3 / 4)
Page 4
Technical data
Main input:
AC 100-255V / 50-60Hz / 5W
DMX Input / Output:
5x USITT DMX512 with RDM support isolated up to 1000V
Maximum of: 5x 32 devices per one splitter output
Cable length: max: 5x 1200m
Housing/Size:
Lightweight Aluminum box with powder coating
230x155x50mm
Mounting points:
Wall-mount ears on both sides of splitter
4 rubber feet on the bottom of device
DECLARATION OF CONFORMITY
According to the guidelines 89/336 EEC and 92/31 EEC:
Name of producer: SRS Group s.r.o.
Address of producer: Rybnicna 36/D, SK- 83106 Bratislava, Slovak Republic
Declares that the product
Name of product: DST5-RDM-N 5-way DMX/RDM splitter with RJ45
Type: DST5-RDM-N
Corresponds to the following product specifications:
Safety: EN60065, resp. EN 60950
EMC: EN55103-1, resp. EN55103-2
Bratislava, 2 November 2014
Robert Sloboda
Copyright 2017 SRS Group, s.r.o. | Specifications subject to change without notice.
Document: DST5-RDM-N_en_manual_M304.doc | Version 1.0 | Actual as of: 11 June 2019
SRS Group s.r.o.
Rybnicna 36/D | 831 07 Bratislava | Slovakia
Phone: +421 2 44 681 417 | Fax: +421 2 4468 1419
Email: [email protected] | www.srs-group.com
Weight:
1.2 kg
Temperature of use:
-10
ºC …
+45 ºC
Warranty:
Life-time warranty
( 4 / 4)
