Projector

8953H

User's Manual (detailed) Network Guide

Thank you for purchasing this projector.

This projector has the network function that brings you the following main features. ü Live Mode

This projector can project your PC images on screen through wireless or wired network, which can erase a signal cable from your desk.

ü Quick connection to your network

No expert knowledge is required any more. Various options for network setting give you a quick and simple connection to the network.

ü Web control

The projector can be controlled and monitored by a web browser software on your PC, which can help you to setup and maintain the projector.

ü PC-LESS Presentation

This projector can project images stored in an SD memory or a USB memory

on screen, which allow you not to bring your PC with you. This manual is only intended to explain Network functions only. For safety, operations or any other issues, refer to the Safety Guide and User’s Manual (concise and detailed).

WARNING

product. After reading them, store them in a safe place for future reference.

►Before using this product, be sure to read all manuals for this

NOTE

• The manufacturer assumes no responsibility for any errors that may appear in

this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Microsoft and Internet Explorer, Windows, Windows NT, Windows Me, Windows

Vista are registered trademark of Microsoft Corporation.

•

PowerPC is a registered trademark of International Business Machines Corporation.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

• Apple and Macintosh, Mac, Mac OS are registered trademarks of Apple Inc.

• Pentium is a registered trademark of Intel Corporation.

• JavaScript is a registered trademark of Sun Microsystems, Inc.

• DVI is a trademark of Digital Display Working Group.

• HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks

or registered trademarks of HDMI Licensing LLC.

• is a trademark of SRS Labs, Inc. WOW technology is incorporated under

license from SRS Labs, Inc.

All other trademarks are the properties of their respective owners.

• The information in this manual is subject to change without notice.

Content

Content . . . . . . . . . . . . . . . . . . . 2

Caution . . . . . . . . . . . . . . . . . . . 3

1. Main functions . . . . . . . . . . . 5

Live Mode (Project images from PC)

1.1

1.2

Quick connection to your network

1.3

Conguring and controlling via a web browser

1.4 PC-LESS Presentation (Display the images stored in SD memory card/USB memory.)

Equipment connection and network setting

Required equipment preparation

2.1

2.2 Quick connection ...........10

2.3

Manual network connection setting - Wired LAN -

2.3.1. Equipments connection . . . 11

2.3.2. Network settings ......... 11

2.3.3 “Internet Option” setting ....14

2.3.4 Check connection . . . . . . . . 15

2.4

Manual network connection setting –Wireless LAN

2.4.1

Preparation for wireless LAN connection

2.4.2

Wireless LAN connection set up

3. Using the Live Mode ......20

3.1 Outline of the Live Mode ......21

3.1.1 Display mode ............21

3.1.2 Presenter mode ..........22

3.1.3 Display User Name .......22

3.2 Install “Live Viewer 3” . . . . . . . . 23

Minimum PC hardware and software requirement

3.2.1

3.2.2

Software Installation Procedure

3.2.3

Version of the “Live Viewer” software

3.3

Quick connection to the network

3.3.1

Starting the “Live Viewer 3”

3.3.2

Selecting the network connection mode

3.3.3 Connecting to the network . . 31

3.4 Passcord connection .........32

3.4.1 Getting the Passcode . . . . . 32

3.4.2 Entering the Passcode . . . . 34

3.4.3 Conguring manually ......37

3.5 Manual conguration .........41

3.5.1 Prole connection . . . . . . . . 41

3.5.2 History connection ........42

3.5.3 Conguring manually ......43

3.6

Conrm the connection to your destination

3.6.1

Connection and transmission

3.6.2 Connection error . . . . . . . . . 52

3.6.3 Setting the Live Mode . . . . . 53

. . 5 . . 6 . . 7

. . 8

. . 10

. . 11

. . 16 . . 16 . . 17

. . 23 . . 24 . . 25 . . 26 . . 26 . . 27

. . 50

5. PC-LESS Presentation. . . . 102

6. Troubleshooting . . . . . . . . 117

7. Specications ..........120



3.7 Start the “Live Viewer 3” ......54

Main menu and Operating buttons

3.7.1

. . 54

3.7.2 Displaying the status ......56

3.7.3

Switching the display mode

. . 57

3.7.4 Option menu . . . . . . . . . . . . 58

3.8 Prole data . . . . . . . . . . . . . . . . 60

3.8.1 Outline of Prole data . . . . . 60

3.8.2 Making Prole data . . . . . . . 60

3.8.3 Editing Prole data . . . . . . . 61

3.8.4 Registering My Connection . 62

Management with Web browser software

Conguring and controlling the projector via a web browser

4.1

. . 64

. . 65

4.1.1 Logon . . . . . . . . . . . . . . . . . 67

4.1.2 Network Information . . . . . . 68

4.1.3 Network Settings .........69

4.1.4 Port Settings . . . . . . . . . . . . 71

4.1.5 Mail Settings . . . . . . . . . . . . 72

4.1.6 Alert Settings ............ 73

4.1.7 Schedule Settings ........ 75

4.1.8 Date/Time Settings . . . . . . . 77

4.1.9 Security Settings ......... 79

4.1.10 Projector Control ........ 81

4.1.11 Remote Control .........86

4.1.12 Projector Status .........88

4.1.13 Network Restart .........89

4.1.14 Logoff . . . . . . . . . . . . . . . . 89

4.2 E-mail Alerts . . . . . . . . . . . . . . . 90

4.3

Projector Management using SNMP

. . 92

4.4 Event Scheduling . . . . . . . . . . . 93

4.5

MY IMAGE (Still Image Transfer) Display

4.6

Command Control via the Network

Outline of the PC-LESS Presentation

5.1

. . 96

. . 97

. . 102

5.2 Thumbnail mode ...........104

5.2.1

Starting the Thumbnail mode

5.2.2

Operating by buttons or keys

5.2.3

Operation on the Thumbnail menu

. . 104

. . 106

. . 107

5.3 Full Screen Mode . . . . . . . . . . 108

5.4 Slide Show Mode . . . . . . . . . . 110

5.5 Directory Tree View ......... 112

5.6

“PC-LESS Presentation” error message

. . 115

5.7 Playlist ................... 116

Warranty and after-sales service

. . 121

Caution

[Restriction in terms of inserts or pulls storage media and wireless network card]

Do not pull out the wireless network card while the power is on. Do not touch the SD card while being accessed. The storage media can be pulled out only while not being accessed. Perform the REMOVE MEDIA procedure or turn the projector off before pulling out the media. To perform the REMOVE MEDIA procedure, choose an suitable item among the REMOVE ALL, REMOVE SD CARD or REMOVE USB using the PCLESS PRESENTATION menu under the MIU menu. (MIU menu in the User’s Manual (detailed) – Operating Guide)

CAUTION

The accompanying IEEE802.11b/g wireless network card uses the 2.4GHz radio

n

frequency band. You do not need a radio license to use this card, but you should be

aware of the following:

DO NOT USE NEAR THE FOLLOWING!

l

• Microwave ovens

• Industrial, scientic or medical devices

• Designated low power radio stations

• Premises radio stations Using the wireless network card near the above may result in radio interference, which in turn may result in a decrease in communication speed and even a

complete loss of communication.

Depending on the location where you attempt to use the wireless network card,

l

there may be interference with the radio waves, which may result in a decrease in communication speed and even a complete loss of communication. In particular, please be aware that using the wireless network card in locations where there is reinforced steel, other metals and concrete may interfere with radio communication. Available Channels

l

The wireless network card uses the 2.4GHz radio frequency band, but depending on the country or region you are in, you might be limited to the channels you can use. Please refer to the following table for conrming where and with what channels you may use the accompanying IEEE802.11b/g wireless network card. Please consult with your dealer for countries not included in the table.

Country or Region Available Channel

Japan 1 to 11

USA 1 to 11

Taiwan 1 to 11

Canada 1 to 11 UK, Spain, Germany, Italy, Austria, Switzerland, Belgium, Sweden, Netherlands, Portugal, Denmark, Finland, Greece, Norway, France, Ireland, Luxembourg, Iceland

You may not bring the wireless network card into countries not listed above as there

l

is a possibility that use of the wireless network card in those countries could lead to an infringement of established radio laws.

1 to 11

Caution

0560

The manufacturer (Gemtek) hereby declare that this equipment (the wireless network card), model SD-Link11g is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

1. Main functions

1.1 Live Mode (Project images from PC)

The MIU (Multi Information processing Unit) enables “Wireless presentation” by choosing Live Mode. The Live Mode gives you an ability to display the same image that is shown on the PC through the network by using an application program “Live Viewer 3” that is required to install into your PC. (Fig.1.1.a) The “Live Viewer 3” captures PC screen image and sends to the projector through wired LAN or wireless LAN connection. (20)

Live Viewer 3

Fig. 1.1.a “Live Viewer 3” outlines (through wireless LAN connection)

Fig. 1.1.b “Live Viewer 3” Main menu

One projector can be connected with up to 4 PCs using “Live Viewer 3”. (54)

1. Main functions

1.2 Quick connection to your network

The “Live Viewer 3” brings you very quick and simple connection to your network. The “Live Viewer 3” prepares some options for you to match your requirement.

1) Quick connection by the Passcode

The Passcode is a code that includes SSID and IP address and other information that are required for the network connection. The Passcode is given on screen by the projector, and then all you need to do is to input the code to the “Live Viewer 3” in your PC. (26)

Fig.1.2 PASSCODE on the projector screen

2) Connection by the prole for the network

You can set the information to connect the projector to your network as a prole data in the “Live Viewer 3” in your PC. After that, you just select the prole data on the “Live Viewer 3” to connect the projector to your network.

3) Connection by the history record for the network

Once you connect the projector to your network with the “Live Viewer 3”, the “Live Viewer 3” stores the history. You just select a history record to connect the

projector to your network.

1. Main functions

1.3 Conguring and controlling via a web browser

You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network. Logon the network from the web browser and it offers the menus to congure the network settings, monitor the projector and so on. The Web Remote Control, one of the menus of web browser, allows you to control the projector like bundled remote control including operating the “Live Mode” and “PC-LESS Presentation”. (64)

Fig. 1.3. Web Remote Control

1. Main functions

1.4 PC-LESS Presentation (Display the images stored in SD memory card/USB memory.)

The MIU enables “PC-LESS Presentation” by choosing PC-LESS function. (Fig.

1.4)

The PC-LESS function enables to display images that are stored in a storage media like SD memory card or USB memory. The “PC-LESS Presentation” has 4 types of display modes.

1) Thumbnail Mode: Display thumbnails of stored images in the storage media.

(After this, “the storage media” is the general term for both of SD memory card and USB memory.)

2) Full Screen Mode: Display selected image or movie on the full screen mode.

3) Slide Show Mode: Display images in the Slide show mode with certain interval.

4) Directory Tree View: Display les and folders that are stored in the storage

media as directory tree view.

[Supported storage media]

- SD memory card

- USB memory (USB memory type, USB hard disk and USB card reader type)

NOTE

acknowledges as multiple devices connected).

• The supported formats are FAT 12, FAT 16(FAT) and FAT 32. NTFS is not supported.

• USB hub is not supported.

“PC-LESS Presentation” can be controlled via keypad on the projector or remote control (102).

• USB memory reader (adapter) is not supported (if the adapter

Fig. 1.4 “PC-LESS Presentation” outlines

1. Main functions

1.4 PC-LESS Presentation (Display the images stored in SD memory card/USB memory.) (continued)

NOTE

• There are several naming limitations for the folders and les.

(1) Alphanumeric and Japanese characters are supported if the language

setting is Japanese.

(2) Alphanumeric and Latin-1 characters are supported if the language setting

is NOT Japanese.

• The les may not be able to access depending on the type of USB hard disk, USB memory and USB card reader.

• It is recommended to use external power supply cable if the USB hard disk drive has the power cable.

2. Equipment connection and network setting

2.1 Required equipment preparation

The following equipments are required to connect the projector to your PC through

the network.

■ Common The projector: 1 unit, PC : 1 set *1 It is recommended to install the “Live Viewer 3” into the PC.

■ Depending on how you want to connect

1) For the wired connection LAN cable (CAT-5 or greater): 1 piece

2) For the wireless connection *2

- Projector side The Wireless Network Card (option : VA0833x *4) : 1 unit

- PC side IEEE802.11b/g wireless LAN equipment: 1 unit *3

*1: For the PC, please refer to the item 3.2.1 Minimum PC hardware and software

requirement. (

*2: An access point is required when the wireless LAN connection is used as

Infrastructure mode.

*3: Depending on the type of wireless network device and PC you are using, the

projector may not be able to communicate properly with your PC, even if the PC you are using is equipped with built-in wireless LAN function. To eliminate communication problems, please use a Wi-Fi certied wireless network device.

*4: For more information, please consult your dealer.

23)

2.2 Quick connection

The “Live Viewer 3” supports very quick and simple connection to the network. It is strongly recommended to install the “Live Viewer 3” into your PC to enjoy the feature. Proceed to the installation of the “Live Viewer 3” (23) and the connection. (26)

In case you don’t want to use the “Live Viewer 3” or you cannot use it by some reason, proceed to the manual setting, the item 2.3 for the wired LAN (11) and the item 2.4 for the wireless LAN. (16)

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN -

If you don’t use the “Live Viewer 3”, you need to set up your network connection

manually.

This section explains how to set it up manually.

2.3.1 Equipments connection

Connect the projector and PC with a LAN cable. * Before connecting with an existing network, contact the network administrator.

Next, please check the PC setting as explained below.

2.3.2 Network settings

This is the explanation of network connection settings for Windows XP and Internet Explorer.

1) Log on to Windows XP as administrator authority. (*)

2) Open “Control Panel” from “Start” menu.

3) Open “Network and Internet Connections” in “Control Panel”. (Fig. 2.3.2.a) * Administrator authority is the account, which can access to all functions.

Fig. 2.3.2.a “Network and Internet Connections” window

4) Open “Network Connections”. (Fig.2.3.2.b)

Fig. 2.3.2.b “Network Connections” window

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN - (continued)

5) Open “Local Area Connection Properties” window you use for network device. (Fig. 2.3.2.c)

Fig. 2.3.2.c “Local Area Connection Properties” window

6) Set used protocol as “TCP/IP” and open “Internet Protocol (TCP/IP) Properties” window.

Fig. 2.3.2.d “Internet Protocol (TCP/IP) Properties” window

7) Set IP address, subnet mask and default gateway for PC.

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN - (continued)

[About IP address]

■ Setting manually

The Network address portion included in the IP address set into your PC should be common with projector’s one. And the entire IP address in the PC should not be overlapped with other equipments in the same network, including the projector.

For example

The projector’s initial settings are as follows.

IP address: 192.168.1.10 Subnet mask: 255.255.255.0 (Network address: 192.168.1 in this case)

Therefore, specify PC’s IP address as follows.

IP address: 192.168.1.xxx (xxx shows decimal number.) Subnet mask: 255.255.255.0 (Network address: 192.168.1 in this case)

Select from 1 to 254 for “xxx” not duplicating with any other equipments. In this case, projector has “192.168.1.10” IP address, specify from 1 to 254 except 10 for PC.

NOTE

• “0.0.0.0” cannot be set to the IP address.

• The projector’s IP address can be changed by using the conguration utility via a web browser. (65)

• If the projector and PC exist in the same network (i.e. network address is common), default gateway can be blank.

• When the projector and PC exist in different networks, default gateway setting is necessary. Contact the network administrator in detail.

■ Setting automatically

When DHCP server exists in network, it is possible to assign IP address to the projector and PC automatically. * DHCP is abbreviation for “Dynamic Host Conguration Protocol” and has the

function to provide necessary setting for network like IP address from server to client. A server that has DHCP function is called DHCP server.

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN - (continued)

2.3.3 “Internet Option” setting

1) Click “Internet Options” in “Network and Internet Connections” window (Fig. 2.3.3.a) to open “Internet Properties” window. (Fig.2.3.3.b)

Click

Fig. 2.3.3.a “Network and Internet Connections” window

Click

Fig. 2.3.3.b “Internet Properties” window

2) Click “Connections” tab and then click [LAN Settings] button to open “Local Area Network (LAN) settings”. (Fig. 2.3.3.c)

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN - (continued)

Fig. 2.3.3.c “Local Area Network (LAN) Settings” window

3) Uncheck all boxes in “Local Area Network (LAN) Settings” window. (Fig. 2.3.3.c)

2.3.4 Check connection

Check PC and projector are connected properly here. If it is not connected, check cable connections and settings are properly or not.

1) Start browser in PC and specify following URL, then click “

” button.

URL: http://(Projector IP address)/

For example, if projector IP address is 192.168.1.10, specify

URL: http://192.168.1.10/

2) If Fig. 2.3.4 appears, it succeeds.

Fig. 2.3.4 “Logon menu”

2. Equipment connection and network setting

2.4 Manual network connection setting –Wireless LAN

The projector and PC can communicate in both of Ad-Hoc and Infrastructure modes, using the designated wireless network card (option) on the projector. This section is intended to explain how to set up wireless LAN connection

manually.

2.4.1 Preparation for wireless LAN connection

Fig. 2.4.1.a Without an access point communication (Ad-Hoc)

Fig. 2.4.1.b With an access point communication (Infrastructure)

* Ad-Hoc is one of the wireless LAN communication methods without having

access point to communicate.

* Infrastructure is one of the wireless LAN communication methods with having

access point to communicate. If certain quantities of equipments are used, this mode is efcient. If communicating with existing network, contact your network administrator.

First, insert the wireless network card into SD card slot (

 Using an SD card of

the User’s Manual (concise) ).

Then, make PC ready for wireless communication. In case IEEE802.11b/g wireless LAN device is built-in the PC, make it valid and make other network connections invalid. If wireless LAN device is not built-in the PC, connect IEEE802.11b/g wireless LAN device and install device driver. (Refer to the user guide for PC and wireless LAN device for detail.)

2. Equipment connection and network setting

2.4 Manual network connection setting –Wireless LAN (continued)

2.4.2 Wireless LAN connection set up

Using wireless LAN utility for Windows XP standard. Wireless LAN initial settings for the projector is as follows.

Connection Control : Ad-Hoc SSID : wireless

Channel : 1ch

Encryption rating : None Communication speed : AUTO IP address : 192.168.1.10

* You can change these settings as you want via a web browser on your PC or the

menu on the projector. Refer to the item 4.1.3 Network Settings (

69) or

 MIU menu in the User's Manual (detailed) – Operating Guide.

1) Open ”Network Connections”. (Fig. 2.4.2.a)

Fig. 2.4.2.a “Network Connections”

2) Open “Wireless Network Connection Properties”. (Fig. 2.4.2.b)

Fig. 2.4.2.b “Wireless Network Connection Properties” window (1)

2. Equipment connection and network setting

2.4 Manual network connection setting –Wireless LAN (continued)

3) Set used protocol as “TCP/IP” and open TCP/IP property. Set IP address and other settings as same as wired LAN connection set up. (12)

4) Open “Wireless Networks” tab. (Fig. 2.4.2.c)

Fig. 2.4.2.c “Wireless Network Connection Properties” window (2)

5) Add check mark for “Use Windows to congure my wireless network settings”

in “Wireless Network Connection Properties” window.

6) Click [Add] button in “Preferred networks” section in “Wireless Network Connection Properties” window (Fig. 2.4.2.c) to open “Wireless network properties” window. (Fig. 2.4.2.d)

Fig. 2.4.2.d “Wireless network properties” window

2. Equipment connection and network setting

2.4 Manual network connection setting –Wireless LAN (continued)

7) Set each item as follows. Network name (SSID): wireless Data encryption: not enabled (Default setting is not enabled.)

NOTE

• If the default setting in the projector is used, set the data as above into your PC. If an access point is used or any encryption mode is used, it is required to set the data that is matched to your system. Refer to the manuals for your PC or wireless LAN adapter or access point.

• If you want to use the existing network via an access point, contact your network administrator before the connection.

3. Using the Live Mode

The section is intended to explain the process to use the projector in the Live Mode.

The outline of the process is as follows.

1) Install “Live Viewer 3” (

2) Quick Connection to the network (



23)



26)

The Quick Connection feature prepares some options to connect your

network. You can select one that meets your requirement.

- Passcode connection

- Prole data connection

- History record connection

- My Connection

- Manual connection

3) Conrm the connection to your destination (



50)

In some case, there are several projectors connected to the same network. Before you send your image, conrm that the right projector is selected.

4) Start the “Live Viewer 3” (



54)

The “Live Viewer 3” main menu will be on screen. Now, you can send your images to the projector through the network.

Fig. 3 “Live Viewer 3” Main menu

3. Using the Live Mode

3 4

3.1 Outline of the Live Mode

The Live Mode can display PC’s image on screen in real time through either wired or wireless LAN. So, no signal cable connection is required.

3.1.1 Display mode

In the Live Mode, there are two display modes, Single PC mode and Multi PC mode.

1) Single PC mode The projector displays images sent by one PC.

2) Multi PC mode The projector screen is divided to 4 zones. The projector displays images in

one zone sent by a PC, so that the projector can displays images sent by up to

4 PCs at the same time.

3. Using the Live Mode

3.1 Outline of the Live Mode (continued)

3.1.2 Presenter mode

In the Single PC mode, the projector can be occupied by one PC and can block an access from any other PC, if the Presenter mode is selected in the “Live Viewer 3”. While making your presentation, you don’t need to worry that the image on screen is unexpectedly switched to an image sent by another PC. The Presenter mode can be set on the Option menu in the “Live Viewer 3” main

menu. (

58)

3.1.3 Display User Name

A "User Name" can be input in the “Live Viewer 3”, which is displayed on screen by operating the menu on the projector. So, it can be found out whose image is currently displayed on screen. (

58)

3. Using the Live Mode

3.2 Install “Live Viewer 3”

In order to use the Live Mode and Quick connection, you need to install the enclosed software, the “Live Viewer 3”, into all PCs that you want to connect to

the projector through the network.

3.2.1 Minimum PC hardware and software requirement

• OS: Windows 2000 Professional (Service Pack4)

Windows XP Home Edition Windows XP Professional Windows Vista Home Basic (32bit) Windows Vista Home Premium (32bit) Windows Vista Business (32bit) Windows Vista Enterprise (32bit) Windows Vista Ultimate (32bit)

• Graphic Interface: Video RAM 4MB or higher (8MB recommended)

• CPU: Pentium III (600MHz or higher recommended)

• Display: VGA 640x480 or higher (XGA 1024x768 recommended)

65,536 simultaneous colors or higher

NOTE

• For Windows VISTA, use the latest “Live Viewer 3”. Please get the latest version at Hitachi WEB site (http://hitachi.us/digitalmedia or http://www. hitachidigitalmedia.com). Since some functions maybe limited, please see the instruction manual that is supplied with the latest “Live Viewer 3”.

• Set your PC’s resolution to XGA or less. Refer to the user manual for your PC or Windows.

• In some cases, your PC’s screen will not be displayed correctly by the projector. If the resolution is larger than 1024x768, the projector can display only the 1024x768 portion of the image.

• Images might not been transmitted, caused by OS version or the driver software for Network Adapter on your PCs. It is highly recommended that OS and the driver should be updated to the latest.

• Memory: 64MB or higher (128MB or higher if using Windows XP)

• Available Hard Disk Space: 20MB or higher

• Web browser: Internet Explorer® (5.5 or higher)

• CD-ROM drive

• Wireless: IEEE802.11b/g

NOTE

• Depending on the type of wireless network device and PC you are using, the projector may not be able to communicate properly with your PC, even if the PC you are using is equipped with built-in wireless LAN functionality. If the communication problems occur, please use a Wi-Fi certied wireless network device.

3. Using the Live Mode

3.2 Install “Live Viewer 3” (continued)

3.2.2 Software Installation Procedure

1) Turn on the PC.

2) Shut down all applications.

3) Insert the accompanying CD-ROM into the PC's CD-ROM drive.

NOTE

• After sequence 3, the User Account Control (UAC) dialog will appear (if you are using Windows Vista). Please click [Allow] to continue installation.

4) After a moment, the Choose Setup Language dialog will appear as shown on the right. Select what you like to use in the list, and click [OK].

NOTE

• If the Welcome dialog doesn't appear, proceed as follows: (1) Click on the [Start] button on the toolbar and select the “Run”. (2) Enter E:\software\setup.exe and then press [OK].

If your CD-ROM drive is not drive E on your PC, you will need to replace E with the correct drive letter assigned to your CD-ROM drive.

If the software has been already installed, Uninstallation will be done. Click [Cancel] button, then uninstallation will be canceled. If you uninstalled the software by miss-operation, please re-install the software from rst procedure.

5) After a moment, the Welcome dialog will appear

as shown on the right. Press [Next].

6) The License Agreement dialog appears. If you accept it, select “I accept the terms of the license agreement” and press [Next].

7) The Choose Destination Location dialog

appears. Press [Next].

NOTE

• The C:\Program Files\Projector Tools\ LiveViewer3 folder will be created and the program will be installed into that folder. If you wish to install to a different folder, click [Browse] and select another folder.

3.2 Install “Live Viewer 3” (continued)

8) Conrm the program folder name. If “Projector Tools” is okay, press [Next] to continue. If not, enter the desired folder name and then press

[Next].

9) The Hardware Installation dialog appears. Press Continue Anyway.

3. Using the Live Mode

NOTE

• After sequence 8, the Windows Security dialog will appear if you are

using Windows Vista. Please click the [Install this driver software anyway] and

continue installation.

10) After a moment, installation will complete

and the Setup Complete dialog will appear

as shown on the right. Click [Finish]. This completes the software installation. Then your PC automatically restarts.

(1) To conrm that the software has been

properly installed, press [Start] button on the toolbar, select All Programs and then select the Projector Tools folder.

(2) The “LiveViewer3” will appear in that folder

if the installation was successful.

3.2.3 Version of the “Live Viewer ” software

To use the Live Mode, it is required to install the software, the “Live Viewer”, into the PC that is going to be connected to the projector through the network. The right software version is depended on the models that you have. If the version is not matched with the projector, the software will not work properly.

Models

Live Viewer

Version

2.01

2.1x

2.20

3.xx

CP-X267

 Í Í Í

Í   Í

Í   

CP-X268A

CP-X608

CPX2

CP-X308 CP-X417 CP-X807

CP-X809W

• “x” in the version means 0 or greater.

Please check and get the latest version at Hitachi Web site. http://hitachi.us/digitalmedia or http://www.hitachidigitalmedia.com

3. Using the Live Mode

3.3 Quick connection to the network

The Live Mode prepares some options for the network connection. You can

choose one that meets to your system.

The explanation here is based on the case that Windows XP is installed in your

PC.

3.3.1 Starting the “Live Viewer 3”

Start the “Live Viewer 3” in your PC, taking one of the followings.

1) Double click the “Live Viewer 3” icon on the Desktop in your PC

2) Select “Start” → “All Programs” → “Projector Tools” → “Live Viewer 3” on Windows XP menu.

Then, proceed to the item 3.3.2 Selecting the connection mode. (

[trouble shooting]

n In order to display the computer image correctly, you will need to change the

screen resolution.

If the resolution on your PC is set higher than XGA (1024x768), the screen is displayed.

To change the resolution, click [Yes]. Not to change the resolution, click [No].

27)

If you click [Yes], the resolution on your PC is switched to XGA (1024x768).

If you click [No], the resolution is not changed.

NOTE

• When the resolution is changed, the arrangement of icons on PC

Desktop screen may be changed.

• Even if the resolution is changed, it will be back to the original when the “Live Viewer 3“ is closed.

• If the resolution is not changed, the projector will display XGA(1024x768)

portion from top left corner of your PC screen.

• Refer to the user manual for your PC or Windows to change the resolution.

3. Using the Live Mode

3.3 Quick connection to the network (continued)

3.3.2 Selecting the network connection mode

After starting the “Live Viewer 3”, the “Select the Network Connection” screen comes up. Select the network connection that you would

like to use. There are 3 options in the menu.

• Wireless LAN

• Wired LAN

• My Connection

If you select either the wireless LAN or wired LAN, proceed to the Selecting

either the wireless LAN or wired LAN (

below).

If you select the My Connection, jump to the Selecting the My Connection. (29)

Selecting either the wireless LAN or wired LAN

If you select either the wireless LAN or wired LAN, a list of the network adapters in your PC

is shown in the menu.

Select what you like to use in the list, and click

[Next]. Then, proceed to the item 3.3.3 Connecting to the network. (

31)

NOTE

• If you select the wireless LAN, the wireless LAN adapters in your PC

are shown in the list.

• If the wired LAN is selected, the wired LAN adapters in your PC are shown.

[trouble shooting]

n Are you sure that you want to turn on the network adapter?

The screen is displayed in the case that the selected network adapter is invalid.

• To turn it on, click [Yes], and then proceed

to the item 3.3.3 (

31).

• Not to turn it on, click [No], and then the

screen is back to the previous one to

select another network adapter. If no more adapter in your PC, the “Live Viewer 3” will be closed.

3. Using the Live Mode

3.3 Quick connection to the network (continued)

n A network connection was not established.

The screen is displayed in the case that the projector is not connected with a LAN cable to your PC when the wired LAN is selected.

Be sure that the projector is connected with a LAN cable to your PC.

Click [OK], then the screen is back to the previous one to select the network connection mode.

n Windows rewall is enabled(On).

The screen is displayed in the case that the rewall setting in Windows XP/Vista is activated, and the “Live Viewer 3“ is blocked by the rewall.

• To turn it disabled(Off), click [Yes].

• Not to turn it disabled(Off), click [No],

but the projector may not be able to communicate with your PC through the network.

• If you put a check mark in the [Allow communication with LiveView3 by adding it to the Exceptions list] box, the “Live Viewer 3” will never be

blocked by Windows rewall.

Proceed to the item 3.3.3 Connecting to the network. (

NOTE

• If you click [Yes], the network access by the “Live Viewer 3” is

31)

temporally permitted by Windows rewall, until the “Live Viewer 3” is closed.

• If any application software having the rewall function is installed into you PC, make the rewall function invalid with following the user’s manual.

3.3 Quick connection to the network (continued)

Selecting the My Connection

Select [My Connection] and click [Connect].

If you select the My Connection, the PC is connected to the projector through the network by using the prole data that is preassigned to My Connection. (

62) When you select the My Connection, the PC immediately starts the connection to the

projector.

3. Using the Live Mode

Proceed to the item 3.6 Conrm the connection to your destination. (

NOTE

• If the DHCP is set on in the projector, the network connection

50)

between the projector and PC may not be established since IP address may be varied. If you like to use the My Connection, set the DHCP off in the projector.

• If no prole data is assigned to the My Connection, it can’t be used.

[trouble shooting]

n A network connection could not be established.

Windows prevented network conguration

changes.

You may log in the Windows under User

authority.

Click [OK] to return to the screen to select

the network connection mode. (

27)

Consult to the network administrator and log in again under the Administrator authority. After that, please resume at the item 3.3.1 Starting the “Live Viewer

3”. (

26)

3. Using the Live Mode

3.3 Quick connection to the network (continued)

n Are you sure you want to connect the selected projector?

The message is appeared when the wireless adapter you selected is already used for another network connection.

• To connect, click [Yes]. Proceed to the

3.6 Conrm the connection to your

destination. (

50)

• Not to connect, click [No] to return to the

screen to select the network connection

mode. (27)

3. Using the Live Mode

3.3 Quick connection to the network (continued)

3.3.3 Connecting to the network

There are some options to connect to the network.

• Enter PassCode

• Congure Manually

• Select From List

Select one of them to meet your requirement.

Enter PassCode

If you want to use the Passcode for network connection, select [Enter PassCode] and click [Next].

The Passcode is given by the projector on screen. And you simply input the Passcode to the “Live Viewer 3” to connect the network. Proceed to the 3.4 Passcode connection. (

32)

Congure Manually

Select [Congure Manually] and click [Next]. Then, there are 3 options on the manual connection method.

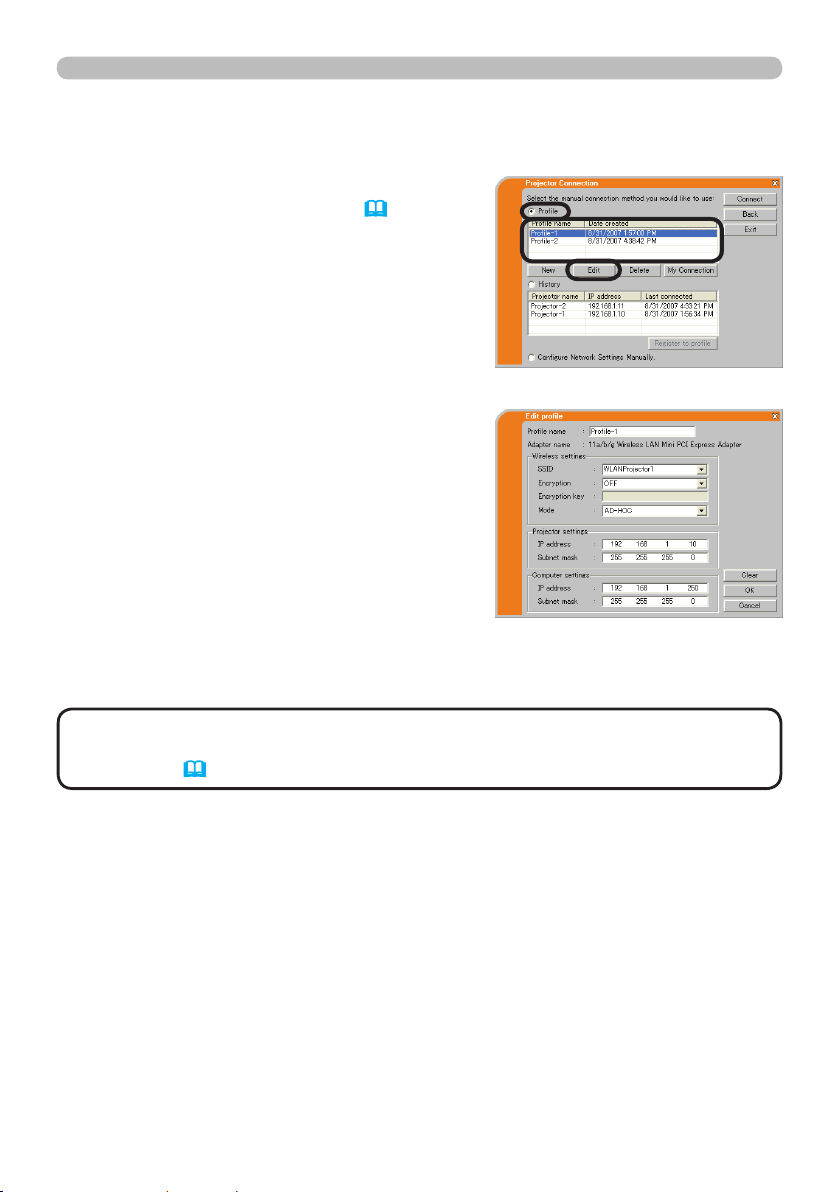

• Prole Proceed to the 3.5.1 Prole connection (

41)

You just select one of the stored prole data to connect the network.

• History Proceed to the item 3.5.2 History connection (

42)

Once connecting to the network, the “Live Viewer 3” stores the history. If you need the same connection again, select [History]. Then, all you need to do is to select one of the history data from the list.

• Congure Network Settings Manually Proceed to the item

3.5.3 Conguring manually (

43)

If you need to make the setting manually, select [Congure Network

Settings Manually].

Select From List

Before selecting this item, your PC and the projectors need to be connected to the

same network.

If the connection is already established, select [Select From List]. From the list of the projectors connected to the network, select which projector you would like to send your images. Proceed to the 3.6 Conrm the connection

to your destination. (

50)

3. Using the Live Mode

3.4 Passcode connection

The unique Passcode system brings you very quick and simple connection to the

network.

The Passcode is a code that expresses the network setting in the projector. If you input the code in the “Live Viewer 3” in your PC, the network setting in the projector and PC can be matched and the connection will be established immediately. The section is intended to explain how to use the Passcode.

3.4.1 Getting the Passcode

The Passcode is 12-digit code consisting of alphanumeric characters (“1-9” and “A-Z”). Example: PASSCODE 1234-5678-9ABC The Passcode is given on the projector screen.

NOTE

• The Passcode system does not work under the condition below. If

your system meets one of them, set the connection manually.

1) Any encryption code is used. The Passcode system does not work with an encryption code.

2) Unique SSID is used. The Passcode system accepts the factory default SSID only.

Factory default SSID 1 : wireless Factory default SSID 2 : WLANProjector1 Factory default SSID 3 : WLANProjector2 Factory default SSID 4 : WLANProjector3

3) Subnet mask is not Class A or B or C. The Passcode system accepts Class A, B and C only.

Class A:(255.0.0.0), ClassB:(255.255.0.0), Class C:(255.255.255.0)

There are two methods to get the Passcode from the projector

Method 1

1) Turn on the projector, and make sure that the projector image is on screen.

2) Press the

RGB button on the remote control or INPUT button on the projector to select the MIU as input port. If there is no signal on the MIU port you can nd the Passcode on screen, otherwise proceed to 3) below.

3) Press the MENU button on the remote control or the ▲/▼/◄/► buttons on

the projector to show the menu on screen.

4) Use the ▲/▼ cursor buttons to select the Advanced Menu, and use the ►

cursor button to enter the item.

5) Use the ▲/▼ cursor buttons to select the MIU, and use the ► cursor button

to enter the item.

6) Use the ▲/▼ cursor buttons to select the LIVE MODE, and push the ►

cursor button.

7) The Passcode is appeared on the screen.

3. Using the Live Mode

3.4 Passcode connection (continued)

Method 2

1) Turn on the projector, and make sure that the projector image is on screen.

2) Press the

MENU button on the remote control or the ▲/▼/◄/► buttons on

the projector to show the menu on screen.

3) Use the ▲/▼ cursor buttons to select the Advanced Menu, and use the ►

cursor button to enter the item.

4) Use the ▲/▼ cursor buttons to select the MIU, and use the ► cursor button

to enter the item.

5) Use the ▲/▼ cursor buttons to select the INFORMATION, and use the ► cursor button to display the INFORMATION.

6) The Passcode is appeared at the top right corner in the INFORMATION window.

NOTE

• Take the Method 2 , when you use the projector in the LIVE MODE

or PC-LESS Presentation mode, or when the MIU is not selected as the input

signal.

•

If no communication between the projector and PC in 5 minutes, the Passcode

will be changed.

3. Using the Live Mode

3.4 Passcode connection (continued)

3.4.2 Entering the Passcode

If you select [Enter PassCode] at the item

3.3.3, the “Please enter the PassCode” screen is displayed. Please enter the Passcode divided 4-digit each in 3 boxes (total 12-digit).

Example PASSCODE: 1234 - 5678 - 9ABC

After entering the Passcode, click [Connect] to start the connection to the

projector.

Proceed to the item 3.6 Conrm the connection to your destination. (

50)

If you click [Back], the screen is back to the item 3.3.3 Connecting to the network. (31)

NOTE

• When entering the Passcode, capital and small letters are not

distinguished.

• If you are using any encryption code or your unique SSID or Subnet mask excluding ClassA and B and C, it is required to set the connection manually. If the manual setting screen is displayed, please follow the item 3.4.3.

[trouble shooting]

n Incorrect PassCode.

The incorrect Passcode was input.

Click [Back] to return to the “Please enter

the PassCode” screen.

Check the PassCode on the projector

screen (

32) and enter the code again.

3. Using the Live Mode

3.4 Passcode connection (continued)

n A network connection could not be established.

Windows prevented network conguration

changes.

You may log in the Windows under User

authority.

Click [OK], then the “Live Viewer 3” main

menu is displayed even though the network is not established. Click on the main and

go back to the item 3.3.3 Connecting to the network. (31)

Consult to the network administrator. Log in the Windows under Administrator authority. After that, please resume at the item 3.3.1 Starting the “Live Viewer

26)

3”. (

n Automatic connection failed.

The reason is that the IP address set in the projector is the global address.

Following the instruction by the network

administrator, set the IP address and Subnet mask in the “Live Viewer 3”.

After input these address, click [Connect].

If you want to erase the information you input, click [Reset].

NOTE

• If the IP address you input to the PC is the same as the one set in the

projector, a warning message will come up. Please choose an IP address that

is currently not in use.

3. Using the Live Mode

3.4 Passcode connection (continued)

n A Network Conguration Conict exists.

The message comes up when the network

connection mode you set in the PC does not match with the mode of the projector.

Please verify your network conguration setting on the projector and PC.

Click [Exit], then the “Live Viewer 3” main menu is displayed even though the network is not established. Click

on the main menu

to go back to the item 3.3.3 Connecting to

the network. (31)

n Are you sure you want to connect the selected projector?

The message is appeared when the wireless adapter you selected is already used for

another network connection.

• To connect, click [Yes]. Proceed to the

3.6 Conrm the connection to your

destination. (

50)

• Not to connect, click [No] then the “Live

Viewer 3” main menu is displayed even though the network is not established. Click

on the main menu to go back to the item

3.3.3 Connecting to the network. (31)

3. Using the Live Mode

3.4 Passcode connection (continued)

3.4.3 Conguring manually

After you input the Passcode (

34), you are required to input the network setting manually if you use any encryption code or your unique SSID or Subnet mask except Class A/B/C. (32) If you use the wired LAN, go to (40).

Wireless LAN

The required information depends on how you connect the projector and PC.

• Direct connection between the projector and PC (AdHoc mode)

• The projector connected to an access point by a LAN cable

• The projector connected to an access point by the wireless LAN

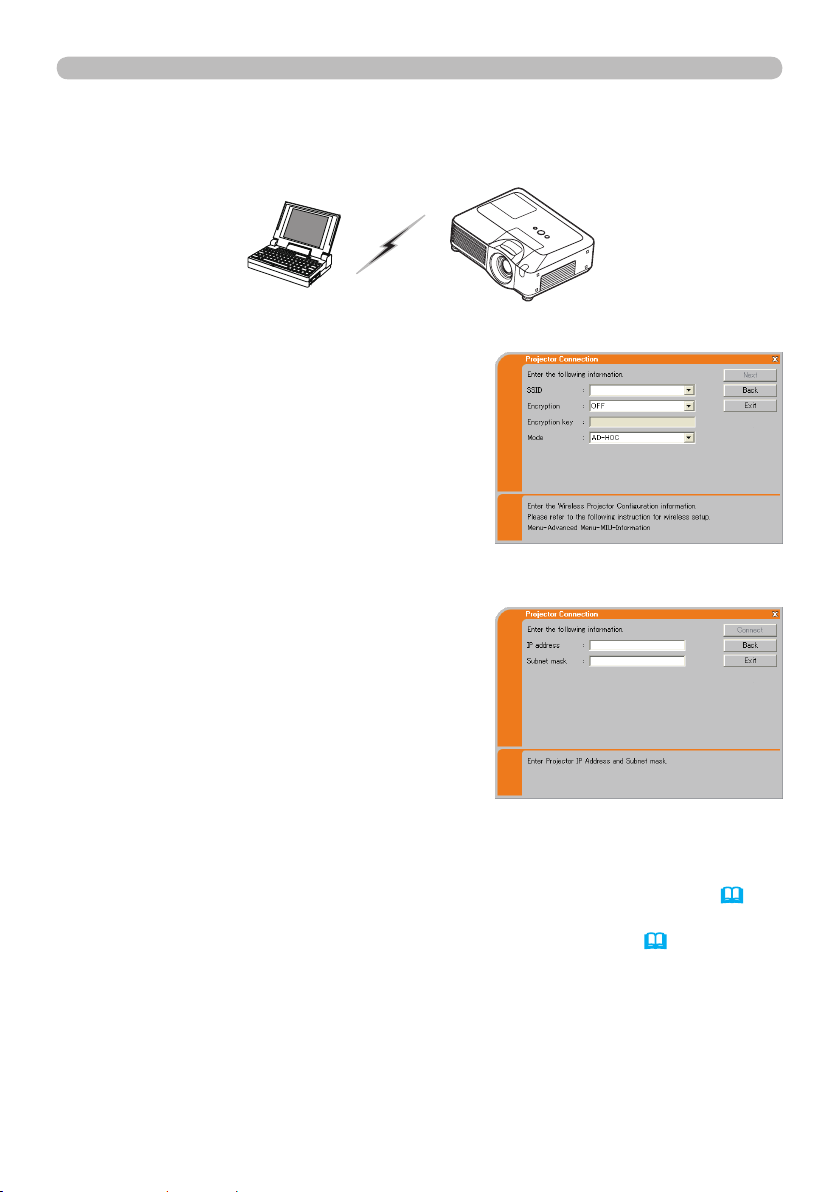

Direct connection between the projector and PC (AdHoc mode)

1) Enter the following information that is set in the projector. *1

SSID *2: wireless (example) Encryption: WEP64bit (example) Encryption key *3:

**********

(example)

Subnet mask *4: 255.255.255.128

(example)

2) Click [Connect].

3) The wireless connection will be established.

Proceed to the item 3.6 Conrm the

connection to your destination. (

*1 To nd the network setting on the projector, refer to the NOTE. (

50)

40)

*2 If you don’t use the factory default SSID, you need to set your SSID by either

entering manually or selecting from the list of detected SSID.

*3 If you use an encryption, you need to set it. Contact the network administrator

to nd the encryption key that is set in the projector.

The encryption key is always shown as “

**********

”.

*4 If you use Subnet mask except Class A/B/C, please set it.

3. Using the Live Mode

3.4 Passcode connection (continued)

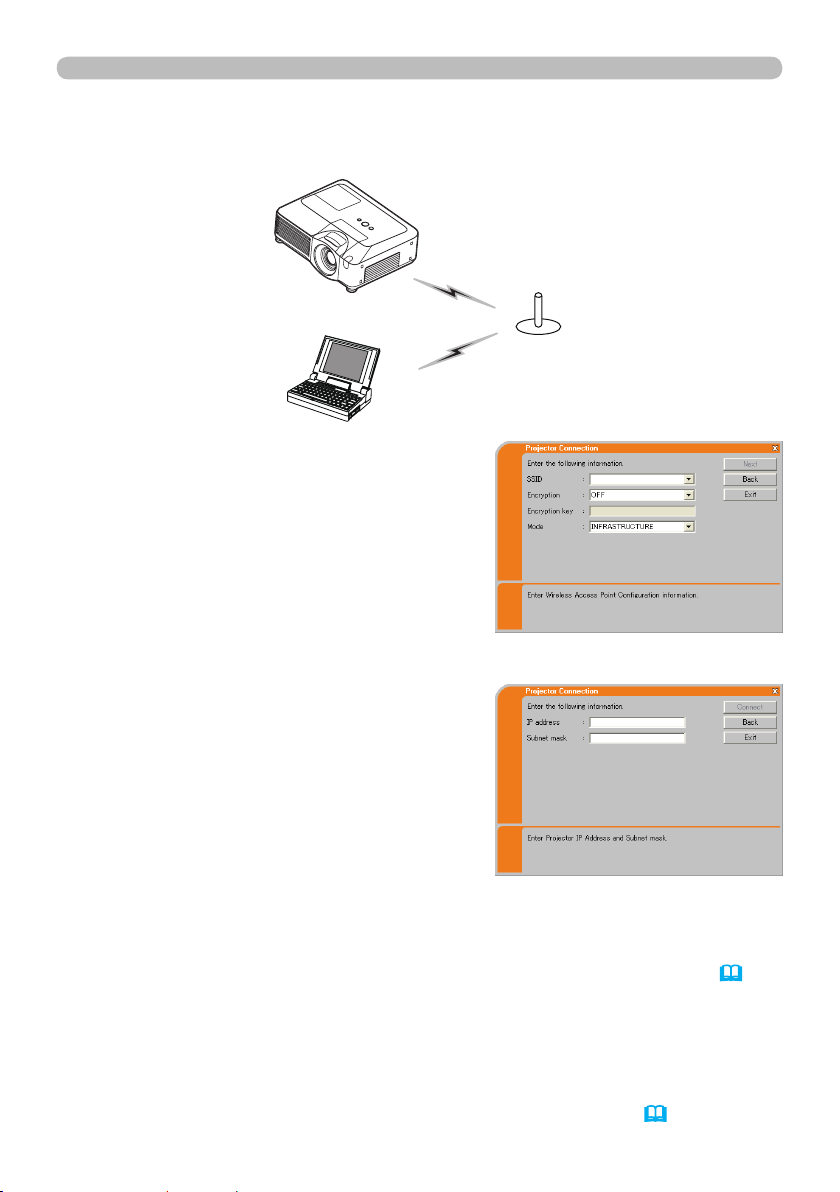

The projector connected to an access point by a LAN cable

1) The setting on the access point. *1

Enter the following information.

SSID : WirelessAccessPoint (example) Encryption: WEP64bit (example) Encryption key *2:

**********

(example)

2) The setting on the projector. *3

Enter the following information.

Subnet mask *4: 255.255.255.128 (example)

3) Click [Connect].

4) The wireless connection will be established.

Proceed to the item 3.6 Conrm the connection to your destination. (50)

*1 Contact the network administrator to nd out the setting on the access point. *2 If you use an encryption, you need to set it. Contact the network administrator

to check the encryption key that is set in the projector. The encryption key is always shown as “

**********

”.

*3 To nd the network setting on the projector, refer to the NOTE. (40) *4 If you use Subnet mask except Class A/B/C, please set it.

3. Using the Live Mode

3.4 Passcode connection (continued)

The projector connected to an access point by the wireless LAN

1) Enter the following information that is set in

the projector. *1

SSID *2: wireless (example) Encryption: WEP64bit (example) Encryption key *3:

**********

(example)

Subnet mask *4: 255.255.255.128

(example)

2) Click [Connect].

3) The wireless connection will be established.

Proceed to the item 3.6 Conrm the connection to your destination. (

*1 To nd the network setting on the projector, refer to the NOTE. (

40)

50)

*2 If you don’t use the factory default SSID, you need to set your SSID by either

entering manually or selecting from the list of detected SSID.

*3 If you use an encryption, you need to set it. Contact the network administrator

to nd the encryption key that is set in the projector.

The encryption key is always shown as “

**********

”.

*4 If you use Subnet mask except Class A/B/C, please set it.

3. Using the Live Mode

3.4 Passcode connection (continued)

Wired LAN

1) Enter the following information for the

projector.

Subnet mask *1: 255.255.255.128

(example)

2) Click [Connect].

3) The network connection will be established.

Proceed to the item 3.6 Conrm the

connection to your destination. (

50)

*1 In case the case you use the Subnet mask except Class A/B/C, the screen is

appeared. Please set the Subnet mask.

NOTE

• If you require the network setting information on the projector, take

the following procedure to nd it out.

1) Turn on the projector, and make sure that the projector image is on screen.

2) Press the MENU button on the remote control or the ▲/▼/◄/► buttons on

the projector to show the menu on screen.

3) Use the ▲/▼ cursor buttons to select the Advanced Menu, and use the ►

cursor button to enter the item.

4) Use the ▲/▼ cursor buttons to select the MIU, and use the ► cursor button

to enter the item.

5) Use the ▲/▼ cursor buttons to select the INFORMATION, and push the ►

cursor button.

6) The setting will be displayed in the MIU-INFORMATION-box.

3.5 Manual conguration

There are 3 options for the manual

conguration.

• Prole (

• History (42)

• Congure Network Settings Manually (43)

3.5.1 Prole connection

Selecting a prole data connect the network

with the projector.

It is required to store the prole data in advance. (

1) Select [Prole].

2) Choose a prole data listed in the window.

3) Click [Connect].

below)

60)

3. Using the Live Mode

4) The network connection will be established.

Proceed to the item 3.6 Conrm the connection to your destination. (50)

NOTE

• To check the setting in a prole data, follow the process below.

1) Choose a prole data that you want to check.

2) Move the mouse cursor to the prole data, and click the right button on the mouse to display a pop-up menu.

3) Select the “Property” in the pop-up menu, and click the left button on the

mouse.

4) The setting information of the selected prole data is shown.

• If the DHCP is set on in the projector, the network connection between the

projector and PC may not be established since IP address may be varied. If you like to use the Prole connection, set the DHCP off in the projector.

3. Using the Live Mode

3.5 Manual conguration (continued)

3.5.2 History connection

The “Live Viewer 3” can memory the network

settings when connecting to the projector as

a history record. After that, selecting a history record can quickly connect the network with the

projector.

1) Select [History].

2) Choose a history record listed in the window.

3) Click [Connect].

4) The network connection will be established. Proceed to the item 3.6 Conrm the connection to your destination. (50)

If you want to copy a history record to a prole data, select one of the history record and click [Register to prole]. The prole data cannot be erased

automatically.

NOTE

• The number of the history record is maximum 10 for each network

adapter. When the 11th data is stored, the oldest record among the 10 will be

overwritten.

• The data & time information in each history record is renewed when the network is connected by using the history record.

• If the DHCP is set on in the projector, the network connection between the projector and PC may not be established since IP address may be varied.

• Even if you use the prole connection, it will be memorized as a history record.

3. Using the Live Mode

3.5 Manual conguration (continued)

3.5.3 Conguring manually

All setting for the network connection between the projector and PC is input manually.

Select [Congure Network Settings

Manually].

The information to be input manually is different, depending on how you want to connect the projector and PC.

Wireless LAN

The required information depends on how you connect the projector and PC.

• Direct connection between the projector and PC (AdHoc mode). (

44)

• The projector connected to an access point by a LAN cable. (45)

• The projector connected to an access point by the wireless LAN. (46)

Wired LAN

If you use the wired LAN, go to (

47).

3. Using the Live Mode

3.5 Manual conguration (continued)

Direct connection between the projector and PC (AdHoc mode)

1) Enter the following information that is set in the projector. *1

SSID: wireless (example) Encryption: WEP64bit (example) Encryption key *2:

**********

(example)

Mode: AD-HOC

2) Click [Next].

3) Enter the following information that is set in

the projector. *1

IP address : 192.168.1.10 (example) Subnet mask: 255.255.255.0 (example)

4) Click [Connect].

5) The wireless connection will be established. Proceed to the item 3.6 Conrm the connection to your destination. (

50)

*1 To nd the network setting on the projector, refer to the NOTE. (40) *2 If you use an encryption, you need to set it. Contact the network administrator

to nd the encryption key that is set in the projector. The encryption key is always shown as “

**********

”.

3. Using the Live Mode

3.5 Manual conguration (continued)

The projector connected to an access point by a LAN cable

1) The setting on the access point. *1 Enter the following information.

SSID: WirelessAccessPoint (example) Encryption: WEP64bit (example) Encryption key *2:

**********

(example)

Mode: INFRASTRUCTURE

2) Click [Next].

3) Enter the following information that is set in

the projector. *3

IP address : 192.168.1.10 (example) Subnet mask: 255.255.255.0 (example)

4) Click [Connect].

5) The wireless connection will be established. Proceed to the item 3.6 Conrm the connection to your destination. (

50)

*1 Contact the network administrator to nd out the setting on the access point. *2 If you use an encryption, you need to set it. Contact the network administrator

to check the encryption key that is set in the projector. The encryption key is always shown as “

**********

”.

*3 To nd the network setting on the projector, refer to the NOTE. (40)

3. Using the Live Mode

3.5 Manual conguration (continued)

The projector connected to an access point by the wireless LAN

1) The setting on the access point. *1

Enter the following information.

SSID: WirelessAccessPoint (example) Encryption: WEP64bit (example) Encryption key *2:

**********

(example)

Mode: INFRASTRUCTURE

2) Click [Next].

3) Enter the following information that is set in

the projector. *3

IP address : 192.168.1.10 (example) Subnet mask: 255.255.255.0 (example)

4) Click [Connect].

5) The wireless connection will be established.

Proceed to the item 3.6 Conrm the connection to your destination. (

50)

*1 Contact the network administrator to nd out the setting on the access point. *2 If you use an encryption, you need to set it. Contact the network administrator

to check the encryption key that is set in the projector. The encryption key is always shown as “

**********

*3 To nd the network setting on the projector, refer to the NOTE. (

”.

40)

3. Using the Live Mode

3.5 Manual conguration (continued)

Wired LAN

1) Enter the following information for the

projector. *1

IP address : 192.168.1.10 (example) Subnet mask : 255.255.255.0 (example)

2) Click [Connect].

3) The network connection will be established. Proceed to the item 3.6 Conrm the connection to your destination. (

50)

*1 To nd the network setting on the projector, refer to the NOTE. (

40)

[trouble shooting]

n A network connection could not be established.

Windows prevented network conguration

changes.

You may log in the Windows under User

authority.

Click [OK], then the “Live Viewer 3” main

menu is displayed even though the network is not established. Click

on the main menu

and go back to the item 3.3.3 Connecting to the network. (31)

Consult to the network administrator. Log in the Windows under Administrator authority. After that, please resume at the item 3.3.1 Starting the “Live Viewer

3”. (

26)

3. Using the Live Mode

3.5 Manual conguration (continued)

n Automatic connection failed.

The reason is that the IP address set in the projector is the global address.

Following the instruction by the network

administrator, set the IP address and Subnet mask in the “Live Viewer 3”.

After input these address, click [Connect].

If you want to erase the information you input, click [Reset].

NOTE

• If the IP address you input to the PC is the same as the one set in the

projector, a warning message will come up. Please choose an IP address that

is currently not in use.

n A Network Conguration Conict exists.

The message comes up when the network

connection mode you set in the PC does not match with the mode of the projector.

Please verify your network conguration setting on the projector and PC.

Click [Exit], then the “Live Viewer 3” main menu is displayed even though the network is not established. Click

on the main menu

to go back to the item 3.3.3 Connecting to the network. (31)

3. Using the Live Mode

3.5 Manual conguration (continued)

n Are you sure you want to connect the selected projector?

The message is appeared when the wireless adapter you selected is already used for

another network connection.

• To connect, click [Yes]. Proceed to the

3.6 Conrm the connection to your

destination. (50)

• Not to connect, click [No] then the “Live Viewer 3” main menu is displayed even though the network is not established.

Click on the main menu to go back to the item 3.3.3 Connecting to the network. (31)

3. Using the Live Mode

3.6 Conrm the connection to your destination

3.6.1 Connection and transmission

When the network connection is established, the “Connection to Projector successful” screen is displayed.

Make sure that the right projector that you want

to send your image to is selected, by checking the projector name and IP address shown in

the screen.

• To send images to the projector, click [Yes]. The transmission will be started. It is required to set the MIU as an input port and select the Live Mode in the MIU menu in the projector, to display the transmitted images.

Refer to the item 3.6.3 Setting the Live Mode. (

• Not to send, click [No], then the “Live Viewer 3” main menu is displayed in stand-by mode. (The stand-by mode is the condition that the wireless connection is established, but the images are not transmitted.) The transmission can be started, if you click or button on the “Live Viewer 3” main menu.

If you wish to use the current connection setting as a prole data for My Connection, check in the box for [Register this setting to My Connection].

53)

[trouble shooting]

n This projector is currently in use (Presenting) by another user.

The projector you want to send your images to is occupied by another computer in the Presenter mode.

Click [OK], then the “Live Viewer 3” main menu is displayed in stand-by mode. Retry to send your images, after the Presenter mode is off.

3. Using the Live Mode

3.6 Conrm the connection to your destination (continued)

A Slideshow is currently running on the projector that you are trying to display to.

The projector you want to send your images to is in the Slide show mode in the PC-LESS

Presentation.

• Click [Yes], then the projector is switched

from the Slide show mode to the Live Mode.

• Click [No], then the projector is remained

in the Slide show mode, and the “Live Viewer 3” main menu is displayed in stand-by mode on your PC.

n Are you sure you want to switch to Live Mode?

The projector is not set to the Live Mode.

• Click [Yes], then the projector is switched

to the Live Mode.

• Click [No], then the projector is remained

as it is, and the “Live Viewer 3” main menu is displayed in stand-by mode on

your PC.

n Are you sure you want to change the input channel of the Projector to MIU?

The projector is not set to the MIU as an

input signal.

• Click [Yes], then the projector is switched

to the MIU.

• Click [No], then the projector is remained

as it is, and the “Live Viewer 3” main menu is displayed in stand-by mode on

your PC.

3. Using the Live Mode

3.6 Conrm the connection to your destination (continued)

3.6.2 Connection error

When the connection to the projector could not be established, an error message, “Network Connection not established”, will come up.

Click [OK] then the “Live Viewer 3” main menu is displayed even though the network is not established. Click on the main menu to

go back to the item 3.3.3 Connecting to the network. (31)

NOTE

• If you selected the My Connection, the “Live Viewer 3” is closed.

Check the network setting in the projector, and retry the connection from the

item 3.3 Quick connection to the network. (26)

[trouble shooting]

n The network connection is refused.

The Projector has already reached the maximum number of Network Connections.

The projector can connect up to 5 PCs at the same time.

Click [OK], then the “Live Viewer 3” main

menu is displayed even though the network is not established. After disconnecting a PC, please retry to

connect to the network.

3. Using the Live Mode

3.6 Conrm the connection to your destination (continued)

3.6.3 Setting the Live Mode

This section is intended to explain how to switch to the Live Mode in the MIU on the projector, by using the remote control or a web browser software.

From Web Remote Control on a web browser

1) Click [LIVE MODE] button.

(Refer to the item 4.1.11 Remote Control (

86))

From the OSD menu, by using the remote control or keypad on the projector.

1) Turn on the projector, and make sure that the projector image is on screen.

2) Press the

MENU button on the remote control or the ▲/▼/◄/► buttons on

the projector to show the menu on screen.

3) Use the ▲/▼ cursor buttons to select the Advanced Menu, and use the ►

cursor button or ENTER button to enter the item.

4) Use the ▲/▼ cursor buttons to select the MIU, and use the ► cursor button

or ENTER button.

5) Use the ▲/▼ cursor buttons to select the LIVE MODE, and push the ►

cursor button or ENTER button.

(Refer to  MIU menu in the User’s Manual (detailed) – Operating Guide)

From MY BUTTON function

1) Turn on the projector, and make sure that the projector image is on screen.

2) Press the

MENU button on the remote control or the ▲/▼/◄/► buttons on

the projector to show the menu on screen.

3) Use the ▲/▼ cursor buttons to select the Advanced Menu, and use the ►

cursor button or ENTER button to enter the item.

4) Use the ▲/▼ cursor buttons to select the OPTION, and use the ► cursor

button or ENTER button.

5) Use the ▲/▼ cursor buttons to select the MY BUTTON item, and use the ►

cursor button or ENTER button to enter the item.

6) Choose 1 or 2 on the MY BUTTON item using the ◄/► cursor buttons. Then

using the ▲/▼ buttons sets LIVE MODE function to the button. (Refer to  OPTION menu in the User’s Manual (detailed) – Operating Guide)

3. Using the Live Mode

3.7 Start the “Live Viewer 3”

When you get the connection between your projector and PC, the “Live Viewer 3”

main menu will be shown on the PC screen.

On the main menu you can congure the settings and operate the functions to send your images to the projector in the Live Mode.

3.7.1 Main menu and Operating buttons

1) Menu Type

There are 2 type of the main menu, Easy type and Advanced type, which can be switched on screen.

• When the “Live Viewer 3” is started, the last used type will be screen.

• When the network connection is not established, the Advanced type will be on

screen.

Easy Type

Advanced Type

Status Display

q e

Switch to Advanced type

Switch to Easy type

t y u

Indicator

Fig. 3.7.1 a Live Viewer 3 Main menu

2) Operating buttons

q Starting Capture button

The transmission to the projector is started and the images will be displayed in the Live Mode. The Display mode will be the Single PC mode at rst. After that, the last Display mode will be applied.

w Stop button

The image transmission is stopped.

NOTE

• The images may not be displayed on screen, if the Start/Stop buttons

are clicked repeatedly.

3. Using the Live Mode

3.7 Start the “Live Viewer 3” (continued)

e Hold button

The image on screen is temporally frozen. The last image before the button is clicked is remained on screen. You can revise the image data on your PC without showing it on the projector’s screen.

r Display mode button (

57)

The button switches the Single PC mode and Multi PC mode.

t Connect button

The screen to select the connection mode is displayed. Go to the item 3.3.3 (

31)

y Option button

The option screen is displayed.

u Information button

The version of the “Live Viewer 3” is displayed.

i, o Close button

The network is disconnected and the “Live Viewer 3” is closed.

a Minimize button

The main menu is closed, and the “Live Viewer 3” icon is displayed on the task tray in your PC. If the icon is double-clicked, the last type of the main

menu will be shown on screen.

Connected Disconnected

Not connected Hold

Fig. 3.7.1 b Task tray Icon

3. Using the Live Mode

3.7 Start the “Live Viewer 3” (continued)

3.7.2 Displaying the status

1) Indicator The indicator shows the following status.

Indicator Status Note

Not connected

Hold

The network connection to the projector is

not established yet. The network connection is established, but

the image transmissions on hold. The network connection is established and

Connected

the images on the PC are being sent to the projector.

Disconnected

The network connection to the projector is

disconnected.

2) Status Display in Multi PC mode The icon is displayed at the right end of the Display mode buttons. One of the following icons to inform which quarter screens are used will be

shown.

Status Status icon

No PC is on screen

One PC is on screen.

Two PCs are on screen.

Three PCs are on screen.

Four PCs are on screen.

NOTE

• The status display is refreshed in every 3 seconds.

• If the status cannot be gotten from the projector, it will not be displayed.

3. Using the Live Mode

3.7 Start the “Live Viewer 3” (continued)

3.7.3 Switching the display mode

The “Live Viewer 3” has the Single PC mode and Multi PC mode. The modes can be switched on the main menu.

1) Click the

button on the main menu.

The buttons below are displayed.

q w e r t

2) Select from q to t buttons, and click it. q Switching to the Single PC mode : Your image is displayed on full screen. w-t Switching to the Multi PC mode : Your image is displayed on a quarter

screen identied in the button.

3) The projector screen is switched to the mode selected above, and the transmission of your PC image will be started to display your image on the

screen.

4) The icon

NOTE

on the main menu is replaced by the icon you selected.

• The image transmission will be stopped, when you click the Single mode button while the projector is in the Single PC mode or you click one of the Multi mode buttons that shows the quarter screen which is currently displaying your PC images in the Multi PC mode.

• If the Multi PC mode is selected, the projector screen is automatically divided to 4 zones.

• If the Presenter mode is set on in the PC whose image is currently on screen in the Single PC mode, the button cannot be clicked on other PCs.

• If the quarter screen that displays images sent from another PC is selected, the network to the PC is disconnected.

(Refer to

 MIU menu in the User’s Manual (detailed) – Operating Guide for

the function on the projector.)

3. Using the Live Mode

3.7 Start the “Live Viewer 3” (continued)

3.7.4 Option menu

Clicking the Option button displays the option menu on screen.

e r

q Optimize Performance

The “Live Viewer 3” captures PC screen in JPEG data and sends the JPEG data to the projector. The “Live Viewer 3” has two options that have different compression rate of JPEG data.

Transmission speed

Speed takes priority over Image quality. It makes JPEG compression rate higher. The screen on the projector is rewritten quicker because the transferred data is smaller, but the image quality is worse.

Image quality

Image quality takes priority over Speed. It makes JPEG compression rate lower.

The screen on the projector is rewritten slower because the

transferred data is larger, but the image quality is better.

w Cursor Emulation

If a mouse cursor (pointer) on your PC screen is not displayed on the projector screen, check in the box. The “Live Viewer3” helps you to nd the cursor on the screen. If the cursor is on the projector screen, not check it.

3. Using the Live Mode

3.7 Start the “Live Viewer 3” (continued)

e Presenter Mode

In the Single PC mode, the projector can be occupied by one PC and can block an access from any other PC, if the Presenter mode is selected in the “Live Viewer 3”. While making your presentation, you don’t need to worry that the image on screen is unexpectedly switched to an image sent by another PC. If you want to turn it on, put a check mark in the check box.

NOTE

• If the Multi PC mode is selected, the setting for the Presenter mode is invalid.

• When switching from the Multi PC mode to the Single PC mode, the Presenter mode setting of the PC is valid.

• The Presenter Mode is set valid in factory default setting.

r Display User Name

A "User Name" that is up to 20 letters can be input by using alphanumeric

characters.

The user name can be displayed on the projector screen, so you can nd out

whose image is currently on the screen.

(Refer to

 MIU menu in the User’s Manual (detailed) – Operating

Guide)

If the check box is not marked, the information is not sent to the projector.

3. Using the Live Mode

3.8 Prole data

3.8.1 Outline of Prole data

The network setting to connect the projector and PC can be stored as a prole data. Once the data is stored, all you need to do is to select the data to connect to the network. It is recommended when the same network connection is often used.

3.8.2 Making Prole data

The prole data is made on the Manual Conguration screen. ( Up to 10 prole data can be stored for each network adapter.

1) Select [Prole] and click [New].

2) The “Create new prole” will come up. If you have already made 10 prole data, you cannot make a new one, until you delete a stored data.

Input all information required for your

network connection.

If you want to clear the information you input,

click [Clear].

41)

3) Click [OK], after all information is set. If you don’t want to store it, click [Cancel].

4) The new prole data is shown in the prole list, if you click [OK].

NOTE

• When you make a new prole data, it is strongly recommended to check that the new dada can work properly by selecting the data at the Prole connection. (41)

• If you change a wireless network adapter on the projector or PC, make a new prole data for the adapter.

3. Using the Live Mode

3.8 Prole data (continued)

3.8.3 Editing Prole data

If necessary, the prole data can be edited on the Manual Conguration screen. (41)

1) Select [Prole], and select one of the data listed in the window.

2) Click [Edit].

3) The “Edit prole” screen will come up.

4) Edit the information required to be revised. If you want to clear all information in the window, click [Clear].

5) Click [OK], after the editing is completed. If you don’t want to store it, click [Cancel].

6) The edited prole data is stored and shown in the prole list with the new date created information, if you click [OK].

NOTE

• When you edit a prole data, it is strongly recommended to check

that the edited data can work properly by selecting the data at the Prole

connection. (41)

3. Using the Live Mode

3.8 Prole data (continued)

3.8.4 Registering My Connection

One of the prole data, which is often used, can be registered as the My Connection prole data. Once the data is registered, all you need to do is to select

the My Connection to connect to the network. (

29)

1) Click [My Connection].

2) The “Add My Connection” screen will come

up.

The currently selected prole data for the My

Connection is shown with a check mark in the list.

3) Select one of the prole data listed in the window and put a mark in the check box. The data selected before is turned unmarked.

4) Click [OK], then the window is closed. If you don’t want to select a new one, click

[Cancel].

NOTE

• If you don’t want to use the My Connection, mark no data listed in the

window, and click [OK].

• In the list, all prole data are shown no matter which network adapter is selected. You can register a prole data that is not for currently selected network adapter as the My Connection prole data.

3.8 Prole data (continued)

Also, you can register a prole data to My Connection, when the network connection is established. When it is established, the “Connection to Projector successful” screen is displayed. (

50) If you wish to use the current connection setting for My Connection, check in the box for

[Register this setting to My Connection].

And then, if it is okay to overwrite the present data for My Connection, click [OK]. A new prole data will be created and it is registered as My Connection prole data.

3. Using the Live Mode

NOTE

• If there are already 10 prole data, the check box cannot be checked.

Please erase one of the existing prole data.

• The prole name for the stored data is assigned by the “Live Viewer 3” automatically. The name will be shown at the right side of the check box.

4. Management with Web browser software

This projector is equipped with the following network functions by using a web

browser software.

Con guring and controlling the projector via a web browser

You can change the settings of or control the projector via a network by using a

web browser from a PC that is connected to the same network.

(

67)

E-mail Alerts

The projector can automatically send an alert to specied e-mail addresses when the projector requires maintenance or has encountered an error.

(

90)

Projector Management using SNMP

This projector is SNMP (Simple Network Management Protocol) compliant, allowing you to monitor it from a remote location using SNMP software. In addition, the projector is able to send failure & warning alerts to a specied PC.

(

92)

Event Scheduling

You can schedule the projector to perform various functions according to the date and time.

(

93)

MY IMAGE (Still Image Transfer) Display

The projector can display still images that are transferred via the network.

(

96)

Command Control via the Network

The projector can be controlled using RS-232C commands over a network.

(

97)

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web

browser

You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network.

NOTE

• If JavaScript is disabled in your web browser conguration, you must enable JavaScript in order to use the projector web pages properly. See the Help les for your web browser for details on how to enable JavaScript.

• It is recommended that all web browser updates are installed. It is especially recommended that all users running Internet Explorer on a Microsoft Windows version prior to Windows XP Service Pack 2 install security update Q832894 (MS04-004) or the web browser interface may not be displayed correctly. And when using an earlier version of Internet Explorer, during operations the browser will log out after 50 seconds.

• Internet Explorer 5.5 or later is required.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

When conguring or controlling the projector via a web browser, an ID and password are required. There are two types of IDs, Administrator ID and User ID. The following chart describes the differences between Administrator and User IDs.

Item Description Administrator User

Network Information

Network Settings

Port Settings

Mail Settings

Alert Settings

Schedule Settings

Date/Time Settings

Security Settings

Projector Control Controls the projector. √ √ Remote Control Controls the projector like IR remote. √ √

Projector Status

Network Restart

Displays the projector’s current network conguration settings.

Displays and congures network

settings.

Displays and congures

communication port settings.

Displays and congures e-mail addressing settings.

Displays and congures failure &

warning alerts.

Displays and congures schedule

settings.

Displays and congures the date and

time settings.

Displays and congures passwords and other security settings.

Displays and congures the current

projector status.

Restarts the projector’s network

connection.

√ √

√ N/A

√ √

√ N/A

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.1 Logon

Refer to the following for conguring or controlling the projector via a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter “http://192.168.1.10/” into the address

bar of the web browser and press “Enter”

key or click “

” button. The screen in Fig.

4.1.1a will be displayed.

2) Enter your ID and password and click

[Logon].

Fig. 4.1.1 a “Logon menu”

Below are the factory default settings for administrator ID, user ID and passwords.

Item ID Password

Administrator Administrator <blank>

User User <blank>

If the logon is successful, either the Fig. 4.1.1 b or Fig. 4.1.1 c screen will be displayed.

Main menu

Fig. 4.1.1 b “Logon with Administrator ID”

Main menu

Fig. 4.1.1 c “Logon with User ID”

3) Click the desired operation or conguration item on the main menu located on

the left-hand side of the screen.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.2 Network Information

All screen drawings in this manual are shown when you logon with the Administrator ID. Any functions that are available only for the Administrator will not be shown when you logon with the User ID. Refer to the table. (

66, 67)

Displays the projector’s current network conguration settings.

Item Description

Projector Name Displays the projector name settings.

DHCP Displays the DHCP conguration settings.

IP Address Displays the current IP address. Subnet Mask Displays the subnet mask.

Default Gateway Displays the default gateway.

MAC Ethernet Displays the ethernet MAC address.

Displays the wireless LAN MAC address.

MAC Wireless

Firmware Date

Firmware Version

NOTE

• MAC wireless will not be displayed when the NETWORK MODE is set to the WIRED even if the wireless network card is mounted. (MIU menu

in the User’s Manual (detailed)) – Operating Guide)

Displays the network rmware time stamp. This information is only displayed when logged on using an Administrator ID.

Displays the network rmware version number. This information is only displayed when logged on using an Administrator ID.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.3 Network Settings

Displays and congures network settings.

Item Description

Network Mode Select Network mode “Wired” or “Wireless”.

IP Conguration Congures network settings.

DHCP ON Enables DHCP. DHCP OFF Disables DHCP.

IP Address Congures the IP address when DHCP is disabled. Subnet Mask Congures the subnet mask when DHCP is disabled.

Default Gateway Congures the default gateway when DHCP is disabled.

Congures the name of the projector.

Projector Name

sysLocation (SNMP)

sysContact (SNMP)

DNS Server Address Congures the DNS server address.

The length of the Projector Name can be up to 64

alphanumeric characters. Only alphabets, numbers and following symbols can be used. !"#$%&'()*+,-./:;<=>?@[\]^_`{ |}~ and space

Congures the location to be referred to when using SNMP. The length of the sysLocation can be up to 255 alphanumeric characters. Only numbers ‘0-9’ and alphabet ‘a-z’, ‘A-Z’ can be used.

Congures the contact information to be referred to when using SNMP.

The length of the sysContact can be up to 255 alphanumeric

characters. Only numbers ‘0-9’ and alphabet ‘a-z’, ‘A-Z’ can be used.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

Item Description

Wireless Mode Select “AD-HOC” or “Infrastructure”.

Select using channel between “1” and “11”.

CH (Communication channel)

NOTE

the channels may vary. In addition, depending on the country or region where you are may be required to use a wireless network card that conrm to the

• Depending on the country where you are

standards in the respective country or region.

Speed (Communication speed)

Encryption Select data encryption method.

WEP Key

WPA Passphrase

SSID

Select communication speed.

Input WEP key, which has same length dened by WEP. When “64bit” or “128bit” is selected, input 10 characters or 26 characters respectively. Only numbers from “0” to “9” and alphabets from “a” to “f” (whichever small or capital characters) can be used. Enter the series of two characters pair. It will be cleared by 0, if the total length is odd.

Input WPA Passphrase. Available number of input characters is 8 to 63. Only alphabets, numbers and following symbols can be used. !"#$%&'()*+,-./:;<=>?@ [\]^_`{|}~ and space

Select an SSID from the list. If you require to set your unique SSID, select [Custom], then set your own SSID following the

rules below.

Maximum number of input characters is 32. Only alphabets, numbers and following symbols can be used. !"#$%&'()*+,-./:;<=>?@[\]^_`{|}~ and space.

Click [Apply] button to save the settings.

NOTE

• The new conguration settings are activated after restarting the

network connection. When the conguration settings are changed, you must

restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

• If you connect the projector to an existing network, consult a network administrator before setting server addresses.

• The WEP Key, WPA passphrase and SSID settings will not be set if the invalid characters are used.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.4 Port Settings

Displays and congures communication port settings.

Item Description

Network Control Port1 (Port:23)

Port open Click [Enable] check box to use port 23.

Authentication

Network Control Port2

(Port:9715)

Port open Click [Enable] check box to use port 9715.

Authentication

SNMP Port Congures the SNMP port.

Port open Click [Enable] check box to use SNMP.

Trap address

SMTP Port Congures the SMTP port.

Port open Click [Enable] check box to use the e-mail function.

Congures command control port 1 (Port:23).

Click [Enable] check box when authentication is required for this port.

Congures command control port 2 (Port:9715).

Click [Enable] check box when authentication is required for this port.

Congures the destination of the SNMP Trap in IP format.

• The address allows not only IP address but also domain name if the valid DNS server is setup in the Network Settings. The maximum length of host or domain name is up

to 255 characters.

Click [Apply] button to save the settings.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.5 Mail Settings

Displays and congures e-mail addressing settings.

Item Description

Send mail

SMTP Server IP Address

Sender E-mail address

Recipient E-mail address

Click [Enable] check box to use the e-mail function. Congure the conditions for sending e-mail under the Alert Settings.

Congures the address of the mail server in IP format.

• The address allows not only IP address but also domain name if the valid DNS server is setup in the Network Settings. The maximum length of host or domain name is up

to 255 characters.

Congures the sender e-mail address. The length of the sender e-mail address can be up to 255

alphanumeric characters.

Congures the e-mail address of up to ve recipients. You can also specify [TO] or [CC] for each address. The length of the recipient e-mail address can be up to 255 alphanumeric

characters.

Click [Apply] button to save the settings.

NOTE

• You can conrm whether the mail settings work correctly using [Send

Test Mail] button. Please enable Send mail setting before clicking [Send Test Mail].

• If you connect the projector to an existing network, consult a network administrator before setting server addresses.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.6 Alert Settings

Displays and congures failure & alert settings.

Alert Item Description

Cover Error The lamp cover has not been properly xed.

Fan Error The cooling fan is not operating.

Lamp Error

Temp Error

Air Flow Error The internal temperature is rising. Lamp Time Error Lamp time over.

Cold Error

Filter Error Filter time over.

Other Error

Schedule Execution Error

Lamp Time Alarm Lamp time over Alarm Time setting. Filter Time Alarm Filter time over Alarm Time setting.

Transition Detector

Alarm

Cold Start

Authentication Failure

The lamp does not light, and there is a possibility that interior portion has become heated.

There is a possibility that the interior portion has become

heated.

There is a possibility that the interior portion has become

overcooled.

Other error. If displaying this error, please contact your dealer.

Schedule Execution error. (

Transition Detector Alarm. ( Manual (detailed) – Operating Guide)

The power switch is turned on. (Off → standby mode)

The SNMP access is detected from the invalid SNMP

community.

75)



OPTION menu in the User’s



Refer to “Troubleshooting” in the User’s Manual (detailed) – Operating Guide for further detailed explanation of Error except Other Error and Schedule Execution Error.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

The Alert Items are shown below.

Setting Item Description

Alarm Time

SNMP Trap Click [Enable] check box to enable SNMP Trap alerts.

Send Mail

Mail Subject

Mail Text

Congures the time to alert. (Only Lamp Time Alarm and Filter Time Alarm.)

Click [Enable] check box to enable e-mail alerts. (Except Cold Start and Authentication Failure.)

Congures the subject line of the e-mail to be sent.

The length of the subject line can be up to 100 alphanumeric characters.

(Except Cold Start and Authentication Failure.) Congures the text of the e-mail to be sent.

The length of the text can be up to 1024 alphanumeric

characters.

(Except Cold Start and Authentication Failure.)

Click [Apply] button to save the settings.

NOTE

• The trigger of Filter Error e-mail is depending on the FILTER MESSAGE setting in the SERVICE item of the OPTION menu which denes the period until the lter message is displayed on the projector screen. The e-mail will be sent when the lter timer exceeds 500, 1000, 1500 or 2000 hours based on the conguration. No notication e-mail will be sent if the FILTER MESSAGE is set to TURN OFF. (OPTION menu in the User’s Manual (detailed) – Operating Guide)

• Lamp Time Alarm is dened as a threshold for e-mail notication (reminder) of the lamp timer. When the lamp hour exceeds this threshold that is congured through the Web page, the e-mail will be sent out.

• Filter Time Alarm is dened as a threshold for e-mail notication (reminder) of the lter timer. When the lter hour exceeds this threshold, the e-mail will be

sent out.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.7 Schedule Settings

Displays and congures schedule settings.

Item Description

Daily Congures the daily schedule.

Sunday Congures the Sunday schedule. Monday Congures the Monday schedule. Tuesday Congures the Tuesday schedule. Wednesday Congures the Wednesday schedule. Thursday Congures the Thursday schedule. Friday Congures the Friday schedule. Saturday Congures the Saturday schedule.

Specic date No.1 Congures the specic date (No.1) schedule. Specic date No.2 Congures the specic date (No.2) schedule. Specic date No.3 Congures the specic date (No.3) schedule. Specic date No.4 Congures the specic date (No.4) schedule. Specic date No.5 Congures the specic date (No.5) schedule.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

The schedule settings are shown below.

Item Description

Schedule Click [Enable] check box to enable the schedule.

Date (Month/Day)

Congures the month and date. This item appears only when Specic date (No. 1-5) is selected.

Click [Apply] button to save the settings.

The current event settings are displayed on the schedule list. To add additional functions and events, set the following items.

Item Description

Time Congures the time to execute commands.

Command [Parameter]

Power Congures the parameters for power control. Input Source Congures the parameters for input switching.

Display Image

Congures the commands to be executed.

Congures the parameters for display of transfered image data

(96)

Click [Register] button to add new commands to the schedule list.

Click [Delete] button to delete commands from the schedule list.

Click [Reset] button to delete all commands and reset the schedule settings from

the schedule list.

NOTE

• After the projector is moved, check the date and time set for the projector before conguring the schedules. Strong shock may make the date and time settings (77) get out of tune.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.8 Date/Time Settings

Displays and congures the date and time settings.

Item Description

Current Date Congures the current date in year/month/day format.

Current Time Congures the current time in hour:minute:second format.

Daylight Savings Time

Start Congures the date and time daylight savings time begins.

Month Congures the month daylight savings time begins (1~12).

Week

Day

Time

End Congures the date and time daylight savings time ends.

Month Congures the month daylight savings time ends (1 ~ 12).

Week

Day

Time

hour Congures the hour daylight savings time begins (0 ~ 23). minute Congures the minute daylight savings time begins (0 ~ 59).

hour Congures the hour daylight savings time ends (0 ~ 23). minute Congures the minute daylight savings time ends (0 ~ 59).

Click [ON] check box to enable daylight savings time and set the following items.

Congures the week of the month daylight savings time begins (First, 2, 3, 4, Last).

Congures the day of the week daylight savings time begins (Sun, Mon, Tue, Wed, Thu, Fri, Sat).

Congures the week of the month daylight savings time ends (First, 2, 3, 4, Last).

Congures the day of the week daylight savings time ends (Sun, Mon, Tue, Wed, Thu, Fri, Sat).

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

Item Description

Time difference

SNTP

SNTP Server IP Address

Cycle

Congures the time difference. Set the same time difference as the one set on your PC. If unsure, consult your IT

manager. Click the [ON] check box to retrieve Date and Time

information from the SNTP server and set the following items. Congures the SNTP server address in IP format.

• The address allows not only IP address but also domain name if the valid DNS server is setup in the Network Settings. The maximum length of host or domain name is up

to 255 characters.

Congures the interval at which to retrieve Date and Time information from the SNTP server (hour:minute).

Click [Apply] button to save the settings.

NOTE

• If you connect the projector to an existing network, consult a network

administrator before setting server addresses.

• To enable the SNTP function, the time difference must be set.

• The projector will retrieve Date and Time information from the time server and override time settings when SNTP is enabled.

• The internal clock’s time may not remain accurate. Using SNTP is recommended to maintain accurate time.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.9 Security Settings

Displays and congures passwords and other security settings.

Item Description

Administrator authority Congures the Administrator ID and password.

Administrator ID

Administrator Password

Re-enter Administrator Password

User authority Congures the User ID and password.

User ID

User Password

Re-enter User Password

Congures the Administrator ID. The length of the text can be up to 32 alphanumeric

characters.

Congures the Administrator password. The length of the text can be up to 255 alphanumeric

characters.

Reenter the above password for verication.

Congures the User ID. The length of the text can be up to 32 alphanumeric

characters.

Congures the User password. The length of the text can be up to 255 alphanumeric

characters.

Reenter the above password for verication.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

Item Description

Network Control

Authentication Password

Re-enter Authentication Password

SNMP Congures the community name if SNMP is used.

Community name

FTP Congures the FTP user and password.

User

Password

Re-enter Password Reenter the above password for verication.

Congures the Authentication password for the command

control.

Congures the Authentication password. The length of the text can be up to 32 alphanumeric characters.

Reenter the above password for verication.

Congures the community name. The length of the text can

be up to 64 alphanumeric characters.

Congures the user name. The length of the text can be up

to 32 alphanumeric characters.

Congures the password. The length of the text can be up to

32 alphanumeric characters.

Click [Apply] button to save the settings.

• Only numbers ‘0-9’ and alphabet ‘a-z’, ‘A-Z’ can be used.NOTE

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.10 Projector Control

The items shown in the table below can be

performed using the Projector Control menu. Select an item using the up and down arrow keys

on the PC.

Most of the items have a submenu. Refer to the table below for details.

NOTE

• The setting value may not match with the actual value if the user

changes the value manually. In that case, please refresh the page by clicking

[Refresh] button.

Controls the projector.

Item Description

Main

Power Turns the power on/off. Input Source Selects the input source. Picture Mode Selects the picture mode setting.

Blank On/Off Turns Blank on/off.

Mute Turns Mute on/off. Freeze Turns Freeze on/off.

Magnify


Brightness Adjusts the brightness setting. Contrast Adjusts the contrast setting.

Gamma Selects the gamma setting.

Color Temp Selects the color temperature setting. Color Adjusts the color setting. Tint Adjusts the tint setting. Sharpness Adjusts the sharpness setting. Active Iris Selects the active iris setting. MyMemory Save Saves the MyMemory data. MyMemory Recall Recalls the MyMemory data.

Controls the magnify setting.

In some input signal sources, it might stop “Magnify” even though it does not reach to maximum setting value.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

Item Description


Aspect Selects the aspect setting. Over Scan Adjusts the over scan setting. V Position Adjusts the vertical position. H Position Adjusts the horizontal position. H Phase Adjusts the horizontal phase. H Size Adjusts the horizontal size. Auto Adjust Execute Performs the automatic adjustment.

Input

Progressive Selects the progressive setting. Video NR Selects the video noise reduction setting.

3D-YCS Selects the 3D-YCS setting.

Color Space Selects the color space. Component Selects the C-Video Format Selects the video format setting. S-Video Format Selects the s-video format setting.

HDMI Selects the HDMI setting. Frame Lock-RGB1 Turns the frame lock- Frame Lock-RGB2 Turns the frame lock- Frame Lock-HDMI Turns the frame lock- RGB in-1 Selects the RGB in-2 Selects the

Setup

Auto Keystone Execute

Keystone V Adjusts the vertical keystone distortion setting. Keystone H Adjusts the horizontal keystone distortion setting. Whisper Selects the whisper mode. Mirror Selects the mirror status.

Monitor Out-RGB1 Assigns the Monitor Out-RGB2 Assigns the Monitor Out-HDMI Assigns the

Monitor Out-MIU Assigns the Monitor Out-

Component

Monitor Out-S-Video

Monitor Out-Video

Monitor Out-Standby Assigns the

Performs the automatic keystone distortion setting.

Assigns the selected.

COMPONENT port setting.

RGB1 function on/off. RGB2 function on/off.

HDMI function on/off. RGB1 input signal type. RGB2 input signal type.

RGB OUT when the RGB1 input port is selected. RGB OUT when the RGB2 input port is selected. RGB OUT when the HDMI input port is selected. RGB OUT when the MIU input port is selected. RGB OUT when the COMPONENT input port is

RGB OUT when the S-VIDEO input port is

RGB OUT when the VIDEO input port is

RGB OUT in the standby mode.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

Item Description

Audio

Volume Adjusts the volume setting. Treble Adjust the Treble setting. Bass Adjusts the Bass setting. SRS WOW Selects the SRS WOW setting. Speaker Turns the built-in speaker on/off.

Audio-RGB1 Assigns the AUDIO- Audio-RGB2 Assigns the AUDIO- Audio-HDMI Assigns the AUDIO-

Audio-MIU Assigns the AUDIO- Audio-Component Assigns the AUDIO- Audio-S-Video Assigns the AUDIO- Audio-Video Assigns the AUDIO- Audio Out Standby Assigns the

HDMI Audio Selects the HDMI audio setting.

Screen

Language Selects the language for the OSD. Menu Position V Adjusts the vertical Menu position. Menu Position H Adjusts the horizontal Menu position. Blank Selects the Blank mode. Startup Selects the startup screen mode. MyScreen Lock Turns MyScreen lock function on/off. Message Turns the message function on/off. Template Selects the template setting.

AUDIO OUT in the standby mode.

RGB1 input port. RGB2 input port. HDMI input port. MIU input port. COMPONENT input port. S-VIDEO input port. VIDEO input port.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

Item Description

Option

Auto Search Turns the automatic signal search function on/off.

Auto Keystone

Auto on Turns the auto on function on/off.

Auto off

My Button-1

My Button-2

My Source Selects the My Source setting. Remote Receiv. Front Enable/Disable remote receiv. front. Remote Receiv. Rear Enable/Disable remote receiv. rear. Remote Receiv. Top Enable/Disable remote receiv. top. Remote Freq. Normal Enables/Disables the remote control signal frequency normal. Remote Freq. High Enables/Disables the remote control signal frequency high.

Closed Caption

Display Selects Closed Caption DISPLAY setting.

Mode Selects Closed Caption MODE setting. Channel Selects Closed Caption CHANNEL setting.

Turns the automatic keystone distortion correction function on/off.

Congures the timer to shut off the projector when no signal is detected.

Assigns the functions for the included remote control.

MY BUTTON1 button on the

MY BUTTON2 button on the

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

The Service item in the Projector Control menu is shown only when you logon with the

Administrator ID.

The items shown in the table below can be performed using the Projector Control menu. Click [Quit Presenter Mode].

Item Description

Service

Quit Presenter Mode Quit compulsorily from the Presenter mode.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

4.1.11 Remote Control

You can use your Web browser to control the

projector.

• Do not attempt to control the projector with the projector’s remote control and via your Web browser at the same time. It may cause some

operational errors in the projector.

The functions on the bundled remote control are assigned to the Web Remote

Control screen.

Item Description

POWER Assigned the same operation as

RGB Assigned the same operation as VIDEO Assigned the same operation as

BLANK Assigned the same operation as FREEZE Assigned the same operation as MUTE Assigned the same operation as MENU Assigned the same operation as UP Assigned the same operation as ▲ button.

DOWN Assigned the same operation as ▼ button.

LEFT Assigned the same operation as ◄ button.

RIGHT Assigned the same operation as ► button.

ENTER Assigned the same operation as RESET Assigned the same operation as

PAGE UP Assigned the same operation as PAGE DOWN Assigned the same operation as

STANDBY/ON button. RGB button. VIDEO button. BLANK button. FREEZE button. MUTE button. MENU button.

ENTER button. RESET button. PAGE UP button. PAGE DOWN button.

4. Management with Web browser software

4.1 Conguring and controlling the projector via a web browser (Continued)

The functions on PC-LESS PRESENTATION menu are assigned to the Web Remote Control screen.

Item Description

LIVE MODE Selecting this item sets the projector onto the “Live Mode”.

THUMBNAIL

SLIDE SHOW

SRS Labs 8953H User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
