SRM IndoorTrainer User Manual
Schoberer Rad Messtechnik GmbH
Rudolf Schulten Str. 6
D-52428 Jülich
Tel.: +49-2461-69123-0
Fax:+49-2461-69123-17
www.SRM.de
IndoorTrainer electronic User Manual
Manual Controls and Windows Operating System
Version 11/25/2014

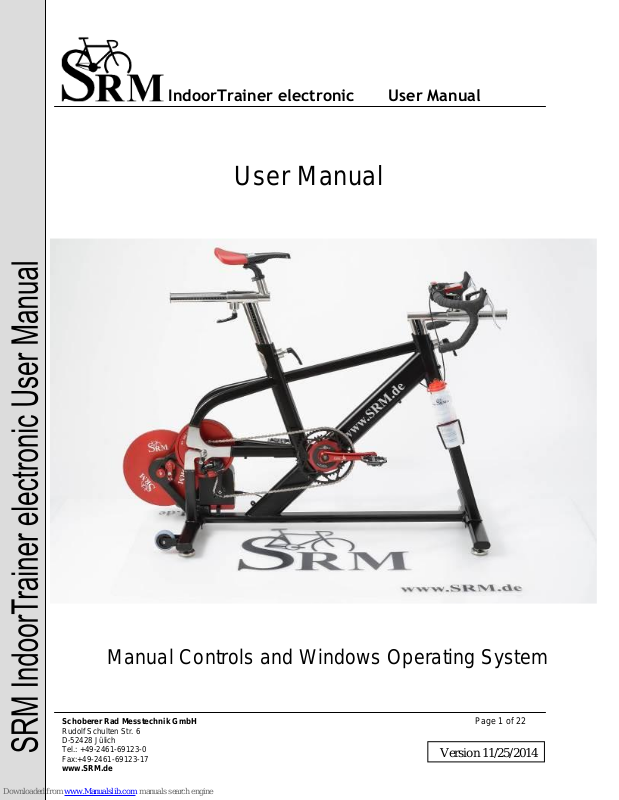

User Manual
Schoberer Rad Messtechnik GmbH
Rudolf Schulten Str. 6
D-52428 Jülich
Tel.: +49-2461-69123-0
Fax:+49-2461-69123-17
www.SRM.de
IndoorTrainer electronic User Manual
Adjusting the Seat Position ................................................................................................................................ 4
Using the Sliders to Adjust the Seat and Handlebar Position ................................................................................ 5
Adjusting the Handlebar......................................................................................................................................................... 5
The Electronic Brake .............................................................................................................................................. 7
Electronic Brake, Parts .............................................................................................................................................................. 7
Connecting the USB Cable to the Brake Box ................................................................................................................. 8
Options for Controlling the Electronic Brake ................................................................................................................. 9
Controlling the Brake via the Keypad on the Handlebars ........................................................................................ 9

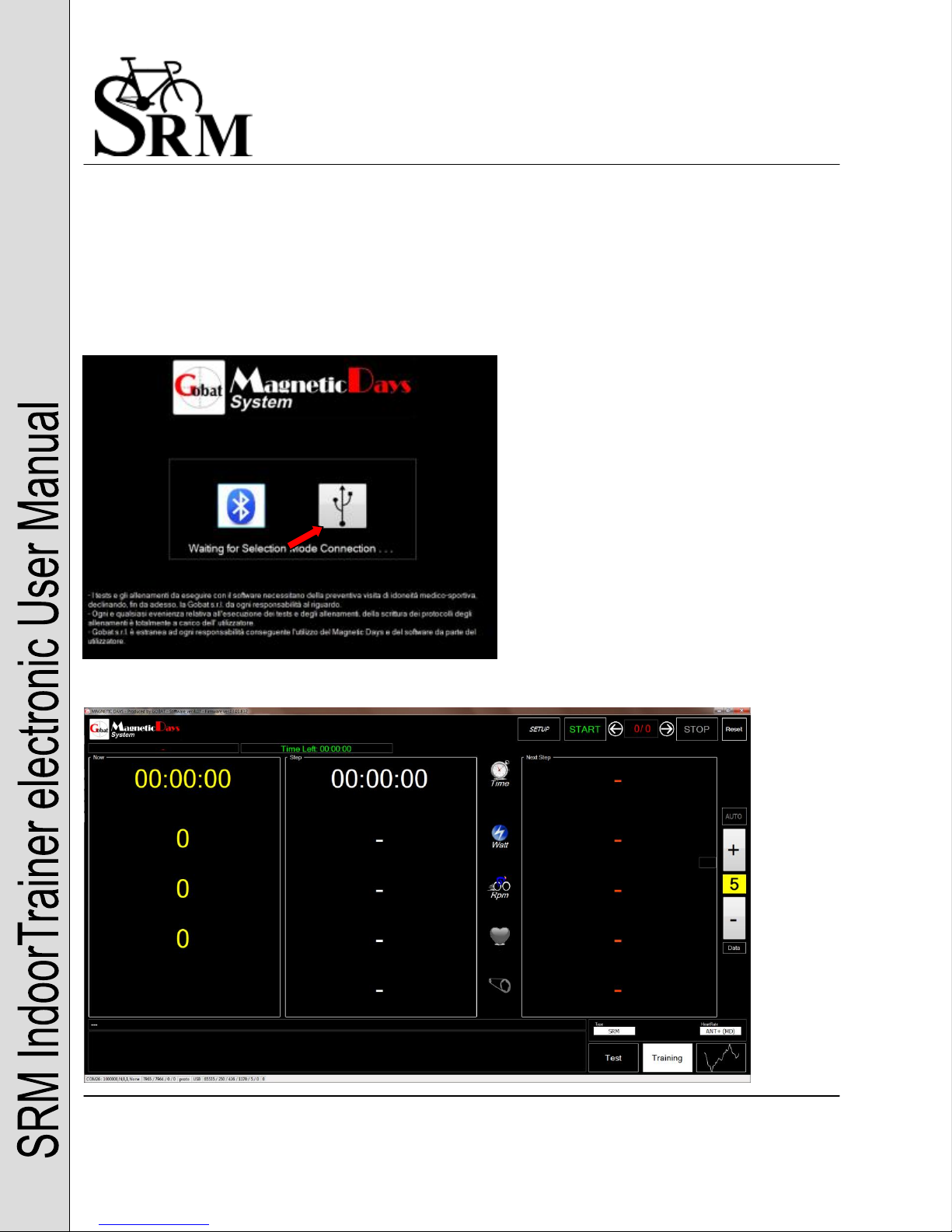

Workout Mode: Customized Control via Computer ................................................................................................ 10

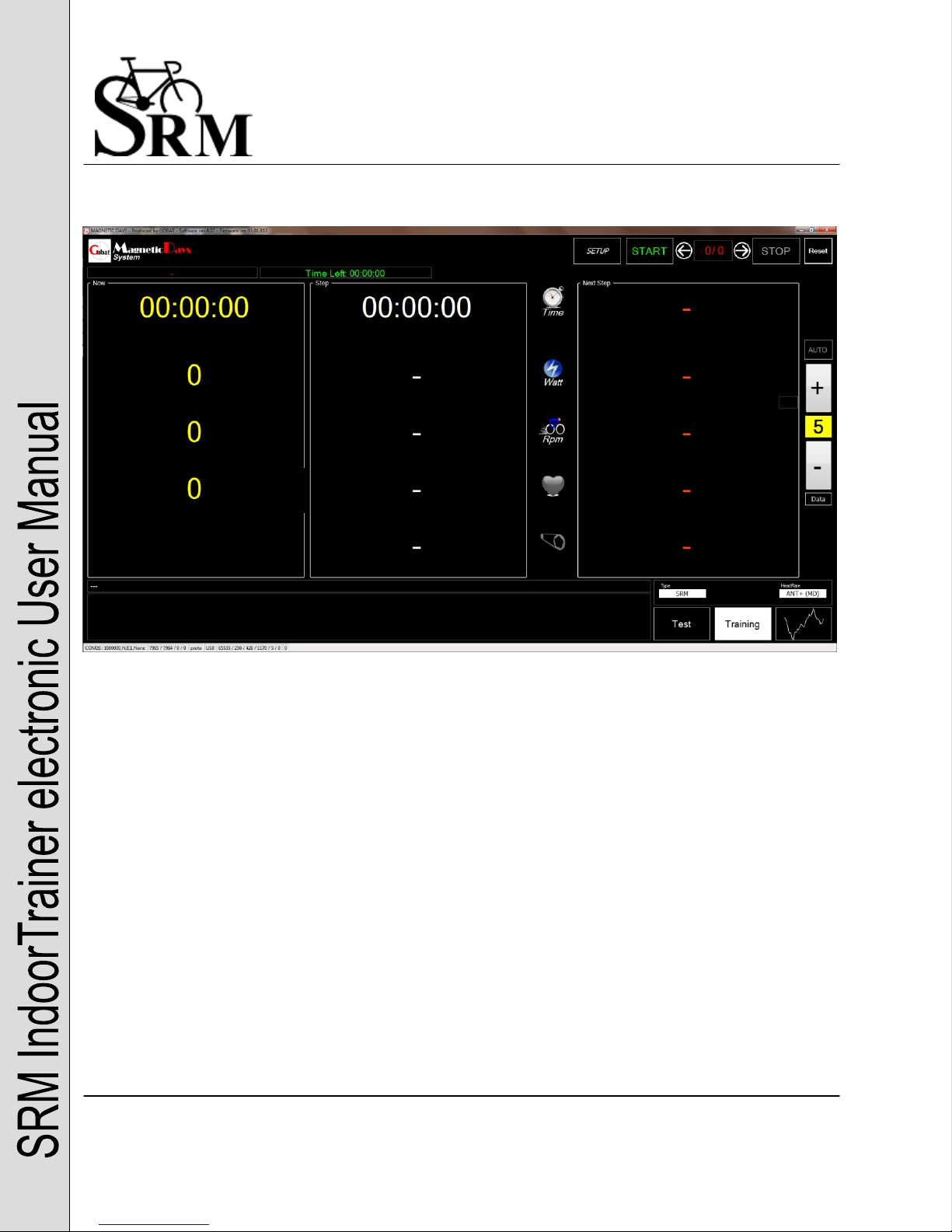

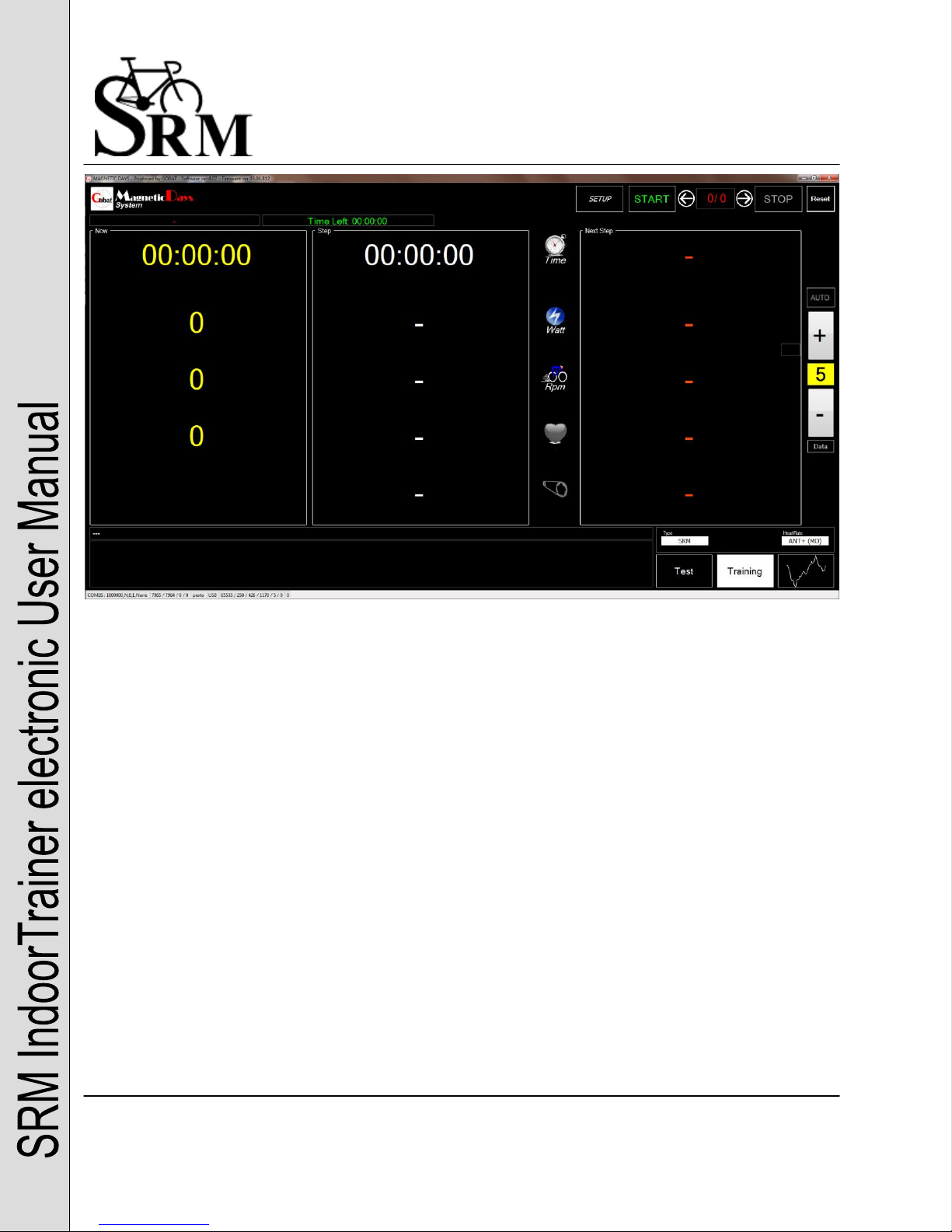

The Display ................................................................................................................................................................................ 14

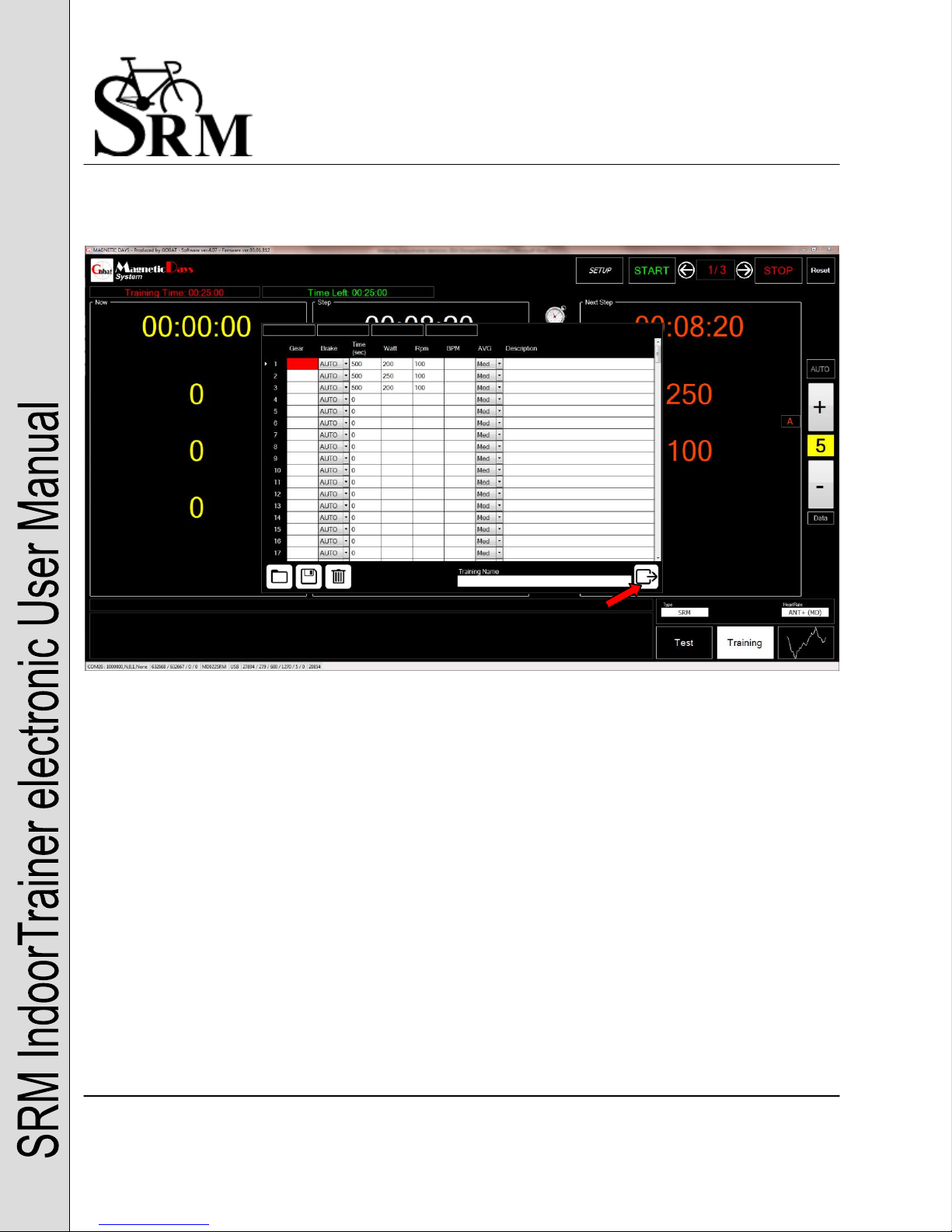

Creating a Workout ............................................................................................................................................................... 16
Starting a Workout ................................................................................................................................................................. 17
Electronic Brake Power ...................................................................................................................................... 19
Troubleshooting ................................................................................................................................................... 19
No Speed Reading ................................................................................................................................................................. 19
No Connection to the Computer ..................................................................................................................................... 19
Additional Information ......................................................................................................................................................... 20
Caring for your IndoorTrainer ........................................................................................................................ 21
Adjustment Range of your IndoorTrainer .................................................................................................. 21
Technical Data and Specifications ................................................................................................................ 22
Schoberer Rad Messtechnik GmbH
Rudolf Schulten Str. 6
D-52428 Jülich
Tel.: +49-2461-69123-0
Fax:+49-2461-69123-17
www.SRM.de
IndoorTrainer electronic User Manual
Before First Use
The flywheel (the wheel with the three engraved SRM logos) may become extremely hot during
use!!
The seatpost and the handlebar post are height-adjustable and not secured by springs. Hold on to
the post while adjusting the seat and bar height to avoid the posts hitting the frame.
The IndoorTrainer's flywheel sticks out behind its rear end. When lifting and moving the
IndoorTrainer, avoid floor contact with the flywheel. The flywheel is made of aluminum. Aluminum
is a soft metal, which is easily damaged.
The brake electronics are located in the brake box which is attached to the frame. The brake box
is not waterproof. When cleaning the IndoorTrainer, do not let water get inside the brake box.
Clean the box only with a damp cloth.
Do not connect the brake power cord to a computer. It is not designed for use with a USB port.
Use the charger that comes with your IndoorTrainer.
In order to control the IndoorTrainer via a computer, the appropriate software (by Gobat Software)
must be installed. The IndoorTrainer can not be controlled via the SRMWin software.
Schoberer Rad Messtechnik GmbH
Rudolf Schulten Str. 6
D-52428 Jülich
Tel.: +49-2461-69123-0
Fax:+49-2461-69123-17
www.SRM.de
IndoorTrainer electronic User Manual
Adjusting the Seat Position
The SRM IndoorTrainer is designed for
riders between 165 cm (5'5'') and 200 cm
(6'7'') of height. The seat height and
position are fully adjustable.
The saddle and the handlebars can be
adjusted continuously, as shown by the
red arrows.
The IndoorTrainer has four adjustable
feet to level and stabilize the
IndoorTrainer on uneven floors.
Two wheels make it easy to move the
IndoorTrainer without lifting it.
Schoberer Rad Messtechnik GmbH
Rudolf Schulten Str. 6
D-52428 Jülich
Tel.: +49-2461-69123-0
Fax:+49-2461-69123-17
www.SRM.de
IndoorTrainer electronic User Manual
Using the Sliders to Adjust
the Seat and Handlebar
Position
Adjust the seat and handlebar position by
loosening the appropriate lever, moving the
slider, and tightening the lever.
Once the position is adjusted, the levers can
be moved out of the way by pulling and
letting them lock into place in the desired
Adjusting the Handlebar
The distance between the seat and the handlebar can
be significantly increased by rotating the handlebar
slider by 180°. Remove both the end cap and the
handlebar. Then rotate the handlebar slider by 180°,
and re-attach the handlebar and the end cap.
position.
Schoberer Rad Messtechnik GmbH
Rudolf Schulten Str. 6
D-52428 Jülich
Tel.: +49-2461-69123-0
Fax:+49-2461-69123-17
www.SRM.de
IndoorTrainer electronic User Manual
Schoberer Rad Messtechnik GmbH
Rudolf Schulten Str. 6
D-52428 Jülich
Tel.: +49-2461-69123-0
Fax:+49-2461-69123-17
www.SRM.de
IndoorTrainer electronic User Manual
Keys for manual control of the brake
Flywheel
Box for brake electronics, USB ports
The Electronic Brake
The SRM IndoorTrainer has an electronic Gobat MagneticDays magnetic brake. The brake can be controlled
electronically via your computer or manually via two keys on the handlebar.
Electronic Brake, Parts
