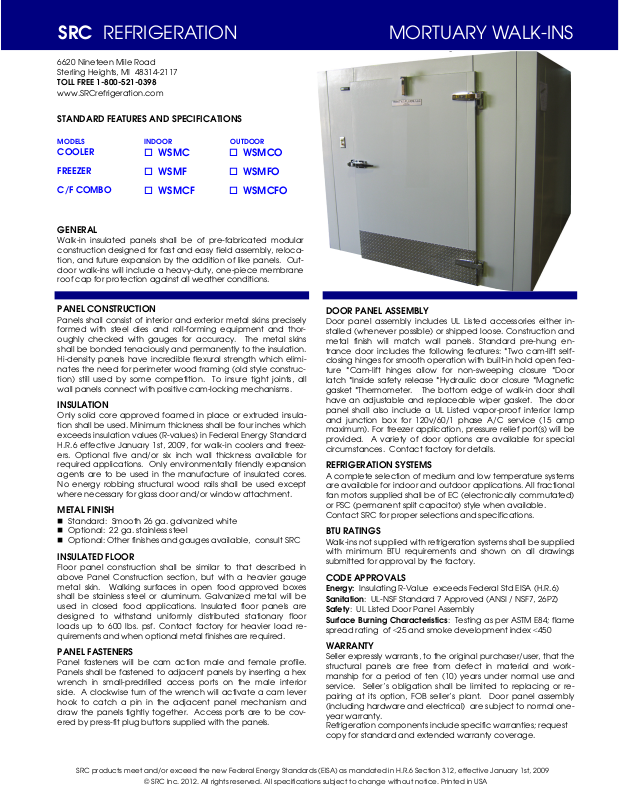

SRC REFRIGERATION WSMC User Manual

SRC REFRIGERATION MORTUARY WALK-INS

6620 Nineteen Mile Road
Sterling Heights, MI 48314-2117

TOLL FREE 1-800-521-0398

www.SRCrefrigeration.com

STANDARD FEATURES AND SPECIFICATIONS

INDOOR OUTDOOR MODELS

COOLER

 WSMC  WSMCO

FREEZER

C/F COMBO

 WSMF  WSMFO

 WSMCF  WSMCFO

GENERAL

Walk-in insulated panels shall be of pre-fabricated modular
construction designed for fast and easy field assembly, reloca­tion, and future expansion by the addition of like panels. Out­door walk-ins will include a heavy-duty, one-piece membrane
roof cap for protection against all weather conditions.

PANEL CONSTRUCTION

Panels shall consist of interior and exterior metal skins precisely
formed with steel dies and roll-forming equipment and thor­oughly checked with gauges for accuracy. The metal skins
shall be bonded tenaciously and permanently to the insulation.
Hi-density panels have incredible flexural strength which elimi­nates the need for perimeter wood framing (old style construc­tion) still used by some competition. To insure tight joints, all
wall panels connect with positive cam-locking mechanisms.

INSULATION

Only solid core approved foamed in place or extruded insula­tion shall be used. Minimum thickness shall be four inches which
exceeds insulation values (R-values) in Federal Energy Standard
H.R.6 effective January 1st, 2009, for walk-in coolers and freez­ers. Optional five and/or six inch wall thickness available for
required applications. Only environmentally friendly expansion
agents are to be used in the manufacture of insulated cores.
No energy robbing structural wood rails shall be used except
where necessary for glass door and/or window attachment.

METAL FINISH

 Standard: Smooth 26 ga. galvanized white
 Optional: 22 ga. stainless steel
 Optional: Other finishes and gauges available, consult SRC

INSULATED FLOOR

Floor panel construction shall be similar to that described in
above Panel Construction section, but with a heavier gauge
metal skin. Walking surfaces in open food approved boxes
shall be stainless steel or aluminum. Galvanized metal will be
used in closed food applications. Insulated floor panels are
designed to withstand uniformly distributed stationary floor
loads up to 600 lbs. psf. Contact factory for heavier load re­quirements and when optional metal finishes are required.

PANEL FASTENERS

Panel fasteners will be cam action male and female profile.
Panels shall be fastened to adjacent panels by inserting a hex
wrench in small-predrilled access ports on the male interior
side. A clockwise turn of the wrench will activate a cam lever
hook to catch a pin in the adjacent panel mechanism and
draw the panels tightly together. Access ports are to be cov­ered by press-fit plug buttons supplied with the panels.

DOOR PANEL ASSEMBLY

Door panel assembly includes UL Listed accessories either in­stalled (whenever possible) or shipped loose. Construction and
metal finish will match wall panels. Standard pre-hung en­trance door includes the following features: *Two cam-lift self­closing hinges for smooth operation with built-in hold open fea­ture *Cam-lift hinges allow for non-sweeping closure *Door
latch *Inside safety release *Hydraulic door closure *Magnetic
gasket *Thermometer. The bottom edge of walk-in door shall
have an adjustable and replaceable wiper gasket. The door
panel shall also include a UL Listed vapor-proof interior lamp
and junction box for 120v/60/1 phase A/C service (15 amp
maximum). For freezer application, pressure relief port(s) will be
provided. A variety of door options are available for special
circumstances. Contact factory for details.

REFRIGERATION SYSTEMS

A complete selection of medium and low temperature systems
are available for indoor and outdoor applications. All fractional
fan motors supplied shall be of EC (electronically commutated)
or PSC (permanent split capacitor) style when available.
Contact SRC for proper selections and specifications.

BTU RATINGS

Walk-ins not supplied with refrigeration systems shall be supplied
with minimum BTU requirements and shown on all drawings
submitted for approval by the factory.

CODE APPROVALS

Energy: Insulating R-Value exceeds Federal Std EISA (H.R.6)
Sanitation: UL-NSF Standard 7 Approved (ANSI / NSF7, 26PZ)
Safety: UL Listed Door Panel Assembly
Surface Burning Characteristics: Testing as per ASTM E84; flame

spread rating of <25 and smoke development index <450

WARRANTY

Seller expressly warrants, to the original purchaser/user, that the
structural panels are free from defect in material and work­manship for a period of ten (10) years under normal use and
service. Seller’s obligation shall be limited to replacing or re­pairing at its option, FOB seller’s plant. Door panel assembly
(including hardware and electrical) are subject to normal one­year warranty.
Refrigeration components include specific warranties; request
copy for standard and extended warranty coverage.

SRC products meet and/or exceed the new Federal Energy Standards (EISA) as mandated in H.R.6 Section 312, effective January 1st, 2009

© SRC Inc. 2012. All rights reserved. All specifications subject to change without notice. Printed in USA
