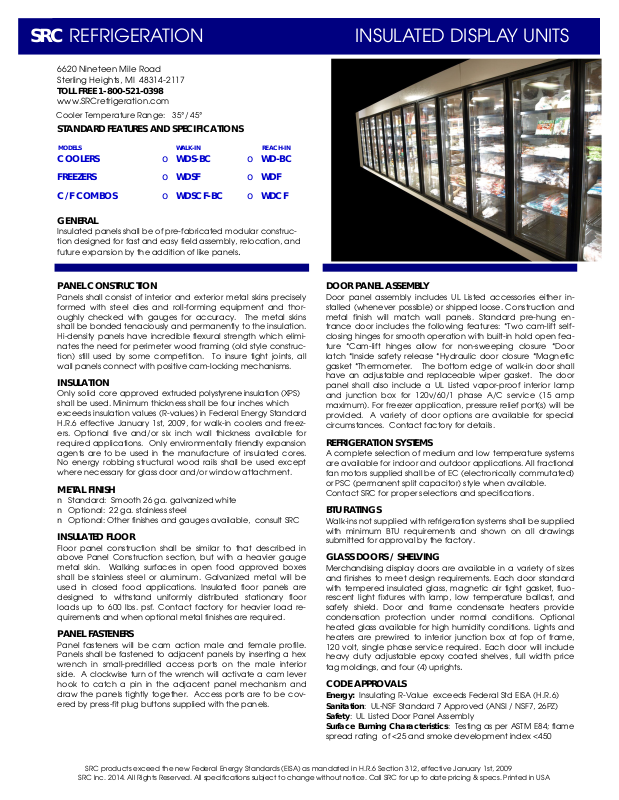

E
SRC R
RIGERATION INSULATED DISPLAY UNITS
F
6620 Nineteen Mile Road
Sterling Heights, MI 48314-2117
TOLL FREE 1-800-521-0398
www.SRCrefrigeration.com
Cooler Temperature Range: 35°/
STANDARD FEATURES AND SPECIFICATIONS
45°
MODELS
WALK-IN REACH-IN
COOLERS o WDS-BC o WD-BC
FREEZERS o WDSF o WDF
C/F COMBOS o WDSCF-BC o WDCF
GENERAL
Insulated panels shall be of pre-fabricated modular construction designed for fast and easy field assembly, relocation, and
future expansion by the addition of like panels.
PANEL CONSTRUCTION
Panels shall consist of interior and exterior metal skins precisely
formed with steel dies and roll-forming equipment and thoroughly checked with gauges for accuracy. The metal skins
shall be bonded tenaciously and permanently to the insulation.
Hi-density panels have incredible flexural strength which eliminates the need for perimeter wood framing (old style construction) still used by some competition. To insure tight joints, all
wall panels connect with positive cam-locking mechanisms.
INSULATION
Only solid core approved extruded polystyrene insulation (XPS)
shall be used. Minimum thickness shall be four inches which
exceeds insulation values (R-values) in Federal Energy Standard
H.R.6 effective January 1st, 2009, for walk-in coolers and freezers. Optional five and/or six inch wall thickness available for
required applications. Only environmentally friendly expansion
agents are to be used in the manufacture of insulated cores.
No energy robbing structural wood rails shall be used except
where necessary for glass door and/or window attachment.
METAL FINISH
n Standard: Smooth 26 ga. galvanized white
n Optional: 22 ga. stainless steel
n Optional: Other finishes and gauges available, consult SRC
INSULATED FLOOR
Floor panel construction shall be similar to that described in
above Panel Construction section, but with a heavier gauge
metal skin. Walking surfaces in open food approved boxes
shall be stainless steel or aluminum. Galvanized metal will be
used in closed food applications. Insulated floor panels are
designed to withstand uniformly distributed stationary floor
loads up to 600 lbs. psf. Contact factory for heavier load requirements and when optional metal finishes are required.
PANEL FASTENERS
Panel fasteners will be cam action male and female profile.
Panels shall be fastened to adjacent panels by inserting a hex
wrench in small-predrilled access ports on the male interior
side. A clockwise turn of the wrench will activate a cam lever
hook to catch a pin in the adjacent panel mechanism and
draw the panels tightly together. Access ports are to be covered by press-fit plug buttons supplied with the panels.
DOOR PANEL ASSEMBLY
Door panel assembly includes UL Listed accessories either installed (whenever possible) or shipped loose. Construction and
metal finish will match wall panels. Standard pre-hung entrance door includes the following features: *Two cam-lift selfclosing hinges for smooth operation with built-in hold open feature *Cam-lift hinges allow for non-sweeping closure *Door
latch *Inside safety release *Hydraulic door closure *Magnetic
gasket *Thermometer. The bottom edge of walk-in door shall
have an adjustable and replaceable wiper gasket. The door
panel shall also include a UL Listed vapor-proof interior lamp
and junction box for 120v/60/1 phase A/C service (15 amp
maximum). For freezer application, pressure relief port(s) will be
provided. A variety of door options are available for special
circumstances. Contact factory for details.
REFRIGERATION SYSTEMS
A complete selection of medium and low temperature systems
are available for indoor and outdoor applications. All fractional
fan motors supplied shall be of EC (electronically commutated)
or PSC (permanent split capacitor) style when available.
Contact SRC for proper selections and specifications.
BTU RATINGS
Walk-ins not supplied with refrigeration systems shall be supplied
with minimum BTU requirements and shown on all drawings
submitted for approval by the factory.
GLASS DOORS / SHELVING
Merchandising display doors are available in a variety of sizes
and finishes to meet design requirements. Each door standard
with tempered insulated glass, magnetic air tight gasket, fluorescent light fixtures with lamp, Iow temperature ballast, and
safety shield. Door and frame condensate heaters provide
condensation protection under normal conditions. Optional
heated glass available for high humidity conditions. Lights and
heaters are prewired to interior junction box at fop of frame,
120 volt, single phase service required. Each door will include
heavy duty adjustable epoxy coated shelves, full width price
tag moldings, and four (4) uprights.
CODE APPROVALS
Energy: Insulating R-Value exceeds Federal Std EISA (H.R.6)
Sanitation: UL-NSF Standard 7 Approved (ANSI / NSF7, 26PZ)
Safety: UL Listed Door Panel Assembly
Surface Burning Characteristics: Testing as per ASTM E84; flame
spread rating of <25 and smoke development index <450
SRC products exceed the new Federal Energy Standards (EISA) as mandated in H.R.6 Section 312, effective January 1st, 2009
SRC Inc. 2014. All Rights Reserved. All specifications subject to change without notice. Call SRC for up to date pricing & specs. Printed in USA
