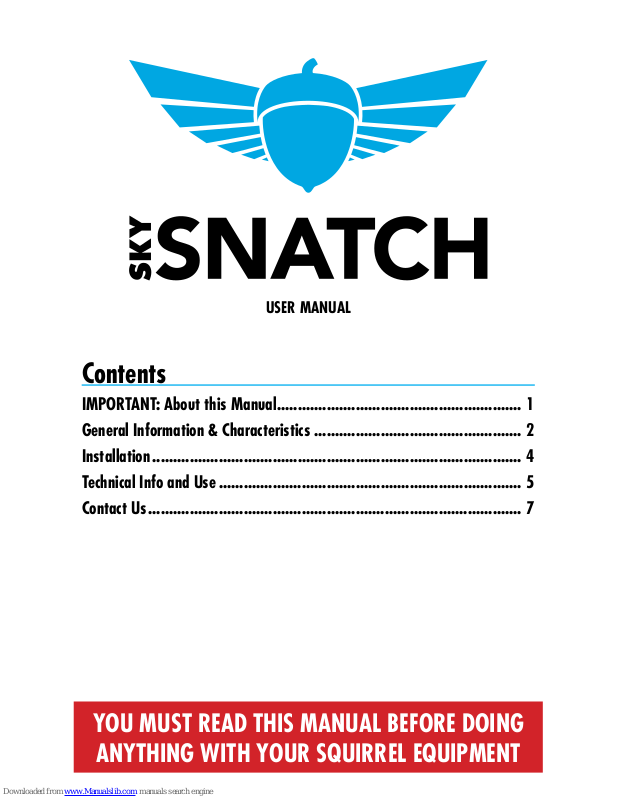

USER MANUAL
YOU MUST READ THIS MANUAL BEFORE DOING
ANYTHING WITH YOUR SQUIRREL EQUIPMENT
Contents
IMPORTANT: About this Manual ........................................................... 1
General Information & Characteristics .................................................. 2
Installation ......................................................................................... 4
Technical Info and Use ......................................................................... 5
Contact Us .......................................................................................... 7
1
IMPORTANT: About this Manual
This manual does not provide instructional information, and is not a substitute for professional
training, instruction, or experience. Before using your equipment, it is critical that you receive
training and instruction for its use by a certified / rated instructor who is familiar with the proper
use of this system. This manual is only a general guide and does not contain any instructional
information.
This manual may be updated, revised, or changed by Squirrel LLC without notice, at any time.
Contact Squirrel LLC to be sure that you have the most up to date version of this manual. It is
imperative that you read this manual in its entirety, and understand it fully. If you do not understand
any part of this manual, or feel that any part is unclear in any way, please notify Squirrel LLC in
writing and do not use any equipment that this manual refers to until you are certain that you fully
understand the most up-to-date information pertaining to your equipment.
Your Squirrel Equipment comes with NO WARRANTY.
Parachuting, skydiving, and wingsuit flying are extremely dangerous activities. This product is sold
with all faults, as is, and with no guarantee or warranty of fitness for any purpose. Squirrel LLC,
its members, owners, associates, and dealers, disclaim any and all liability in tort for damages
of any kind, caused by negligence on the part of Squirrel LLC or otherwise. By using this system
or allowing it to be used by others, the user waives any liability of the manufacturer for personal
injuries or other damages resulting from its use.
WARNING
ALL FORMS OF SKYDIVING, PARACHUTING, AND WINGSUIT
FLYING ARE INHERENTLY HAZARDOUS ACTIVITIES AND REQUIRE
THE DELIBERATE AND CONSCIOUS CONTROL OF YOUR
PHYSICAL BODY THROUGH THE PROPER USE OF THIS PRODUCT
IN RELATION TO EVER-CHANGING VARIABLES AND DANGERS.
TRAINING, PROFICIENCY, SKILL, GOOD JUDGMENT, AND BEING
CONTINUALLY ALERT TO CHANGING CONDITIONS, INCLUDING
WEATHER, VISIBILITY, SURFACE CONDITIONS, ATMOSPHERIC
CONDITIONS INCLUDING DENSITY ALTITUDE, AND OBSTACLES,
ARE REQUIRED TO LOWER THE RISK OF SERIOUS INJURY OR
DEATH. DO NOT USE THIS PRODUCT WITHOUT INSPECTING IT
AND ALL OF ITS COMPONENTS BEFORE EACH AND EVERY USE.
!!!Even when properly used, this product may malfunction or fail to operate as expected. You
risk death or serious injury each time that you use this parachute system!!!
The SkySNATCH is a kill-line pilot chute system designed for experienced
parachutists ONLY.
2
General Information & Characteristics
ABOUT THE SkySNATCH
The SkySNATCH is an evolution in pilot chute design. The three dimensional partial toroidal
shape is the most technically advanced design being used in skydiving today. Simply put, the
SkySNATCH is the most efficient, stable, and symmetrical pilot chute available.
The SkySNATCH is a kill-line pilot chute system for skydiving. It comes standard with an 8’ bridle
(from pin to PC attach-point, 11’ in total), attachment mallions, and a carbon fiber handle. All sizes
of the SkySNATCH are constructed from ZP.
HISTORY
The Snatch project began after a conversation between Squirrel Co-designer, Will Kitto, and CRW
expert, Jim Rasmussen. Although the toroidal design concept has been used extensively in parachutes
for over 40 years (it is also known as an annular or pulled-down-apex (PDA) design), it has never
before been put into production for skydive pilot chutes due to the complexity of the design. The
Snatch has rapidly become the new standard in BASE jumping pilot chutes, where PC stability is
critical. The new SkySNATCH is designed for skydivers who seek the highest quality PC available.
THE DESIGN
The SkySNATCH’s three dimensional partial toroidal shape is joined together with two mesh
cones. The torus shape, like a donut cut in half, has a very high drag coefficient. “Traditional”
skydiving pilot chutes are a very loose approximation of this same shape. Traditional PCs are two
circles sewn together around the edges, typically one of ZP and one of mesh, with a piece of line
or webbing connecting the center of each circle together at a specific distance. When pulled from
the center of the mesh circle and dragged through a fluid, it inflates into a rough approximation
of a pulled-down-apex shape, but with a large amount of distortion and error, with a wrinkled
and asymmetric circumference. Imagine crumpling up a single piece of paper until it forms the 3D
shape you want to design - it won’t look good, nor be an accurate representation of a 3D surface.
Yet that is the current basis of traditional PCs: an approximate and inefficient 2D design meant to
perform a task that requires a 3D shape.
The SkySNATCH’s design achieves a specific 3D shape when inflated by using multiple panels
(gores), each with a mathematically calculated 3D shape. The design is similar to the way that
round parachutes are designed from multiple gores to form a hemispherical shape when inflated.
THE MATH
A torus is made by rotating an ellipse around a center axis. For this design, we used an ellipse
with a ratio of 7:10 (height : width) with an axis offset from the ellipse by 20% of its width. Mesh
cones meet with the outside and inside edges of the partial torus at an exact tangent to its curve,
ensuring a smooth transition from mesh to ZP, which maintains a smooth and error-free perimeter of
the pilot chute. The difference between a SkySNATCH and a traditional PC design is immediately
apparent when handled or inflated by any experienced jumper.
HOW IT WORKS BETTER
The inherent imperfection of the standard double circle pilot chute design means that there is a
significant amount of randomness in its inflated shape. There is a constant tug-of-war between air
pressure forcing it into a 3D shape, and the fabric trying to remain a 2D shape. Across its surfaces
there are sections of high and low stress, where there is too much material in one section and not
enough in another, causing “stretch and sag”. This can contribute to the pulsing and surging we
see in traditional pilot chutes in freefall. A toroidal design minimizes the randomness and helps
to ensure that the inflation is more consistent and predictable. Once inflated, the pilot chute is
not searching for alternative shapes: it inflates to its intended shape and stays there. There is no
pulsing, and instead only a clean inflated shape.
3
WHAT THIS MEANS TO YOU, THE JUMPER
Per square millimeter, the SkySNATCH pulls with more stability than a traditional PC. Wind tunnel
and field testing have shown superior stability in all applications, from CRW to Wingsuit use.
WHAT SIZE SHOULD I CHOOSE?
The SkySNATCH is not necessarily more or less powerful than other PCs of similar size. The main
difference is stability. For example, if you find that your 30” PC is functioning well for wingsuit use
currently, then a 30” SkySNATCH will work similarly depending on the design factors specific to
your current PC. If you are using an older 0-3fcm (F-111) PC for skydiving currently and are happy
with the extraction force it is providing, then you may need to choose a smaller size of SkySNATCH.
SkySNATCH BRIDLE LENGTH
The SkySNATCH bridle length is 8’ from pin to PC (11’ in total, but we don’t measure the start of
our pony tail at our foreheads). The optimum bridle length for skydiving and BASE jumping has
been debated many times. The SkySNATCH bridle length is chosen based on the burble size of
an average wingsuit pilot flying at a responsible and acceptable speed and angle of attack for
deployment. Extending the length beyond 8’, in our opinion, only provides a crutch for pilots in
irresponsibly slow or inefficient deployment configurations, and also increases the risk of bridle/
PC entanglement. More bridle does not increase the inherent safety of the system and in fact
decreases it (in our opinion, based on extensive field testing in the BASE environment).
WEIGHT & BALANCE, AND MATERIALS
We believe pilot chute weight to be a critical safety factor. For over a decade now, the BASE
community has known that hacky-sack-handles are bad, and contribute to PC/bridle entanglements
because of their weight. Yet there are still countless PCs in use today which feature heavy and
bulky PVC handles and overbuilt/clumsy construction. Evidence suggests that lighter is better, and
for that reason we have created the lightest design that we could without sacrificing durability. A
lighter PC is less likely to entangle with the bridle: it tumbles less, and is carried downstream at
rates more similar to the bridle. A heavier PC can be carried downstream at a slower rate than the
bridle, which can cause the heavy PC to then tumble and mix with the bridle in the jumper’s burble.
HEXAGONAL CARBON HANDLE
The hexagonal carbon-fiber handle design is very light. It provides a distinct easy-to-feel shape,
with minimum weight. The carbon hex is standard on all SkySNATCHES. We do not offer other
handle options.
QUALITY AND PRECISION
Each SkySNATCH is guaranteed to be symmetric in construction. PC symmetry is critical - while
there are many factors that can cause a pilot chute to exhibit unstable behavior, ensuring that your
PC is built symmetrically is important to ensuring stable parachute extractions.
4
Installation
D-BAG
Feed the end of the bridle through the grommet* on your d-bag until the block is flush against
the grommet and the two loops of webbing are sticking through to the inside. Secure these two
loops with the steel mallion that is provided. *NOTE: The SkySNATCH is designed to work in
conjunction with #4 or #5 size grommets ONLY.
Install the mallion to the inside of the D-bag as shown, around the bridle and through both loops.
ATTACHING BRIDLE TO CANOPY
Attach the end of the bridle to the canopy attachment point using the steel mallion provided. Make
sure the steel mallion feeds through both the webbing and the spectra loop at the end of the bridle,
and through ALL attachment loop webbing on the parachute.
Steel mallions must be set to finger-tight, plus a quarter turn (using a wrench). It is critical
that you do not under-tighten, or over-tighten, your mallions. All attachment points should be
inspected before every jump.
Bridle to canopy attachment.
Verify that the black mark is visible through the window, to indicate proper kill line extension.
5
Technical Info and Use
MESH BIAS
The hexagonal mesh used for the SkySNATCH elongates consistently in multiple directions.
SIX LOAD TAPES
The SkySNATCH is constructed with six load tapes to ensure a uniform perimeter, consistent
symmetry, and high longevity.
SPECTRA KILL LINE WEAR AND MAINTENANCE
Spectra line can shrink over time, or when heated. Frequently inspect your kill line (or have your
rigger check for you) to ensure that it is not out of trim. To extend in case of shrinkage, un-pick the
finger trap section at the PC end, extend it, and re-trap / stitch. Alternatively, replace the whole kill
line by doing the above and also picking out the stitching at the canopy attachment end. Either
feed a temporary line in behind the spectra as you pull it out, or use a long wire to feed in the
new line.
The spectra kill line slides through the bridle webbing on every jump, which creates friction which
in turn creates heat. The kill line will slowly shorten over time and may need to be lengthened or
replaced. Two symptoms to check for when examining kill line length are:
1. Can you fully cock the pilot chute? You should be able to extend the kill line to the same
length as the pieces of centerline webbing inside the pilot chute. If you cannot, the pilot chute
will not function properly
2. Does the kill line attachment point get swallowed by the bridle when it is collapsed? This may not
affect the functionality of the pilot chute when it is inflated, but it may start to damage the bridle.
Over time the spectra line may start to cause friction wear to the bridle webbing. It is a good idea
to inspect the bridle for this type of damage and replace when necessary.
COCK YOUR PILOT CHUTE BEFORE USE
If you are smart enough to have read the manual thus far, then we trust you know this already. We
recommend not forgetting to cock your PC, ever. It will not work unless you cock it.
6
v.201807 - Check the SkySnatch product page at www.squirrel.ws for the latest PDF version of this manual.
7
If you have any questions about any product that we
make, please do not hesitate to contact us.
www.squirrel.ws
fly@squirrel.ws
855-FLY-SQRL
Contact Us
THANK YOU FOR FLYING SQUIRREL!
