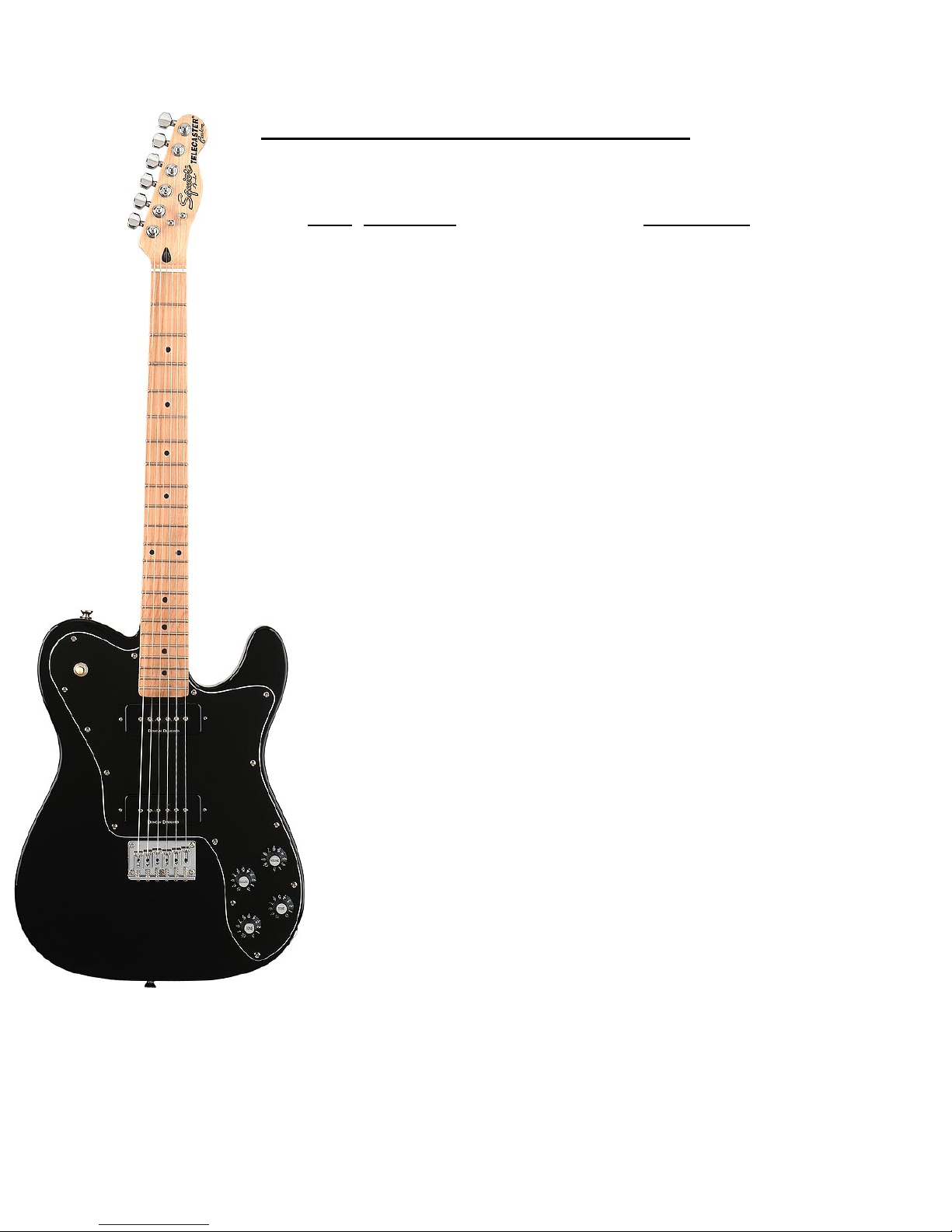

Squier Vintage Modified Tele Custom II
Maple- m/n 0327502xxx
Loc # Description Part Number
1 Standard Tuners (set of 6) 006-2726-000
2 Bone Nut (blank) (2) 099-4920-000
3 Vintage String Guides (pack of 2) 099-4912-000
4 Strap Buttons (2) 099-4915-000
5 Pickguard 006-2736-000
5a Pickguard Screws (24) 099-4923-000
6 Duncan Design P90 Neck Pickup 006-2737-000
7 Duncan Design P90 Bridge Pickup 006-2738-000
8 3 Way Toggle Switch 006-2732-000
9 500K Solid Shaft Pot (Volume) 006-2730-000
9a Volume Knob (ea) 006-2798-000
10 500K Solid Shaft Pot (Tone) 006-2731-000
10a Tone Knob (each) 006-2733-000
11 Output Jack 007-2892-000
11a Jack Plate 006-2734-000
12 Bridge Assembly 006-2727-000
Last Revision Date: 9/19/2008
Page 1 of 2
Wiring Diagram
Last Revision Date: 9/19/2008
Page 2 of 2
