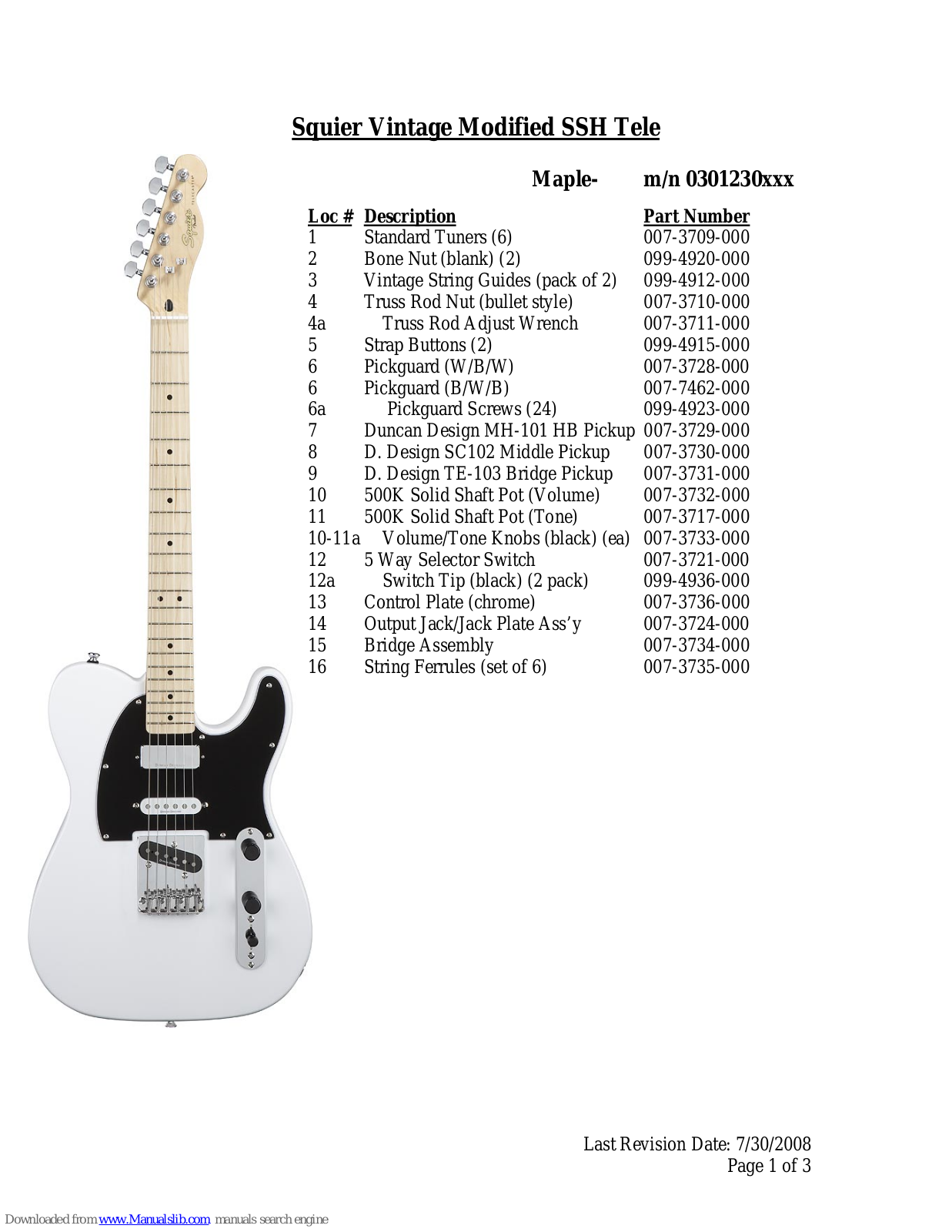

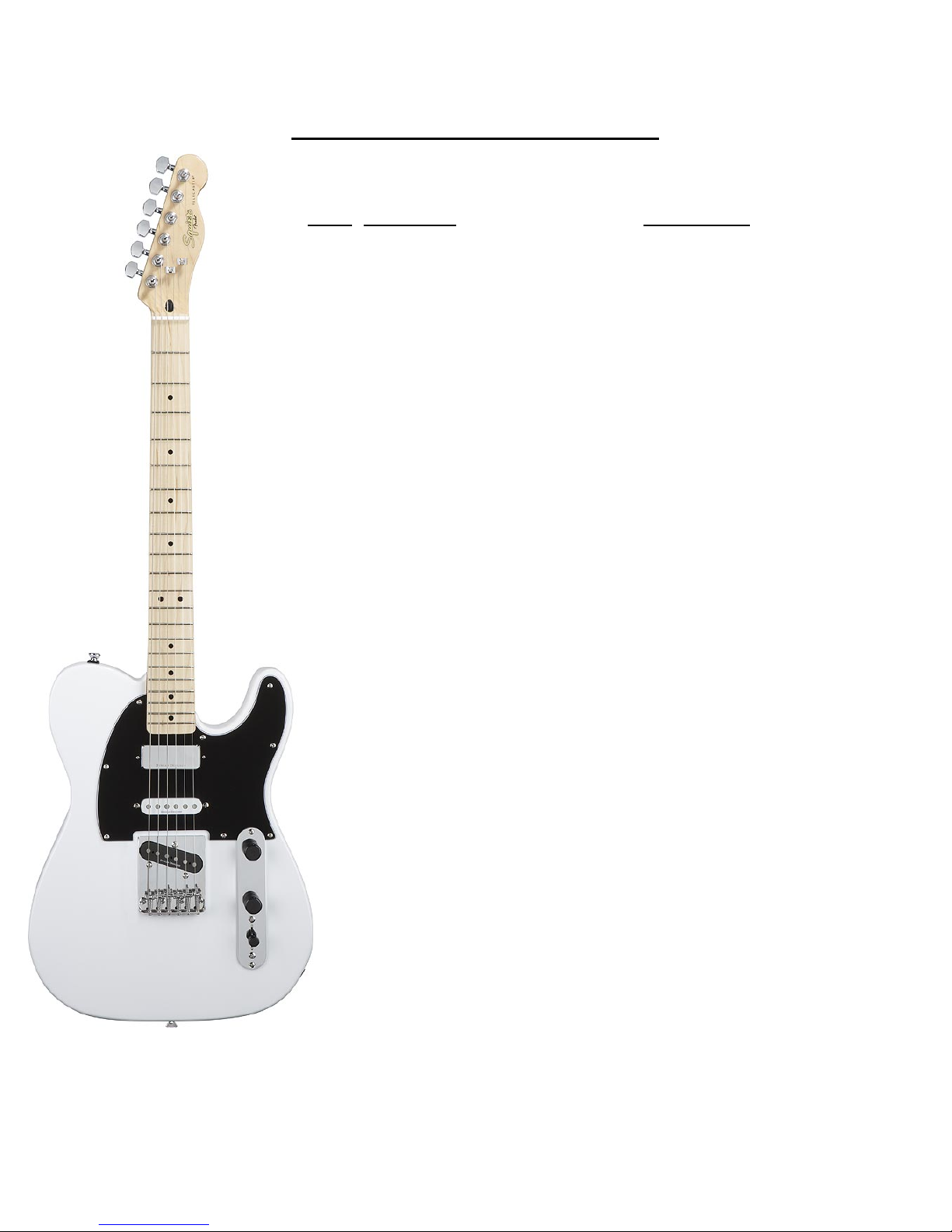

Squier Vintage Modified SSH Tele
Maple- m/n 0301230xxx
Loc # Description Part Number
1 Standard Tuners (6) 007-3709-000
2 Bone Nut (blank) (2) 099-4920-000
3 Vintage String Guides (pack of 2) 099-4912-000
4 Truss Rod Nut (bullet style) 007-3710-000
4a Truss Rod Adjust Wrench 007-3711-000
5 Strap Buttons (2) 099-4915-000
6 Pickguard (W/B/W) 007-3728-000
6 Pickguard (B/W/B) 007-7462-000
6a Pickguard Screws (24) 099-4923-000
7 Duncan Design MH-101 HB Pickup 007-3729-000
8 D. Design SC102 Middle Pickup 007-3730-000
9 D. Design TE-103 Bridge Pickup 007-3731-000
10 500K Solid Shaft Pot (Volume) 007-3732-000
11 500K Solid Shaft Pot (Tone) 007-3717-000
10-11a Volume/Tone Knobs (black) (ea) 007-3733-000
12 5 Way Selector Switch 007-3721-000
12a Switch Tip (black) (2 pack) 099-4936-000
13 Control Plate (chrome) 007-3736-000
14 Output Jack/Jack Plate Ass’y 007-3724-000
15 Bridge Assembly 007-3734-000
16 String Ferrules (set of 6) 007-3735-000
Last Revision Date: 7/30/2008
Page 1 of 3

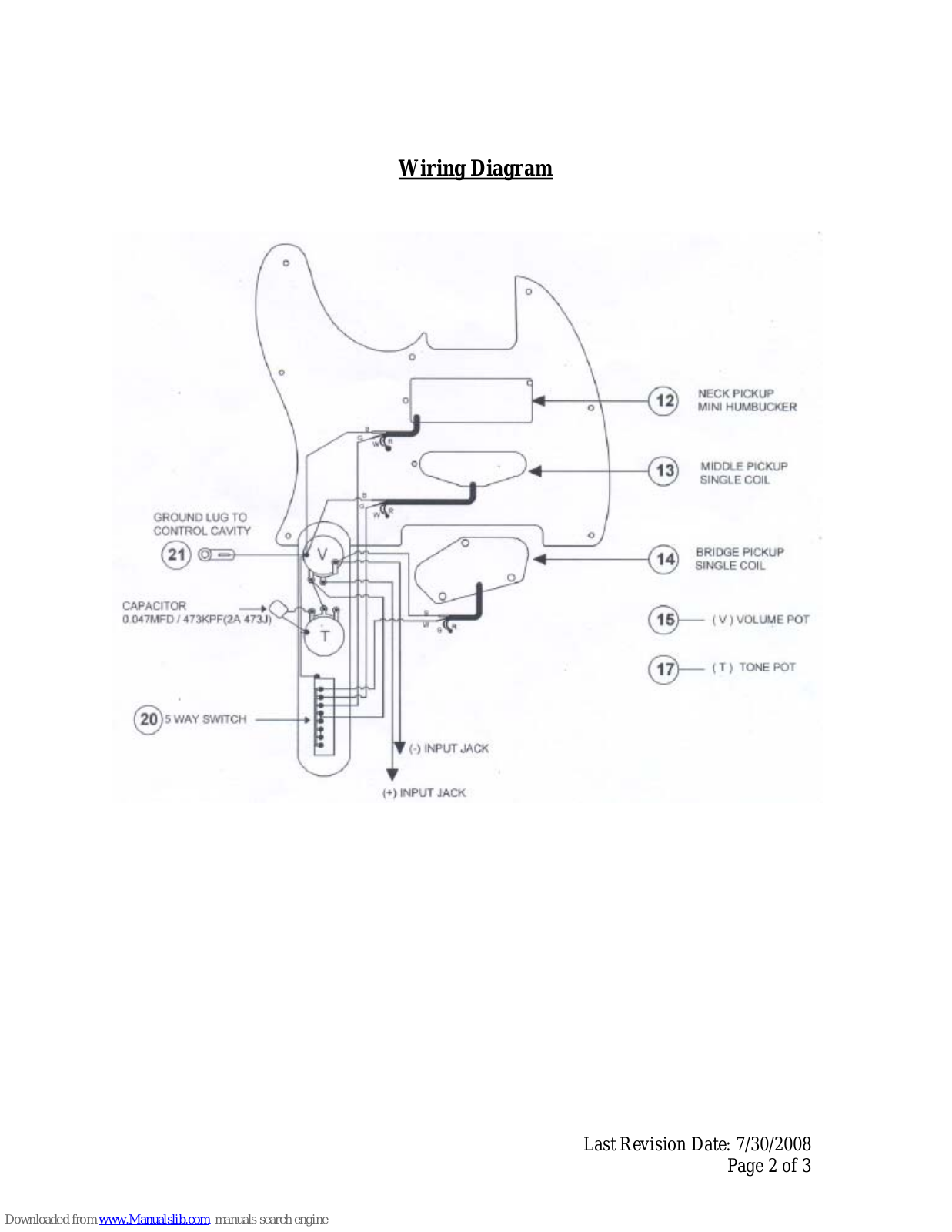

Wiring Diagram
Last Revision Date: 7/30/2008
Page 2 of 3

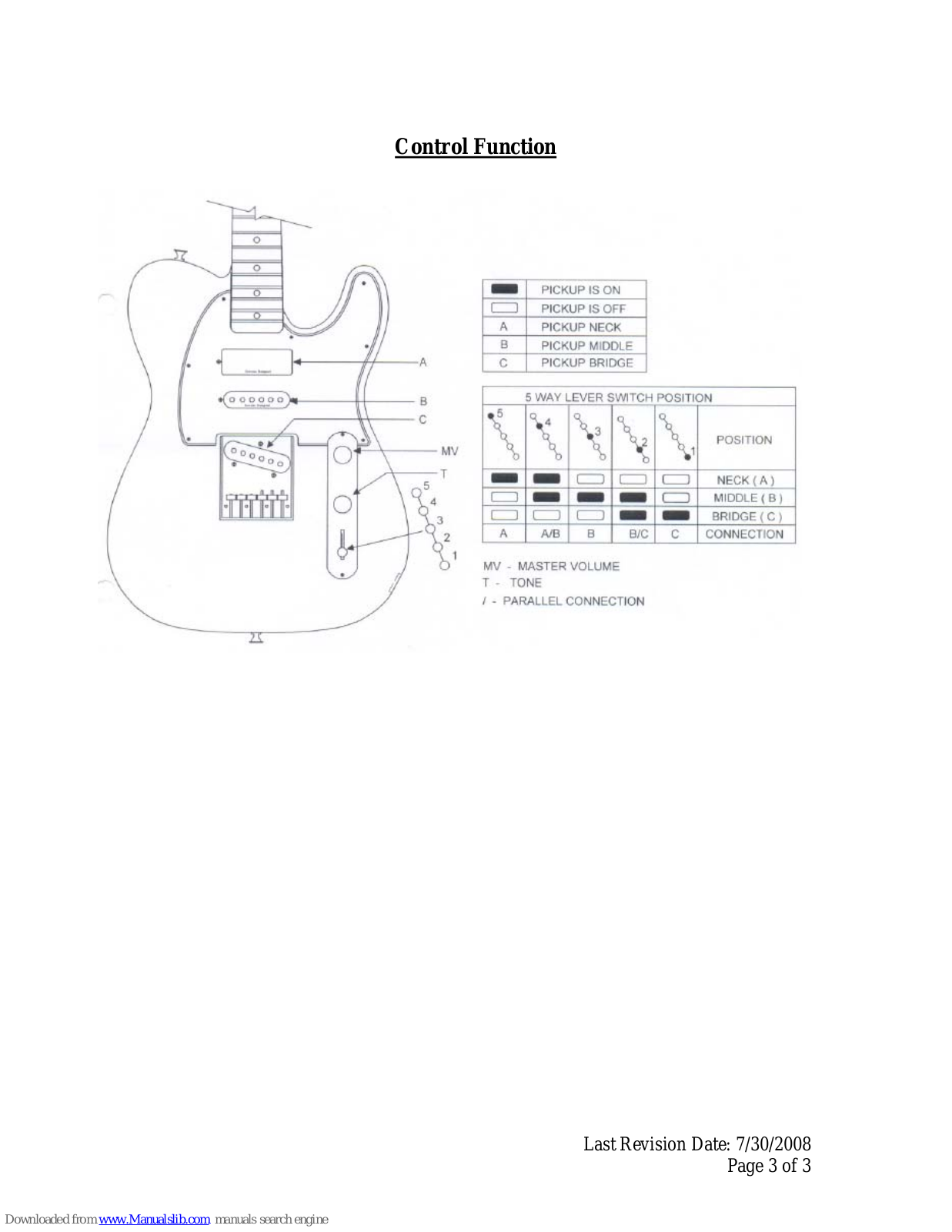

Control Function
Last Revision Date: 7/30/2008
Page 3 of 3
