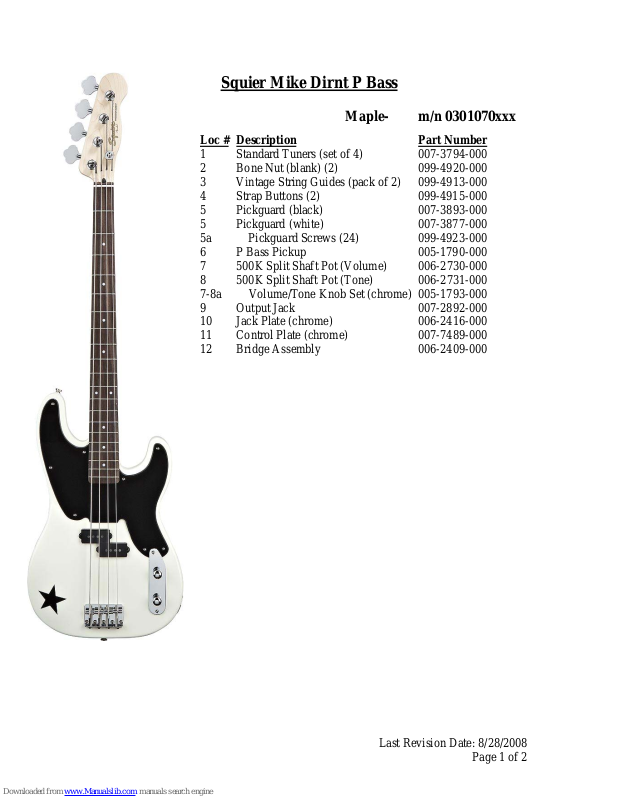

Squier Mike Dirnt P Bass
Maple- m/n 0301070xxx
Loc # Description Part Number
1 Standard Tuners (set of 4) 007-3794-000
2 Bone Nut (blank) (2) 099-4920-000
3 Vintage String Guides (pack of 2) 099-4913-000
4 Strap Buttons (2) 099-4915-000
5 Pickguard (black) 007-3893-000
5 Pickguard (white) 007-3877-000
5a Pickguard Screws (24) 099-4923-000
6 P Bass Pickup 005-1790-000
7 500K Split Shaft Pot (Volume) 006-2730-000
8 500K Split Shaft Pot (Tone) 006-2731-000
7-8a Volume/Tone Knob Set (chrome) 005-1793-000
9 Output Jack 007-2892-000
10 Jack Plate (chrome) 006-2416-000
11 Control Plate (chrome) 007-7489-000
12 Bridge Assembly 006-2409-000
Last Revision Date: 8/28/2008
Page 1 of 2
Wiring Diagram
Last Revision Date: 8/28/2008
Page 2 of 2
