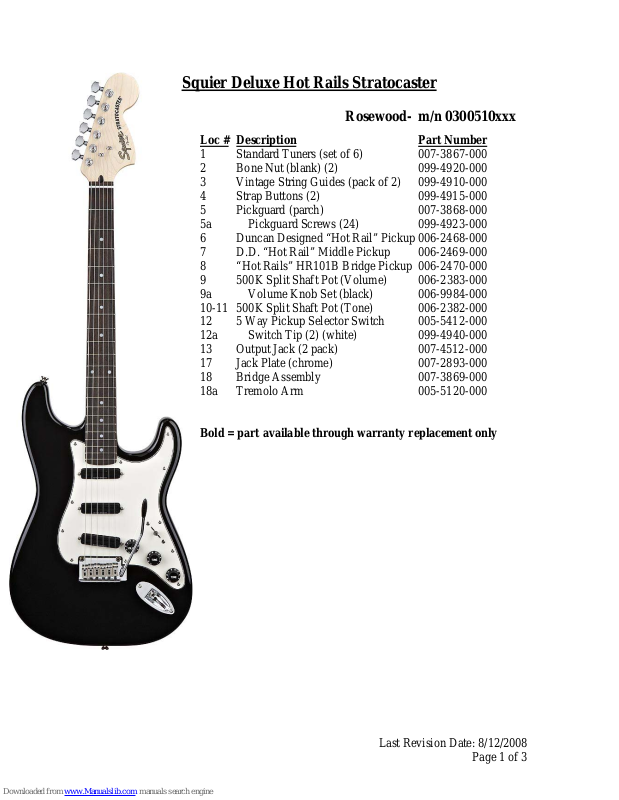

Squier Deluxe Hot Rails Stratocaster
Rosewood- m/n 0300510xxx
Loc # Description Part Number
1 Standard Tuners (set of 6) 007-3867-000
2 Bone Nut (blank) (2) 099-4920-000
3 Vintage String Guides (pack of 2) 099-4910-000
4 Strap Buttons (2) 099-4915-000
5 Pickguard (parch) 007-3868-000
5a Pickguard Screws (24) 099-4923-000
6 Duncan Designed “Hot Rail” Pickup 006-2468-000
7 D.D. “Hot Rail” Middle Pickup 006-2469-000
8 “Hot Rails” HR101B Bridge Pickup 006-2470-000
9 500K Split Shaft Pot (Volume) 006-2383-000
9a Volume Knob Set (black) 006-9984-000
10-11 500K Split Shaft Pot (Tone) 006-2382-000
12 5 Way Pickup Selector Switch 005-5412-000
12a Switch Tip (2) (white) 099-4940-000
13 Output Jack (2 pack) 007-4512-000
17 Jack Plate (chrome) 007-2893-000
18 Bridge Assembly 007-3869-000
18a Tremolo Arm 005-5120-000
Bold = part available through warranty replacement only
Last Revision Date: 8/12/2008
Page 1 of 3
Wiring Diagram
Last Revision Date: 8/12/2008
Page 2 of 3
Control Function
Last Revision Date: 8/12/2008
Page 3 of 3
