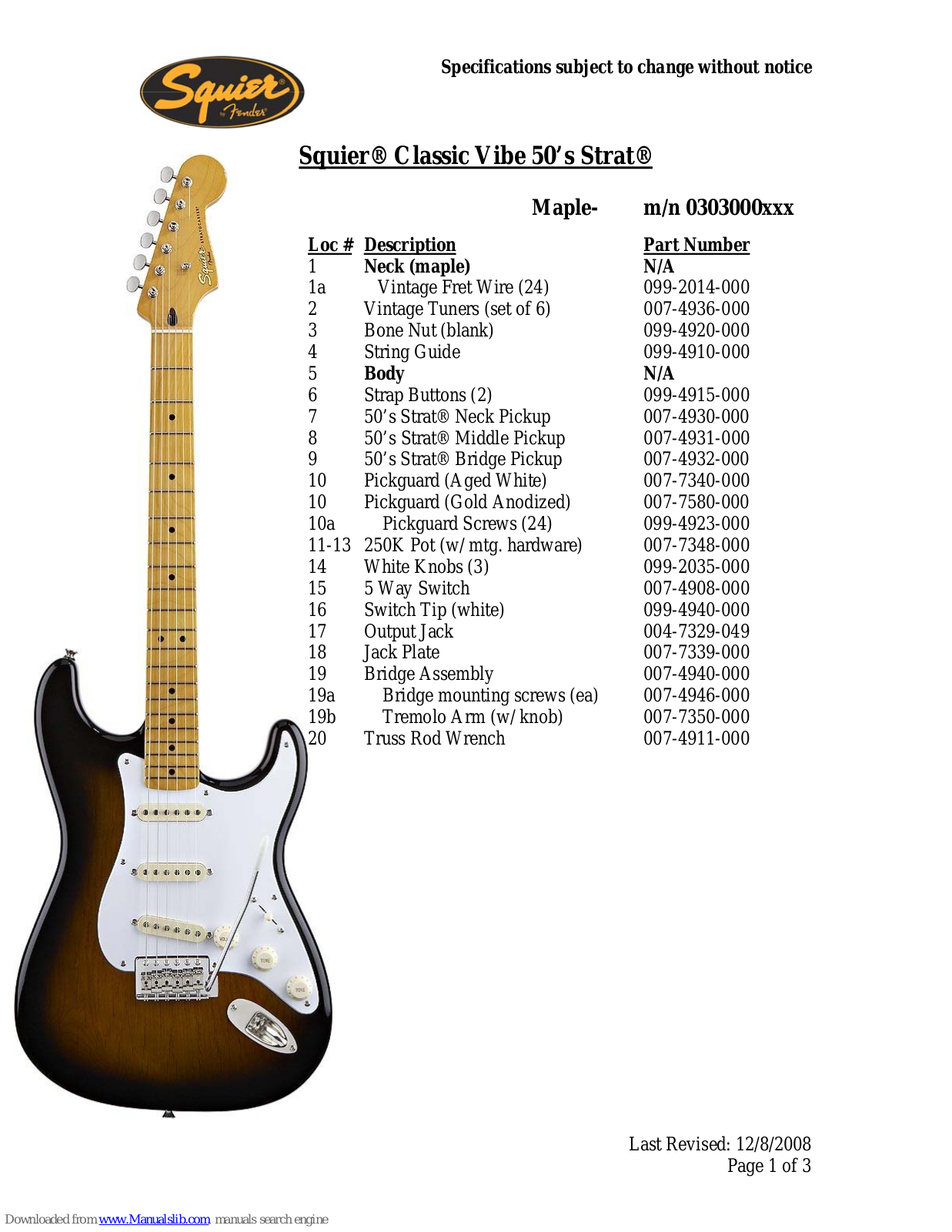

Squier® Classic Vibe 50’s Strat®
Loc # Description Part Number
1 Neck (maple) N/A
1a Vintage Fret Wire (24) 099-2014-000
2 Vintage Tuners (set of 6) 007-4936-000
3 Bone Nut (blank) 099-4920-000
4 String Guide 099-4910-000
5 Body N/A
6 Strap Buttons (2) 099-4915-000
7 50’s Strat® Neck Pickup 007-4930-000
8 50’s Strat® Middle Pickup 007-4931-000
9 50’s Strat® Bridge Pickup 007-4932-000
10 Pickguard (Aged White) 007-7340-000
10 Pickguard (Gold Anodized) 007-7580-000
10a Pickguard Screws (24) 099-4923-000
11-13 250K Pot (w/ mtg. hardware) 007-7348-000
14 White Knobs (3) 099-2035-000
15 5 Way Switch 007-4908-000
16 Switch Tip (white) 099-4940-000
17 Output Jack 004-7329-049
18 Jack Plate 007-7339-000
19 Bridge Assembly 007-4940-000
19a Bridge mounting screws (ea) 007-4946-000
19b Tremolo Arm (w/ knob) 007-7350-000
20 Truss Rod Wrench 007-4911-000
Specifications subject to change without notice
Maple- m/n 0303000xxx
Last Revised: 12/8/2008
Page 1 of 3
Specifications subject to change without notice

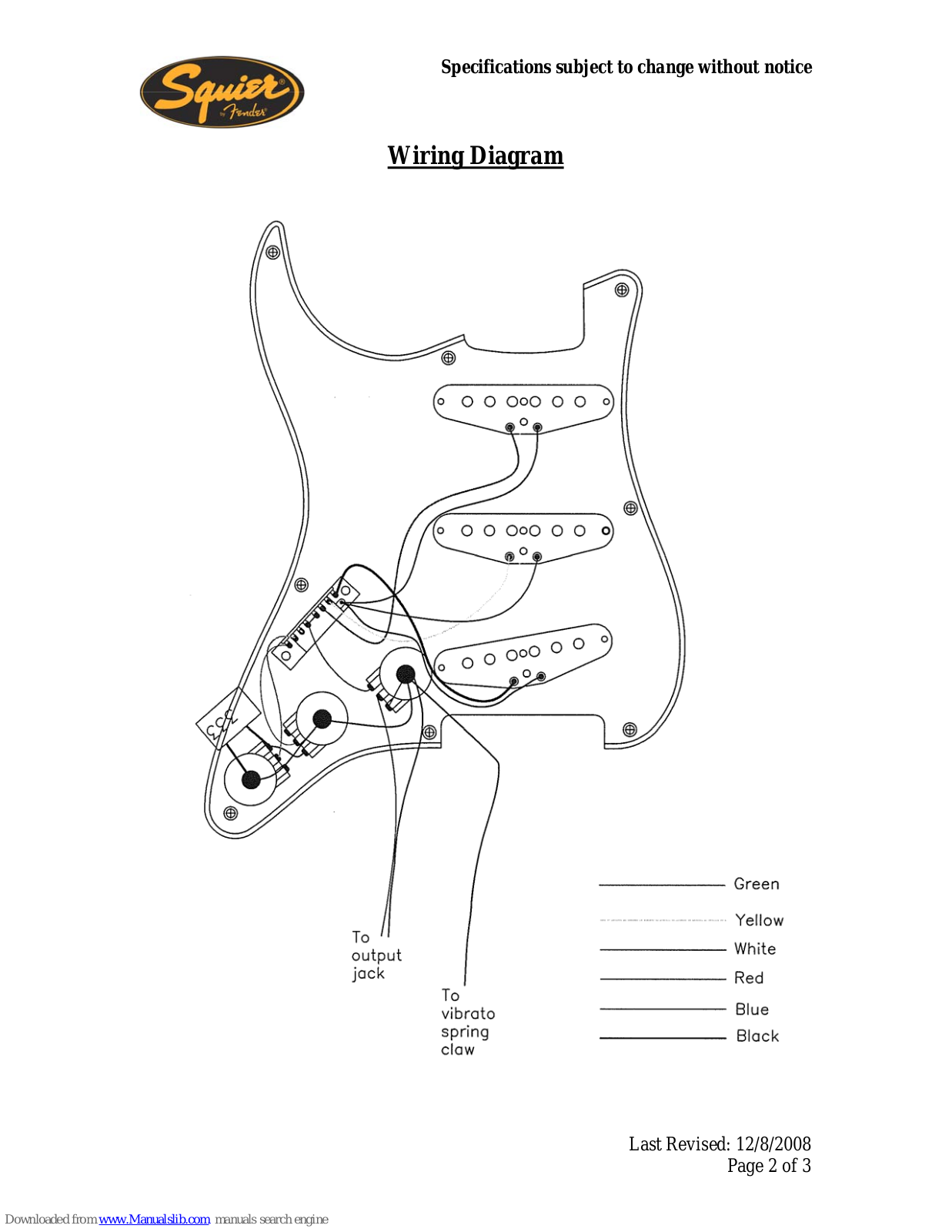

Wiring Diagram
Last Revised: 12/8/2008
Page 2 of 3
Specifications subject to change without notice

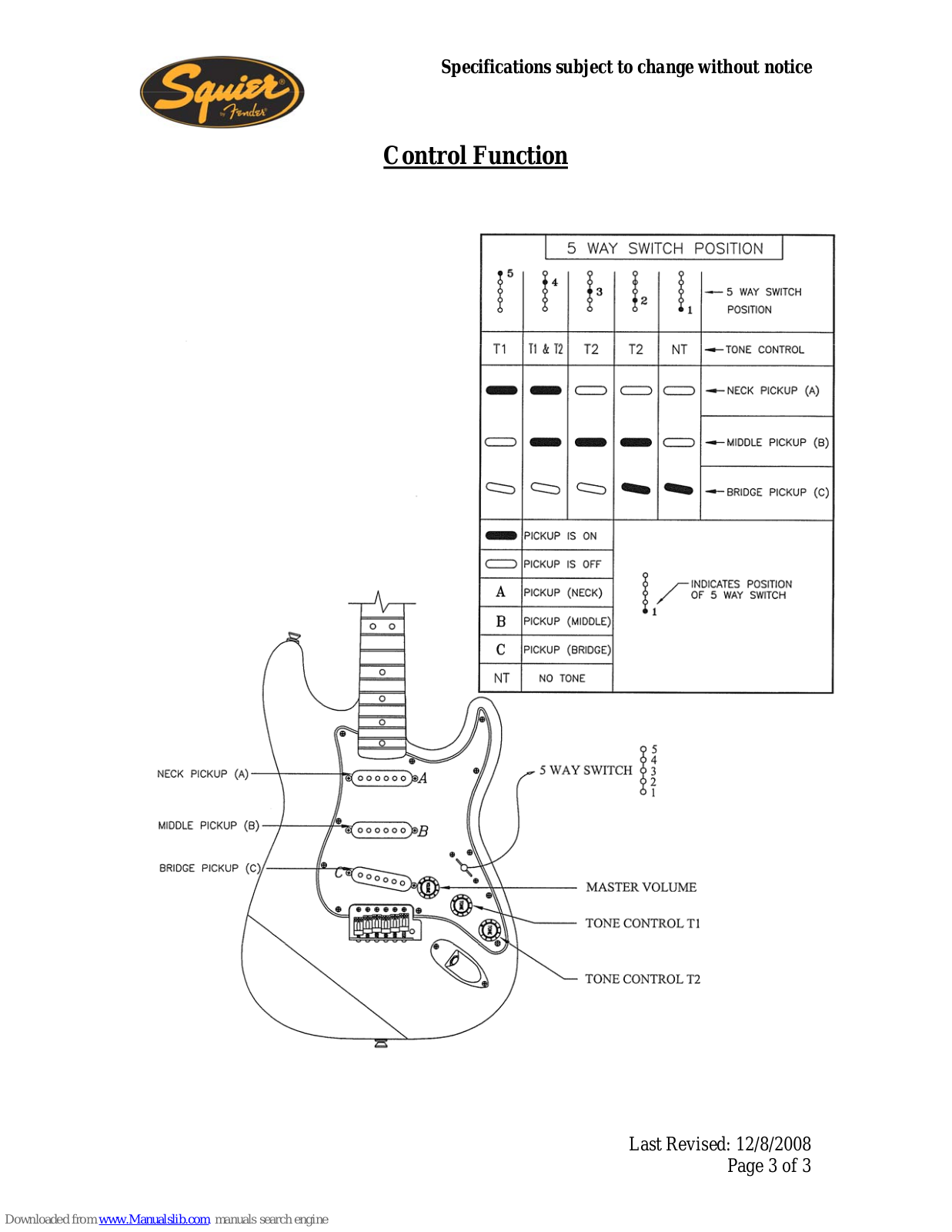

Control Function
Last Revised: 12/8/2008
Page 3 of 3
