Squier® Affinity P Bass®
Affinity P Bass® models come from 2 different sources:
Affinity Series-Reliant. Serial numbers begin with “CY”
“Start Playing” Special-Cort. Serial numbers begin with “IC”
Reliant models “CT” serial numbers
Loc #
Description Part Number
1 Standard Tuners (’03-present) (4) 006-2551-000
2 Vintage String Guide 099-4913-000
3 Strap Buttons (ea) 005-5414-000
4 Pickguard (white) 005-4934-000
4a Pickguard Screws 099-4923-000
5 P Bass Pickup 005-4933-000
6-7 500K Solid Shaft Pot (set of 2) 007-7442-000
6-7a Volume/Tone Knobs (set of 2) 006-2550-000
8 Output Jack 007-4512-000
9 Bridge Assembly 006-2552-000
Cort models “IC” serial numbers
Loc # Description Part Number
1 Standard Tuners (prior to ’03) (4) 005-4932-000
1 Tuners (set of 4) (’04-present) 003-6400-000
2 Vintage String Guide 099-4913-000
3 Strap Buttons (ea) 005-5414-000
4 Pickguard (white) 005-4934-000
4a Pickguard Screws 099-4923-000
5 P Bass Pickup 005-4933-000
6-7 500K Solid Shaft Pot (ea) 006-2730-000
6-7a Volume/Tone Knobs (set of 2) 005-4936-000
8 Output Jack 007-4512-000
9 Bridge Assembly 005-4937-000
Last Revision Date: 10/16/2008
Page 1 of 2

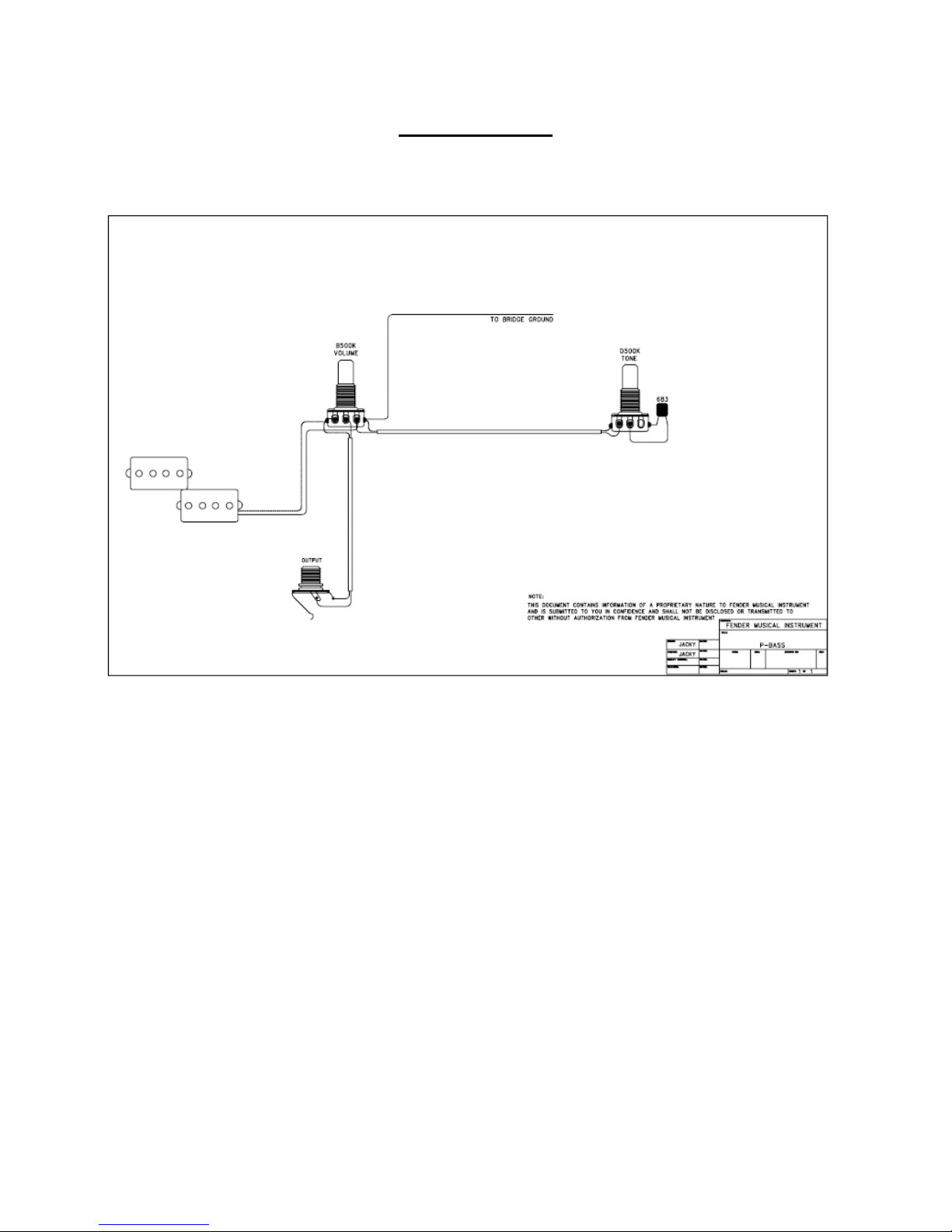

Wiring Diagram
Last Revision Date: 10/16/2008
Page 2 of 2
