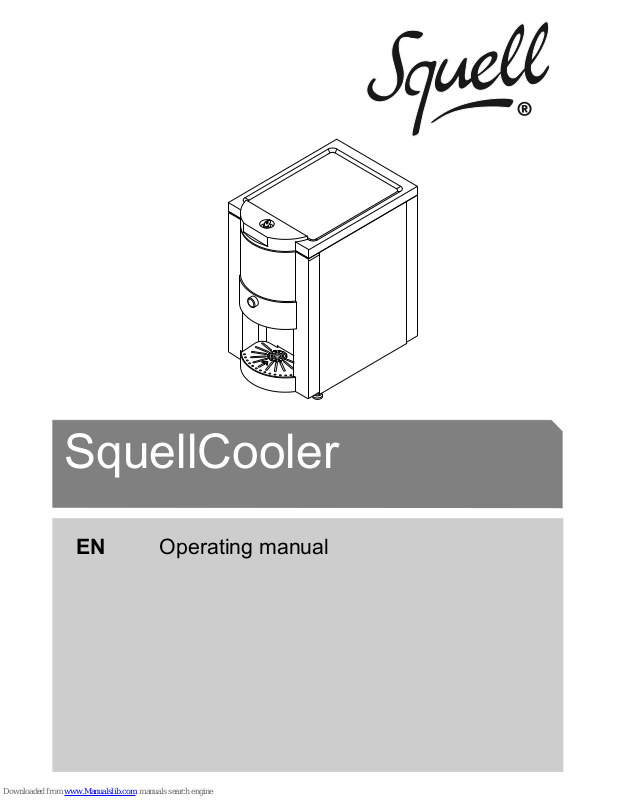

SquellCooler
EN Operating manual
SquellCooler
2
1
2
3
4
5
6
7
8
9
1
2
3
1
23
4
4
2.
1.
5
SquellCooler
3
6
7
890
a
SquellCooler
4
b
1
2
c
1
d
EN
SquellCooler
5
Please read this manual carefully before starting up and store it in a
safe place. If you pass on the device to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Description of device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
EN
Explanation of symbols SquellCooler
6
1 Explanation of symbols
D
!
!
A
I
➤ Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓ This symbol describes the result of an action.
Fig. 1 5, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
Damage to the product resulting from mechanical influences and excess
voltage
Alterations to the product without express permission from the manu-
facturer
Use for purposes other than those described in the operating manual
DANGER!
Safety instruction: Failure to observe this instruction will cause
fatal or serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
NOTE
Supplementary information for operating the product.
EN
SquellCooler Safety instructions
7
2.1 General safety
D
DANGER!
On boats: If the appliance is powered by the mains, ensure that
the power supply has a residual current circuit breaker.
!
WARNING!
Do not operate the device if it is visibly damaged.
This device may only be repaired by qualified personnel. Inade-
quate repairs may cause serious hazards.
People (including children) whose physical, sensory or mental
capacities prevent them from using this device safely should not
be allowed to operate it without the supervision of a responsible
adult.
Electrical devices are not toys!
Always keep and use the device out of the reach of children.
Children must be supervised to ensure that they do not play with
the device.
Do not store any explosive substances, such as spray cans with
propellants, benzene, ether, adhesive or similar in the device.
Do not store any heavy, poisonous or rusty objects in the de-
vice.
The plug must be accessible once the device is in place to ena-
ble the device is able to be disconnected from the mains network following installation
.
A
NOTICE!
Check that the voltage specification on the type plate corre-
sponds to that of the energy supply.
Do not move the device by pulling on the power cable.
The cooling device is not suitable for transporting substances
which are caustic or contain solvents.
Never pull the plug out of the socket by the connection cable.
Never lift the device up by using the door. Always carry the de-
vice using the entire body of the unit.
EN
Safety instructions SquellCooler
8
2.2 Operating the device safely
!
CAUTION!
Before starting the device, ensure that the power supply line
and the plug are dry.
A
NOTICE!
Do not use electrical devices inside the cooling device unless
they are recommended by the manufacturer for that purpose.
Do not place it near naked flames or other heat sources (heat-
ers, direct sunlight, gas ovens etc.)
Danger of overheating!
Always ensure sufficient ventilation so that the heat generated
during operation can dissipate. Make sure that the device is sufficiently far away from walls and other objects so that the air can
circulate.
Ensure that the ventilation vents are not covered.
Do not fill the inner container with ice or fluid.
Never immerse the appliance in water.
Protect the appliance and the cable against heat and moisture.
Protect the power cable from sharp or pointed edges.
2.3 In the case of damage to the device.
Keep the device away from naked flames or ignition sources.
Allow the room to air for a few minutes.
Switch off the device and pull out the mains plug.
Inform customer service.
Changing the mains power line and other repairs should only be
carried out by customer service. Incorrect installation and repairs can place the user in considerable danger.
EN
SquellCooler Scope of delivery
9
3 Scope of delivery
4 Description of device

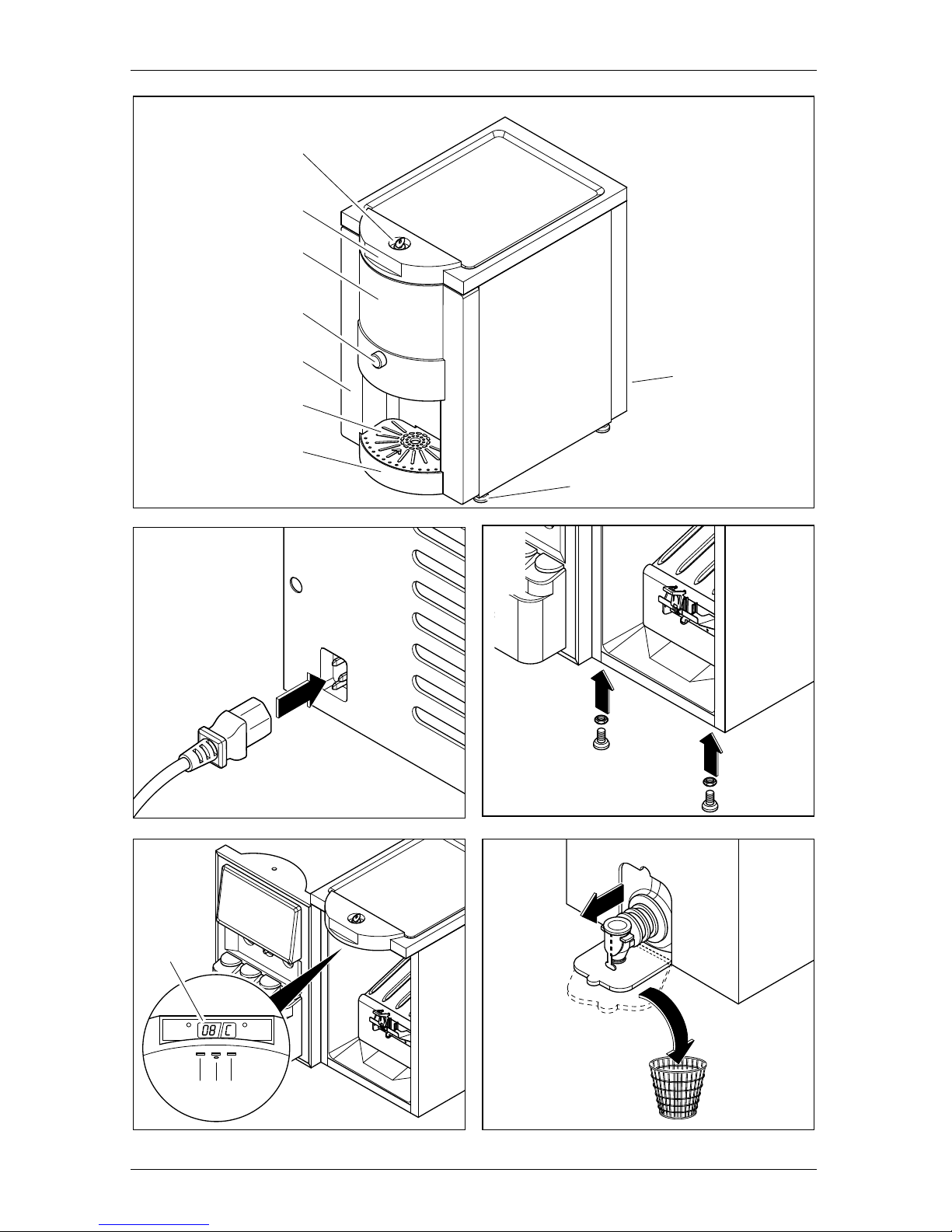

Item no. in: fig. 1, page 2
5 Intended use
The device is suitable for cooling and dispensing drinks from Bag-in-Box
cartons or plastic cassettes.
Quantity Designation
1 Cooler
1 Drip tray and drip plate
1 230 Vwconnection cable
2Key
4 Adjustable feet with lock nut
1 Operating manual
Item Description
1Lock
2 LED display
3 Window for inserting graphics
4 Push-button tap
5Door
6 Drip plate
7Drip tray
8 Adjustable feet
9230 Vwconnection cable
EN
Function description SquellCooler
10
6 Function description
The appliance is a compact tabletop device. Bag-in-Box cartons and cartridges can be cooled to a temperature of +3°C to +20°C.
The device is designed to operate with 220 to 240 Voltw/50 Hz. A maintenance-free refrigerant circuit with compressor provides the cooling.
You can use the digital display to set the temperature you require.
7 Operation
7.1 Before initial use
I
7.2 Connecting the device
Please observe the following instructions when connecting:
Place the device on a firm and level surface which is stable. Do not place
it on soft material, such as foam for example, in order to prevent the device moving and producing noise.
Leave a minimum clearance of 30 mm between the rear of the device and
the wall.
Set up the device so that air can circulate freely. Good ventilation around
the device is absolutely essential for the heat dissipation and improves
the cooling capacity and the energy efficiency.
Set up the device so that it is not exposed to direct sunlight and is not sit-
uated close to heat sources (ovens, heating devices or radiators etc.).
Heat can damage the coating and impair cooling. It also increases energy
consumption.
Do not place the device in a damp location. If humidity is too high it will
lead to corrosion of the metal components or cause the insulation to malfunction. Do not spray water on the device as this can lead to an electric
shock.
➤ Connect the device to the 230 Vw-connection (fig. 2, page 2).
NOTE
On average, cooling drinks at room temperature to the coldest
possible temperature will take 20 h.
EN
SquellCooler Operation
11
➤ Screw in the adjustable feet and fasten these with the nut (fig. 3,
page 2).
➤ Adjust the device so that it is level.
7.3 Using the device
I
Setting the temperature (fig. 4, page 2)
The buttons for regulating the temperature are situated on the front of the device underneath the top.
➤ Open the door of the device.
➤ Press the “–” button (1) or the “+” button (3) to set the desired cooling tem-
perature.
✓ The display will flash after three seconds and the value is stored automat-
ically.
The LED display (4) shows the current temperature.
Setting the unit of temperature (menu item 1) (fig. 4, page 2)
The device is pre-set to °C. This is how to change the temperature unit to °F:
➤ Open the door of the device.
➤ Press the menu button (2) once to select the temperature unit.
✓ There is a “1” on the left of the menu item and the current setting is on the
right.
➤ Press the “–” button (1) or “+” button (3) to select between °C and °F.
✓ The display will flash after three seconds and the value is stored automat-
ically.
The LED display (4) shows the current temperature.
NOTE
Cool the Bag-in-Box cartons beforehand to ensure a constant
cool temperature for the liquids being dispensed.
For safety reasons the LED display can only be operated when
the door is open. Once the door is closed or locked settings
can no longer be changed.
EN
Operation SquellCooler
12
Setting display brightness (menu item 2) (fig. 4, page 2)
➤ Open the door of the device.
➤ Press menu button (2) twice.
✓ There is a “2” on the left of the menu item and the current setting is on the
right.
➤ Press the “–” button (1) or “+” button (3) to set the degree of brightness
from 1 and 5.
✓ The display will flash after three seconds and the value is stored automat-
ically.
The LED display (4) shows the current temperature.
Setting for Bag-in Box carton or plastic cassette (menu item 3) (fig. 4,
page 2)
To optimise the device's cooling capacity, a setting must be made to show
whether it is being used with a Bag-in-Box carton or a plastic cassette containing 3L, 5L or 10L:
➤ Open the door of the device.
➤ Press the menu button (2) three times.
✓ There is a “3” on the left of the menu item and the current setting is on the
right.
➤ Press the “–” button (1) or “+” button (3) to select between carton or plastic
cassette. The settings P1, P3 or P5 relate to the plastic cassette on the
right-hand side:
– “C” (carton)
– “P1” (10L bag), “P3” (3L bag), “P5” (5L bag)
✓ The display will flash after three seconds and the value is stored automat-
ically.
The LED display (4) shows the current temperature.
Inserting and connecting Bag-in-Box carton or plastic cartridge.
This shows you what to do when you are inserting the correct Bag-in-Box carton or a plastic cartridge into the cooler:
➤ Remove the carton tab and pull out the valve (fig. 5, page 2).
➤ Take off the value protector (fig. 6, page 3).
EN
SquellCooler Operation
13

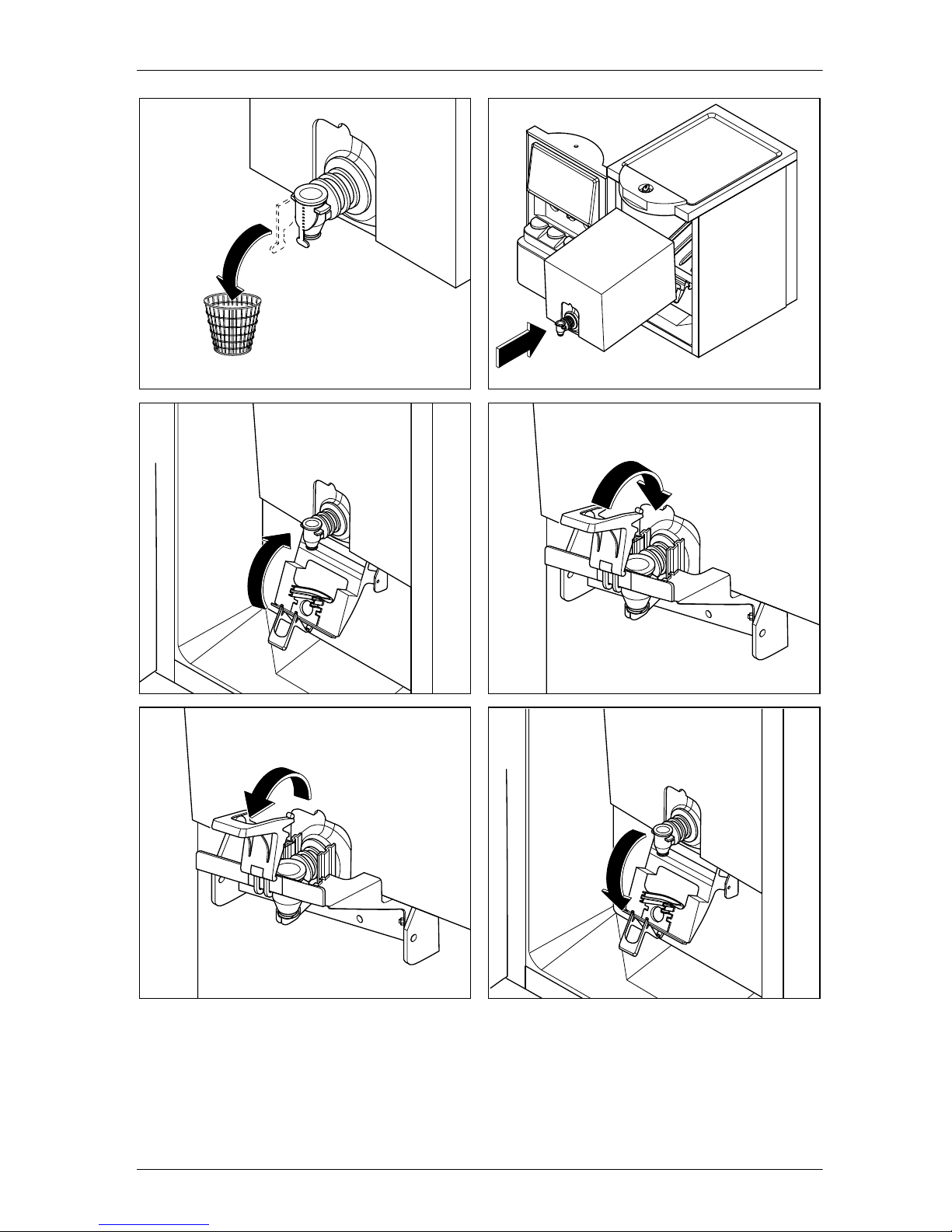

➤ Insert the carton or the cassette (fig. 7, page 3).
➤ Raise the tapping unit so that it latches into place (fig. 8, page 3).
➤ Insert the valve into the valve holder and carefully move the lever on the
tapping unit forwards until it latches into place (fig. 9, page 3).
➤ Close the door.
✓ The device is ready to dispense.
Removing Bag-in-Box or plastic cassette
➤ Release the lever on the tapping unit (fig. 0, page 3).
➤ Take the valve out of the valve holder.
➤ Raise the tapping unit and fold it down (fig. a, page 3).

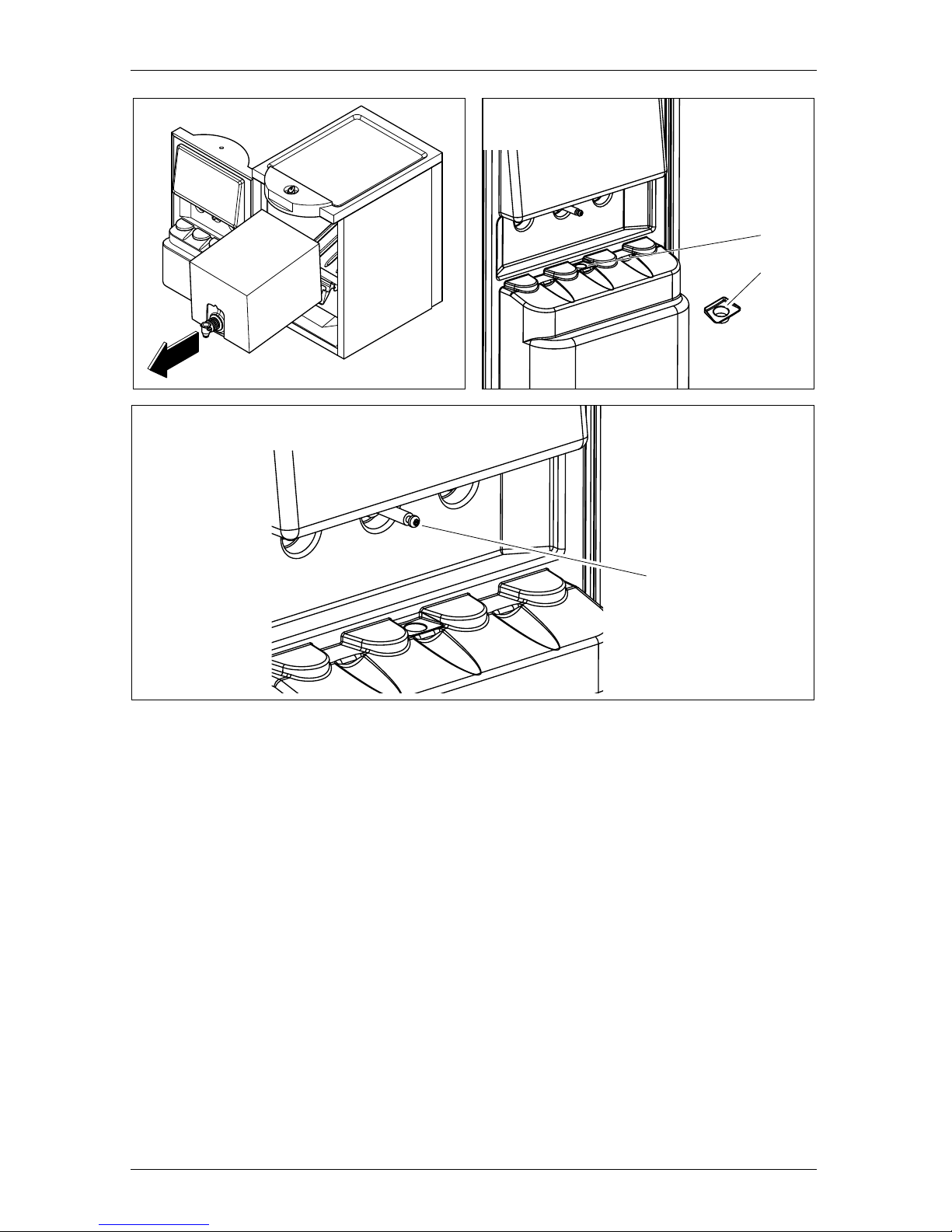

➤ Remove the carton or the cassette (fig. b, page 4).
➤ Dispose of the bag and box separately.
Changing the dispenser nozzles (fig. c, page 4)
If required (e.g high level of hygiene required) the dispenser nozzles can be
replaced:
➤ Remove the dispenser nozzle (1).
➤ Insert a new dispenser nozzle (2).
7.4 Switching the device to stand-by
➤ Open the door of the device.
➤ Press menu button (fig. 4 2 page 2) for 3 seconds to put the device on
stand-by mode.
✓ The device switches off.
➤ Press any button to start up the device again.
✓ The device will cool the liquid to the temperature previously set.
EN
Cleaning and maintenance SquellCooler
14
8 Cleaning and maintenance
!
A
➤ Clean the internal and external surfaces, the rubber door seal and the
plastic components with a warm, damp cloth and a neutral detergent.
Wipe the appliance dry with a cloth.
➤ Make sure that the air inlet and outlet vents on the device are free of any
dust and dirt, so that heat can be released and the device is not damaged.
➤ Please consult with the manufacturer prior to using disinfectant.
9Warranty
The statutory warranty period applies. If the product is defective, please
contact the manufacturer's branch in your country (see the back of the
instruction manual for the addresses) or your retailer.
For repair and guarantee processing, please include the following documents when you send in the device:
A copy of the receipt with purchasing date
A reason for the claim or description of the fault
WARNING! Danger of electrocution!
Before cleaning and maintenance, disconnect the device from the
mains network and take out all the Bag-in-Box cartons.
NOTICE! Beware of damage!
The following materials damage the coating and the plastics
and must not be used to clean the device: Hot water, thinner,
benzene, alcohols, kerosene, washing powder, detergent, acids, chemical wipes.
Never defrost the device with a steam cleaning appliance.
Never clean the appliance under running water, in a dishwater
or with a steam cleaning appliance.
Do not use abrasive cleaning agents or hard objects during
cleaning as these can damage the cooling device.
Do not use pointed or sharp-edged objects to remove layers of
frost and ice. This can cause damage to the refrigerant pipes.
EN
SquellCooler Troubleshooting
15
10 Troubleshooting
Fault Possible cause Suggested remedy
The device does not
work.
The device is not properly connected.
Check whether the connection cable and
any extension cables are correctly
plugged in.
If you are using an extension cable,
check it and replace if defective.
The refrigerant circuit is
defective.
This can only be repaired by an authorised repair centre.
Insufficient cooling/cooling capacity
The cooling device is
exposed to direct sunlight and is located near
a heat source.
Position the device away from sunlight
and other heat sources.
The required clearance
around the device as not
been adhered to.
Ensure sufficient ventilation for the cooling device.
The door is opened frequently.
Avoid frequent opening and closing of the
cooling device.
Door was not fully
closed.
Close the door fully.
The compressor does
not stop automatically.
The automatic defrost
does not function.
Please contact an authorised repair centre.
The device does not
dispense.
The tapping mechanism
has not latched into
place.
Lock the lever on the tapping unit into
place.
The tap mechanism is
not aligned.
Screw out the adjustment screw on the
internal pressure pin (fig. d 1, page 4).
Bag is empty Change the Bag-in-Box carton (chapter
“Removing Bag-in-Box or plastic cassette” on page 13 and chapter “Inserting
and connecting Bag-in-Box carton or
plastic cartridge.” on page 12).
The drink does not
stop running.
The tap mechanism is
not aligned.
Screw in the adjustment screw on the
internal pressure pin (fig. d 1, page 4).
EN
Disposal SquellCooler
16
11 Disposal
M
If you wish to scrap the product, ask your local recycling centre or
specialist dealer for details about how to do this in accordance with
the applicable disposal regulations.
➤ If possible, dispose of the packaging material in the appropriate recycling
container. The packaging protects your device from damage during transport. All material used is environment-friendly and recyclable.
➤ Cooling devices contain combustible gases in the refrigerant circuit and
the heat insulation. Refrigerant and gases must be disposed of in a suitable manner. Make sure that the refrigerant circuit pipes are protected
from damage until the device is properly disposed of.
12 Technical data
Squell Cooler
Item no.: S1100300
Voltage: 220–240 Vw /50 Hz
Power consumption: 70 W
Rated current: 0.68 A
Category: 10
Energy efficiency class: A
Power consumption: 137 kWh/per year
Capacity: 30 l
Climatic class: N–ST
Refrigerant: R134a
Dimensions (W x H x D): 400 x 600 x 400 mm
Weight: 25 kg
Inspection/certification:
RoHS
Squell Produktion und Handel GmbH
Altwingertweg 14
D-68766 Hockenheim
+49 (6205) 305 187-0 · +49 (6205) 305 187-77
Mail: info@squell.com · Internet: www.squell.com
Made in Germany
4445100814 en 07/2013
Loading...
