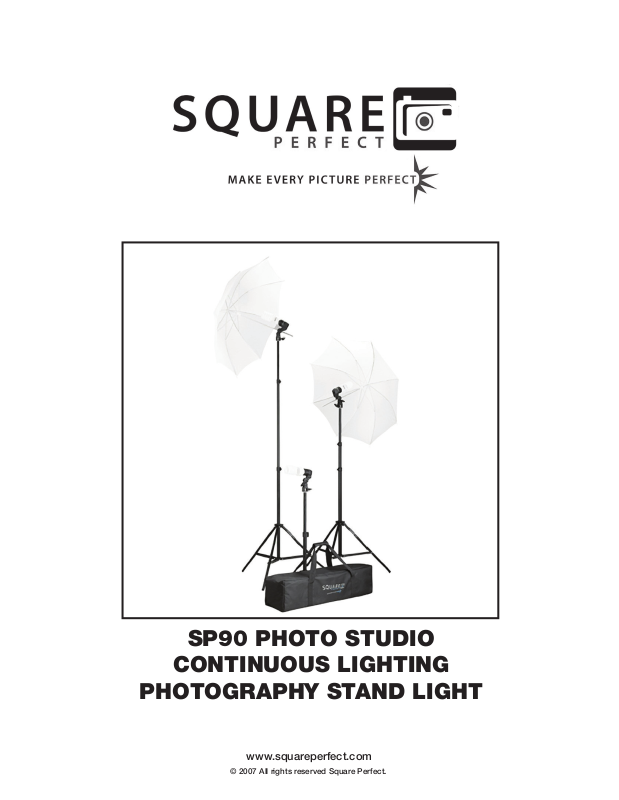

Page 1
SP90 PHOTO STUDIO
CONTINUOUS LIGHTING
PHOTOGRAPHY STAND LIGHT
www.squareperfect.com
© 2007 All rights reserved Square Perfect.
Page 2
D
C
D
A
E
C
A
E
C
B
F
SP90 PHOTO STUDIO
CONTINUOUS LIGHTING
PHOTOGRAPHY STAND LIGHT
A
Qty. 2 Square Perfect High Quality SP803 7FT Tripods/Light Stands
Qty. 1 Square Perfect SP801 Miniature Light Stand
B
Qty. 3 Professional Series Light Holders
C
Qty. 2 High Quality 33” Soft Umbrellas
D
E
Qty. 3 Compact Fluorescent Daylight Balanced Photo Light Bulbs, 45 Watt/5500K, UL listed
Qty. 1 Carrying Case
F
www.squareperfect.com
© 2007 All rights reserved Square Perfect.
Page 3
SP90 PHOTO STUDIO CONTINUOUS LIGHTING
PHOTOGRAPHY STAND LIGHT
Thank you for your purchase of the Square Perfect Photo
Studio Lighting Umbrella Kit. This manual has been written to help you with the assembly, operating procedures
and accessories.
This is our top of the line umbrella
set-up, to help make your photos stand out. It takes
seconds to set-up and is simple to use. You will be
taking professional photographs in minutes.
(3) Professional Series Light Holders
Please
read this manual carefully before use, and keep it handy
for use during break down of equipment. Please read and
heed all safety precautions listed in this manual. For ordering spare bulbs or replacement parts, contact us at sales@
squareperfect.com. Also check out our extended line of
photo equipment now available.
(3) Compact Fluorescent Daylight
Balanced Photo Bulbs, 45 Watt/5500K
(2) White Studio Umbrellas
Nylon Carrying Case
(2) SP803 7FT. Tripods/
Light Stands
(1) SP801 Miniature
Light Stands
www.squareperfect.com
© 2007 All rights reserved Square Perfect.
Page 4
ASSEMBLY INSTRUCTIONS:
Insert bulb into light holder as
shown and screw bulb until it ts
snug into the socket.
Attach light holder to tripod/light
stand as shown. Be sure to tighten screw on back of light holder
for stability.
SAFETY PRECAUTIONS:
l
Become thoroughly familiar with this product before use. Run
through at least one practice assembly and breakdown before
you schedule a shoot.
l
Never leave the lighting unsupervised when in use. Keep children
or incompetent person away from lighting equipment.
l
If the power cords show signs of wear or damage, they should be
replaced or repaired by a qualied electrician before use.
l
Wait until bulbs are completely cool before touching or removing
them.
Insert umbrella pole into hole in
light holder and tighten screw on
side of light holder to keep umbrella stable.
l
Never use in a wet environment.
l
Never move the appliance by pulling the cord. Make sure the cords
do not come in contact with bulbs. Do not wind the cord around
the appliance.
l
Place stands/tripods on at surface to prevent toppling.
l
Do not touch the metal parts near the bulbs while in use, these
parts may become very hot.
l
Do not let umbrella touch light bulb when in use. Light bulb will get
hot and can ruin the umbrella or start a re.
SP90 PHOTO STUDIO CONTINUOUS
LIGHTING PHOTOGRAPHY STAND LIGHT
www.squareperfect.com
© 2007 All rights reserved Square Perfect.
