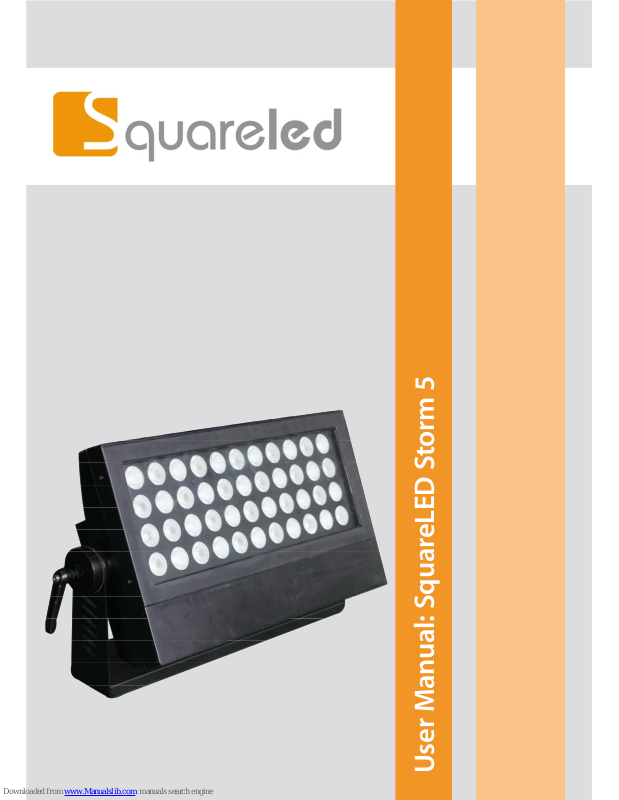

Squareled STORM 5 User Manual

User Manual: SquareLED Storm 5
Manual | Storm 5
1. Introduction
Thank you for having chosen our LED lighting Unpack the device, inside the box you should nd: The xture device One power cable One XLR connection cable This manual Please check carefully that there is no damage caused by transportation. Should there be any problems, consult your dealer and don’t install this device.
Packing List
Easy multi fixture hanging system, outdoor version available 44pcs RGBW 4in1 LED, no ultraviolet radiation More than 50,000 hours for the LED light source 11,000 lm 35/20 degree selectable 1/3/4/5/10/14/15 DMX channels 16 Bit Dimmer DMX Mode /Master-slave mode AC 100-240V 50/60Hz 260W Diecasting heatsink, with low noise fans With temperature sensor to extend the lamp life 2000 Hz LED scan rate L 490mm x H 285mm x W 105mm, Weight 9Kg IP65/IP20 selectable
2. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. This device falls under protection-class I. Therefore it is essential that the device should be earthed. The electric connection must carry out by qualied person. If the external exible cable or cord of this luminaire is dama­ged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualied person in order to avoid a hazard.
Make sure that the available voltage is not higher than stated at the end of this manual.
» » » » » » » » » » » » » »
Manual | Storm 5
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
Never look directly into the light source,
as sensitive persons may suer an epileptic shock.
Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.
3. Connections
DMX-512 control connection
The product has a DMX 512 input tted with 3-pin XLR connectors. Screened cables in compliance with EIA RS-485 specications and the following characteristics must be used for connections:
2 conductors plus screen 120Ohm impedance low capacitance max. transmission rate 250kBaud.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 OHM resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last xture in the chain.
» » » »
Manual | Storm 5
Display Menu
Main menu Sub-menu
adress DMX Adress Setting cong channel channel 1Ch
channel 3Ch channel 4Ch channel 5Ch channel 10Ch channel 15Ch
Dimmer Curve Mode L
Mode Q Mode I
Mode S Cipher Setup 0-999 Key Mode Lock
Unlock Temp Uint CS Celsius Degree
Fahrenheit Degree DMX Status Value Clear
Value Hold Display Mode Auto
On
System Info Temp
Hour
Color Menu Red 0-255
Green 0-255 Blue 0-255 White 0-255
White Balance Set Red 0-255
Set Green 0-255 Set Blue 0-255
Static color Color 0-51 Auto Test Load Default Firmware Version
Manual | Storm 5
4. Main functions
Address: Current DMX address
A. Setting DMX address by button
Press ENTER button when show the address menu, then adjust the DMX address by pressing [UP] or
[DOWN] button
Press [ENTER] to confirm or pressing [ESC] to return to main menu.
B. Setting DMX address by controller
Set the DMX value of channel 5 to 10-15,channel 17 to 20-26, channel 7 to 30-36, channel 8 to 40-46,
then the devices connected to the controller will enter to the setting address mode
Set the DMX value of channel 1 from 0-59, then you will see the the first number of the Address change to (channel 1 vaule)/10. For example, when set the value of channel 1 to 20, the first DMX address number will be 2 (20/10=2)
Set the DMX value of channel 2 from 0-99,then you will see the the sencond number of the Address change to (channel 2 vaule)/10. For example, when set the value of channel 2 to 30, the first DMX address number will be 2 (30/10=3)
Set the DMX value of channel 3 from 0-99,then you will see the the third number of the Address change to (channel 3 vaule)/10. For example,when set the value of channel 1 to 40, the first DMX address number will be 3 (40/10=4), and the DMX address you set by conctroller will be 234.
Set the DMX value of channel 4 to 255, then you will save the DMX address setted by the controller. Caution: It won’t save the address if the address number is over 512
Set the value of channel 5-8 out of the value range show on the step 1, and the device will exit the setting address mode
Cong
Setting DMX mode: Press ENTER button when show the channel menu, then select the DMX mode by pressing [UP] or [DOWN] button
Setting Dimmer Curve: Press ENTER button when show the dimmer curve menu, then select the dimmer curve by pressing [UP] or [DOWN] button
Setting Cipher:
Press ENTER button when show the cipher setup menu, then setup cipher by pressing [UP] or [DOWN] button
Key mode: Press ENTER button when show the key mode menu, then select lock or unlock by pressing [UP] or [DOWN] button
»
»
»
»
»
»
»
»
»
»
» » »
Manual | Storm 5
Show Temperature:
Press ENTER button when show the Temp Uint CS menu, select the way of showing the fixture’s temperature in °C or °F by pressing [UP] or [DOWN] button
DMX status: Press ENTER button when show the DMX Status menu, then select clear value or hold value by pressing [UP] or [DOWN] button
Display mode: Press ENTER button when show the Display Mode menu, then select auto or on by pressing [UP] or [DOWN] button
System info
Temperature: Press ENTER button when show the Temperature menu, then it will show the temperature of the fixture
Fixture time: Press ENTER button when show the Fixture time menu, then it will show how long time of the fixture already used
Color menu
Press ENTER button when show the Color menu, press Enter button to select the color mode, then adjust the color by pressing [UP] or [DOWN] button
White balance
Press ENTER button when show the white balance menu, press Enter button to select the color mode, then adjust the color by pressing [UP] or [DOWN] button
Auto test
Press ENTER button when show the auto test menu, select test mode by pressing [UP] or [DOWN] button
»
»
»
»
»
Manual | Storm 5
5. DMX functions and values
DMX Channel (1CH)
Channel DMX Value Control Function
1CH 0–255 Static color
DMX Channel (3CH)
Channel DMX Value Control Function
1CH 0–255 R 0–100% 2CH 0–255 G 0–100% 3CH 0–255 B 0–100%
DMX Channel (4CH)
Channel DMX Value Control Function
1CH 0–255 R 0–100% 2CH 0–255 G 0–100% 3CH 0–255 B 0–100% 4CH 0–255 W 0–100%
DMX Channel (5CH)
Channel DMX Value Control Function
1CH 0–255 Master dimmer 2CH 0–255 R 0–100% 3CH 0–255 G 0–100% 4CH 0–255 B 0–100% 5CH 0–255 W 0–100%
Manual | Storm 5
DMX Channel (10CH)
Channel DMX Value Control Function
1CH 0–255 Master dimmer 2CH 0–255 Master dimmer ne 3CH 0–255 Red dimmer 4CH 0–255 Red dimmer ne 5CH 0–255 Green dimmer 6CH 0–255 Green dimmer ne 7CH 0–255 Blue dimmer 8CH 0–255 Blue dimmer ne 9CH 0–255 White dimmer 10CH 0–255 White dimmer ne
DMX Channel (14CH)
Channel DMX Value Control Function
1CH 0–255 Master dimmer 2CH 0–255 Red1 dimmer 3CH 0–255 Green1 dimmer 4CH 0–255 Blue1 dimmer 5CH 0–255 White1 dimmer 6CH 0–255 Red2 dimmer 7CH 0–255 Green2 dimmer 8CH 0–255 Blue2 dimmer 9CH 0–255 White2 dimmer 10CH 0–15 No Eect
0-255 Strobe Rate (0-30HZ) 11CH 0-255 Color Macro ,Color + Black 12CH
0-35
36-71
72-107
108-143
144-179
180-215
216-255
Auto run No Eect ramp up ramp down ramp up/down color mix mode 4-colors 8-colors
Manual | Storm 5
13CH 0-255 dimmer speed 14CH
0-63
64-127
128-191
192-255
dimmer curve L curve S curve I curve Q curve
DMX Channel (15CH)
Channel DMX Value Control Function
1CH 0–255 Master dimmer 2CH 0–255 Master dimmer ne 3CH 0–255 Red dimmer 4CH 0–255 Red dimmer ne 5CH 0–255 Green dimmer 6CH 0–255 Green dimmer ne 7CH 0–255 Blue dimmer 8CH 0–255 Blue dimmer ne 9CH 0–255 White dimmer 10CH 0–255 White dimmer ne 11CH 0-15 No Eect
16-255 Strobe Rate (0 - 30HZ) 12CH 0–255 Color Macro, Color+Black 13CH
0-35
36-71
72-107
108-143
144-179
180-215
216-255
Auto run No Eect ramp up ramp down ramp up/down color mix mode 4-colors
8-colors 13CH 0-255 dimmer speed 14CH
0-63 64-127 128-191 192-255
dimmer curve
L curve
S curve
I curve
Q curve
Manual | Storm 5
15CH
0-63 64-127 128-191 192-255
dimmer curve
L curve
S curve
I curve
Q curve
6. Cleaning and maintenance
We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents!
Disconnect from mains before starting maintenance operation.
There are no servicable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers. If you need any spare parts, please use genuine parts. If the power supply cable of this device becomes damaged, it has to be replaced by authorized dealers only in order to avoid hazards. If you have further questions, please contact your dealer.
7. Instalation
The device must only be installed at a vibration-free, oscilation-free and re-resistant location.
