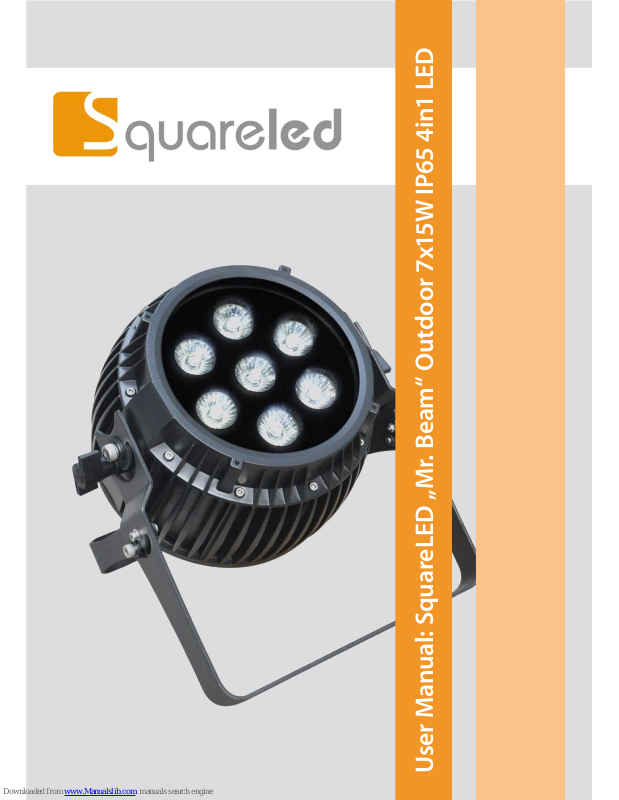

User Manual: SquareLED „Mr. Beam“ Outdoor 7x15W IP65 4in1 LED
Manual | „Mr Beam“
1. Introduction
Brief Introduction
Thank you for purchasing our „Mr. Beam“. Please read these instructions carefully before begin and operate
the xtures according to these instructions to avoid any possible damages and accidents causes by misusage
Product introduction
„Mr. Beam“ light uses casting aluminum housing, designed in a fashion of hydrodynamic form. Appearance
shows. It adopts high power 4-in-1 LED, which refers to single LED is made of R,G,B,W,4-IN-1 LED, And long
life span, low consumption, good color mixing eect and high brightness are the most prominent features.
Each kind of LED can be independently dimmed. The built-in program includes dimming, strobe, eotic, gradual
change, fading and so on. It uses power switch, performs low weight and consumption, stable capability and
long life. International standard DMX 512 signal is requested.
Packing List
„Mr. Beam“ 1 PC
DMX Signal Cable 1 Set
Waterproof input power cable 1 PC
User Manual
Warranty Card
2. Safety Instruction
Safety Notes
! Enquire the skilled people before any repair
! Always make sure disconnect from the power source before setting up, serving and moving
! Avoid direct eye exposure to the xture when it is on
»
»
»
»
»
Manual | „Mr Beam“
Safety instruction
Make sure the power supply voltage are consistent with this lights, Ensure the use of voltage is in the
range of the request technical parameter
Before the installation, please check the light’s fasteners and mechanical structure have been received in
good condition and appear no damage
This light is designed for indoor use; working temperature is lower than 40 degree
The fixtures maybe mounted in any position provided there is adequate room for ventilation. Make sure
there are no inflammable and explosive items (ornaments) in 0.5 meters away
Yellow/green cabling earthling safety; no flicker when the fixture is working on.
3. outside Size Picture
»
»
»
»
»
Manual | „Mr Beam“
4. Main Function
high quality LED: low consumption, brightness, stable capability and long life
each color of LED with 16666 dimming. RGB can make over 16.7 million colors, adding W can achieve
many effects.
Liner dimming from 0–100%, strobe, gradual change, jumping change etc effects
Touch Buttoms,Unusual feeling to you
DMX512 Controller, 4 button set DMX ID address with led display
auto run /sound activated/master slave/interconnected multi-machine control
using switching power supply to protect the LED to work well
Built-in temperature control function: The output of LED will be reduced when LED is too hot
lens degree: 8º optional
Protection grade: IP65
5. DMX Control Function
DMX Channel (5CH)
Channel DMX Value Control Function
1CH 0–255 R 0–100%
2CH 0–255 G 0–100%
3CH 0–255 B 0–100%
4CH 0–255 W 0–100%
5CH 0–10 Close Strobe
11–255 Adjust Strobe Speed (1–20Hz)
DMX Channel (6CH)
Channel DMX Value Control Function
1CH 0–255 General dimming
2CH 0–255 R 0–100%
3CH 0–255 G 0–100%
4CH 0–255 B 0–100%
5CH 0–255 W 0–100%
6CH 0–10 Close Strobe
11–255 Adjust Strobe Speed (1–20Hz)
»
»
»
»
»
»
»
»
»
»
Manual | „Mr Beam“
DMX Channel (9CH)
Channel DMX Value Control Function
1CH 0–255 General dimming
2CH 0–255 R 0–100%
3CH 0–255 G 0–100%
4CH 0–255 B 0–100%
5CH 0–255 W 0–100%
6CH 0–10 Close Strobe
11–255 Adjust Strobe Speed (1–20Hz)
7CH 0–14 Dimming
15–29 R
30–44 G
45–59 B
60–74 W
75–89 R+G
90–104 R+B
105–119 R+W
120–134 G+B
135–149 G+W
150–164 B+W
165–179 R+G+B
180–194 R+G+W
195–209 R+B+W
210–224 G+B+W
225–239 R+G+B+W
240–255 auto-run eect (the more value, the faser speed)
8CH 0–15 Invalid
16–255 Multi-colors jumping change (the more value, the faser speed)
9CH 0–5 Dimmer 0–4
Set by LCD display
6–55 Dimmer 0
56–105 Dimmer 1
106–155 Dimmer 2
156–205 Dimmer 3
206–255 Dimmer 4
Manual | „Mr Beam“
6. Display Operation
MENU: access the menu or return to a previous menu option
ENTER: select the current menu option
UP: menu selection or parameter increments
DOWN: menu selection or parameters decrease
7. Menu Instruction
»
»
»
»
Menü
Addr
SLAU
CHnd
nodE
SP--
Pr--
ASC-
FAdE
FLAS
rL--
GL--
bL--
UL--
LED-
d001-d512
SLAu
5CH\6CH\9CH
nod0-nod4
SP00-SP15
Pr00-Pr15
AC00-AC15
FA00-FA15
FL00-FL15
r000-r255
G000-G255
b000-b255
U000-U255
on/O
DMX mode
Slave receiving mode
DMX channel mode
DMXdimming mode
Built-in program speed
Built-in program
Color jumping
Gradual Changing mode
White strobe mode
Red dimming
Green dimming
Blue dimming
White dimming
Display on/o
Manual | „Mr Beam“
Operating instruction:
MENU (UP/DOWN) + ENTER + UP/DOWN + ENTER
Exp: Select the DMX mode, Here are the operation details:
Press the MENU, go back to the initial setting
Press UP/DOWN, display “Addr”
Press ENTER to change the content, the display will glinting at this moment
Press UP/DOWN to change the address code to select A001
Press ENTER to select and store the current menu options. DMX mode will be stored automatically
and the screen will stop glinting.
Exp: Select DMX Channels optional mode, the operation is as below:
Press MENU, go back to the initial setting
Press UP/DOWN, display ”CHnd”
Press ENTER to change the content, the display will glinting at this moment
Press UP/DOWN to select the DMX channels that you need 5CH, 6CH, 9CH and so on
Press ENTER select and store the current menu options. DMX mode will be stored automatically
and the screen will stop glinting
Exp: Close the display, the operation is as below:
Press MENU, go back to the initial setting
Press UP/DOWN, display “LED”
Press ENTER to change the content, the display will glinting at this moment
Press UP/DOWN to select “OFF”
Press ENTER to confirm, the select the working mode that you need. When stop pressing, the display will
shut after a while. When the display is closed, press any button to activate the display. If setting the led
to “off”, when stop pressing, the display will shut after a while
Details of program built inside (Pr- -)
Press MENU, go back to the initial setting
Press UP/DOWN until Pr--
Press ENTER to choose, the display will glinting at this moment
Press UP/DOWN to change the address code to select pr00
Press ENTER to select and store the current menu options. DMX mode will be stored
automatically and the screen will stop glinting
Pr00--- Pr62 R,G,B.W single color or multi-colors lighting
Pr63: Multi colors jumping
Pr63 can modify the content of SP--,modify the jumping speed.SP00 is the fastest, SP15 is the slowest
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
Manual | „Mr Beam“
8. Operating Control Instruction
Master
The master should always working as a master as long as it is not set in a DMX mode whatever other modes it
is. And it send out the signal so that the slave synchronous with it. To avoid the host signal and DMX512 signals
interfere with each other, should cut o the DMX512 signals. The signal lines are longer than 60 meters (20
lamps), should increase a signal amplier.
Slave
The Slave must be set in DMX mode and the address code should be A001, to assure receive the master’s
signals correctly. Only one light can be set as a Master and others are slaves.
9. XLR cable connecting
XLR cable
The standard connection way of the XLR is: one end connects to the male plug, and the other connects to the
female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal
XLR Pin Conguration
Pin 1: Ground
Pin 2: Date Compliment (negative)
Pin 3: Data True (positive)
COMMON
DMX512 OUT
3 PIN XLR
DMX512 IN
3 PIN XLR
DMX +
DMX –
Manual | „Mr Beam“
Noted: In order to avoid failures and interference signal transmission, we connect a resistance 120Ω (1/4W) at
the end of the DMX connecting as below:
The Conversion between 3 pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable
3-Pin XLR to 5-Pin XLR Conversation
Conductor 3-Pin XLR Female (Out) 5-Pin XLR Male (In)
Ground/Shield Pin 1 Pin 1
Data Compliment (– signal) Pin 2 Pin 2
Data True (+ signal) Pin 3 Pin 3
Not Used Do Not Use
Not Used Do Not Use
10. Connecting picture
Light connecting picture:
Termination reduces signal errors and avoids signal transmission problems and
interference. It is always advisable to connect a DMX terminal, (Resistance 120
Ohm 1/4 W) between Pin 2 (DMX –) and Pin 3 (DMX +) of the last xture.
Manual | „Mr Beam“
11. Trouble Shooting
Problem Checking Way
Can not turn on the light Check the power source plug is in normal or not
Check the switch of the lights is off or on
Check the fuse if in normal
»
»
»
DMX can not control it Check the DMX cable is connect to the lights or not
Check the DMX512 controller work in normal or not
Check the DMX cable is normal or not
Check if the lights is in DMX mode (A001)
»
»
»
»
Display not bright,
LED not light
When connect to the electricity, did the led flash one time? If so, the
power source is normal; If not, please check if the switch and the
transformer has power out
Check if the power input of the IC board is normal
Check if the cable connect to the display loose
Change the main board to see if it is normal.
Chang the display
»
»
»
»
»
Some of the LED not light LED is connected by leds in series first, then connect parallel, so please
check if the leds is loose
Use the multimeter to check if the led is bright or not, of not, please
change the led
Check whether current limiting resistor is normal or not
Check constant current IC is normal or not (compared with the normal IC)
»
»
»
»
Single color leds always
bright/not bright
Check the switch of this color is normal or not
Change the IC control board
»
»
Noted: only professional persons can do as above!
12. Technical Specication
Input voltage: AC 100V–264V/47–63HZ
Output voltage: DC28V
Consume: 105W
Lamp Type: OSRAM High Power LED (15W)
Lamp Spec: 4-in-1 15W (7PCS)
Constant current driver: 500MA
PWM Dimmer: > 600HZ (16666 grades)
Refresh rate: > 400HZ
»
»
»
»
»
»
»
»
Manual | „Mr Beam“
Life span: 50000~100000hours
Control Signal: DMX512, sound activated, auto run
Control mode: stand alone/ sound activated
Channel: 5CH, 6CH, 9CH
Color effect: RGBW mixing
Function Effect: dimmer, strobe, gradual change, sound activated
Beam Angle: 8°
Cooling mode: Natural Convection
IP rate: IP65
Anti-electricity intension: 1.5KV
Insulation Resistance: > MΩ
Size: 287.3*270.1*166.0mm
Net Weight: 5.2 Kg
»
»
»
»
»
»
»
»
»
»
»
»
»
