1. Introduction
Thank you for purchasing LTH PRO.fessional LED PAR 64 SLIM 24x3W RGBW. For safety reasons and to ensure
the trouble-free operation, carefully read the instructions.
2. Safety Information
1. Installation should be done by qualied personnel in order to minimize the risk of accidental electric shock
2. Disconnect the power supply before installation.
3. Before connecting the unit to the mains, make sure it is not damaged mechanically. If you notice any signs of
damage you should contact your dealer immediately. Do not connect the device to the mains.
4. Do not use the device in high humidity conditions and at temperatures above 40° C
5. The device must be installed on stable structures
3. Product Information
The device is equipped with high-quality, bright LEDs, while maintaining a small electric power consumption,
low operating temperature and long life. Unique design, high quality and high durability make this device a
great tool for both power users and those, who value simplicity and reliability.
The ergonomic handle (included) facilitates the use of the device in any condition. In order to expand the range
of mounting options, the holder has an additional mounting holes.
The electronics is made of high quality components and oers several features such as:
Features
Full DMX signal regeneration
Electronic protection against overheating
THEATRE or DISCO cooling volume modes.
Permanent color correction
Native support for optional wireless DMX module
»
»
»
»
»
Manual | LED PAR 64 SLIM 7x10W RGBW
Specication
Power supply voltage: 100 - 245V
Voltage frequency: 50/60Hz
Diode type: 4in1
Number of diodes: 7
Diode power: 10W
Beam angle: 25°
Display: LCD Matrix
Color: RGBW
Dimming: Linear: 0 - 100%
Number of DMX channels: 6 / 8
DMX standard: DMX 512
Control interface: 4 buttons
Operating modes: DMX512, Auto, Sound-controlled, Manual color, Master, Slave
Features: DMX Signal regeneration, Electronic protection against overheating
AC IN: powerCON
AC OUT: powerCON
DMX IN: XLR - 3 pin
DMX OUT: XLR - 3 pin
IP Rating: IP20
Housing made: ABS
Cooling: Active, temperature-controlled
Height [cm]: 27
Width [cm]: 26
Depth [cm]: 11
Weight [kg]: 1,3
4. Installation
After removing the packaging, check if the device was not damaged during transport. Before connecting to
the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage
caused by unstable mounting.
Ensure proper connection to the mains and proper grounding. Make sure that the electrical parameters are
consistent with device requirements. All activities, including connecting the device to the mains must be
performed by qualied personnel.
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
»
Manual | LED PAR 64 SLIM 7x10W RGBW
5. Connections
The device is equipped with the following interfaces:
1. DMX (in/out): XLR 3-pin socket
2. Power (in/out): powerCON socket

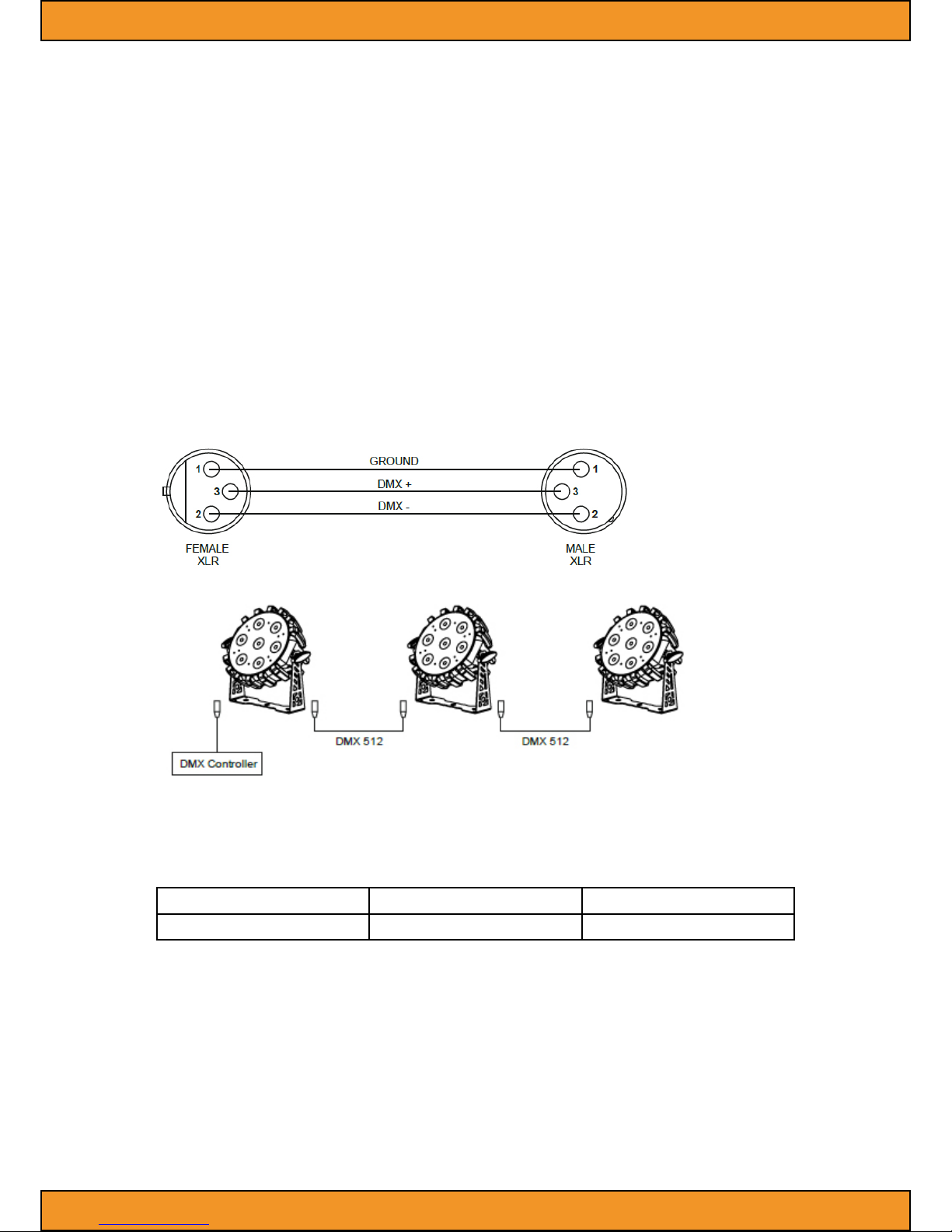

Connecting DMX signal
The connection is performed using cable with XLR-female -> XLR-Male plugs.
Voltage specication
Input Voltage Total Power Frequency
100~245V 70W 50/60Hz
Manual | LED PAR 64 SLIM 7x10W RGBW
Connecting power supply
The connection is performed using power cable with PowerCon connector (included).
The device must be operated by qualied personnel. Make sure that the power grid supply parameters are
consistent with device parameters and limitations are not exceeded.
CAUTION! In the case of cable damage do not attempt to repair. Replacement or repair can be made only on the
manufacturer or by a person with appropriate permissions.
6. Operation Manual
Control panel
The control panel is equipped with LCD display and 4 control buttons with the following functions:
1. MENU – enter to main menu, go back from the selected options, cancel changes
2. DOWN – choose option, edit parameter
3. UP – choose option, edit parameter
4. ENTER edit selected option, conrm changes
Menu

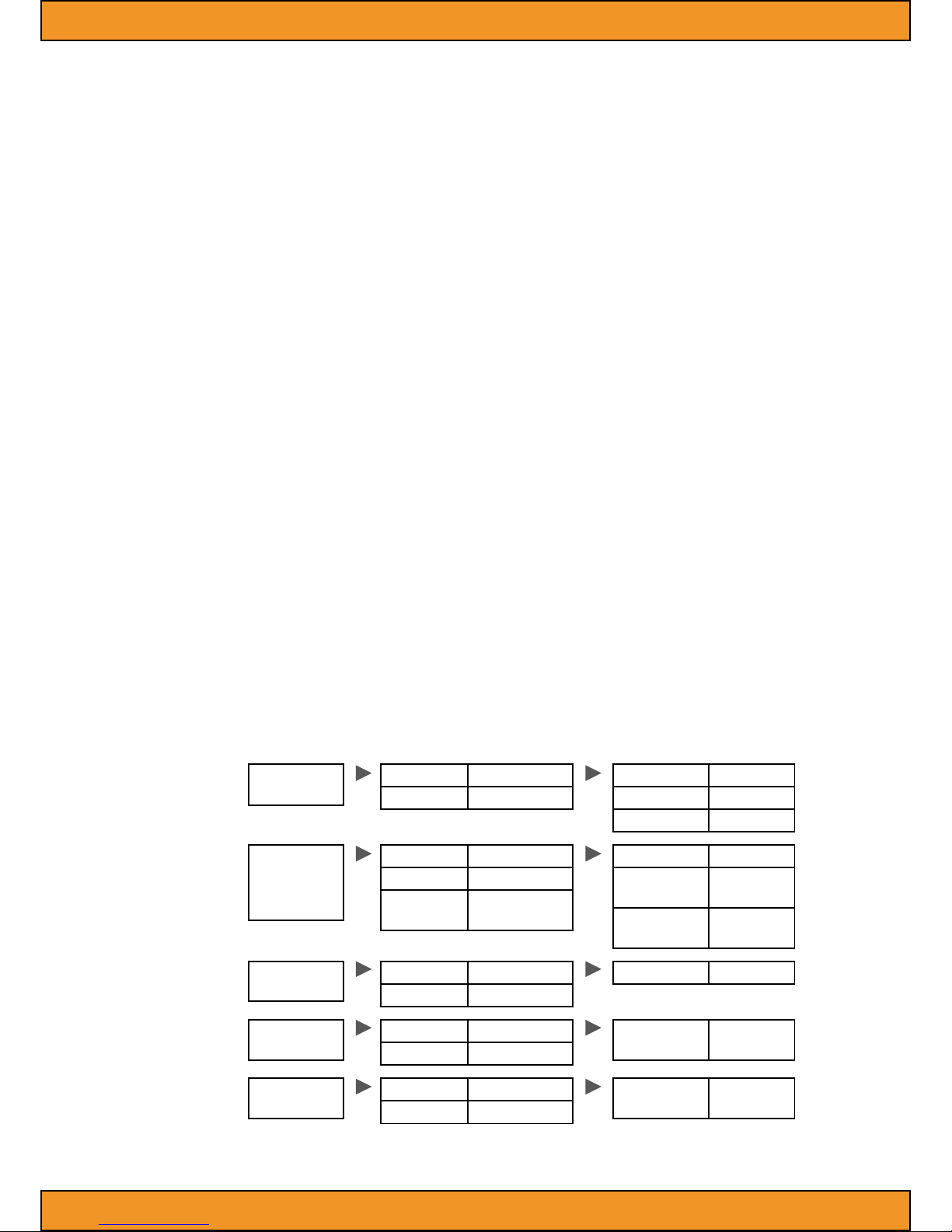

Menu diagram:
Change DMX
Address
Address
(1-255)
edit address ENTER
exit MENU/WAIT 5 SEC
change value UP/DOWN
save value ENTER
cancel MENU
Set manual
color and dimmer
settings
Manual settings
(DIMMER, RED,
GREEN, BLUE,
WHITE)
edit settings ENTER
exit MENU/WAIT 5 SEC
apply settings
to device
DISCONNECT DMX
SIGNAL, WAIT 3 SEC
change value UP/DOWN
save and go to
next param.
ENTER
cancel current
param. edit/back
MENU/WAIT
5 SEC
Turn on Sound
Mode
Sound
(ON, OFF)
turn on ENTER
exit MENU/WAIT 5 SEC
turn o ENTER/MENU
Turn On Manual
Strobo
Strobo
(ON, OFF)
turn on ENTER
exit MENU/WAIT 5 SEC
turn o HOLD
ENTER/MENU
Turnn on Demo
Mode
Demo
(ON, OFF)
turn on ENTER
exit MENU/WAIT 5 SEC
turn o ENTER/MENU/
UP/DOWN
Manual | LED PAR 64 SLIM 7x10W RGBW

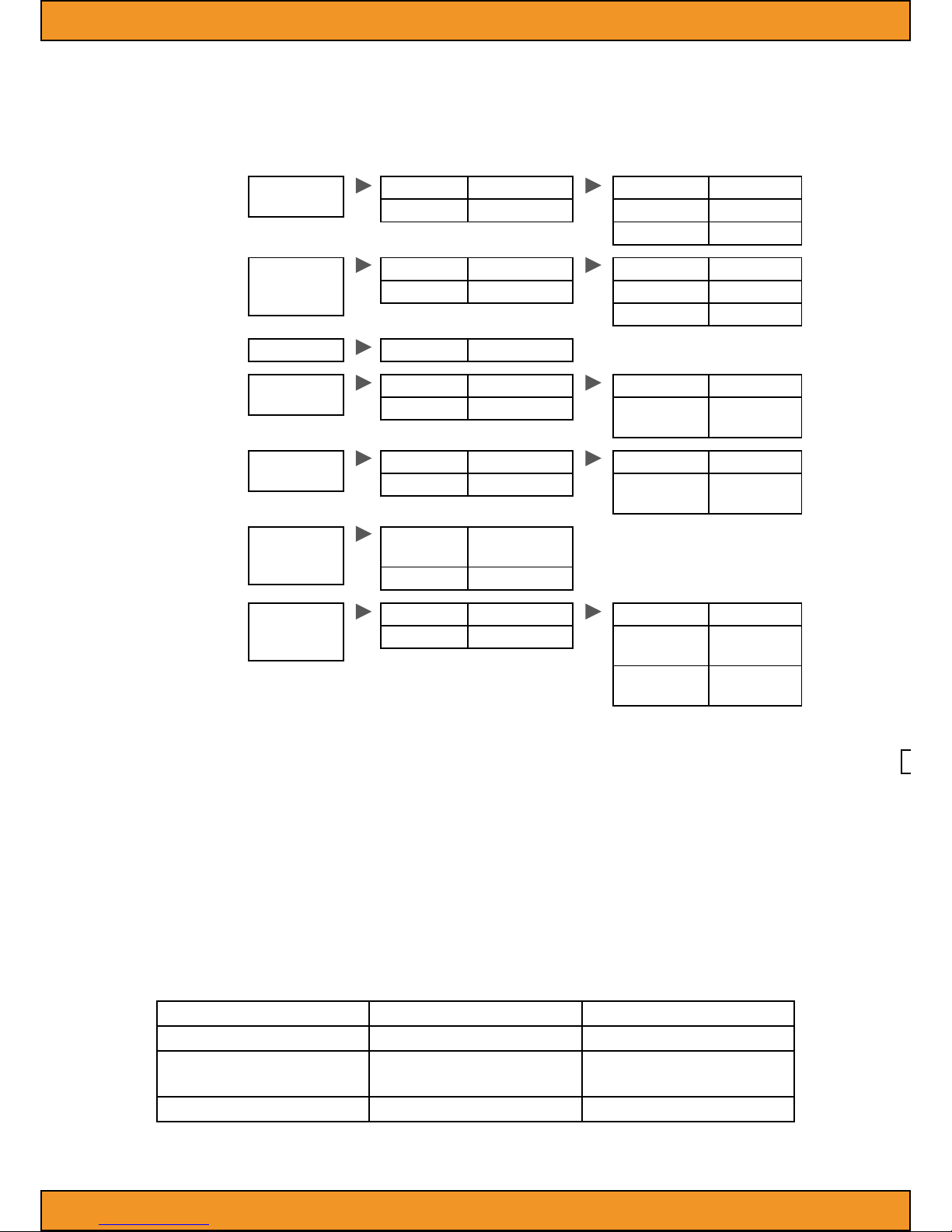

Set DMX Channel
Mode
Channels
(8)
edit ENTER
exit MENU/WAIT 5 SEC
change mode UP/DOWN
save and exit ENTER
cancel MENU/WAIT 5 SEC
Device reaction
after DMX signal
disconnection
DMX O (BLACK,
COLOR, DEMO,
SOUND)
edit ENTER
exit MENU/WAIT 5 SEC
change mode UP/DOWN
save and exit ENTER
cancel MENU
Reset device
Reset reset device ENTER
Set fan noise level
Fan Mode
(DISCO, THEATRE)
edit ENTER
exit MENU/WAIT 5 SEC
change ode UP/DOWN
save and exit ENTER/MENU/
WAIT 5 SEC
Set master or slave
mode
Mode
(MASTER, SLAVE)
edit ENTER
exit MENU/WAIT 5 SEC
change ode UP/DOWN
save and exit ENTER/MENU/
WAIT 5 SEC
Check device
lifetime and actual
temperature
Lifetime
(LIFETIME, TEMPERATURE)
check temperature/lifetime
ENTER
exit MENU/WAIT 5 SEC
Adjust permanent
color correction
Color correction
(RED, GREEN,
BLUE, WHITE)
edit SETTINGS ENTER
exit MENU/WAIT 5 SEC
change value UP/DOWN
save and go to
next param.
ENTER
cancel current
param. edit/back
MENU/WAIT 5 SEC
To achieve the desired eect after making changes in Manual settings, Demo or Sound mode, you should:
1. Disconnect DMX signal
2. Set the appropriate device response in Menu -> DMX o
3. Set and save the parameters in the selected mode (Manual settings, Demo, Sound)
4. Wait about 1s in order to the device detected the DMX signal status
DMX channel list
DMX Channel (6CH)
Channel Function Eect
1 Dimmer 0-255: 0-100%
2 Strobo 0-11: No Function
11-255: Strobo 1-20Hz
3 Red 0-255: 0-100%
Menü
Manual | LED PAR 64 SLIM 7x10W RGBW
4 Green 0-255: 0-100%
5 Blue 0-255: 0-100%
6 White 0-255: 0-100%
DMX Channel (CH)
Channel Function Eect
1 Dimmer 0-255: 0-100%
2 Strobo 0-11: No Function
11-255: Strobo 1-20Hz
3 Red 0-255: 0-100%
4 Green 0-255: 0-100%
5 Blue 0-255: 0-100%
6 White 0-255: 0-100%
7 Macro 0-19: No Function
20-39: Macro 1
40-59: Macro 2
60-79: Macro 3
80-99: Macro 4
100-119: Color 1
120-139: Color 2
140-159: Color 3
160-179: Color 4
180-199: Color 5
200-219: Color 6
220-239: Color 7
240-255: Sound Mode
8 Color change 0-19: No Function
20-39: Color 1
40-59: Color 2
60-79: Color 3
80-99: Color 4
100-119: Color 5
120-139: Color 6
140-159: Color 7
160-179: Color 8
180-199: Color 9
200-219: Color 10
220-239: Color 11
240-255: Color 12
