Product data sheet
Characteristics

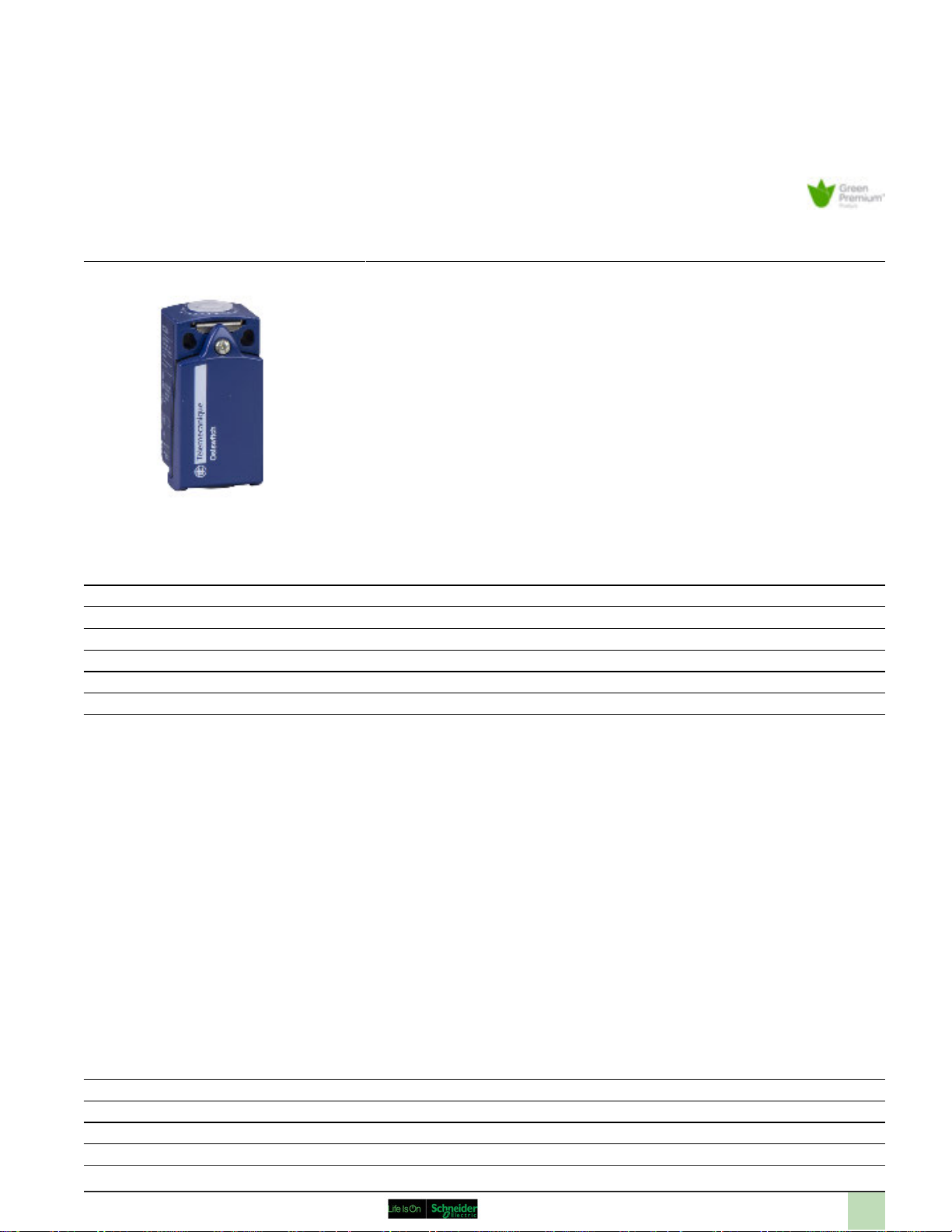

ZCD29
limit switch body ZCD - compact - 2NC - snap
action
Main
Range of product OsiSense XC
Series name Standard compact
Product or component type Limit switch body
Device short name ZCD
Design Compact
Body type Fixed
Associated head ZCE07
Body material Zamak
Number of poles 2
Contacts type and composition 2 NC
Contact operation Snap action, simultaneous
ZCE65
ZCE02
ZCE64
ZCE67
ZCE27
ZCE63
ZCE21
ZCE01
ZCE14
ZCE28
ZCEH0
ZCE24
ZCE08
ZCE05
ZCE29
ZCEH2
ZCE09
ZCE62
ZCE66
ZCE11
ZCE13
ZCE06
ZCE10
Jan 05, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Complementary
Associated connection component ZCDEP20
Electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form Zb
Contacts material Silver plated contacts
Positive opening With
Minimum actuation speed 0.01 m/s
Contact code designation B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
Short-circuit protection 6 A by gG cartridge fuse
Electrical durability 5000000 cycles, DC-13 120 V, 1 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC
Width 31 mm
Height 65 mm
Depth 30 mm
ZCDEG11
ZCDEF12
ZCDEG13
ZCDEN12
ZCDEP16
R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A
500 V degree of pollution 3 conforming to IEC 60947-1
300 V conforming to UL 508
6 kV conforming to IEC 60947-1
60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 3 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC
60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 2 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC
60947-5-1 appendix C
Environment
Product compatibility XCKD
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...70 °C
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1002 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product end of life instructions Need no specific recycling operations
Contractual warranty
Warranty period 18 months
2
