Square D ZB6EB5B Data Sheet

Product data sheet

Characteristics

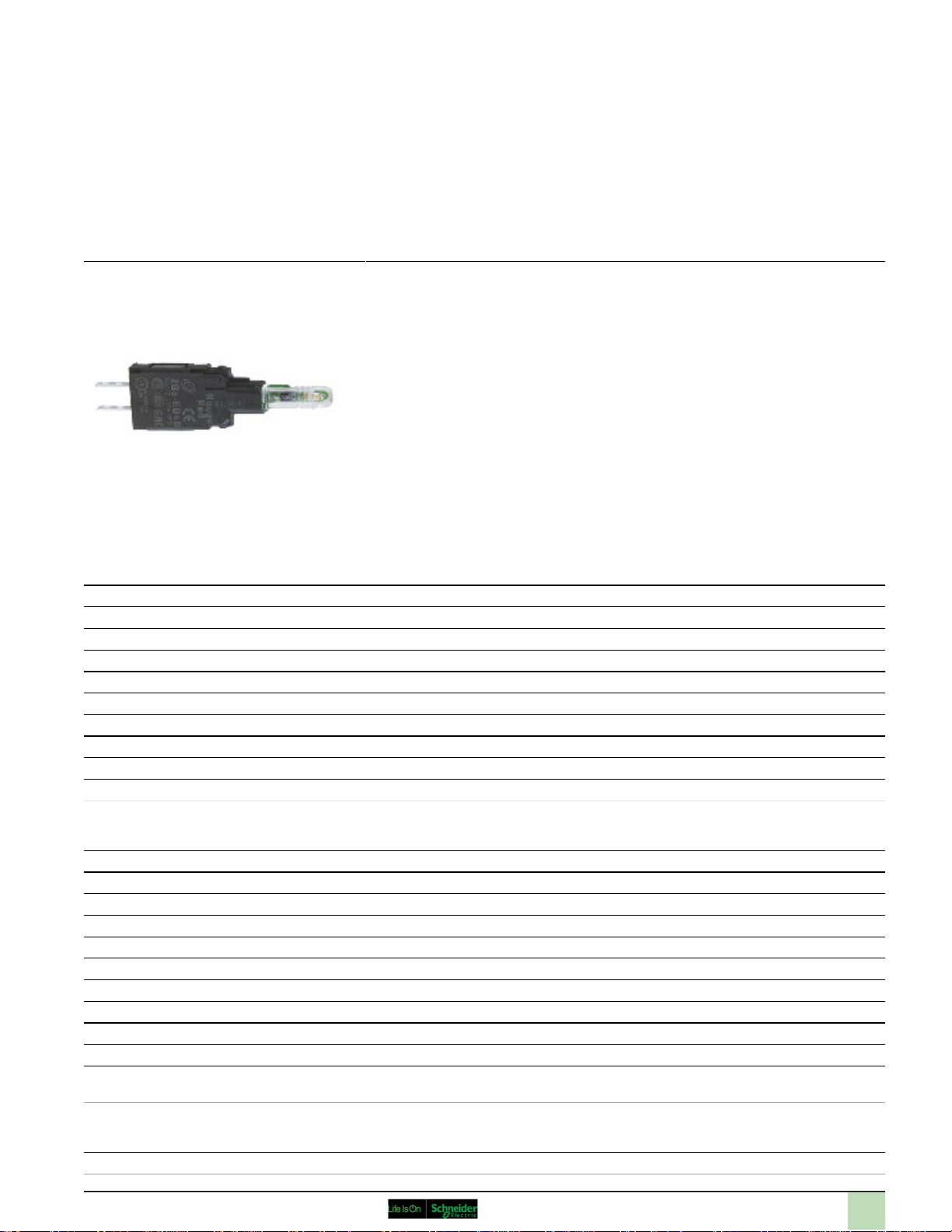

ZB6EB5B

yellow light block with body/fixing collar with
integral LED 12...24V

Main

Range of product Harmony XB6

Product or component type Complete body for pilot lights

Device short name ZB6

Sale per indivisible quantity 5

Connections - terminals Faston connectors (2.8 x 0.5 mm)

Light source LED

Bulb base Integral LED

Light block supply Direct

Light source colour Yellow

[Us] rated supply voltage 12...24 V AC/DC

Complementary

CAD overall height 14 mm

CAD overall depth 58 mm

Terminals description ISO n°1 (+ -)PL

Product weight 0.003 kg

Operating position Any position

[Ui] rated insulation voltage 250 V (degree of pollution: 3) conforming to EN/IEC 60947-1

[Uimp] rated impulse withstand voltage 4 kV conforming to EN 60947-1

Signalling type Steady

Supply voltage limits 6...30 V AC/DC

Current consumption 15 mA

Surge withstand 1 kV in contact conforming to IEC 61000-4-5

2 kV in free air conforming to IEC 61000-4-5

Environment

Protective treatment TC

Oct 10, 2017

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

Ambient air temperature for storage -40...70 °C

Ambient air temperature for operation -25...70 °C

Electrical shock protection class Class II conforming to IEC 61140

Standards EN/IEC 60947-5-5

Product certifications UL

Vibration resistance +/- 3 mm (f = 2...500 Hz) conforming to IEC 60068-2-6

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients 2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge 6 kV on contact (on metal parts) conforming to IEC 61000-2-6

Electromagnetic emission Class B conforming to IEC 55011

EN/IEC 60947-1
JIS C 852
CSA C22.2 No 14
JIS C 4520
EN/IEC 60947-5-1
UL 508

CSA
CCC
GOST

5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6

50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

8 kV in free air (in insulating parts) conforming to IEC 61000-2-6

Contractual warranty

Warranty period 18 months

2

Product data sheet

Dimensions Drawings

Body for Pilot Light

Dimensions

b 13.5mm/0.53in.

ZB6EB5B
