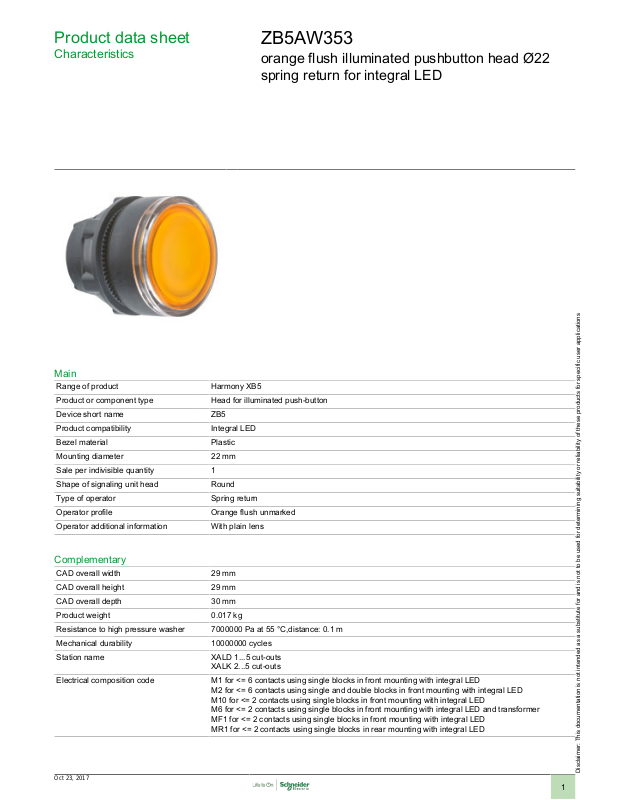

Product data sheet
Characteristics
ZB5AW353
orange flush illuminated pushbutton head Ø22
spring return for integral LED
Main
Range of product Harmony XB5
Product or component type Head for illuminated push-button
Device short name ZB5
Product compatibility Integral LED
Bezel material Plastic
Mounting diameter 22 mm
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator Spring return
Operator profile Orange flush unmarked
Operator additional information With plain lens
Complementary
CAD overall width 29 mm
CAD overall height 29 mm
CAD overall depth 30 mm
Product weight 0.017 kg
Resistance to high pressure washer 7000000 Pa at 55 °C,distance: 0.1 m
Mechanical durability 10000000 cycles
Station name XALD 1...5 cut-outs
Electrical composition code M1 for <= 6 contacts using single blocks in front mounting with integral LED
XALK 2...5 cut-outs
M2 for <= 6 contacts using single and double blocks in front mounting with integral LED
M10 for <= 2 contacts using single blocks in front mounting with integral LED
M6 for <= 2 contacts using single blocks in front mounting with integral LED and transformer
MF1 for <= 2 contacts using single blocks in front mounting with integral LED
MR1 for <= 2 contacts using single blocks in rear mounting with integral LED
Oct 23, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Environment
Protective treatment TC
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -40...70 °C
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP69
NEMA degree of protection NEMA 13
IK degree of protection IK05 conforming to EN 50102
Standards EN/IEC 60947-5-4
Product certifications LROS (Lloyds register of shipping)
Vibration resistance 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
IP67
IP66 conforming to IEC 60529
IP69K
NEMA 4X
JIS C 4520
EN/IEC 60947-1
EN/IEC 60947-5-1
GB 14048.5
CSA C22.2 No 14
UL 508
UL listed
GL
RINA
BV
DNV
CSA
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Contractual warranty
Warranty period 18 months
