Product data sheet
Characteristics

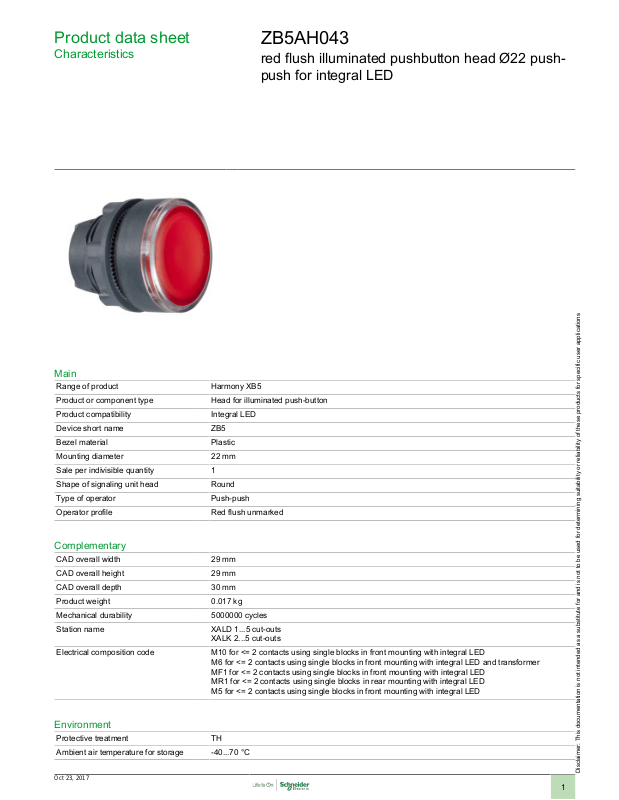

ZB5AH043
red flush illuminated pushbutton head Ø22 pushpush for integral LED
Main
Range of product Harmony XB5
Product or component type Head for illuminated push-button
Product compatibility Integral LED
Device short name ZB5
Bezel material Plastic
Mounting diameter 22 mm
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator Push-push
Operator profile Red flush unmarked
Complementary
CAD overall width 29 mm
CAD overall height 29 mm
CAD overall depth 30 mm
Product weight 0.017 kg
Mechanical durability 5000000 cycles
Station name XALD 1...5 cut-outs
Electrical composition code M10 for <= 2 contacts using single blocks in front mounting with integral LED
XALK 2...5 cut-outs
M6 for <= 2 contacts using single blocks in front mounting with integral LED and transformer
MF1 for <= 2 contacts using single blocks in front mounting with integral LED
MR1 for <= 2 contacts using single blocks in rear mounting with integral LED
M5 for <= 2 contacts using single blocks in front mounting with integral LED
Environment
Protective treatment TH
Ambient air temperature for storage -40...70 °C
Oct 23, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Ambient air temperature for operation -25...70 °C
Electrical shock protection class Class II conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 13
Resistance to high pressure washer 7000000 Pa at 55 °C,distance: 0.1 m
IK degree of protection IK05 conforming to IEC 50102
Standards EN/IEC 60947-5-1
Product certifications UL listed
Vibration resistance 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
NEMA 4X
CSA C22.2 No 14
EN/IEC 60947-5-5
EN/IEC 60947-1
UL 508
JIS C 4520
EN/IEC 60947-5-4
GL
DNV
LROS (Lloyds register of shipping)
RINA
BV
CSA
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Contractual warranty
Warranty period 18 months
2
Product data sheet
Dimensions Drawings
Dimensions
ZB5AH043
3
Product data sheet
ZB5AH043
Mounting and Clearance
Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board
(1) Diameter on finished panel or support
(2) For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
(3)
Ø22.5mm recommended (Ø22.3 0
Connections a in mm a in in. b in mm b in in.
By screw clamp terminals or plug-in connector 40 1.57 30 1.18
By Faston connectors 45 1.77 32 1.26
On printed circuit board 30 1.18 30 1.18
Detail of Lug Recess
+0.4
) / Ø0.89in. recommended (Ø0.88in. 0
+0 016
)
(1) Diameter on finished panel or support
(2) For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
(3)
Ø22.5mm recommended (Ø22.3 0
+0.4
) / Ø0.89in. recommended (Ø0.88in. 0
+0 016
)
4
Product data sheet
ZB5AH043
Mounting and Clearance
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board Connection
Panel Cut-outs (Viewed from Installer’s Side)
A: 30mm min. / 1.18in. min.
B: 40mm min. / 1.57in. min.
Printed Circuit Board Cut-outs (Viewed from Electrical Block Side)
Dimensions in mm
A: 30mm min.
B: 40mm min.
Dimensions in in.
A: 1.18in. min.
B: 1.57in. min.
General Tolerances of the Panel and Printed Circuit Board
The cumulative tolerance must not exceed 0.3mm / 0.012in.: T1 + T2 = 0.3mm max.
Installation Precautions
● Minimum thickness of circuit board: 1.6mm / 0.06in.
● Cut-out diameter: 22.4mm ± 0.1 / 0.88in. ± 0.004
●
Orientation of body/fixing collar ZB5AZ009: ± 2°30’ (excluding cut-outs marked a and b).
● Tightening torque of screws ZBZ006: 0.6N.m (5.3lbf.in) max.
● Allow for one ZB5AZ079 fixing collar/pillar and its fixing screws:
○ every 90mm / 3.54in. horizontally (X), and 120mm / 4.72in. vertically (Y).
○ with each selector switch head (ZB5AD•, ZB5AJ•, ZB5AG•).
The fixing centers marked a and b are diagonally opposed and must align with those marked 4 and 5.
(1) Head ZB5AD•
(2) Panel
(2) Nut
(4) Printed circuit board
Mounting of Adapter (Socket) ZBZ01•
● 1 2 elongated holes for ZBZ006 screw access
● 2 1 hole Ø 2.4mm ± 0.05 / 0.09in. ± 0.002 for centring adapter ZBZ01•
● 3 8 × Ø 1.2mm / 0.05in. holes
● 4 1 hole Ø 2.9mm ± 0.05 / 0.11in. ± 0.002, for aligning the printed circuit board (with cut-out marked a)
● 5 1 elongated hole for aligning the printed circuit board (with cut-out marked b)
● 6 4 holes Ø 2.4mm / 0.09in. for clipping in adapter ZBZ01•
Dimensions An + 18.1 relate to the Ø 2.4mm ± 0.05 / 0.09in. ± 0.002 holes for centring adapter ZBZ01•.
5
Product data sheet
Technical Description
Electrical Composition Corresponding to Codes C9, C11, SF1 and SR1
ZB5AH043
6
Product data sheet
ZB5AH043
Technical Description
Electrical Composition Corresponding to Code C15
1 N/O
1 N/C
1 N/O + N/C or 1 N/O + N/O or 1 N/C + N/C
7
Product data sheet
Technical Description
Legend
Single contact
Double contact
Light block
Possible location
ZB5AH043
8
