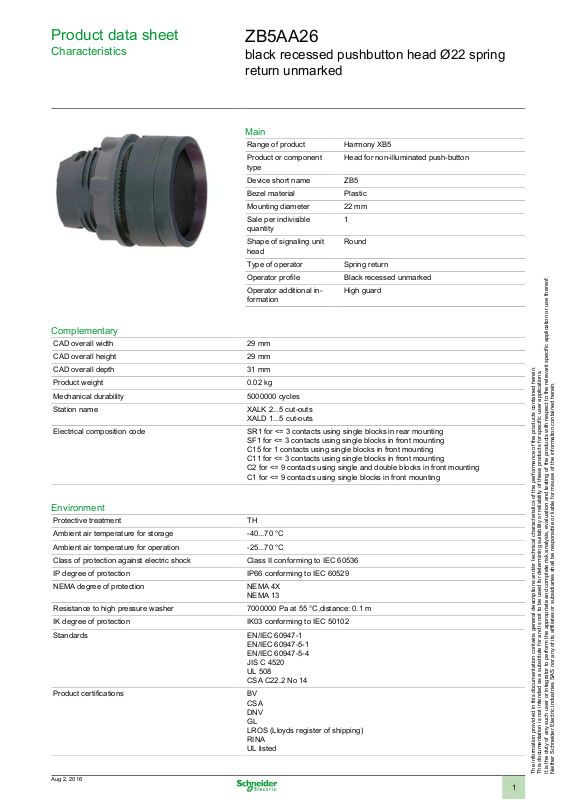

Product data sheet
Characteristics

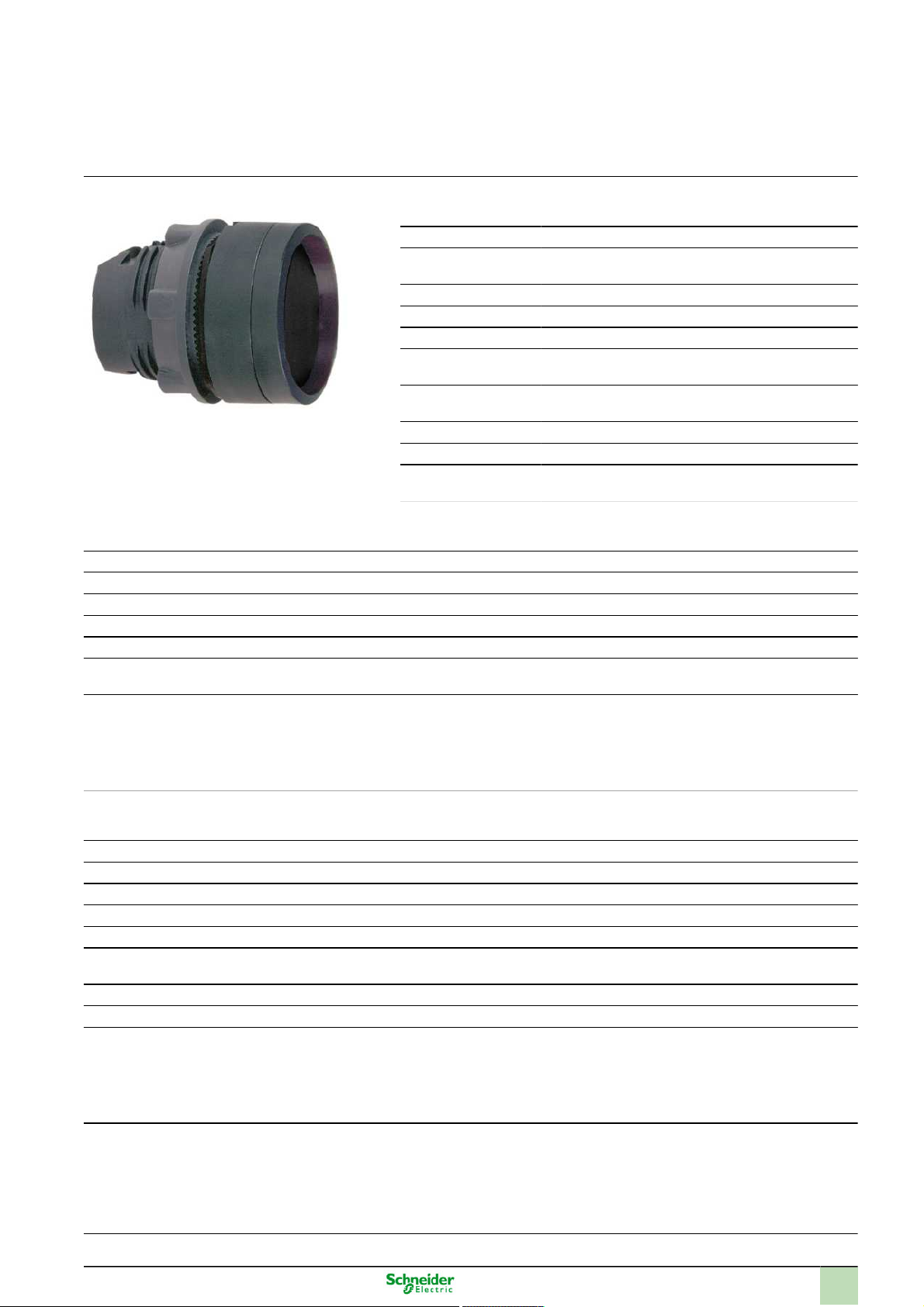

ZB5AA26
black recessed pushbutton head Ø22 spring
return unmarked
Main
Range of product Harmony XB5
Product or component
type
Device short name ZB5
Bezel material Plastic
Mounting diameter 22 mm
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator Spring return
Operator profile Black recessed unmarked
Operator additional information
Head for non-illuminated push-button
1
Round
High guard
Complementary
CAD overall width 29 mm
CAD overall height 29 mm
CAD overall depth 31 mm
Product weight 0.02 kg
Mechanical durability 5000000 cycles
Station name XALK 2...5 cut-outs
Electrical composition code SR1 for <= 3 contacts using single blocks in rear mounting
XALD 1...5 cut-outs
SF1 for <= 3 contacts using single blocks in front mounting
C15 for 1 contacts using single blocks in front mounting
C11 for <= 3 contacts using single blocks in front mounting
C2 for <= 9 contacts using single and double blocks in front mounting
C1 for <= 9 contacts using single blocks in front mounting
Environment
Protective treatment TH
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -25...70 °C
Class of protection against electric shock Class II conforming to IEC 60536
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 4X
Resistance to high pressure washer 7000000 Pa at 55 °C,distance: 0.1 m
IK degree of protection IK03 conforming to IEC 50102
Standards EN/IEC 60947-1
Product certifications BV
NEMA 13
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
UL 508
CSA C22.2 No 14
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
Aug 2, 2016
1
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC
Vibration resistance 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC
60068-2-27
2
Product data sheet
Dimensions Drawings
Dimensions
ZB5AA26
3
Product data sheet
ZB5AA26
Mounting and Clearance
Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board
(1) Diameter on finished panel or support
(2) For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
(3)
Ø22.5mm recommended (Ø22.3 0
+0.4
) / Ø0.89in. recommended (Ø0.88in. 0
+0 016
)
Connections a in mm a in in. b in mm b in in.
By screw clamp terminals or plug-in connector 40 1.57 30 1.18
By Faston connectors 45 1.77 32 1.26
On printed circuit board 30 1.18 30 1.18
Detail of Lug Recess
(1) Diameter on finished panel or support
(2) For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
(3)
Ø22.5mm recommended (Ø22.3 0
+0.4
) / Ø0.89in. recommended (Ø0.88in. 0
+0 016
)
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board Connection
4
Panel Cut-outs (Viewed from Installer’s Side)
A: 30mm min. / 1.18in. min.
B: 40mm min. / 1.57in. min.
Printed Circuit Board Cut-outs (Viewed from Electrical Block Side)
Dimensions in mm
A: 30mm min.
B: 40mm min.
5
Dimensions in in.
A: 1.18in. min.
B: 1.57in. min.
General Tolerances of the Panel and Printed Circuit Board
The cumulative tolerance must not exceed 0.3mm / 0.012in.: T1 + T2 = 0.3mm max.
Installation Precautions
● Minimum thickness of circuit board: 1.6mm / 0.06in.
● Cut-out diameter: 22.4mm ± 0.1 / 0.88in. ± 0.004
●
Orientation of body/fixing collar ZB5AZ009: ± 2°30’ (excluding cut-outs marked a and b).
● Tightening torque of screws ZBZ006: 0.6N.m (5.3lbf.in) max.
● Allow for one ZB5AZ079 fixing collar/pillar and its fixing screws:
○ every 90mm / 3.54in. horizontally (X), and 120mm / 4.72in. vertically (Y).
○ with each selector switch head (ZB5AD•, ZB5AJ•, ZB5AG•).
The fixing centers marked a and b are diagonally opposed and must align with those marked 4 and 5.
(1) Head ZB5AD•
(2) Panel
(2) Nut
(4) Printed circuit board
6
Mounting of Adapter (Socket) ZBZ01•
● 1 2 elongated holes for ZBZ006 screw access
● 2 1 hole Ø 2.4mm ± 0.05 / 0.09in. ± 0.002 for centring adapter ZBZ01•
● 3 8 × Ø 1.2mm / 0.05in. holes
● 4 1 hole Ø 2.9mm ± 0.05 / 0.11in. ± 0.002, for aligning the printed circuit board (with cut-out marked a)
● 5 1 elongated hole for aligning the printed circuit board (with cut-out marked b)
● 6 4 holes Ø 2.4mm / 0.09in. for clipping in adapter ZBZ01•
Dimensions An + 18.1 relate to the Ø 2.4mm ± 0.05 / 0.09in. ± 0.002 holes for centring adapter ZBZ01•.
7
Product data sheet
ZB5AA26
Technical Description
Electrical Composition Corresponding to Code C1
Electrical Composition Corresponding to Code C2
Electrical Composition Corresponding to Codes C9, C11, SF1 and SR1
Electrical Composition Corresponding to Code C15
1 N/O
1 N/C
1 N/O + N/C or 1 N/O + N/O or 1 N/C + N/C
Legend
8
Single contact
Double contact
Light block
Possible location
9
