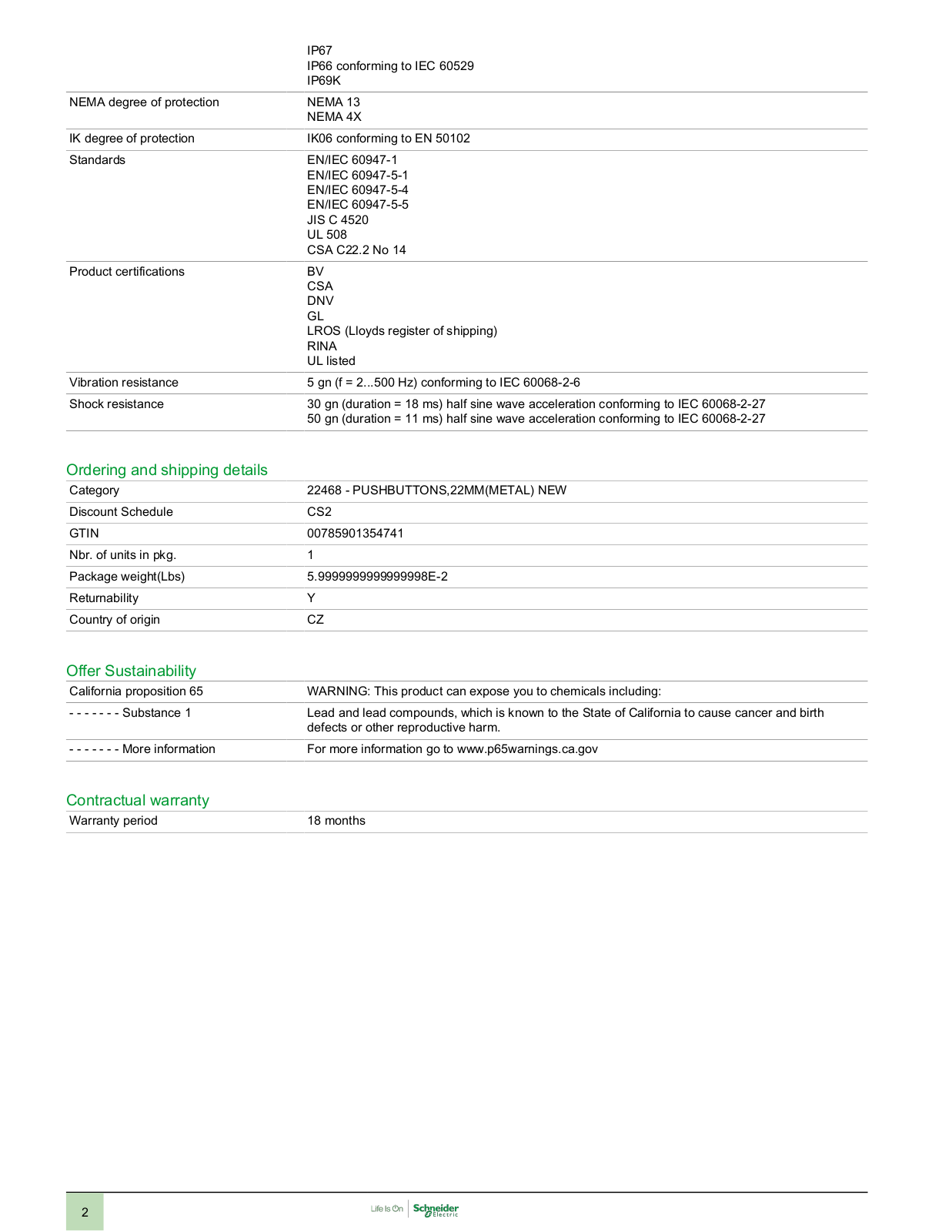

IP67
IP66 conforming to IEC 60529
IP69K
NEMA degree of protection NEMA 13
IK degree of protection IK06 conforming to EN 50102
Standards EN/IEC 60947-1
Product certifications BV
Vibration resistance 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27
NEMA 4X
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
CSA C22.2 No 14
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
Ordering and shipping details
Category 22468 - PUSHBUTTONS,22MM(METAL) NEW
Discount Schedule CS2
GTIN 00785901354741
Nbr. of units in pkg. 1
Package weight(Lbs) 5.9999999999999998E-2
Returnability Y
Country of origin CZ
Offer Sustainability
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Lead and lead compounds, which is known to the State of California to cause cancer and birth
- - - - - - - More information For more information go to www.p65warnings.ca.gov
defects or other reproductive harm.
Contractual warranty
Warranty period 18 months
