Product data sheet
Characteristics

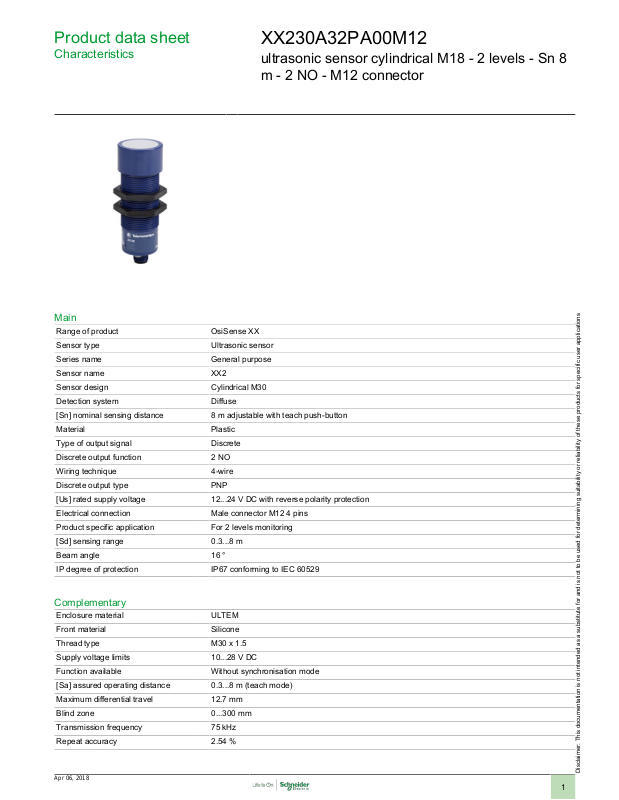

XX230A32PA00M12
ultrasonic sensor cylindrical M18 - 2 levels - Sn 8
m - 2 NO - M12 connector
Main
Range of product OsiSense XX
Sensor type Ultrasonic sensor
Series name General purpose
Sensor name XX2
Sensor design Cylindrical M30
Detection system Diffuse
[Sn] nominal sensing distance 8 m adjustable with teach push-button
Material Plastic
Type of output signal Discrete
Discrete output function 2 NO
Wiring technique 4-wire
Discrete output type PNP
[Us] rated supply voltage 12...24 V DC with reverse polarity protection
Electrical connection Male connector M12 4 pins
Product specific application For 2 levels monitoring
[Sd] sensing range 0.3...8 m
Beam angle 16 °
IP degree of protection IP67 conforming to IEC 60529
Complementary
Enclosure material ULTEM
Front material Silicone
Thread type M30 x 1.5
Supply voltage limits 10...28 V DC
Function available Without synchronisation mode
[Sa] assured operating distance 0.3...8 m (teach mode)
Maximum differential travel 12.7 mm
Blind zone 0...300 mm
Transmission frequency 75 kHz
Repeat accuracy 2.54 %
Apr 06, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Deviation angle from 90° of object to
be detected
Minimum size of detected object Cylinder diameter 50.8 mm 4.732 m
Status LED 1 LED (green/red (flashing)) for output state
Current consumption 100 mA
Maximum switching current 100 mA with overload and short-circuit protection
Voltage drop < 1 V
Delay first up 1000 ms
Delay response 150 ms
Delay recovery 1000 ms
Marking CE
Threaded length 64.3 mm
Height 44 mm
Width 44 mm
Depth 118 mm
Product weight 0.11 kg
-5...5 °
1 LED (green/red (flashing)) for setting-up assistance
1 LED (yellow) for distance indication
Environment
Standards IEC 60947-5-2
Product certifications UL
Ambient air temperature for operation -20...60 °C
Ambient air temperature for storage -10...80 °C
Vibration resistance +/-1 mm conforming to IEC 60068-2-6 10...55 Hz
Shock resistance 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Resistance to electrostatic discharge 8 kV level 4 conforming to IEC 61000-4-2
Resistance to electromagnetic fields 10 V/m level 3 conforming to IEC 61000-4-3
Resistance to fast transients 1 kV level 3 conforming to IEC 61000-4-4
CCSAus
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 1140 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference contains SVHC above the threshold - Go to CaP for more details
Go to CaP for more details
Contractual warranty
Warranty period 18 months
