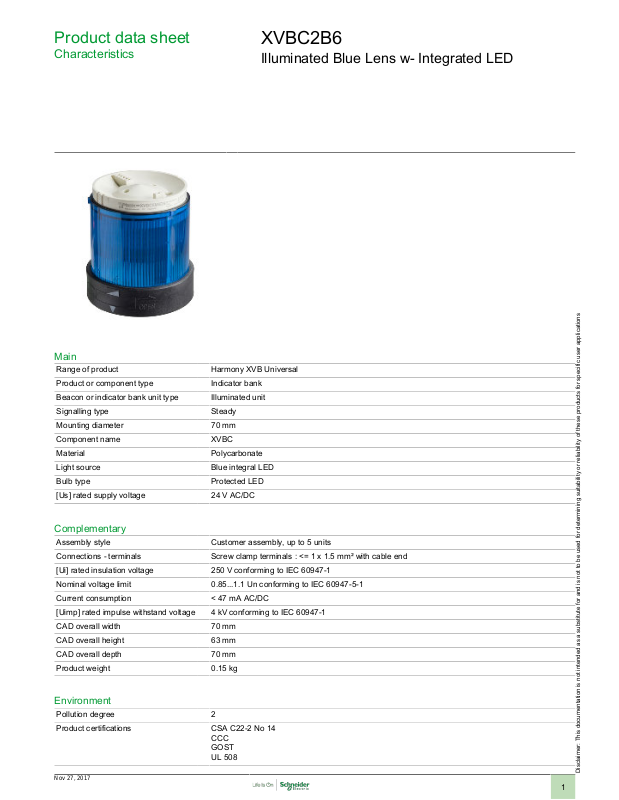

Product data sheet
Characteristics
XVBC2B6
Illuminated Blue Lens w- Integrated LED
Main
Range of product Harmony XVB Universal
Product or component type Indicator bank
Beacon or indicator bank unit type Illuminated unit
Signalling type Steady
Mounting diameter 70 mm
Component name XVBC
Material Polycarbonate
Light source Blue integral LED
Bulb type Protected LED
[Us] rated supply voltage 24 V AC/DC
Complementary
Assembly style Customer assembly, up to 5 units
Connections - terminals Screw clamp terminals : <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
Nominal voltage limit 0.85...1.1 Un conforming to IEC 60947-5-1
Current consumption < 47 mA AC/DC
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
CAD overall width 70 mm
CAD overall height 63 mm
CAD overall depth 70 mm
Product weight 0.15 kg
Environment
Pollution degree 2
Product certifications CSA C22-2 No 14
CCC
GOST
UL 508
Nov 27, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Standards EN/IEC 60947-5-1
Protective treatment TC
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -25...50 °C
Electrical shock protection class Class I on support tube conforming to IEC 61140
IP degree of protection IP65 on fixing base XVBZ0. conforming to IEC 60529
NEMA degree of protection NEMA 4X indoor conforming to UL 508
Class II on base unit conforming to IEC 61140
IP66 on base unit conforming to IEC 60529
Contractual warranty
Warranty period 18 months
2
Product data sheet
XVBC2B6
Dimensions Drawings
Indicator Bank without “Flash” Discharge Tube Unit
Dimensions
Below drawing shows the minimum configuration of the product. Select the number of stages according to the product characteristics in order to
get b dimension.
(1) Base unit XVBC21, to be ordered separately
(2) Illuminated or audible signalling unit
(3) Cover (supplied with XVBC21 base unit)
Number of illuminated or audible signalling units (no “flash”) b in mm b in in.
1 138 5.43
2 201 7.91
3 264 10.39
4 327 12.87
5 390 15.35
3
Product data sheet
XVBC2B6
Dimensions Drawings
Indicator Bank with “Flash” Discharge Tube Unit
Dimensions
Below drawing shows the minimum configuration of the product. Select the number of stages according to the product characteristics in order to
get b dimension.
(1) Base unit XVBC07, to be ordered separately
(2) Illuminated or audible signalling unit
(3) “Flash” unit, to be ordered separately
Number of illuminated or audible signalling units other than “flash” tube b in mm b in in.
1 295 11.61
2 358 14.09
3 421 16.57
4 484 19.06
4
