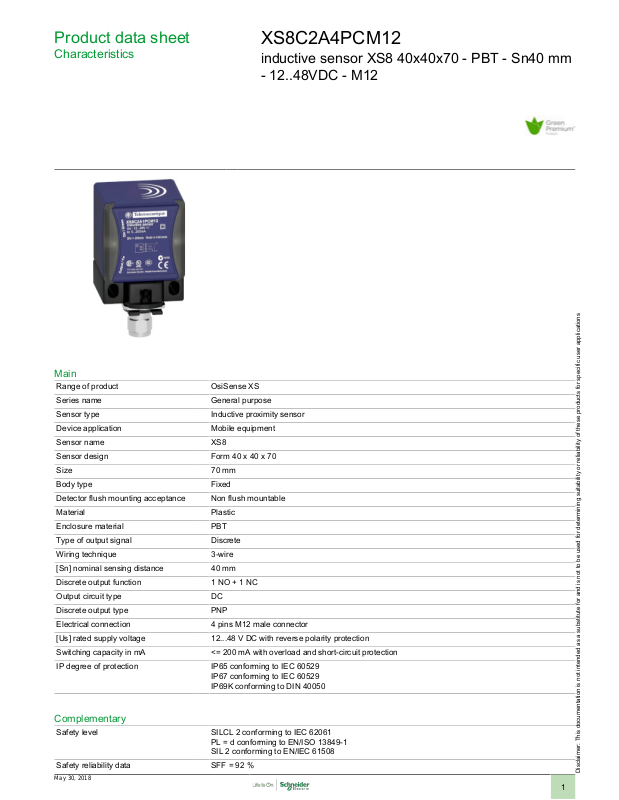

Product data sheet
Characteristics
XS8C2A4PCM12
inductive sensor XS8 40x40x70 - PBT - Sn40 mm
- 12..48VDC - M12
Main
Range of product OsiSense XS
Series name General purpose
Sensor type Inductive proximity sensor
Device application Mobile equipment
Sensor name XS8
Sensor design Form 40 x 40 x 70
Size 70 mm
Body type Fixed
Detector flush mounting acceptance Non flush mountable
Material Plastic
Enclosure material PBT
Type of output signal Discrete
Wiring technique 3-wire
[Sn] nominal sensing distance 40 mm
Discrete output function 1 NO + 1 NC
Output circuit type DC
Discrete output type PNP
Electrical connection 4 pins M12 male connector
[Us] rated supply voltage 12...48 V DC with reverse polarity protection
Switching capacity in mA <= 200 mA with overload and short-circuit protection
IP degree of protection IP65 conforming to IEC 60529
IP67 conforming to IEC 60529
IP69K conforming to DIN 40050
Complementary
Safety level SILCL 2 conforming to IEC 62061
PL = d conforming to EN/ISO 13849-1
SIL 2 conforming to EN/IEC 61508
Safety reliability data SFF = 92 %
May 30, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
DC = 75 % with appropriate safety controller
MTTFd = 1546 years
PFHd = 7.4E-8 1/h
Detection face 5 positions turret head
Front material PBT
Sensing range > 15...40 mm
Operating zone 0...32 mm
Differential travel 3...15% of Sr
Repeat accuracy <= 3% of Sr
Status LED 1 LED green for supply on
Supply voltage limits 10...58 V DC
Switching frequency <= 500 Hz
Voltage drop <= 2 V at closed state
Current consumption 0...15 mA at no-load
Delay first up <= 7.5 ms
Delay response <= 1.4 ms
Delay recovery <= 2.5 ms
Marking CE
Height 40 mm
Length 40 mm
Width 70 mm
Product weight 0.149 kg
1 LED yellow for output state
Environment
Product certifications TÜV
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...85 °C
Vibration resistance 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to EN 60068-2-27
E2
CSA
UL
CCC
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1213 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
Product end of life instructions Need no specific recycling operations
Contractual warranty
Warranty period 18 months
2
Product data sheet
Dimensions Drawings
Dimensions
XS8C2A4PCM12
3
