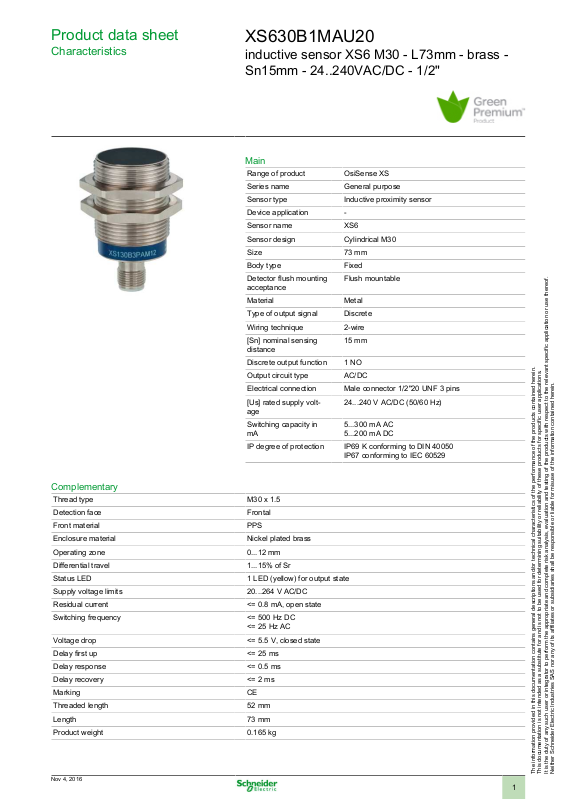

Product data sheet
Characteristics
XS630B1MAU20
inductive sensor XS6 M30 - L73mm - brass Sn15mm - 24..240VAC/DC - 1/2"
Main
Range of product OsiSense XS
Series name General purpose
Sensor type Inductive proximity sensor
Device application -
Sensor name XS6
Sensor design Cylindrical M30
Size 73 mm
Body type Fixed
Detector flush mounting
acceptance
Material Metal
Type of output signal Discrete
Wiring technique 2-wire
[Sn] nominal sensing
distance
Discrete output function 1 NO
Output circuit type AC/DC
Electrical connection Male connector 1/2"20 UNF 3 pins
[Us] rated supply voltage
Switching capacity in
mA
IP degree of protection IP69 K conforming to DIN 40050
Flush mountable
15 mm
24...240 V AC/DC (50/60 Hz)
5...300 mA AC
5...200 mA DC
IP67 conforming to IEC 60529
Complementary
Thread type M30 x 1.5
Detection face Frontal
Front material PPS
Enclosure material Nickel plated brass
Operating zone 0...12 mm
Differential travel 1...15% of Sr
Status LED 1 LED (yellow) for output state
Supply voltage limits 20...264 V AC/DC
Residual current <= 0.8 mA, open state
Switching frequency <= 500 Hz DC
Voltage drop <= 5.5 V, closed state
Delay first up <= 25 ms
Delay response <= 0.5 ms
Delay recovery <= 2 ms
Marking CE
Threaded length 52 mm
Length 73 mm
Product weight 0.165 kg
<= 25 Hz AC
Nov 4, 2016
1
Environment
Product certifications CSA
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...85 °C
Vibration resistance 25 gn, amplitude: +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) conforming to IEC 60068-2-27
UL
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW)
REACh Reference not containing SVHC above the threshold
Product environmental profile
Product end of life instructions
Compliant - since 0812 - Schneider Electric declaration of conformity
Available Download Product Environmental
Available Download End Of Life Manual
Contractual warranty
Period 18 months
