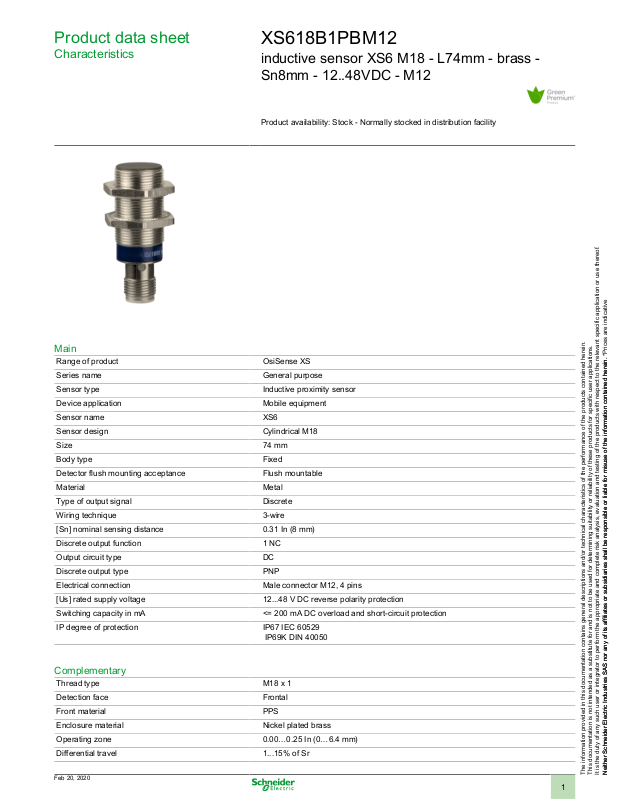

XS618B1PBM12
inductive sensor XS6 M18 - L74mm - brass Sn8mm - 12..48VDC - M12
Product availability: Stock - Normally stocked in distribution facility
Main
Range of product OsiSense XS
Series name General purpose
Sensor type Inductive proximity sensor
Device application Mobile equipment
Sensor name XS6
Sensor design Cylindrical M18
Size 74 mm
Body type Fixed

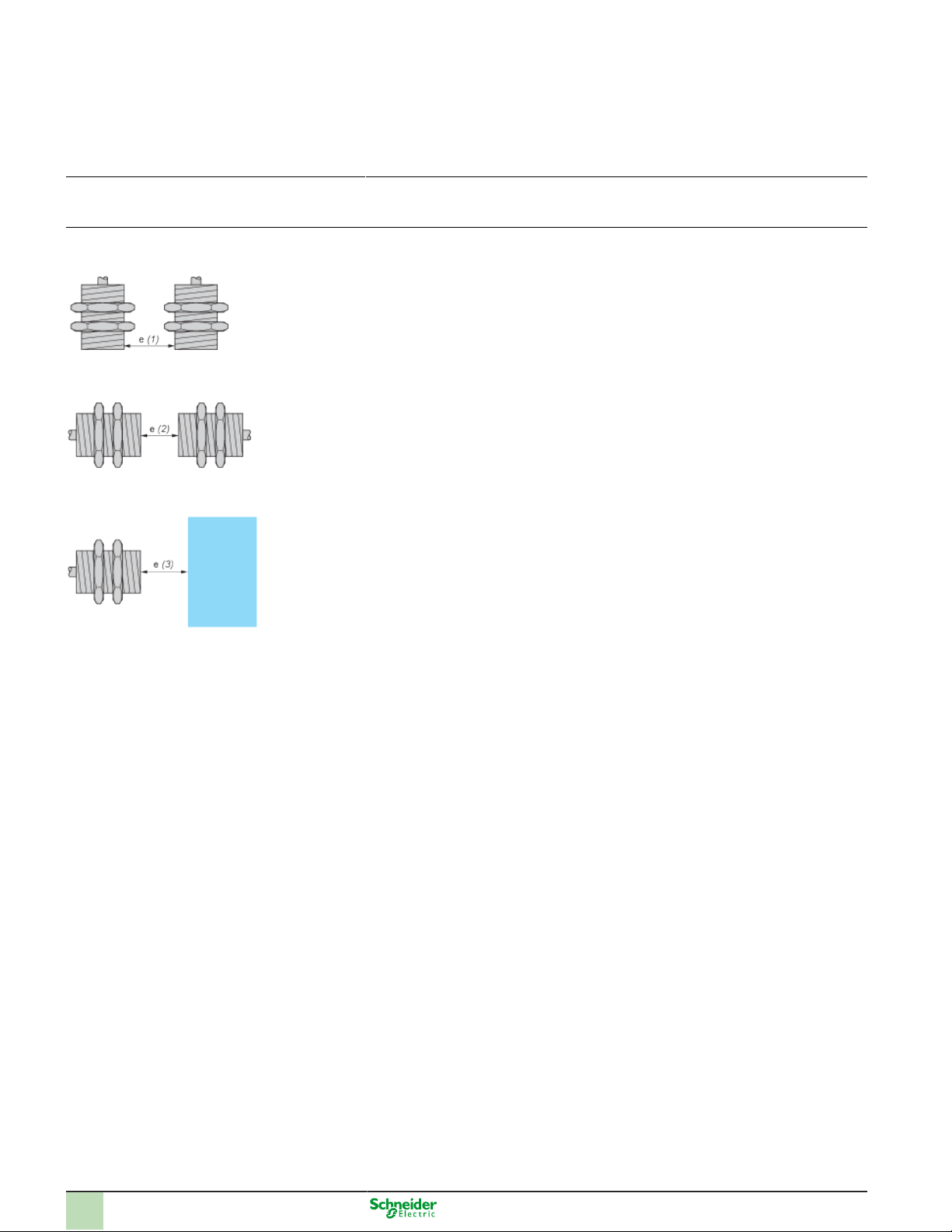

Detector flush mounting acceptance Flush mountable
Material Metal
Type of output signal Discrete
Wiring technique 3-wire
[Sn] nominal sensing distance 0.31In (8mm)
Discrete output function 1 NC
Output circuit type DC
Discrete output type PNP
Electrical connection Male connector M12, 4 pins
[Us] rated supply voltage 12...48 V DC reverse polarity protection
Switching capacity in mA <= 200 mA DC overload and short-circuit protection
IP degree of protection IP67 IEC 60529
IP69K DIN 40050
Complementary
Thread type M18 x 1
Detection face Frontal
Front material PPS
Enclosure material Nickel plated brass
Operating zone 0.00…0.25In (0…6.4mm)
Differential travel 1...15% of Sr
Feb 20, 2020
1
Status LED Output state 1 LED yellow)
Supply voltage limits 10…58V DC
Switching frequency <= 1000 Hz
Maximum voltage drop <2V closed)
Current consumption <= 10 mA no-load
Maximum delay first up 10Ms
Maximum delay response 0.3Ms
Maximum delay recovery 0.7Ms
Marking CE

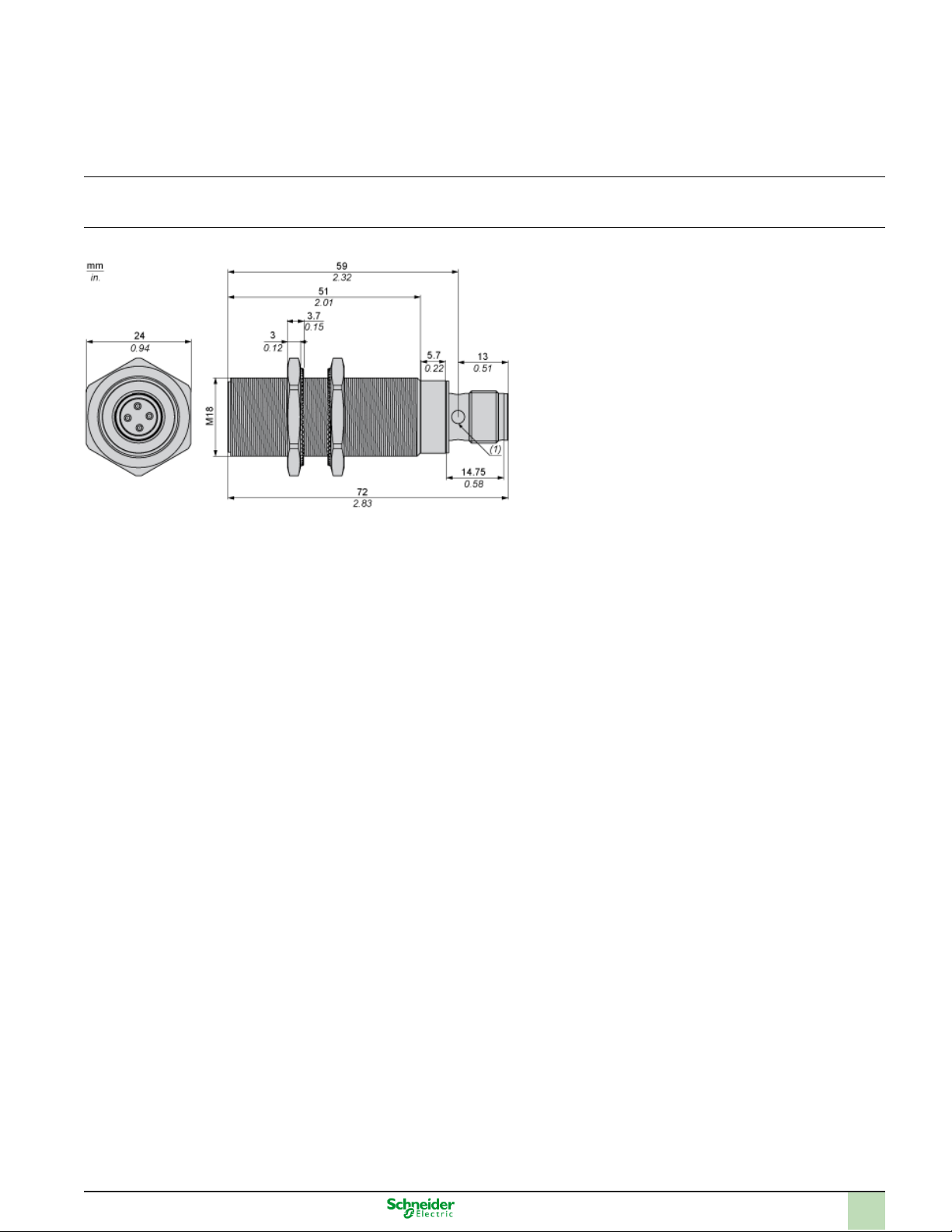

Threaded length 2.05In (52mm)
Length 2.91In (74mm)
Net weight 0.09Lb(US) (0.04kg)
Environment
Product certifications UL
Ambient air temperature for operation -13…158°F (-25…70°C)
Ambient air temperature for storage -40…185°F (-40…85°C)
Vibration resistance 25 gn +/- 2 mm 10…55Hz)IEC 60068-2-6
Shock resistance 50 gn 11ms IEC 60068-2-27
CSA
E2
Ordering and shipping details
Category 22486 - SENSORS, PROXIMITY
Discount Schedule DS2
GTIN 00785901872238
Returnability Yes
Country of origin ID
Offer Sustainability
Sustainable offer status Green Premium product
California proposition 65 WARNING: This product can expose you to chemicals including: Di-isodecyl ph-
EU RoHS Directive
Mercury free Yes
RoHS exemption information
Environmental Disclosure
Circularity Profile
thalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Yes
Product Environmental Profile
End Of Life Information
Contractual warranty
Warranty 18 months
