Product data sheet
Characteristics

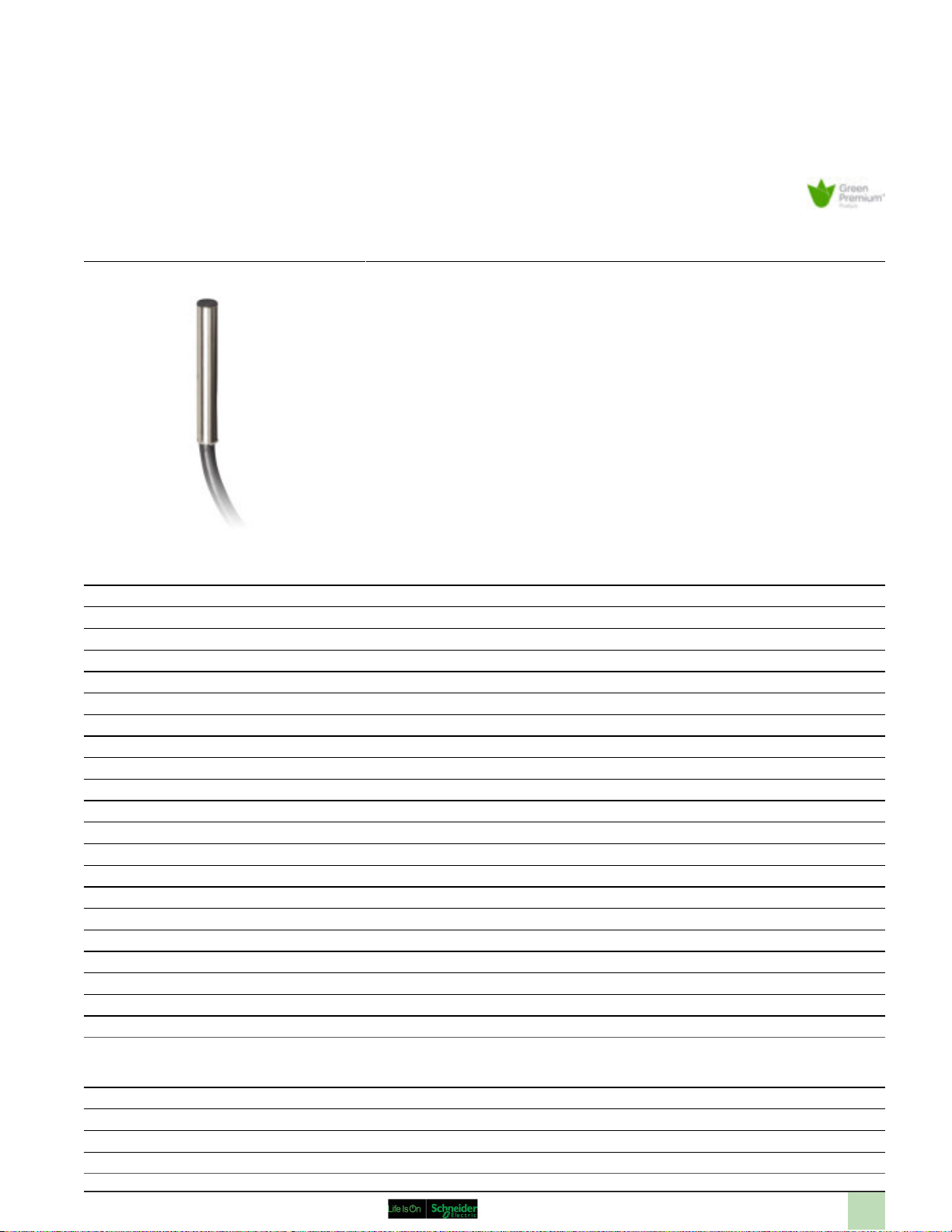

XS1L04NA310
inductive sensor XS1 Ø4 - L29mm - brass Sn1mm - 5..24VDC - cable 2m
Main
Range of product OsiSense XS
Series name General purpose
Sensor type Inductive proximity sensor
Device application -
Sensor name XS1
Sensor design Cylindrical Ø 4 mm plain
Size 29 mm
Body type Fixed
Detector flush mounting acceptance Flush mountable
Material Metal
Type of output signal Discrete
Wiring technique 3-wire
[Sn] nominal sensing distance 1 mm
Discrete output function 1 NO
Output circuit type DC
Discrete output type NPN
Electrical connection Cable
Cable length 2 m
[Us] rated supply voltage 5...24 V DC
Switching capacity in mA <= 100 mA with overload and short-circuit protection
IP degree of protection IP67 conforming to IEC 60529
Complementary
Detection face Frontal
Front material PPS
Enclosure material Nickel plated brass
Operating zone 0...0.8 mm
Feb 07, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Cable composition 3 x 0.11 mm²
Wire insulation material PvR
Status LED 1 LED yellow for output state
Supply voltage limits 5...30 V DC
Switching frequency <= 5000 Hz
Voltage drop <= 2 V at closed state
Current consumption <= 10 mA at no-load
Delay first up <= 5 ms
Delay response <= 1 ms
Delay recovery <= 1 ms
Marking CE
Threaded length 0 mm
Height 4 mm
Length 28 mm
Product weight 0.025 kg
Environment
Product certifications CSA
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...85 °C
Vibration resistance 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
UL
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0935 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Available
Product end of life instructions Available
Available
Contractual warranty
Warranty period 18 months
2
Product data sheet
Dimensions Drawings
Dimensions
(1) LED
XS1L04NA310
