Product data sheet
Characteristics

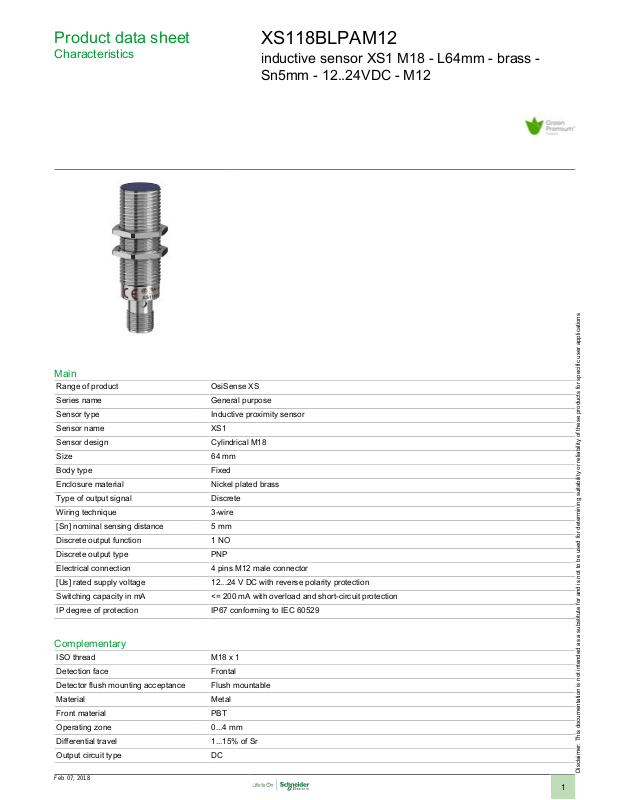

XS118BLPAM12
inductive sensor XS1 M18 - L64mm - brass Sn5mm - 12..24VDC - M12
Main
Range of product OsiSense XS
Series name General purpose
Sensor type Inductive proximity sensor
Sensor name XS1
Sensor design Cylindrical M18
Size 64 mm
Body type Fixed
Enclosure material Nickel plated brass
Type of output signal Discrete
Wiring technique 3-wire
[Sn] nominal sensing distance 5 mm
Discrete output function 1 NO
Discrete output type PNP
Electrical connection 4 pins M12 male connector
[Us] rated supply voltage 12...24 V DC with reverse polarity protection
Switching capacity in mA <= 200 mA with overload and short-circuit protection
IP degree of protection IP67 conforming to IEC 60529
Complementary
ISO thread M18 x 1
Detection face Frontal
Detector flush mounting acceptance Flush mountable
Material Metal
Front material PBT
Operating zone 0...4 mm
Differential travel 1...15% of Sr
Output circuit type DC
Feb 07, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Status LED 1 LED yellow for output state
Supply voltage limits 10...36 V DC
Switching frequency <= 1200 Hz
Voltage drop <= 2 V at closed state
Current consumption <= 10 mA at no-load
Delay first up <= 15 ms
Delay response <= 0.1 ms
Delay recovery <= 0.3 ms
Marking CE
Threaded length 43 mm
Height 18 mm
Length 64 mm
Product weight 0.035 kg
Environment
Product certifications CSA
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...85 °C
Vibration resistance 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
UL
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0903 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
Product end of life instructions Available
End of life manual
Contractual warranty
Warranty period 18 months
