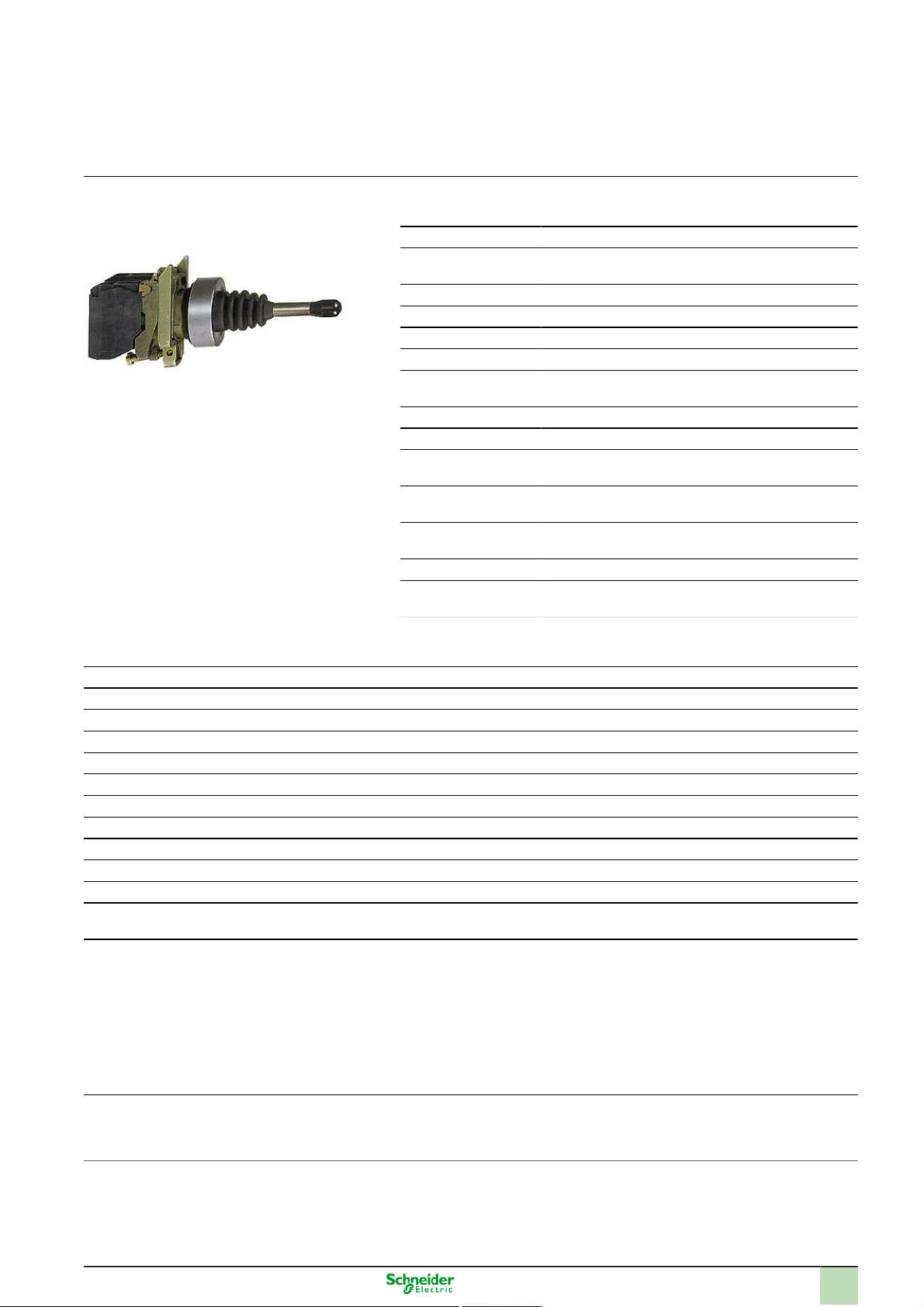

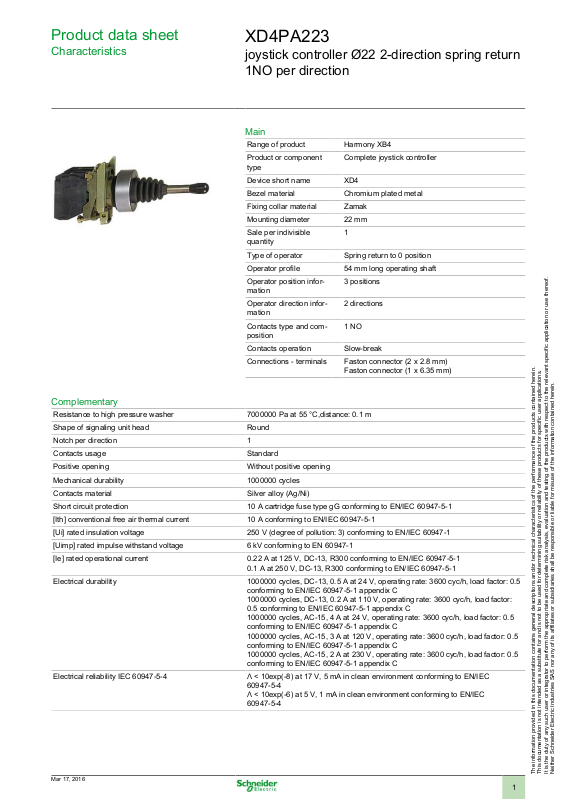

Product data sheet

Characteristics

XD4PA223

joystick controller Ø22 2-direction spring return
1NO per direction

Main

Range of product Harmony XB4

Product or component
type

Device short name XD4

Bezel material Chromium plated metal

Fixing collar material Zamak

Mounting diameter 22 mm

Sale per indivisible
quantity

Type of operator Spring return to 0 position

Operator profile 54 mm long operating shaft

Operator position infor­mation

Operator direction infor­mation

Contacts type and com­position

Contacts operation Slow-break

Connections - terminals Faston connector (2 x 2.8 mm)

Complete joystick controller

1

3 positions

2 directions

1 NO

Faston connector (1 x 6.35 mm)

Complementary

Resistance to high pressure washer 7000000 Pa at 55 °C,distance: 0.1 m

Shape of signaling unit head Round

Notch per direction 1

Contacts usage Standard

Positive opening Without positive opening

Mechanical durability 1000000 cycles

Contacts material Silver alloy (Ag/Ni)

Short circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

[Ith] conventional free air thermal current 10 A conforming to EN/IEC 60947-5-1

[Ui] rated insulation voltage 250 V (degree of pollution: 3) conforming to EN/IEC 60947-1

[Uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-1

[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1

Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5

Electrical reliability IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC

0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1

conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor:

0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C

60947-5-4
Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC
60947-5-4

Mar 17, 2016

1

Environment

Protective treatment TH

Ambient air temperature for storage -40...70 °C

Ambient air temperature for operation -25...70 °C

Class of protection against electric shock Class I conforming to IEC 60536

IP degree of protection IP66 conforming to IEC 60529

NEMA degree of protection NEMA 4X

IK degree of protection IK03 conforming to IEC 50102

Standards EN/IEC 60947-1

Product certifications BV

Vibration resistance 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6

Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC

NEMA 13

EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
CSA C22.2 No 14

CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed

60068-2-27
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC
60068-2-27

2

Product data sheet

Dimensions Drawings

Dimensions

e: panel thickness: 1 to 6mm / 0.04 to 0.24in.

XD4PA223

3

Product data sheet

XD4PA223

Mounting and Clearance

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)

Connection by Screw Clamp Terminals or Plug-in Connectors or on
Printed Circuit Board

(1) Diameter on finished panel or support
(2) 40mm min. / 1.57in. min.
(3) 30mm min. / 1.18in. min.
(4)

Ø 22.5mm / 0.89in. recommended (Ø 22.3mm 0
(5) 45mm min. / 1.78in. min.
(6) 32mm min. / 1.26in. min.

+0.4

/ 0.88in. 0

Connection by Faston Connectors

+0.016

)

4
