Product data sheet
Characteristics

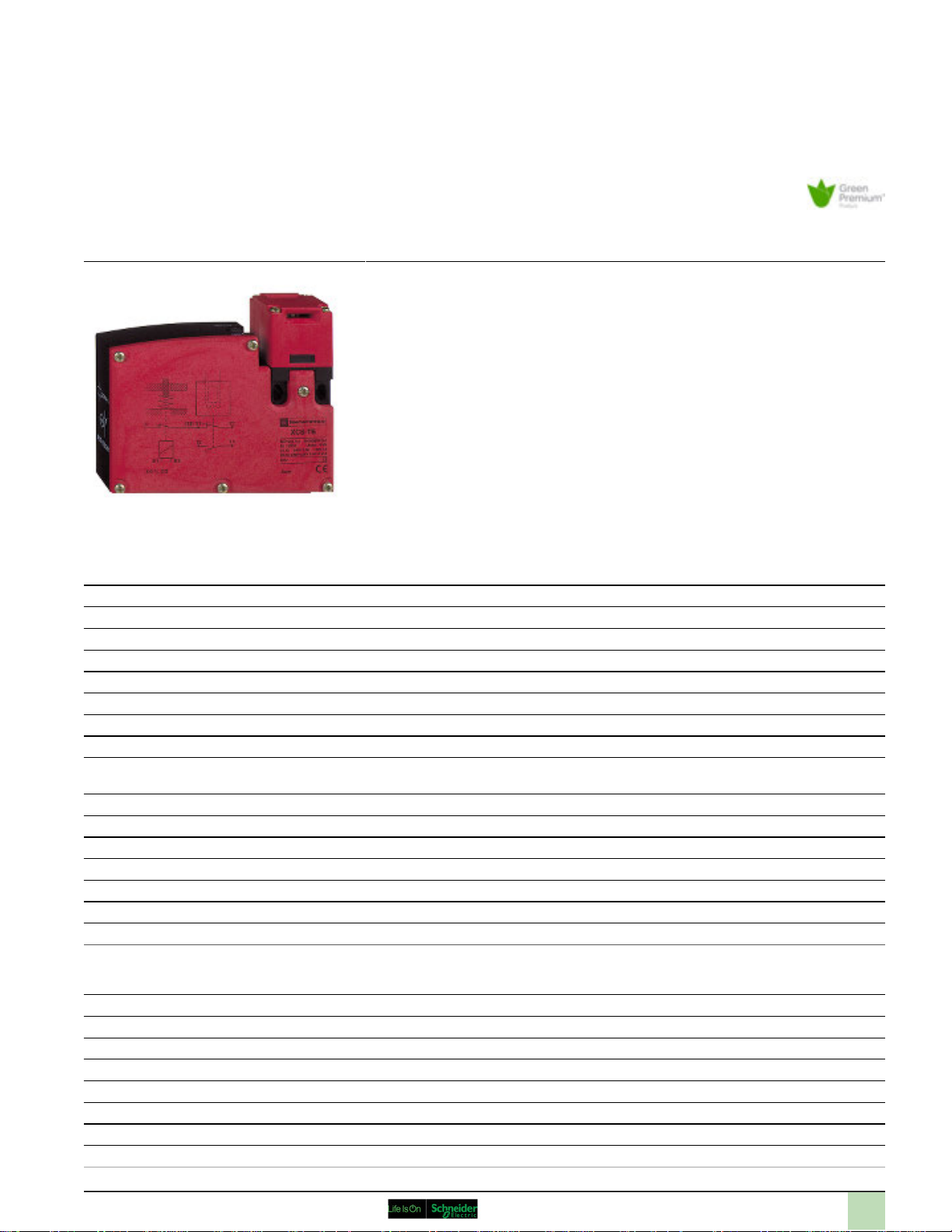

XCSTE5311
plastic safety switch XCSTE - 1NC+1NO- slow
break- 2 entries tapped Pg 11 - 24V
Main
Range of product Preventa Safety detection
Product or component type Safety switch
Component name XCSTE
Design Rectangular
Material Plastic
Head type Key operated turret head
Contacts type and composition 1 NC + 1 NO
Contact operation Slow-break, break before make
Solenoid contacts type and
composition
Cable entry 1 entry tapped Pg 11
Electromagnet interlocking Locking on de-energisation and unlocking on energisation of solenoid
[Us] rated supply voltage 24 V (- 20...10 %)
Cable outer diameter 7...10 mm
Electrical connection Terminal, 1 x 0.5...2 x 1.5 mm² with or without cable end
Number of poles 2
Locking options description With interlocking, locking by solenoid
1 NC (slow-break)
Complementary
Insulation Double insulated
Positive opening With NC contact
Supply voltage type AC/DC
Supply frequency 50/60 Hz
Load factor 1
Power consumption in VA 10 VA
Mechanical durability 1000000 cycles
Positive opening minimum force 15 N
Dec 08, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Minimum actuation speed 0.01 m/s
Maximum actuation speed 0.5 m/s
[Ie] rated operational current 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1
[Ithe] conventional enclosed thermal
current
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-5-1
Short-circuit protection 10 A cartridge fuse type gG (gl)
Actuator forcible withdrawal rtc 500 N
Operating rate 10 cyc/mn for maximum durability
Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/
Safety reliability data B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Body material PA (polyamide)
Head material PA (polyamide)
Depth 33 mm
Height 94 mm
Width 110 mm
Product weight 0.36 kg
0.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1
3 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1
1.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1
6 A
500 V conforming to EN/IEC 60947-1
300 V conforming to UL 508
ISO 13849-1
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO
13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC
61508
Environment
Standards CSA C22.2 No 14
Product certifications CSA
Protective treatment TC
Ambient air temperature for operation -25...60 °C
Ambient air temperature for storage -40...70 °C
Vibration resistance 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Shock resistance 10 gn for 11 ms conforming to IEC 60068-2-27
Electrical shock protection class Class II conforming to EN/IEC 61140
IP degree of protection IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
UL 508
EN/ISO 12100
EN 1088/ISO 14119
EN/IEC 60204-1
EN/IEC 60947-5-1
UL
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1014 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Contractual warranty
Warranty period 18 months
