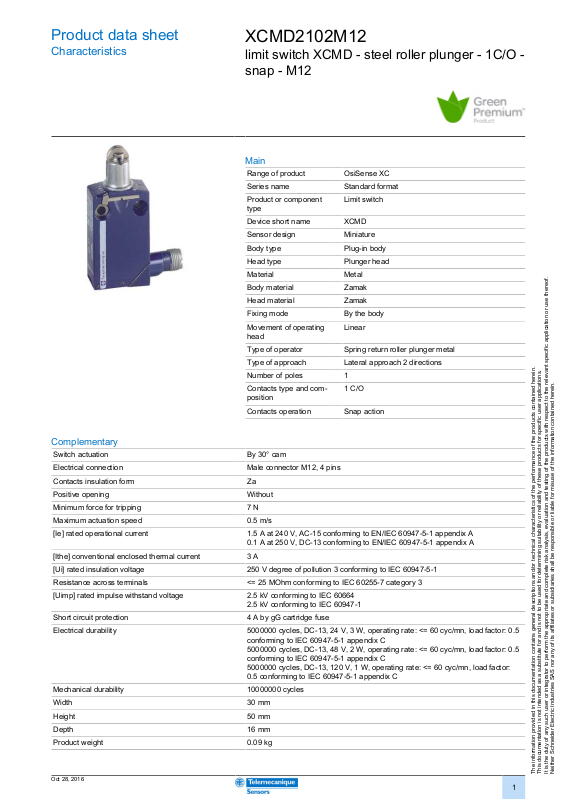

Product data sheet
Characteristics
XCMD2102M12
limit switch XCMD - steel roller plunger - 1C/O snap - M12
Main
Range of product OsiSense XC
Series name Standard format
Product or component
type
Device short name XCMD
Sensor design Miniature
Body type Plug-in body
Head type Plunger head
Material Metal
Body material Zamak
Head material Zamak
Fixing mode By the body
Movement of operating
head
Type of operator Spring return roller plunger metal
Type of approach Lateral approach 2 directions
Number of poles 1
Contacts type and composition
Contacts operation Snap action
Limit switch
Linear
1 C/O
Complementary
Switch actuation By 30° cam
Electrical connection Male connector M12, 4 pins
Contacts insulation form Za
Positive opening Without
Minimum force for tripping 7 N
Maximum actuation speed 0.5 m/s
[Ie] rated operational current 1.5 A at 240 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current 3 A
[Ui] rated insulation voltage 250 V degree of pollution 3 conforming to IEC 60947-5-1
Resistance across terminals <= 25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60664
Short circuit protection 4 A by gG cartridge fuse
Electrical durability 5000000 cycles, DC-13, 24 V, 3 W, operating rate: <= 60 cyc/mn, load factor: 0.5
Mechanical durability 10000000 cycles
Width 30 mm
Height 50 mm
Depth 16 mm
Product weight 0.09 kg
0.1 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
2.5 kV conforming to IEC 60947-1
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 2 W, operating rate: <= 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 120 V, 1 W, operating rate: <= 60 cyc/mn, load factor:
0.5 conforming to IEC 60947-5-1 appendix C
Oct 28, 2016
1
Environment
Shock resistance 25 gn (duration = 18 ms) conforming to IEC 60068-2-27
Vibration resistance 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
IP degree of protection IP66 conforming to IEC 60529
IK degree of protection IK06 conforming to EN 50102
Class of protection against electric shock Class I conforming to IEC 61140
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...70 °C
Protective treatment TC
Product certifications CCC
Standards EN/IEC 60204-1
IP67 conforming to IEC 60529
IP68 conforming to IEC 60529
Class I conforming to NF C 20-030
CSA
UL
EN/IEC 60947-5-1
UL 508
CSA C22.2 No 14
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW)
REACh Reference not containing SVHC above the threshold
Product environmental profile
Product end of life instructions Need no specific recycling operations
Compliant - since 1002 - Schneider Electric declaration of conformity
Available Download Product Environmental
2
Product data sheet
Dimensions Drawings
Dimensions
XCMD2102M12
(1) 2 fixing holes Ø 4.2 mm, counterbored Ø 8 mm by 4 mm deep.
3
Product data sheet
Mounting and Clearance
Setting-up
Plunger or Multi-directional Heads
XCMD2102M12
4
Product data sheet
XCMD2102M12
Connections and Schema
Wiring Diagram
Single-pole CO Snap Action + Integral M12 4-pin Connector
Wiring Diagram
4-pin, M12, 3A-250V
1 : Common
2 : NC
3 : Grounding
4 : NO
5
Product data sheet
Technical Description
Characteristics of Actuation
Switch Actuation by 30° Cam
Functionnal Diagram
XCMD2102M12
(P) Positive opening point
(A) Cam displacement
(1) Closed
(2) Open
(3) Tripping
(4) Resetting
6
