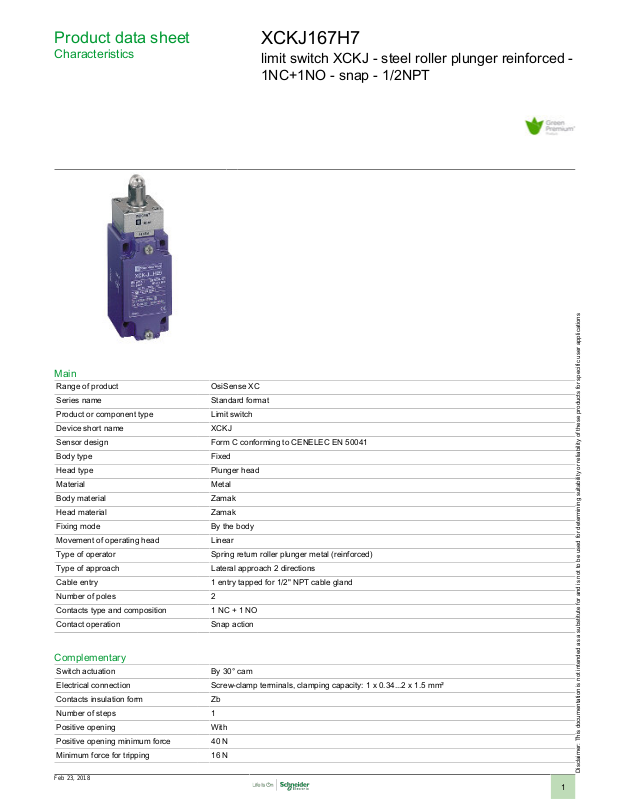

Product data sheet
Characteristics
XCKJ167H7
limit switch XCKJ - steel roller plunger reinforced 1NC+1NO - snap - 1/2NPT
Main
Range of product OsiSense XC
Series name Standard format
Product or component type Limit switch
Device short name XCKJ
Sensor design Form C conforming to CENELEC EN 50041
Body type Fixed
Head type Plunger head
Material Metal
Body material Zamak
Head material Zamak
Fixing mode By the body
Movement of operating head Linear
Type of operator Spring return roller plunger metal (reinforced)
Type of approach Lateral approach 2 directions
Cable entry 1 entry tapped for 1/2" NPT cable gland
Number of poles 2
Contacts type and composition 1 NC + 1 NO
Contact operation Snap action
Complementary
Switch actuation By 30° cam
Electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form Zb
Number of steps 1
Positive opening With
Positive opening minimum force 40 N
Minimum force for tripping 16 N
Feb 23, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Maximum actuation speed 1 m/s
[Ie] rated operational current 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal
current
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14
Resistance across terminals <= 25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
Short-circuit protection 10 A by gG cartridge fuse
Electrical durability 5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate: <= 60 cyc/mn, load factor:
Mechanical durability 25000000 cycles
Width 40 mm
Height 77 mm
Depth 44 mm
Product weight 0.455 kg
Terminals description ISO n°1 (13-14)NO
Compatibility code XCKJ
Specific application Industrial
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
10 A
500 V degree of pollution 3 conforming to IEC 60947-1
300 V conforming to UL 508
6 kV conforming to IEC 60947-1
0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate: <= 60 cyc/mn, load factor:
0.5 conforming to IEC 60947-5-1 appendix C
(21-22)NC
Environment
Shock resistance 50 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance 25 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
IP degree of protection IP66 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Overvoltage category Class I conforming to NF C 20-030
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...70 °C
Protective treatment TC
Product certifications CCC
Standards CENELEC EN 50041
Class I conforming to IEC 61140
CSA
UL
EN 60204-1
EN 60947-5-1
IEC 60204-1
IEC 60947-5-1
UL 508
CSA C22.2 No 14
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1103 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product end of life instructions Need no specific recycling operations
2
Contractual warranty
Warranty period 18 months
