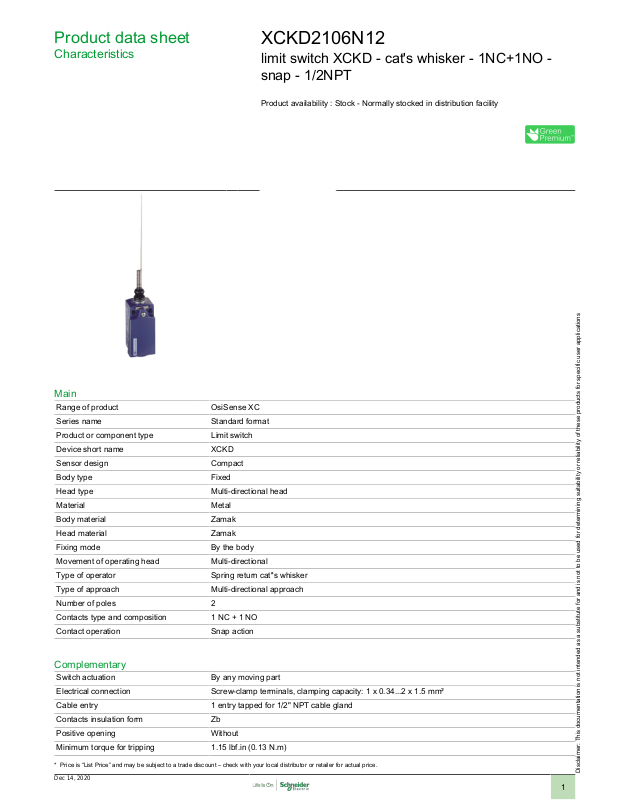

Square D XCKD2106N12 Data Sheet

Product data sheet

Characteristics

XCKD2106N12

limit switch XCKD - cat's whisker - 1NC+1NO ­snap - 1/2NPT

Product availability : Stock - Normally stocked in distribution facility

Main

Range of product OsiSense XC

Series name Standard format

Product or component type Limit switch

Device short name XCKD

Sensor design Compact

Body type Fixed

Head type Multi-directional head

Material Metal

Body material Zamak

Head material Zamak

Fixing mode By the body

Movement of operating head Multi-directional

Type of operator Spring return cat''s whisker

Type of approach Multi-directional approach

Number of poles 2

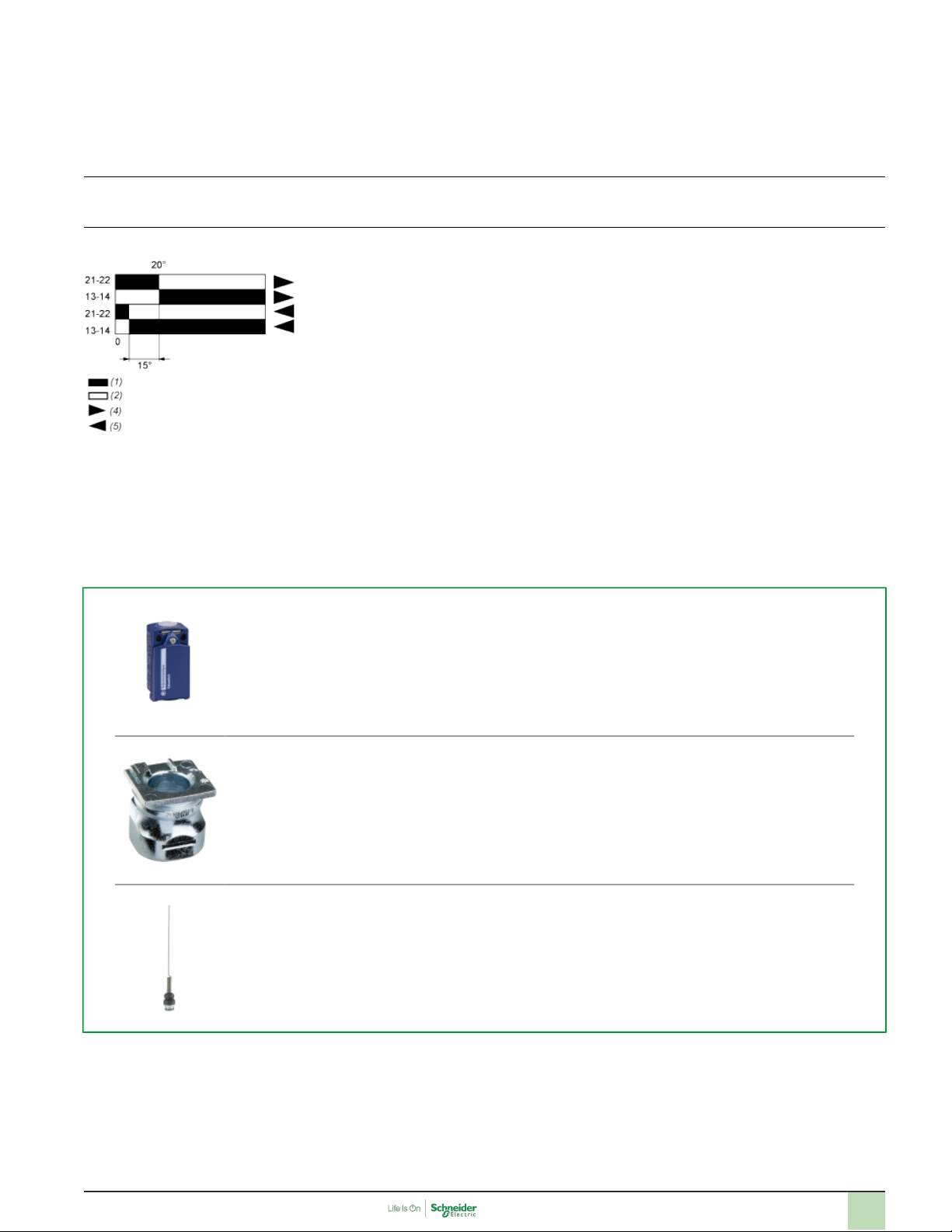

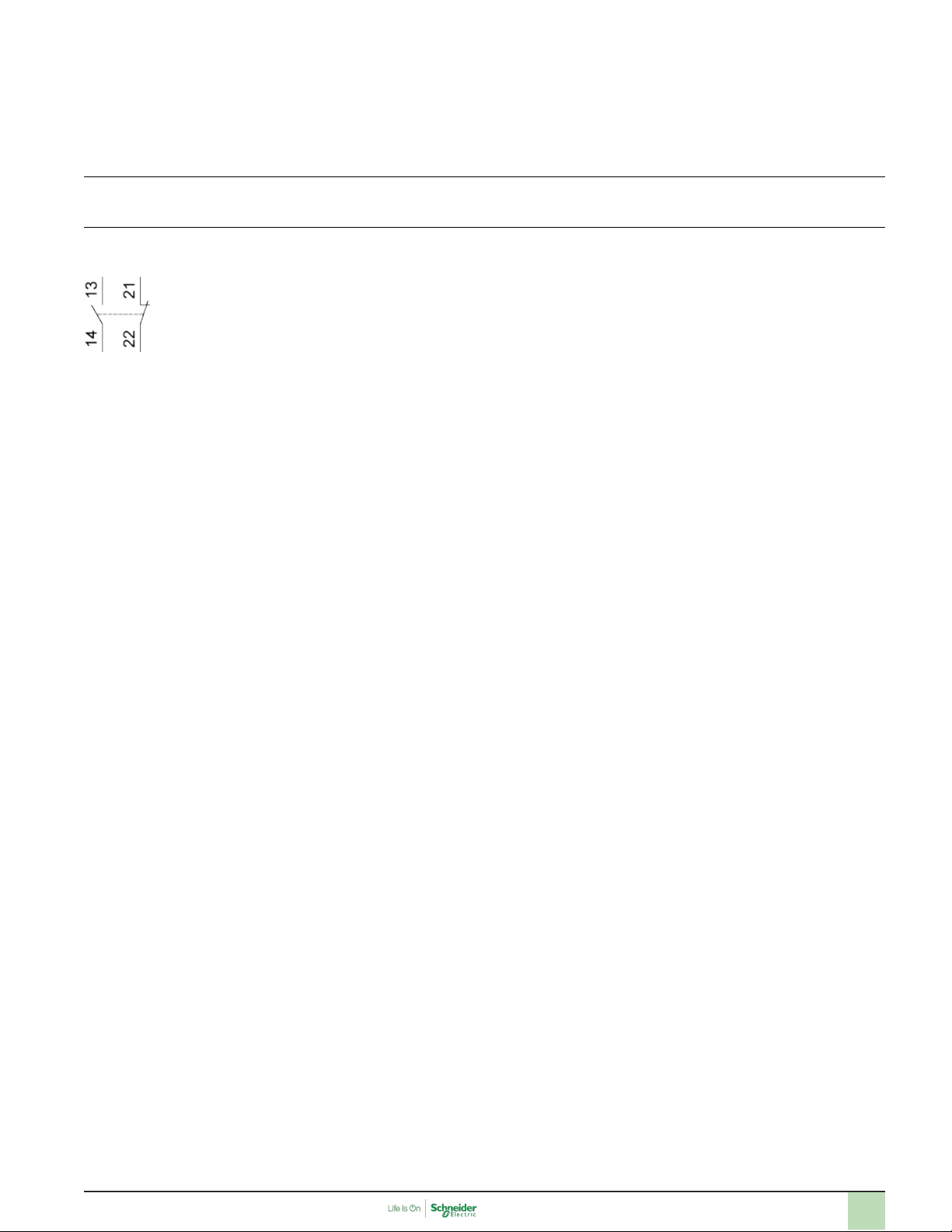

Contacts type and composition 1 NC + 1 NO

Contact operation Snap action

Complementary

Switch actuation By any moving part

Electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Cable entry 1 entry tapped for 1/2" NPT cable gland

Contacts insulation form Zb

Positive opening Without

Minimum torque for tripping 1.15lbf.in (0.13N.m)

*Price is “List Price” and may be subject to a trade discount – check with your local distributor or retailer for actual price.

Dec 14, 2020

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

Maximum actuation speed 1m/s

Contact code designation A300, AC-15 (Ue = 240 V), Ie = 3A, Ithe = 10A conforming to EN/IEC 60947-5-1 appendix A

[Ui] rated insulation voltage 300V conforming to UL 508

Maximum resistance across terminals 25MOhm conforming to IEC 60255-7 category 3

[Uimp] rated impulse withstand voltage 6kV IEC 60664

Short-circuit protection 10A cartridge fuse gG

Electrical durability 5000000cycles, DC-13, 120 V, 4 W, operating rate <60cyc/mn, load factor: 0.5 conforming to IEC

Mechanical durability 5000000cycles

Q300, DC-13 (Ue = 250 V), Ie = 0.27A conforming to EN/IEC 60947-5-1 appendix A

500V (pollution degree 3) conforming to IEC 60947-1
300VCSA C22.2 No 14

6kV IEC 60947-1

60947-5-1 appendix C
5000000cycles, DC-13, 24 V, 10 W, operating rate <60cyc/mn, load factor: 0.5 conforming to IEC
60947-5-1 appendix C
5000000cycles, DC-13, 48 V, 7 W, operating rate <60cyc/mn, load factor: 0.5 conforming to IEC
60947-5-1 appendix C

Environment

Shock resistance 50 gn 11ms IEC 60068-2-27

Vibration resistance 25 gn (f= 10…500Hz) conforming to IEC 60068-2-6

IK degree of protection IK06 EN 50102

Electrical shock protection class Class I IEC 61140

Ambient air temperature for operation -13…158°F (-25…70°C)

Ambient air temperature for storage -40…158°F (-40…70°C)

Protective treatment TC

Product certifications UL

Standards EN 60947-5-1

Class I NF C 20-030

CSA
CCC

UL 508
IEC 60204-1
EN 60204-1
CSA C22.2 No 14
IEC 60947-5-1

Ordering and shipping details

Category 22418 - LIMIT SWITCH,IEC,XCKP&XCKT

Discount Schedule T

GTIN 00785901300533

Nbr. of units in pkg. 1

Package weight(Lbs) 0.7lb(US) (0.32kg)

Returnability Yes

Country of origin FR

Packing Units

Unit Type of Package 1 PCE

Package 1 Height 8.07in (20.5cm)

Package 1 width 1.22in (3.1cm)

Package 1 Length 1.34in (3.4cm)

Offer Sustainability

Sustainable offer status Green Premium product

California proposition 65 WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which

is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known

2

to the State of California to cause birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov

REACh Regulation REACh Declaration

EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free Yes

RoHS exemption information Yes

Environmental Disclosure Product Environmental Profile

EU RoHS Declaration

Contractual warranty

Warranty 18 months
