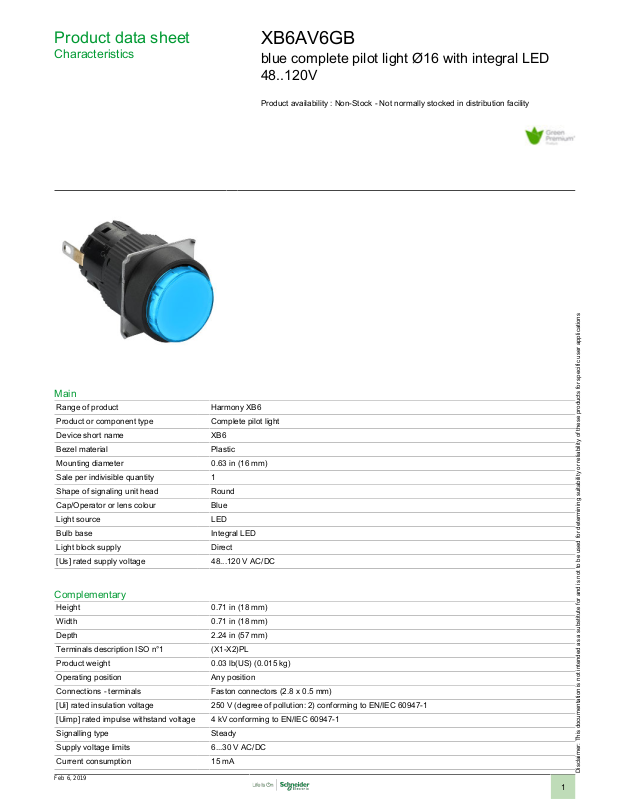

Product data sheet
Characteristics
XB6AV6GB
blue complete pilot light Ø16 with integral LED
48..120V
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Range of product Harmony XB6
Product or component type Complete pilot light
Device short name XB6
Bezel material Plastic
Mounting diameter 0.63 in (16 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Cap/Operator or lens colour Blue
Light source LED
Bulb base Integral LED
Light block supply Direct
[Us] rated supply voltage 48...120 V AC/DC
Complementary
Height 0.71 in (18 mm)
Width 0.71 in (18 mm)
Depth 2.24 in (57 mm)
Terminals description ISO n°1 (X1-X2)PL
Product weight 0.03 lb(US) (0.015 kg)
Operating position Any position
Connections - terminals Faston connectors (2.8 x 0.5 mm)
[Ui] rated insulation voltage 250 V (degree of pollution: 2) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1
Signalling type Steady
Supply voltage limits 6...30 V AC/DC
Current consumption 15 mA
Feb 6, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Surge withstand 1 kV direct contact conforming to IEC 61000-4-5
2 kV in free air conforming to IEC 61000-4-5
Environment
Protective treatment TC
Ambient air temperature for storage -40...158 °F (-40...70 °C)
Ambient air temperature for operation -13...158 °F (-25...70 °C)
Electrical shock protection class Class II conforming to IEC 61140
IP degree of protection IP65 conforming to IEC 60529
NEMA degree of protection NEMA 4 conforming to CSA C22.2 No 94
Standards EN/IEC 60947-1
Product certifications CCC
Vibration resistance +/- 3 mm (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields 9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
Resistance to electrostatic discharge 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Electromagnetic emission Class B conforming to EN 55011
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
CSA
GOST
UL
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Ordering and shipping details
Category 22459 - PUSHBUTTONS, 16MM
Discount Schedule CS2
GTIN 00785901654834
Nbr. of units in pkg. 1
Package weight(Lbs) 0.10000000000000001
Returnability N
Country of origin FR
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0727 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Available
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Nickel compounds, which is known to the State of California to cause cancer, and
- - - - - - - Substance 2 Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other
reproductive harm.
