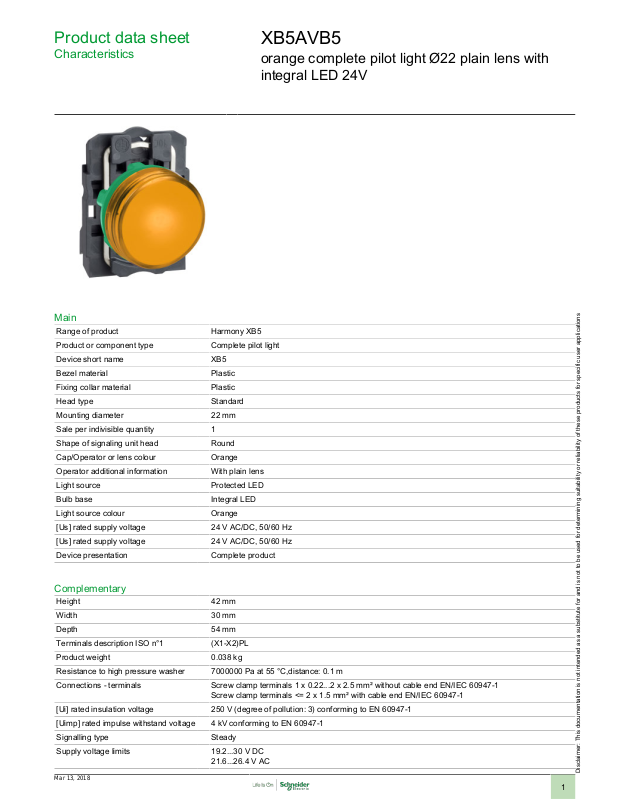

Product data sheet
Characteristics
XB5AVB5
orange complete pilot light Ø22 plain lens with
integral LED 24V
Main
Range of product Harmony XB5
Product or component type Complete pilot light
Device short name XB5
Bezel material Plastic
Fixing collar material Plastic
Head type Standard
Mounting diameter 22 mm
Sale per indivisible quantity 1
Shape of signaling unit head Round
Cap/Operator or lens colour Orange
Operator additional information With plain lens
Light source Protected LED
Bulb base Integral LED
Light source colour Orange
[Us] rated supply voltage 24 V AC/DC, 50/60 Hz
[Us] rated supply voltage 24 V AC/DC, 50/60 Hz
Device presentation Complete product
Complementary
Height 42 mm
Width 30 mm
Depth 54 mm
Terminals description ISO n°1 (X1-X2)PL
Product weight 0.038 kg
Resistance to high pressure washer 7000000 Pa at 55 °C,distance: 0.1 m
Connections - terminals Screw clamp terminals 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Screw clamp terminals <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
[Ui] rated insulation voltage 250 V (degree of pollution: 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to EN 60947-1
Signalling type Steady
Supply voltage limits 19.2...30 V DC
21.6...26.4 V AC
Mar 13, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Current consumption 18 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV conforming to IEC 61000-4-5
Compatibility code XB5
Environment
Protective treatment TH
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -40...70 °C
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP69 conforming to IEC 60529
NEMA degree of protection NEMA 13
IK degree of protection IK05 conforming to IEC 50102
Standards EN/IEC 60947-5-1
Product certifications CSA
Vibration resistance 5 gn (f = 12...500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Electromagnetic compatibility Electrostatic discharge 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance to electrostatic discharge 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Electromagnetic emission Class B conforming to IEC 55011
IP69K conforming to ISO 20653
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
NEMA 4X
EN/IEC 60947-5-4
EN/IEC 60947-1
UL 508
JIS C 4520
CSA C22.2 No 14
UL listed
30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Electrostatic discharge 6 kV on contact (on metal parts) IEC 61000-4-2
Electromagnetic emission class B IEC 55011
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
Contractual warranty
Warranty period 18 months
